The Triple 4K Display Docking Station (ST-D4KTM) is the best Satechi dock for users who need high-wattage laptop charging combined with multi-monitor output. Key specs: delivers up to 100W charging passthrough to your connected MacBook, supports up to 3x 4K/60Hz external displays, 12 total ports including 3x HDMI 2.0, 2x DisplayPort 1.4, USB-A 3.1 Gen 2, USB-C 3.1 Gen 2, 2x USB-A 3.0, USB-C 3.0, Gigabit Ethernet, and audio in/out. Compatible with MacBook Pro and MacBook Air including M1/M2/M3/M4 models. DisplayLink software is required for display groups 2 and 3. Includes 130W power supply. Single-cable connection via USB-C.
Recommended for: MacBook Pro users who need 100W charging and support for dual or triple 4K monitors at their desk.
Product Video Overview
For more product videos head to https://www.youtube.com/@satechi
Does the Triple 4K Docking Station work with a USB-A connection?
Yes, there is an included USB-C-to-USB-A adapter with the dock for connecting to a host device via USB-A. Using USB connections, DisplayLink lets you break through this barrier and connect multiple monitors to your computer without needing built-in video ports.
Note: Requires installation of DisplayLink Software before using.
Is DisplayLink Software required?
Yes, for full functionality and to utilize the Display groups 2 and 3 (DisplayPort and HDMI) on the dock, we recommend following the link below, where you will find the file to download the software: https://www.synaptics.com/products/displaylink-graphics#downloads
macOS: Screen Recording Permission
macOS requires the user to permit "Screen Recording" for DisplayLink driver to work properly. Approving it enables the DisplayLink to access the pixels it needs to render a mirrored or extended screen and send the pixels over USB from your computer to the DisplayLink display. DisplayLink Manager does not send any data or pixels back to DisplayLink/Synaptics.
User is notified about a need for Screen Recording permission in three places.

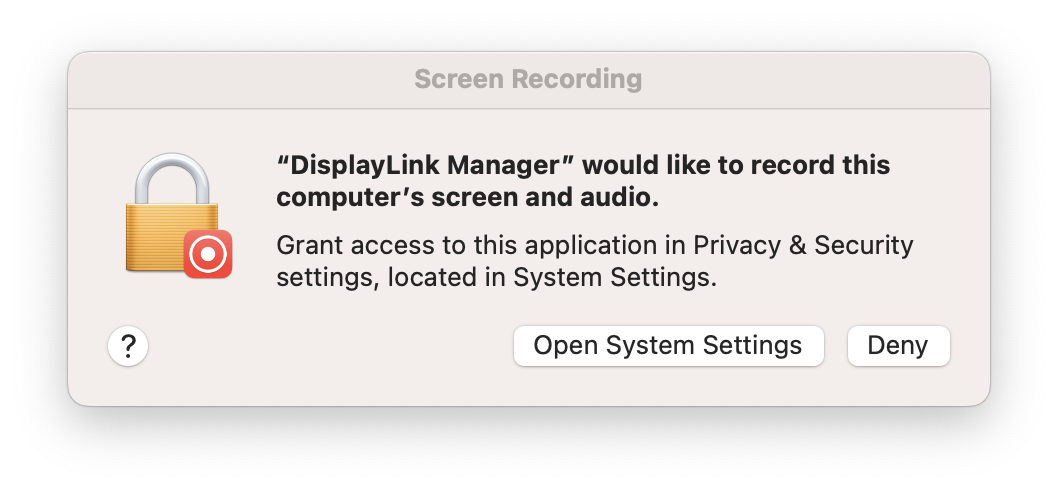

- By macOS dialog box on first DisplayLink device plug-in

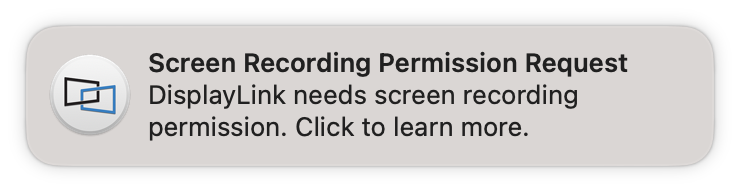

- By DisplayLink driver on each device plug-in:
- By DisplayLink Manager app warning in macOS status bar:
To approve the permission, please follow these steps:
- Open System Settings;

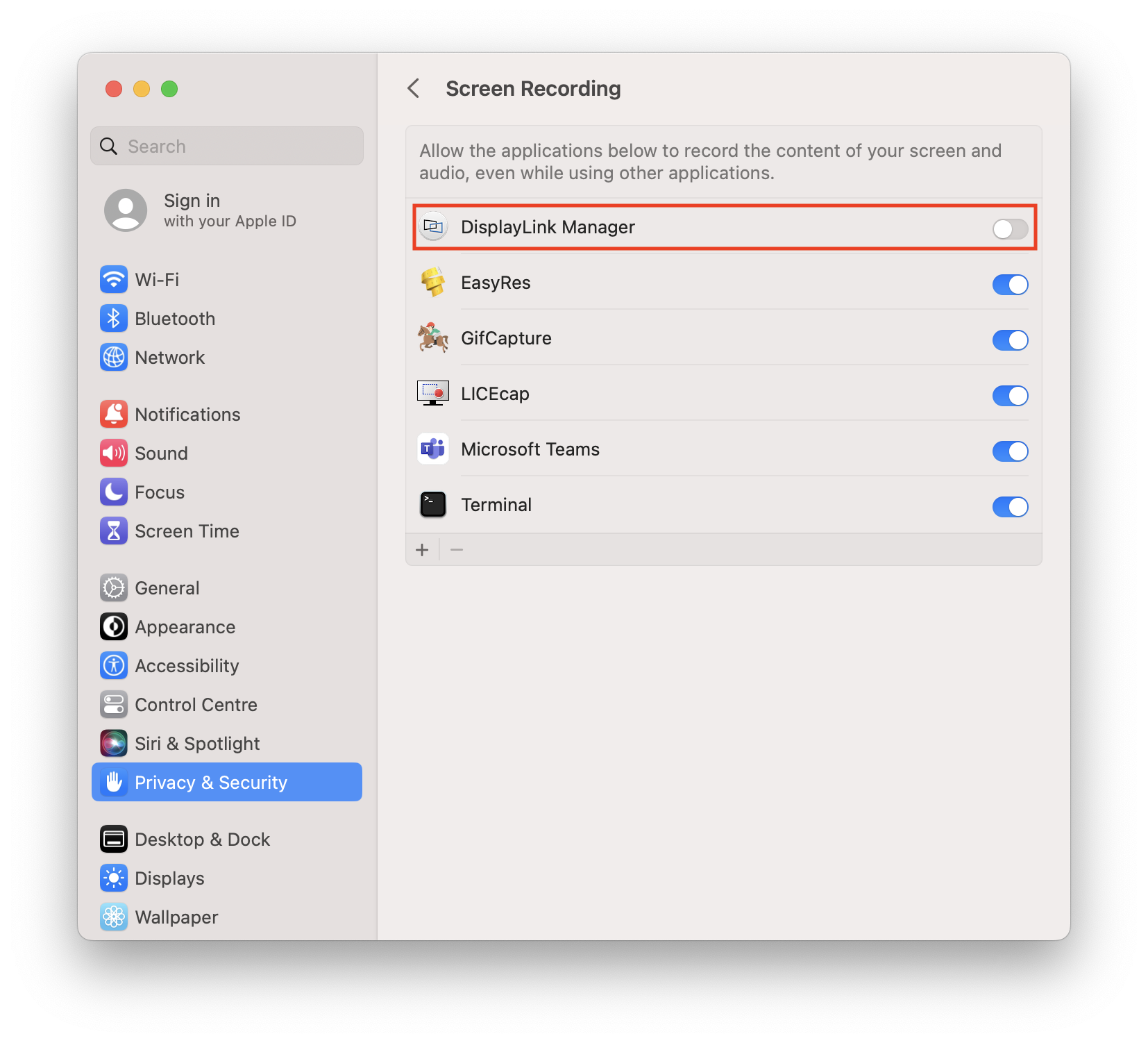

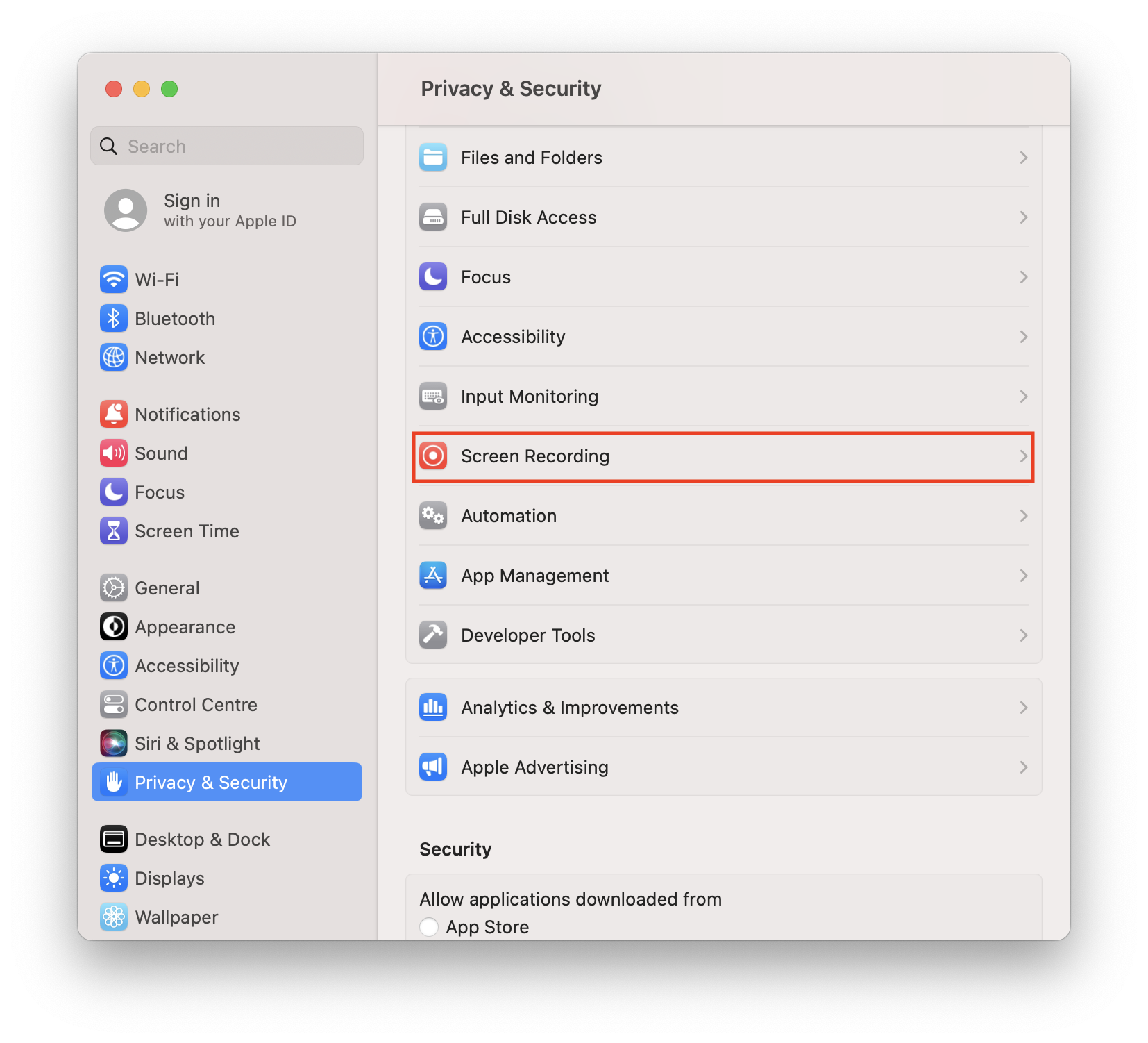

- Go to Privacy & Security > Screen Recording;
- From Screen Recording tab toggle DisplayLink Manager;
- Authenticate the changes by using your login details;

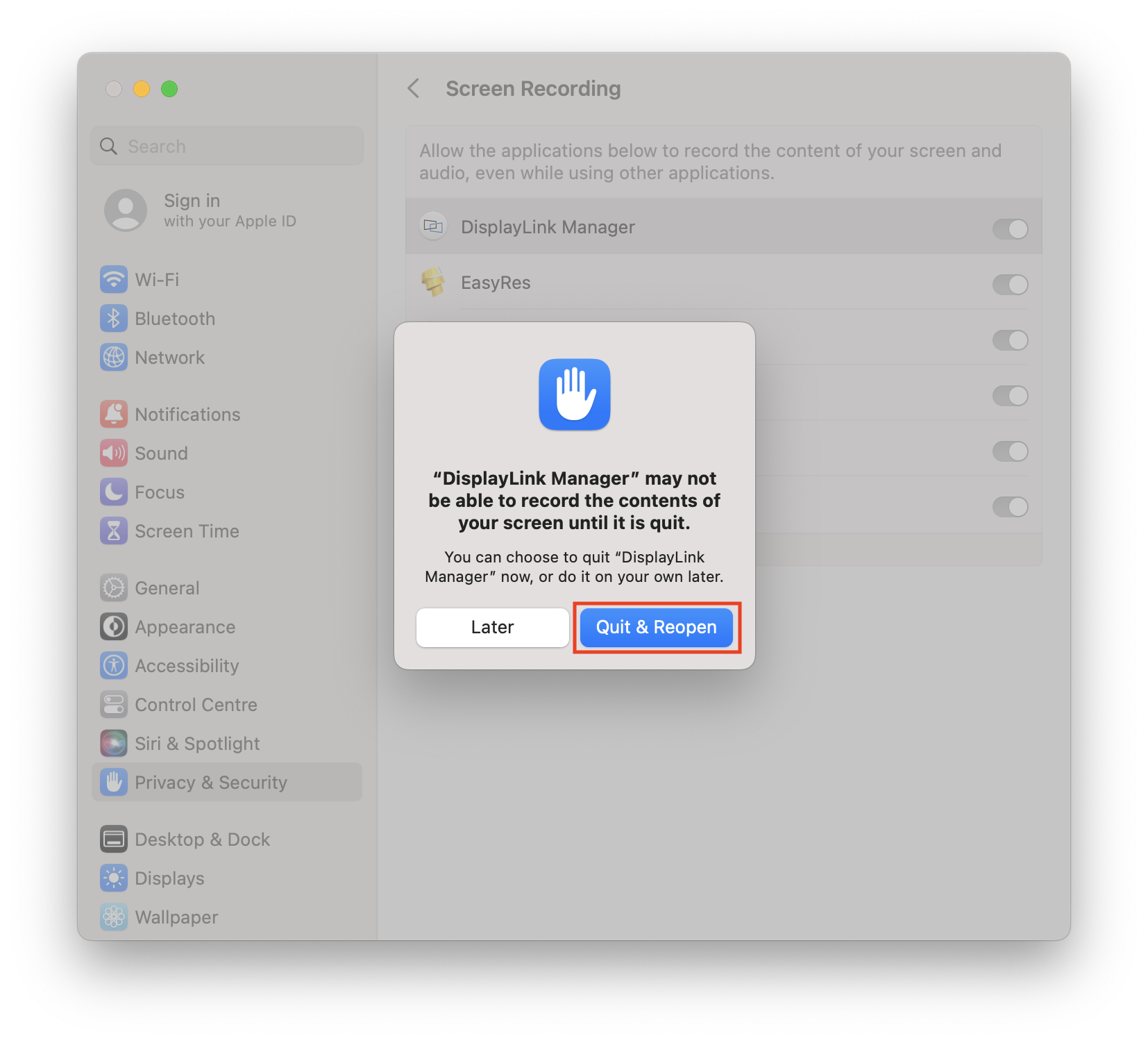

- Click Quit & Reopen.

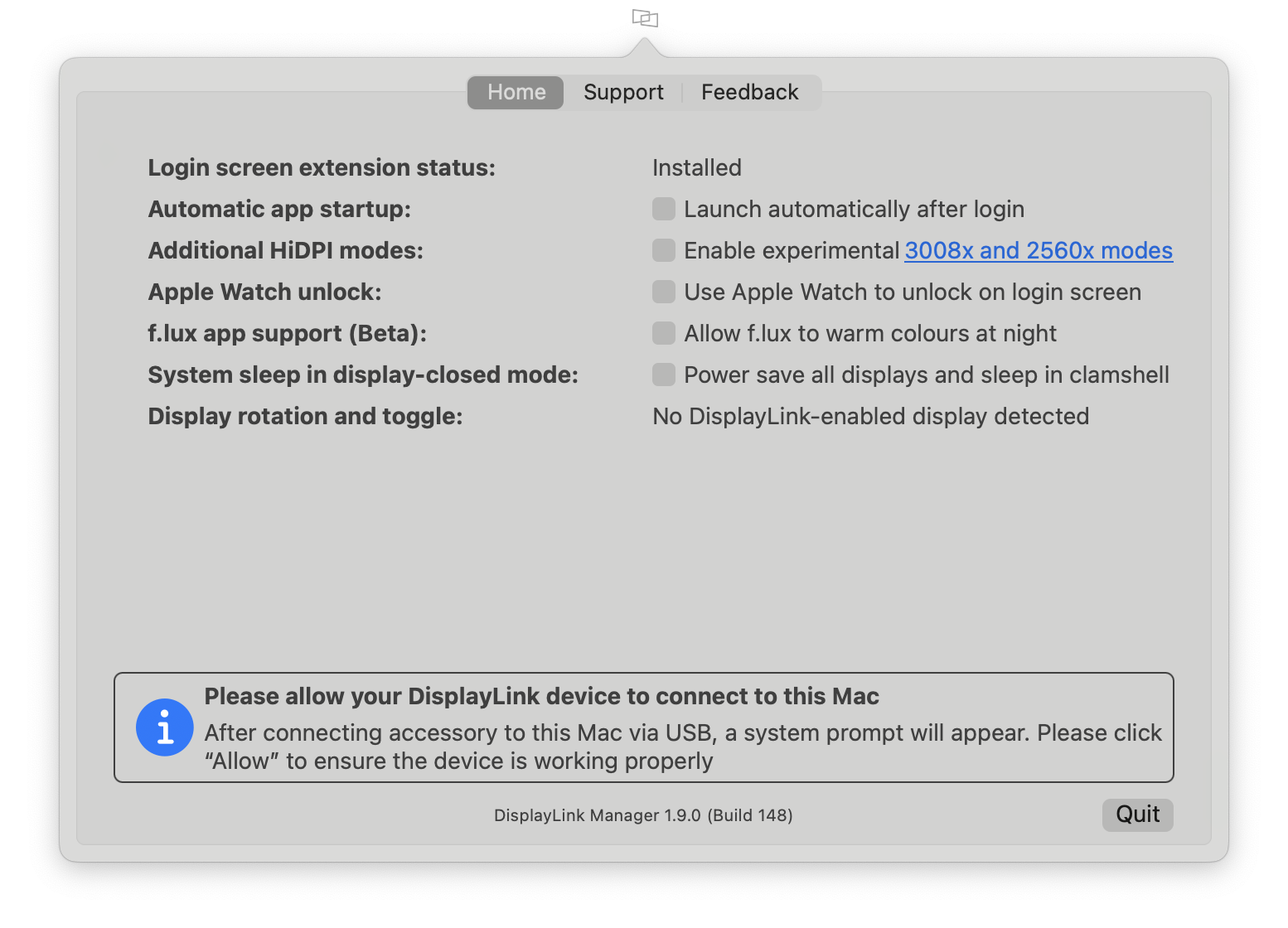

Once permissions are granted a new icon will show up in the macOS status bar:
macOS Sonoma introduces a new screen recording control, called screen sharing picker to help manage all the screen recording sessions.
See the following article for all the information about the new screen sharing picker: macOS Sonoma 14: Screen Sharing Picker and Stop Sharing Button (DisplayLink KB article no longer available).
Source: macOS Sonoma 14: Screen Recording Permission (DisplayLink KB article no longer available)
How To Save Main Window When Docking
When connecting your dock, you may want to have a preferred main screen to get started on your work flow.
Here's how to make your setup seamless!

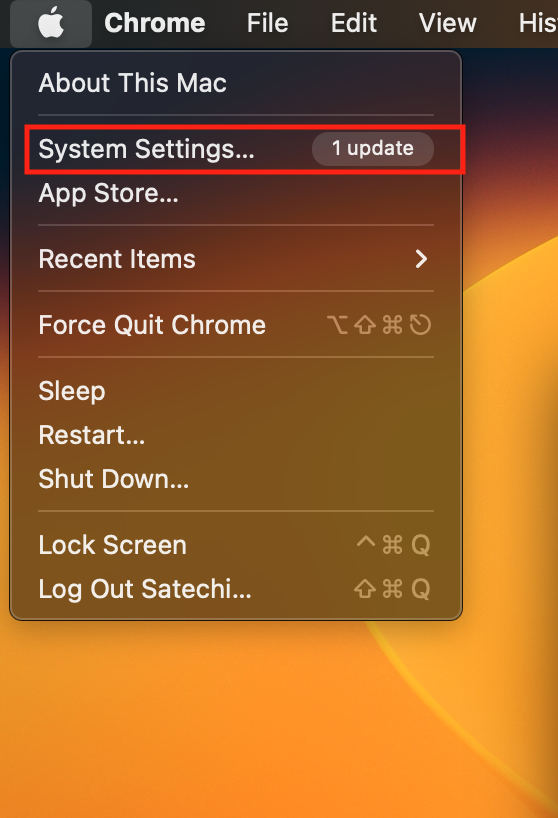

Step 1: Go to the top left corner to select the "Apple Logo" > Select "System Settings"

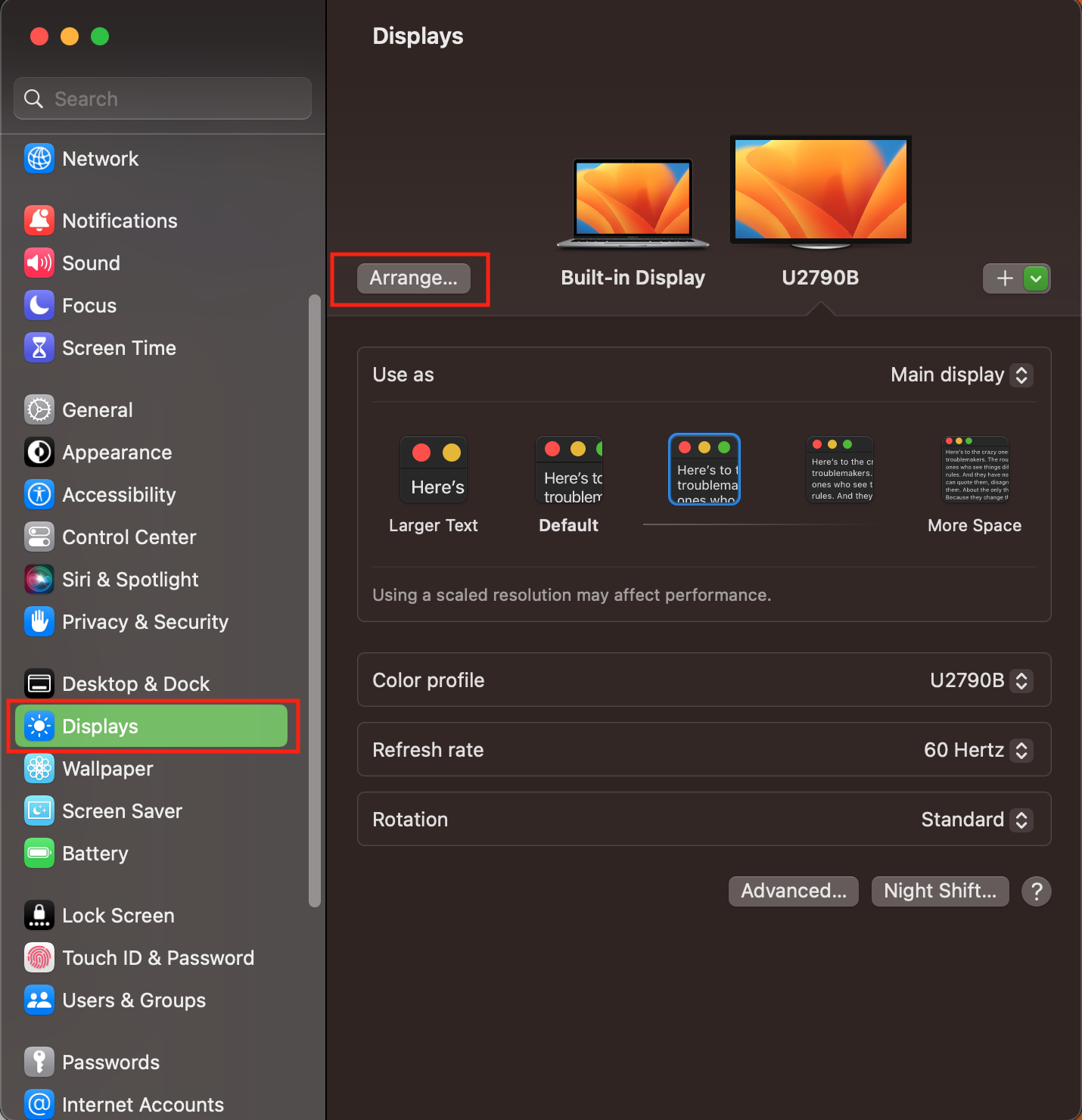

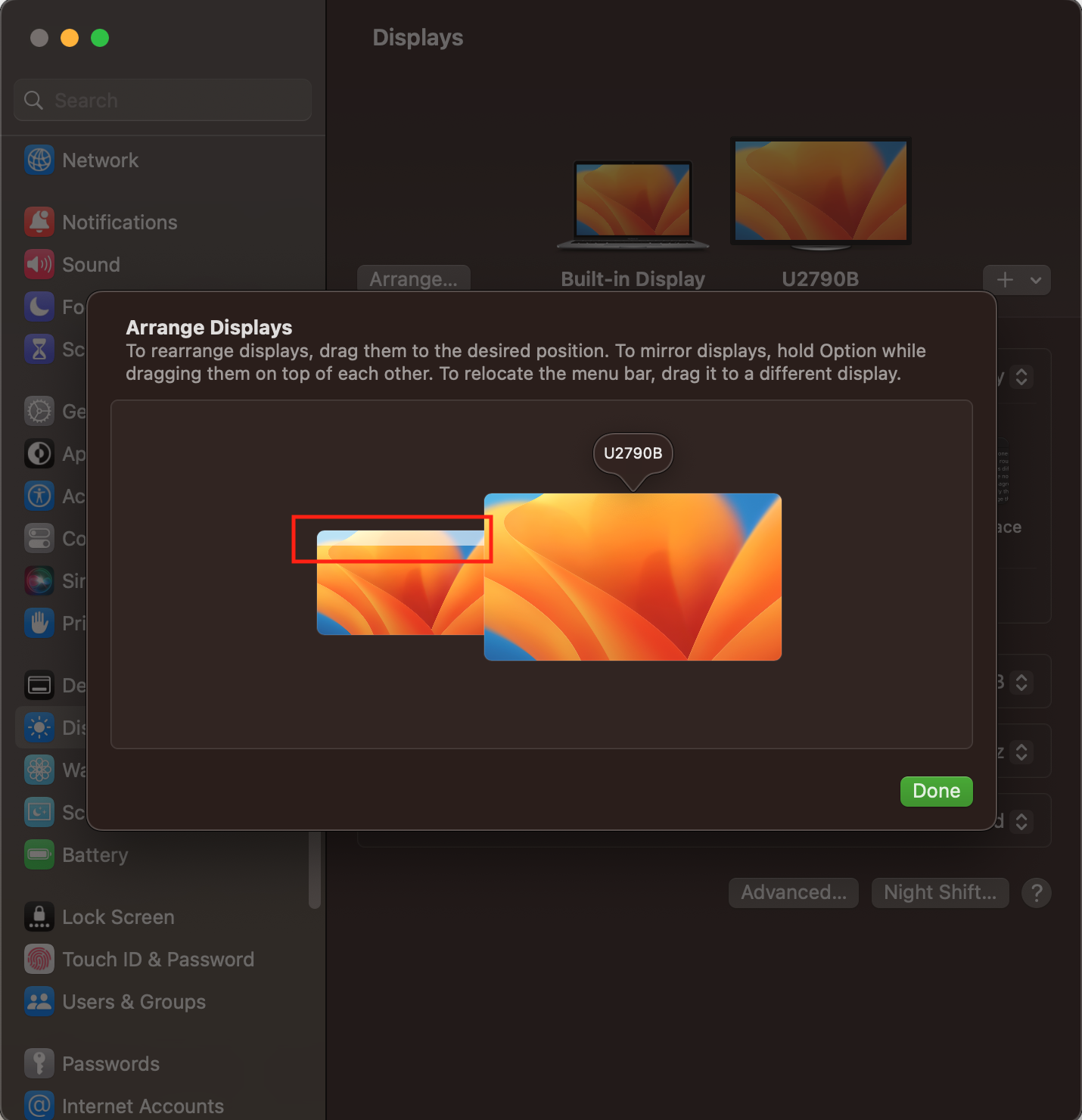

Step 2: You'll be brought to the "System's Setting" page > Select " Displays" > " Arrange.."

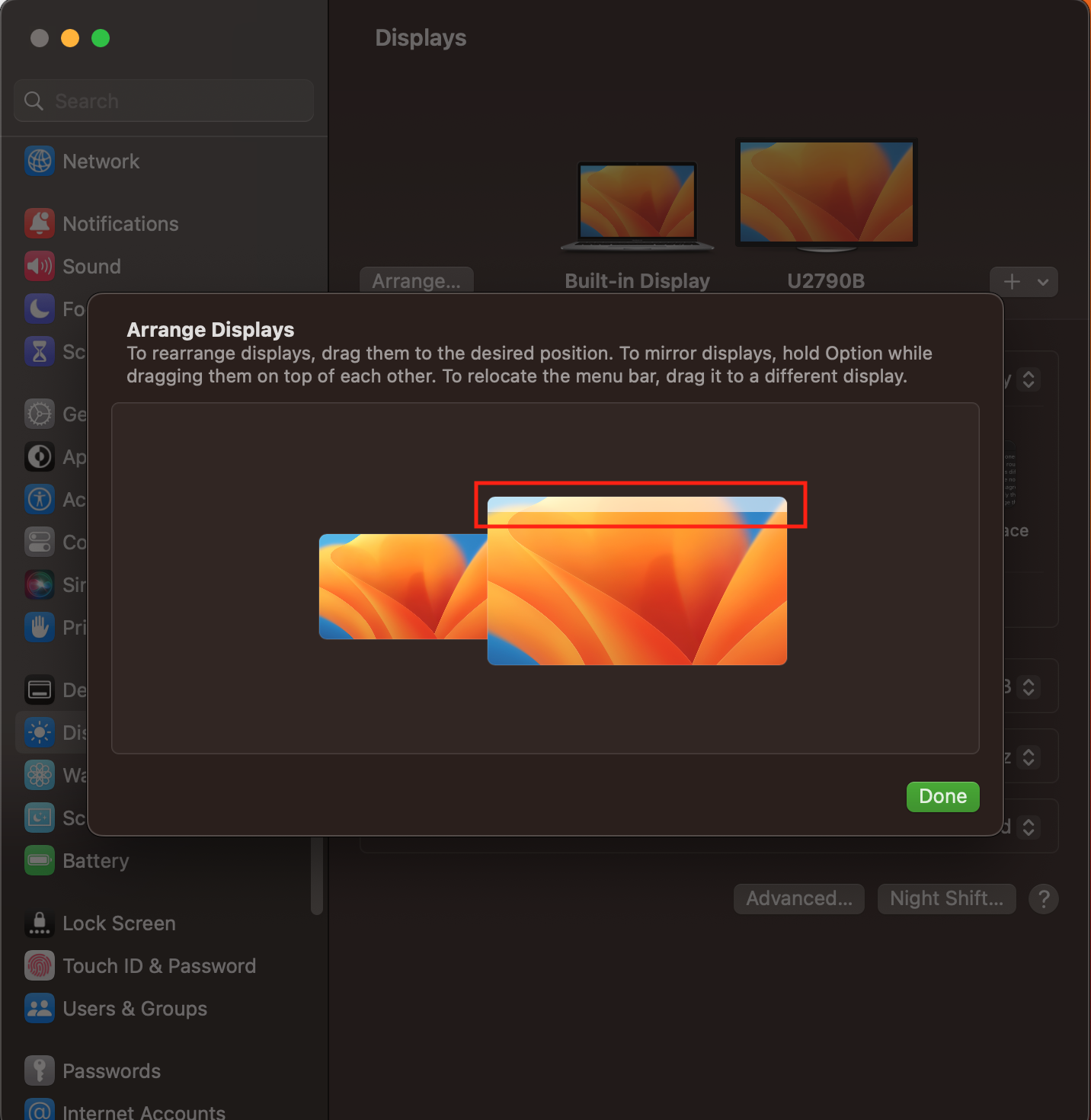

Step 3: There is a white bar that is on the top display monitor. You will select this, holding and dragging to the screen you prefer to be your main screen.
Completed: Now when docking, your Mac will remember the last orientation from the last connection!
Why can't I hear Audio on my Headphones when connected to the 3.5mm Audio Port of this Hub, dock or adapter?

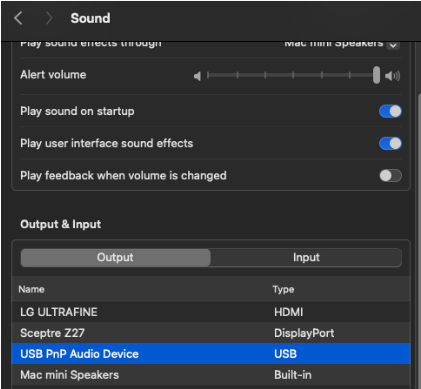

You will need to head to System Settings > Sound > Output
Then plug your 3.5mm headphones (or speakers) into the 3.5mm port of the dock, hub or adapter and select "USB PnP Audio Device or General USB Audio Device". Please use the following images for reference:
The Aux port will support most 3.5mm Headphones, speakers or microphones.
If you are still experiencing issues, please reach out to us directly at support@satechi.com
Is it Compatible with Monitors Featuring a 1920x1200 Resolution?
Certainly, the Triple 4K Display Docking Station is compatible with monitors featuring a 1920x1200 resolution. It boasts support for resolutions up to 4K@60Hz as well.
Why am I unable to stream content from my browser with the Triple 4K Dock?
The reason this may be occurring is due to the Screen Recording permissions required in your System Settings to use the DisplayLink manager software. Before moving forward, please try the following steps.

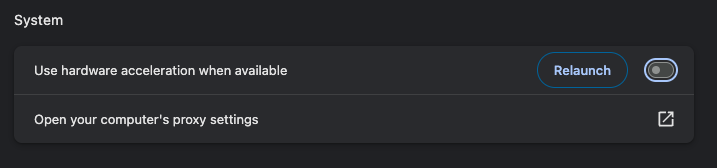

- To fix it temporarily using the Google Chrome browser: In settings go to "Use hardware acceleration when available", turn it off, relaunch and the issue will be fixed.
If this does not work and the issue continues, please let us know as soon as possible.
The reason this may be occurring is due to the Screen Recording permissions required in your System Settings to use the DisplayLink manager software. Before moving forward, please try the following steps.
- To fix it temporarily using the Google Chrome browser: In settings go to "Use hardware acceleration when available", turn it off, relaunch and the issue will be fixed.
If this does not work and the issue continues, please let us know as soon as possible.
Is the Triple 4K Docking Station HDCP Compliant?
HDCP Content from Netflix and other streaming platforms is supported when using Google Chrome.
Before doing so, you will need to go into settings and follow these steps:

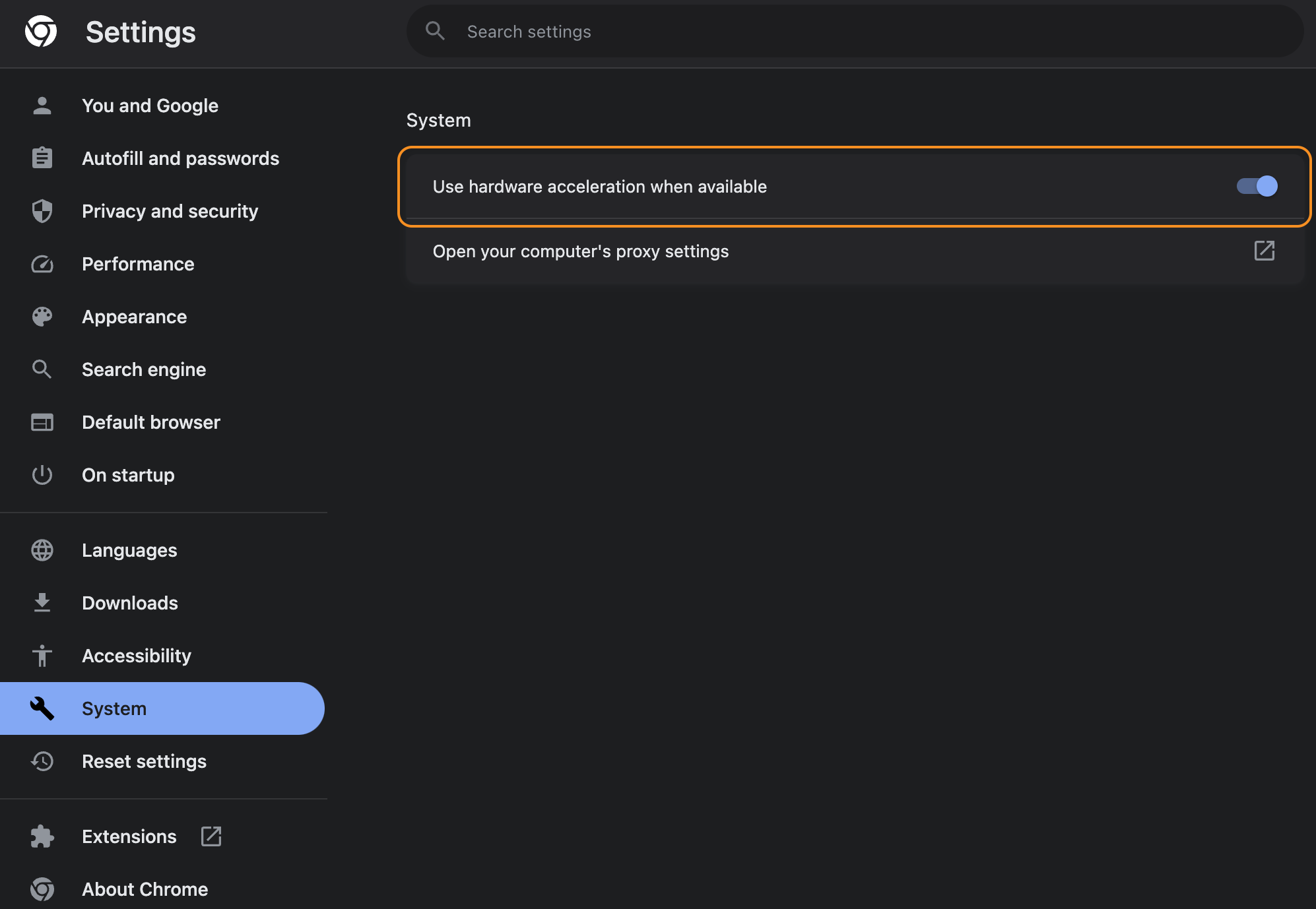

Head to Settings (on your Google Chrome Browser) > System > Toggle "Use hardware acceleration when available Off
(Please note: it will not be supported when using Safari)
Why are my headphones not detected when I plug it into the aux port of the dock?
Prior to connecting your headphones to the aux port of the Triple 4K Display Docking Station, you will need to change the sound output/input settings:
System Settings -> Sound -> Output/Input -> Select USB Audio
What are some examples of supported USB-C devices?
The Docking Station is equipped with 2x USB-C ports.
The front USB-C 3.1 port will support charging and data transfer (@ 7.5W) and will support webcams, external hard drives, flash drives, microphones, MIDI devices, a keyboard, and/or a mouse.
The 2nd USB-C 3.0 port is a data port and will support flash/external hard drives and low-powered peripherals like a keyboard or mouse, while it will charge smaller devices, this port is not recommended for charging.
What are examples of supported USB-A devices?
The Docking Station is equipped with 3x USB-A ports.
The front USB-A 3.1 port will support charging (@ 7.5W) and will support webcams, external hard drives, flash drives, microphones, a keyboard, and/or mouse.
The USB-A 3.0 ports (located on the rear of the docking station) are data ports and will support flash drives, external hard drives, (5gbps transfer speeds), and low-powered peripherals like a keyboard or mouse.
Will this dock support 1 flash drive + 1 external hard drive at the same time?
Yes, Our Triple 4K Docking Station will support a flash drive and/or an external hard drive at the same time.
Please note: Prior to powering off Docking Station, please ensure all external storage devices are properly ejected/unmounted.
Will this support more than 1 display for M1/M2 MacBooks?
Yes, with DisplayLink software installed, this dock will support more than 1 display (up to 3 displays at 4K @ 60Hz) when connecting an M1 or M2 MacBook Pro/Air.
What ports can i access on this dock when it is not connected to my MacBook?
When powered on, all USB-C and USB-A ports will still be functional when the dock is connected to a power source (without the dock connected to your host device)
For display, the dock must be connected to your host device, with DisplayLink Software installed.
A direct HDMI or Display Connection is required - any additional video conversion cables or adapters will not be supported.
Will I be able to charge my iPhone and transfer data to the host computer at the same time?
Yes, you can use the USB-C 3.1 Gen 2 Port to charge and transfer data between the iPhone and the host computer at the same time.
Given that the Dock has multiple ports, will it overheat?
The dock is constructed out of durable plastic, brushed aluminum and silicone which helps with heat dissipation. It also has bottom vents that are designed to allow better airflow, assisting with even better heat dissipation to ensure performance, stability, and safety for both the docking station and the connected host device.
Our standard operating temperatures are 86-122° Fahrenheit (30-50° Celsius).
Can I use my Triple 4K Display Docking Station to charge my laptop or other devices?
Yes, the docking station can accommodate up to 100W Pass-Through charging to the connected host device.
Please note: If using the attached USB-A adapter (on the host connection cable) to a Windows device, passthrough charging will not be supported)
While the USB-C 3.1 port on the dock will support charging smaller devices, it will only support 7.5W allowing a slower but efficient charge. (iPhones, iPads, and other mobile devices and peripherals)
Will any of the provided ports support charging?
Yes, the USB 3.1 port supports charging smaller devices and peripherals up to 7.5 watts.
The USB 3.0 ports are for data transfer and are not recommend for charging (3.5W)
My Windows laptop does not have a Thunderbolt or USB-C port that supports video output, can I still use this docking station to connect an external monitor to my computer?
Yes. The docking station will still be able to output display through an external monitor using the DisplayLink software. You can either connect it to the USB-C or USB-A port on your computer.
A Direct HDMI to HDMI or DisplayPort to DisplayPort cable is required.
The Included cable comes equipped with a USB-C to USB-A cable converter. When using this, passthrough charging will not be supported (only when using the USB-C to USB-c connecting cable)
(Please note that the external monitors will only function through DisplayLink Software video ports.)
Will I be able to connect an Apple Studio Display or any other USB-C monitors on the front USB-C ports of this dock?
Unfortunately not. The front USB-C 3.1 port is only for data transfer and charging your devices up to 7.5W. The second USB-C 3.0 port is only for data transfer and is not recommended for charging.
These ports will not support video output.
This docking station will support monitors that have HDMI or DisplayPort inputs via DisplayLink Software.
