Replacing Outlet Adapter

1. To disconnect the attached outlet adapter slide the switch on the top of the device away from the connector.
2. Slide the released outlet adapter up.
3. Choose the compatible outlet adapter for your region and slide it in into place.

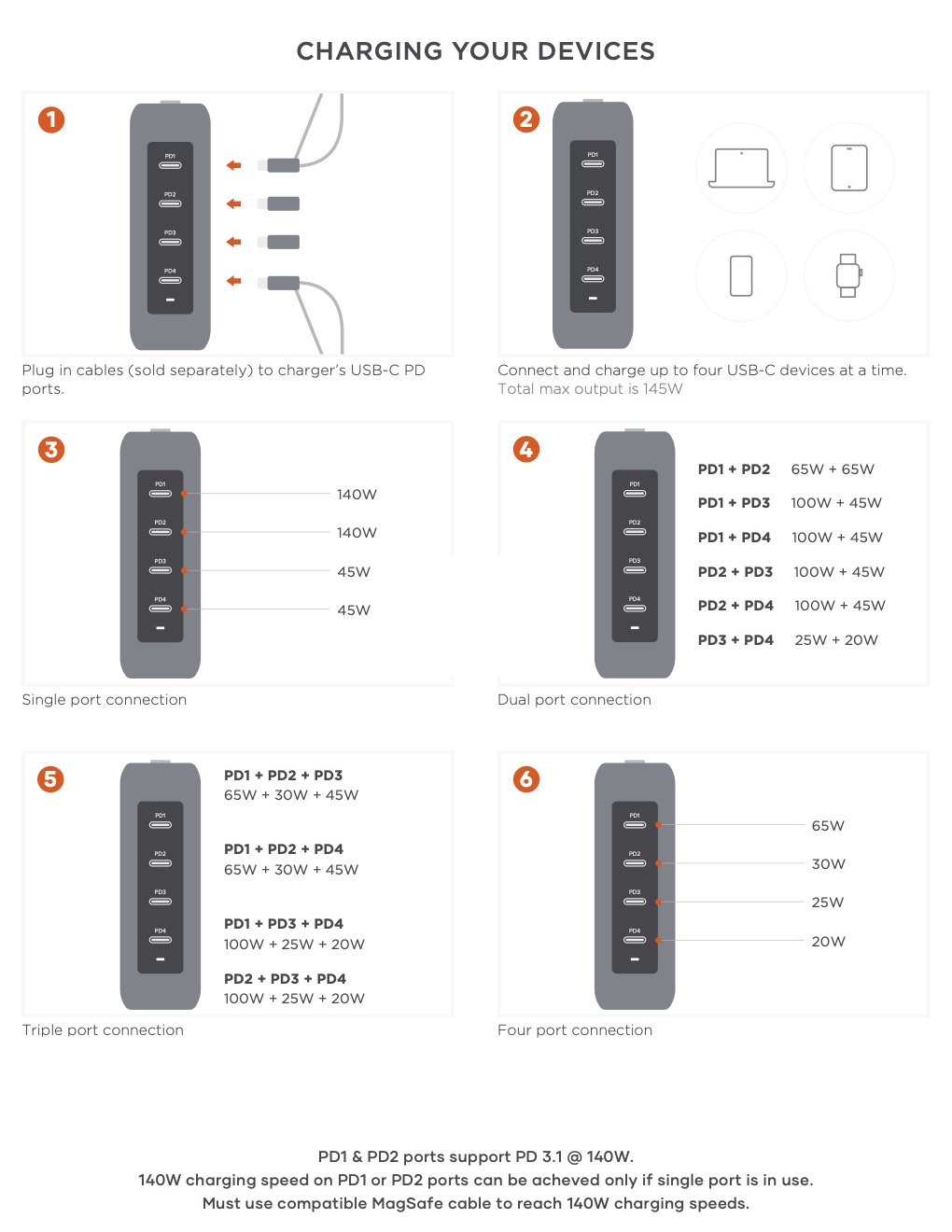

Charging Your Devices

1. Plug in cables (sold separately) to charger’s USB-C PD ports.
2. Connect and charge up to four USB-C devices at a time.
   • Total max output is 145W
3. PD1 & PD2 ports support PD 3.1 @ 140W.
   • 140W charging speed on PD1 or PD2 ports can be acheved only if single port is in use.
   • Must use compatible MagSafe cable to reach 140W charging speeds.
