What is the maximum storage capacity supported by the Mini NVMe SSD Enclosure?
The Satechi Mini NVMe SSD Enclosure supports M.2 NVMe SSDs up to 8TB in capacity.
Please ensure the SSD is:
- M-Key
- NVMe protocol (SATA SSDs are not supported)
- Size 2230
Why am I not getting the advertised speeds of my NVMe drive on the Mini NVMe Enclosure?
We understand it can be confusing when your SSD doesn’t seem to reach the speeds advertised, so we’re happy to help clarify.
The speed ratings shown for NVMe SSDs are usually based on internal testing using direct connections inside a computer (like an M.2 slot). When you use the SSD in an external enclosure,especially one using USB 3.2 Gen 2 (10Gbps),you’ll likely see lower speeds, and that’s expected. This is because external enclosures use a different connection type that has its speed limits.
To make sure you’re getting the best results:
- Ensure your NVMe drive is properly formatted (APFS or ExFAT).
- Plug the enclosure into a USB-C port on your computer that supports 10Gbps speeds or more (look for USB 3.2 Gen 2 or a Thunderbolt/USB-C port).
You can also try:
- Testing with a different SSD.
- Reformatting the drive to a different supported format.
- Connecting the enclosure to another computer with a USB 3.2 Gen 2 or Thunderbolt port.
Finally, please make sure your system is up to date. We also recommend removing other USB-C devices and restarting your computer to refresh connections.
Will the magnetic components interfere with the SSD or corrupt any data?
No, it is completely safe.
What are the format constraints for an SSD?
A 2230 NVMe drive must either be formatted to ExFAT or APFS. ExFat would be optimal if you are using both Windows and Mac operating systems, whereas APFS is strictly for iPhone and iPad.
2230 NVMe SSD Installation Instructions / Video
- NVMe SSD drive sold separately
- Only compatible with the 2230 size NVMe drives
- NVMe drive must be formatted to ExFAT before use with an iOS device

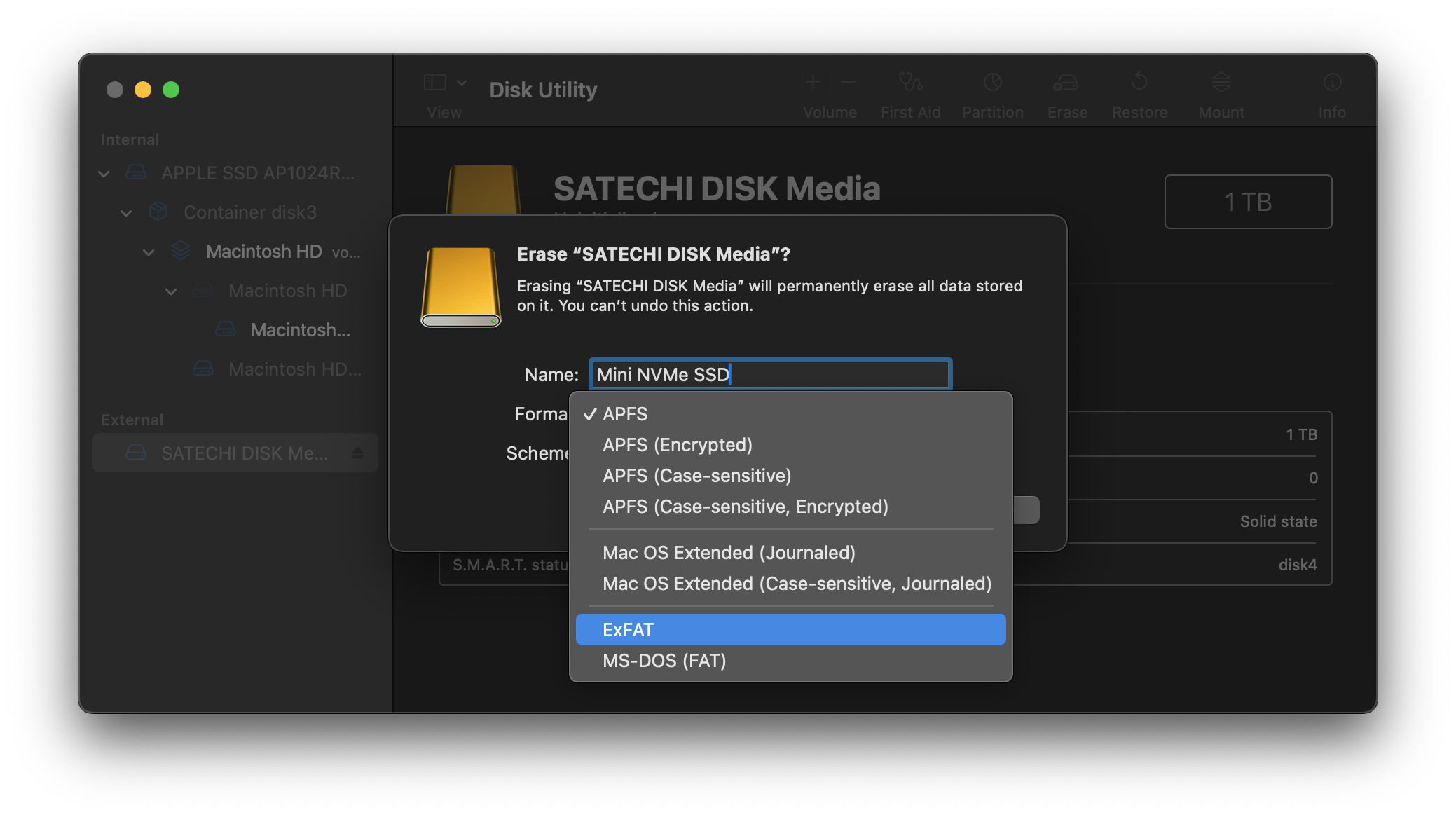

2230 NVMe SSD Installation and Format Instructions - Mac
2230 NVMe SSD Installation and Format Instructions - Windows
- Slide to remove the magnetic cover from the enclosure
- Install 2230 SSD at a 45° angle
- Pull back the included silicone pin
- Push down on the SSD
- Secure the SSD in place with the silicone pin
- Align the groves and slide the cover back onto the enclosure
What SSDs are compatible with the Mini NVMe SSD Enclosure?
We have tested the following SSDs and did not encounter any issues:
- Team Group MP44S
- Corsair MP600 CORE Mini
- WD_BLACK SN770M
- WD PC SN740
- SABRENT Rocket 2230
These SSDs have been thoroughly tested and proven to work flawlessly with our Mini NVMe SSD Enclosure, ensuring optimal performance and reliability.
Why is my 2230 M.2 NVMe drive not being read on my iPhone 16 Pro?
The Mini NVMe SSD Enclosure is compatible with the new iPhone Pro models with USB-C and USB3 transfer speeds (up to 10 Gbps).

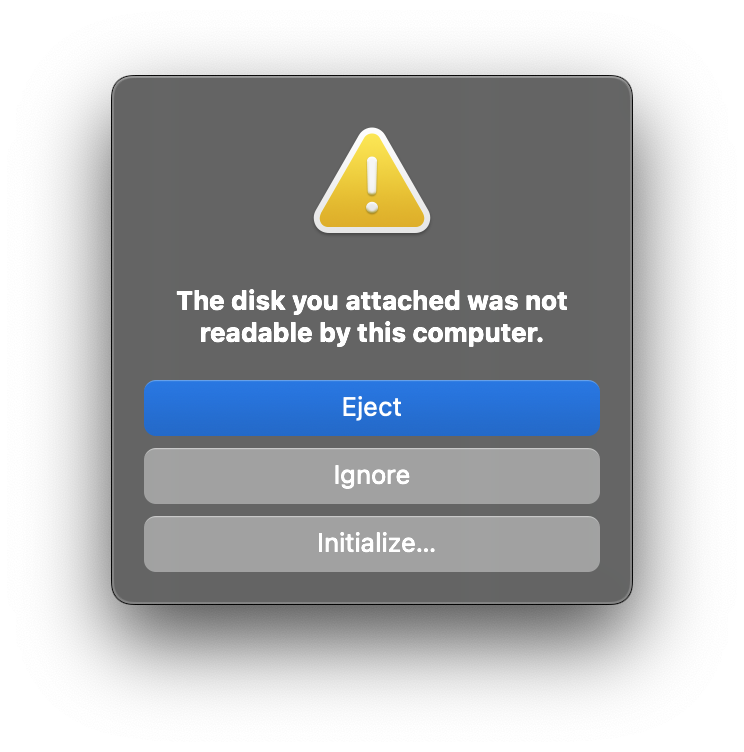

If you are using a brand new, unformatted or uninitialized 2230 NVMe SSD drive, it must be formatted to either ExFAT or APFS first in order for it to be detected on an iOS device.
Once the 2230 NVMe drive has been formatted, the drive can be reformatted on iOS devices now after the iOS 18 update: (https://www.macrumors.com/2024/06/24/ipados-18-format-external-drives/)
What is the maximum data transfer speed of this enclosure?
The enclosure supports data transfer speeds of up to 10Gbps, depending on the capabilities of the SSD and the connected device.
Does the enclosure require an external power source?
No, the Mini NVMe SSD Enclosure is BUS-powered which means it is powered directly through the connected USB-C cable and does not require an external power source.
Is the Mini NVMe SSD Enclosure also compatible with iPhone 16 Plus?
Yes, the Mini NVMe SSD Enclosure is compatible with the iPhone 15/16 Plus; however, please note that it is limited to USB 2.0 data transfer speeds.

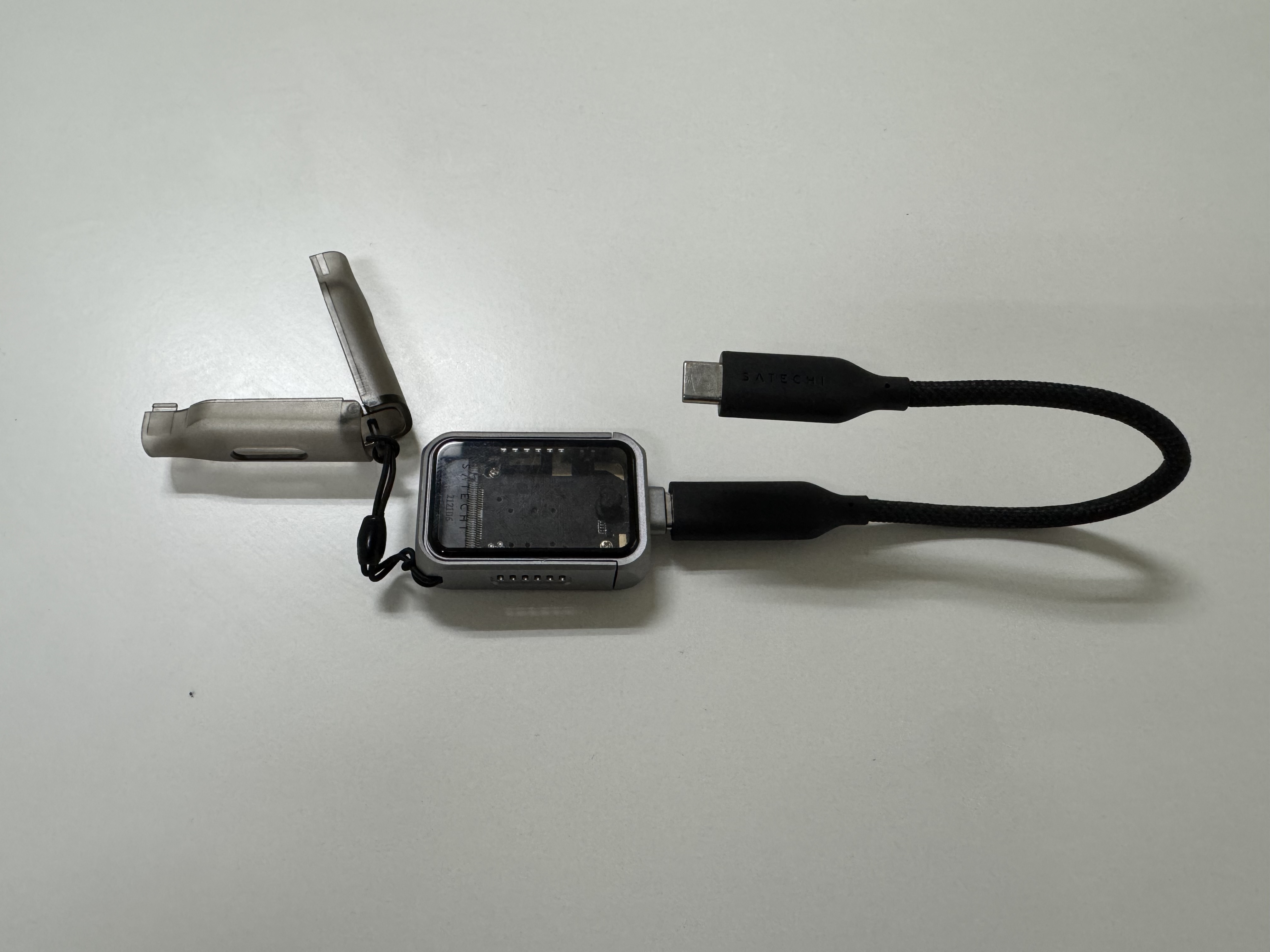

Removing the USB-C Cable Lanyard
Note: If necessary, it’s recommended to remove the USB-C data transfer cable lanyard at the plastic cable connector cover. Attempting to remove the lanyard entirely from the enclosure itself will become extremely challenging when attempting to reinstall it.
To use the USB-C extension cable:

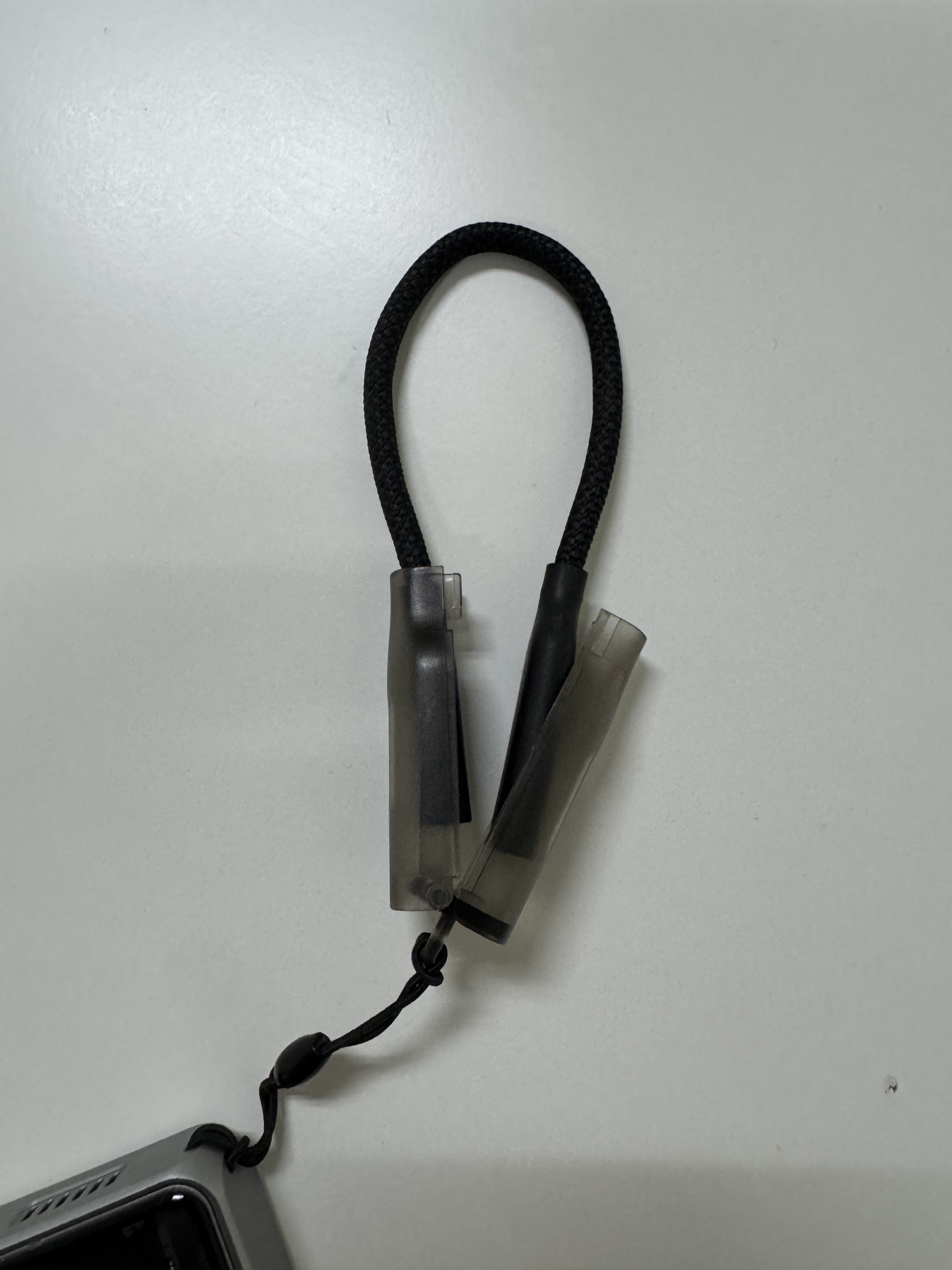

1. Open the side of the plastic cover closest to the braided cable.

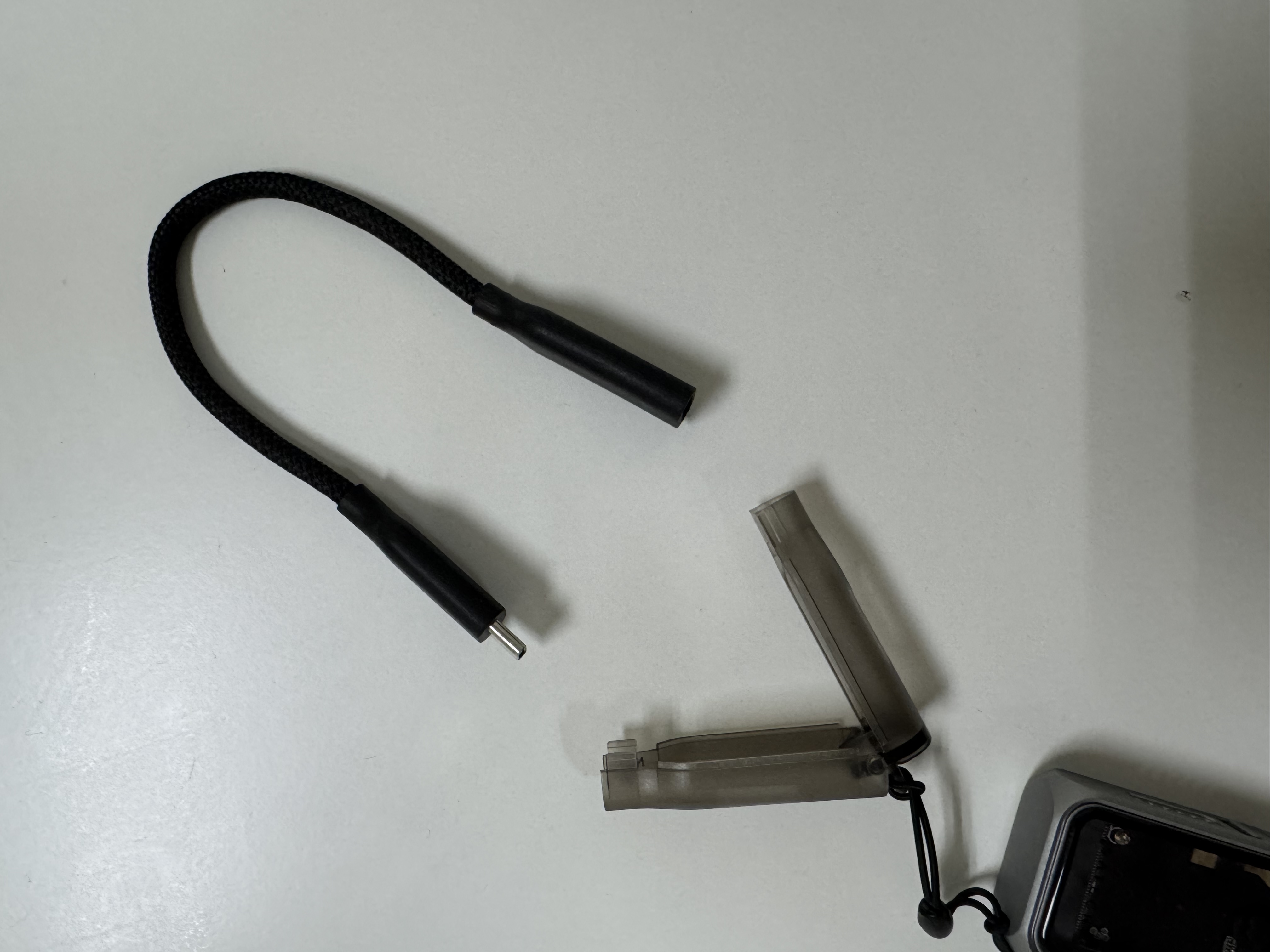

2. Remove the cable from the lanyard cover
3. Connect extension cable to Mini NVMe Enclosure.
