This User Manual covers setup, features, compatibility, and specifications for the Satechi Type-C Dual Multimedia Adapter.

What's In The Box

Type-C Dual Multimedia Adapter, User Manual.

Functions

1. Dual USB-C Connectors
2. SD & Micro SD Card Slots
3. Dual 4K@60Hz HDMI Video Ports
4. 2x USB Type-A Data Ports
5. Ethernet Port
6. USB Type-C Charging Port (up to 60W)

Product Overview

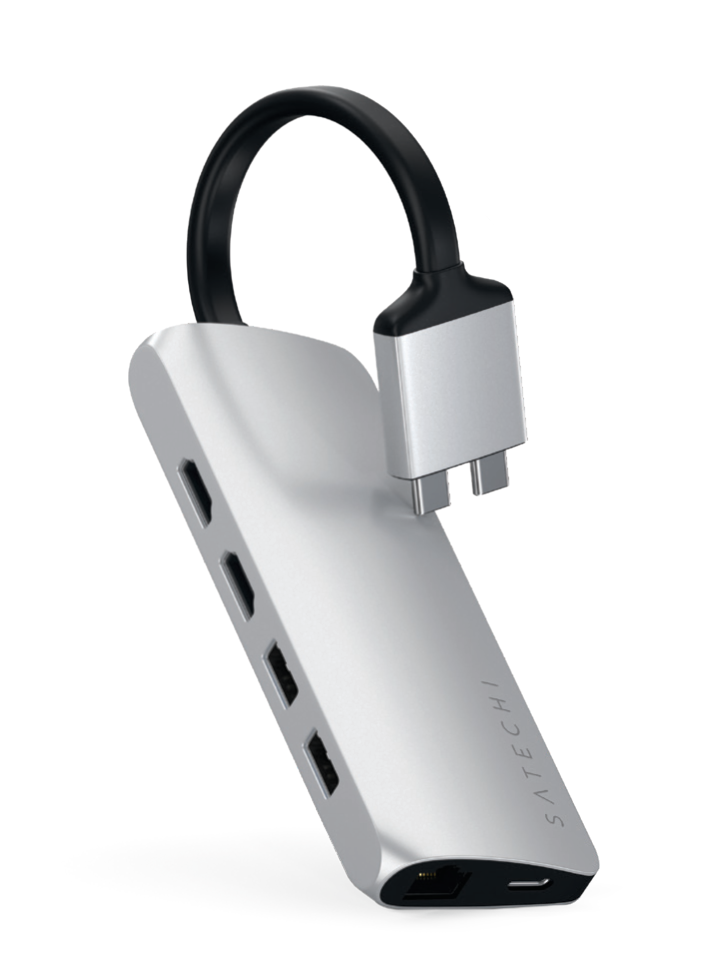

The Type-C Dual Multimedia Adapter connects to the dual USB-C ports on your MacBook and adds two 4K HDMI video outputs for dual-monitor setups, plus two USB-A ports, Ethernet, SD and Micro SD card readers, and 60W USB-C pass-through charging.

Setup

The Type-C Dual Multimedia Adapter is plug-and-play, no drivers required.

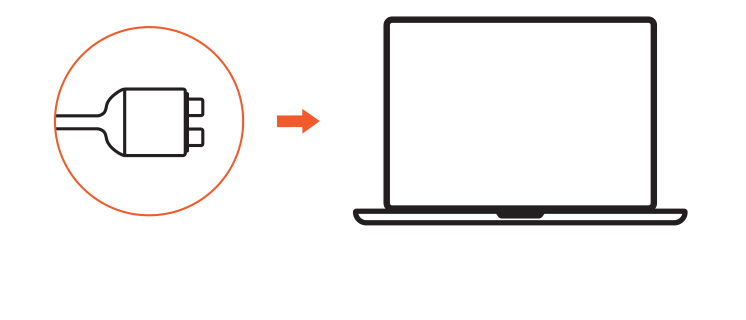

1. Connect to a laptop: Plug the Dual USB-C Connectors into your MacBook's two USB-C/Thunderbolt ports.

2. Connect your cables: Connect your HDMI, Ethernet, and USB cables to the adapter's ports.

Note: Both USB-C connections are required for the adapter to function fully.

Ports and Features

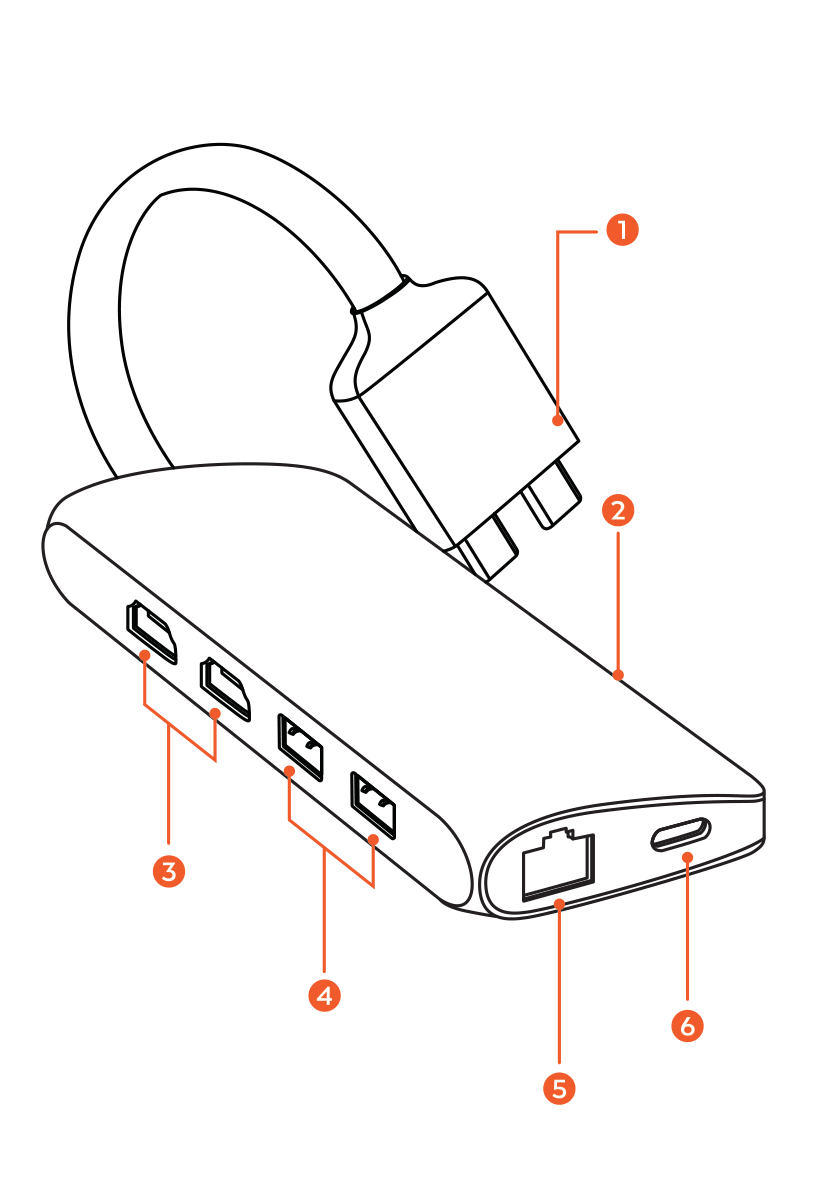

Parts labeled diagram of the Type-C Dual Multimedia Adapter with 6 labeled components.

1. Dual USB-C Connectors: The two USB-C connectors that attach the adapter to your MacBook's USB-C ports.
2. SD & Micro SD Card Slots: Memory card readers for file transfer.
3. Dual 4K@60Hz HDMI Video Ports: Connect up to two external monitors at up to 4K 60Hz.
4. 2x USB Type-A Data Ports: Two USB-A ports for flash drives, mice, keyboards, or external hard drives.
5. Ethernet Port: Wired network connectivity.
6. USB Type-C Charging Port (up to 60W): Pass-through charging up to 60W. Does not support data transfer or video output.

Features

- Dual 4K@60Hz HDMI outputs for two external monitors
- Two USB-A data ports
- Ethernet for wired networking
- SD and Micro SD card readers
- Up to 60W pass-through charging

Important Limitations

USB-C Charging Port will not support data transfer or video output.

Do not connect more than one external hard drive at a time.

Specifications

Connector: Dual USB-C
Ports & Speeds:
2x HDMI: up to 4K 60Hz each
2x USB-A data ports
1x Ethernet
1x SD + Micro SD card slots
1x USB-C PD: up to 60W (charging only)

Certifications

FCC, CE, WEEE
