What is a “bus‑powered” (unpowered) hub/adapter?

A: A bus-powered hub draws all its power from the host device’s USB (or USB‑C) port ; it does not use its own external power source (like a wall adapter).

As a result, the total power available to all downstream ports is limited by the host port and the USB standard.

Which peripherals are suitable for a bus-powered hub?

A: Bus-powered hubs/adapters are typically reliable for low‑power peripherals such as:

• USB‑A / USB‑C flash drives (thumb drives)
• SD or microSD card readers and cards
• Wired keyboards and mice
• Basic audio accessories (e.g., headphones, USB headsets)
• Other low‑power devices that do not draw significant current

These devices generally don’t exceed the power limits of a bus-powered hub, so they work consistently.

Our own product documentation makes this clear: for example, the hub will support “BUS-powered devices” such as USB‑flash drives and keyboards.

Why do more demanding devices ; like external hard drives ; sometimes fail when connected via a bus-powered hub?

A: Because bus-powered hubs supply limited power, they often cannot sustain power‑hungry or multiple devices simultaneously. External hard drives (especially spinning HDDs) ; or multiple drives ; typically require more current than a bus-powered hub can safely supply.

When the combined power demand from connected devices exceeds the hub’s (and host port’s) capacity, problematic behavior can occur: ports may become unresponsive, devices may disconnect, or the system may fail to recognize connected devices. This is why in your example with the hub for Mac Mini, multiple storage devices or high-power drives cause instability.

Indeed, for our powered multiport adapter (which is not bus‑powered), we explicitly recommend using only one external drive at a time for best stability.

Using Satechi Type-C Hubs, Adapters & Docking Stations with Windows PCs

Our Type-C Hubs, Adapters, and Docking Stations are designed to work seamlessly with Apple devices, but they’re also widely compatible with many Windows PCs and Android devices.

Compatibility Overview

To get the most out of your Satechi device, your Windows PC or Android device must have a USB-C port that supports specific features. Without these, functions like video output and charging may not work properly.

Key Requirements

Supported USB-C Standards

Your device’s USB-C port should support one or more of the following:

• USB 3.1 Gen 1 / Gen 2
• USB 3.2 Gen 1 / Gen 2 / Gen 2x1 / Gen 2x2
• Thunderbolt 3
• USB4
• Thunderbolt 4
• Thunderbolt 5

These standards enable compatibility with most modern Windows laptops (Surface, Dell, HP, Lenovo, etc.) and Android phones or tablets (including Samsung Dex-capable devices).

How to Check Compatibility

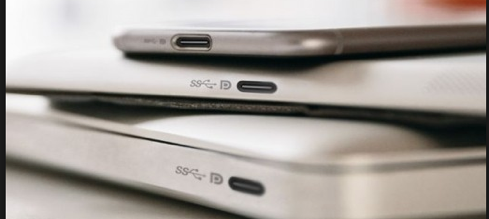

• Look for icons near the USB-C port: DP (DisplayPort) for video and PD (Power Delivery) for charging.

• Review your device’s technical specifications for supported USB-C protocols.
• If your USB-C port only supports USB 2.0 or 3.0 and lacks Alt Mode or PD, features like video output and pass-through charging will not function.

Not Supported

• Devices with USB-C ports are limited to USB 2.0 or USB 3.0 only
• USB-C ports without DisplayPort Alt Mode (no video output)
• Devices that do not support Power Delivery (no charging pass-through)

Quick Checklist

• Does your USB-C port support DisplayPort Alt Mode?

• Does it support Power Delivery 2.0 or 3.0?
• Is the port rated for USB 3.2 Gen 2, USB4, or Thunderbolt 3/4?
