This User Manual covers setup, features, compatibility, and specifications for the Satechi 200W USB-C 6-Port PD GaN Charger (ST-C200GM-US).

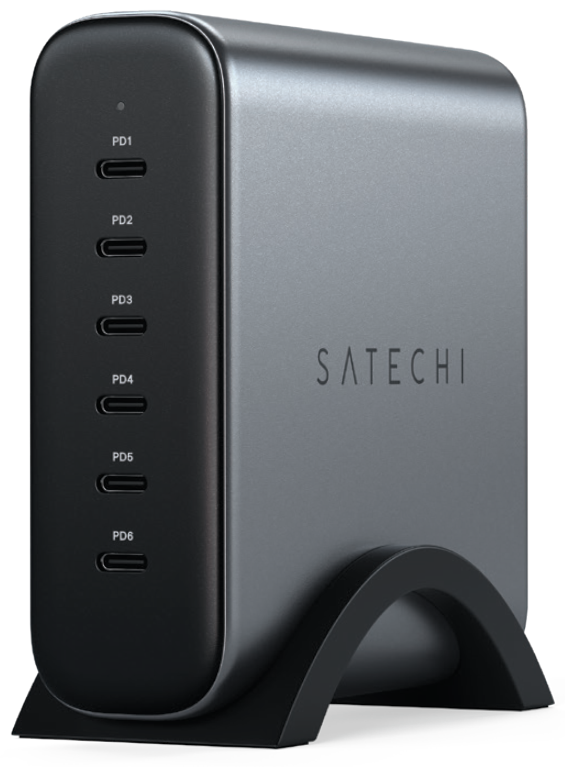

Product Overview

The 200W USB-C 6-Port PD GaN Charger is plug and play. It has six USB-C PD charging ports labeled PD1 to PD6 and connects to a power outlet with the included C5 power cord. PD1 and PD2 reach up to 140W with supporting host devices, and the output of each port depends on which ports are in use (see the Power Schematic below).

Setup

The charger is plug and play.

1. Connect the charger to a power outlet: Use the included C5 power cord to connect the charger to a power outlet.
2. Connect your devices: Connect your devices to the USB-C PD charging ports.

Functions

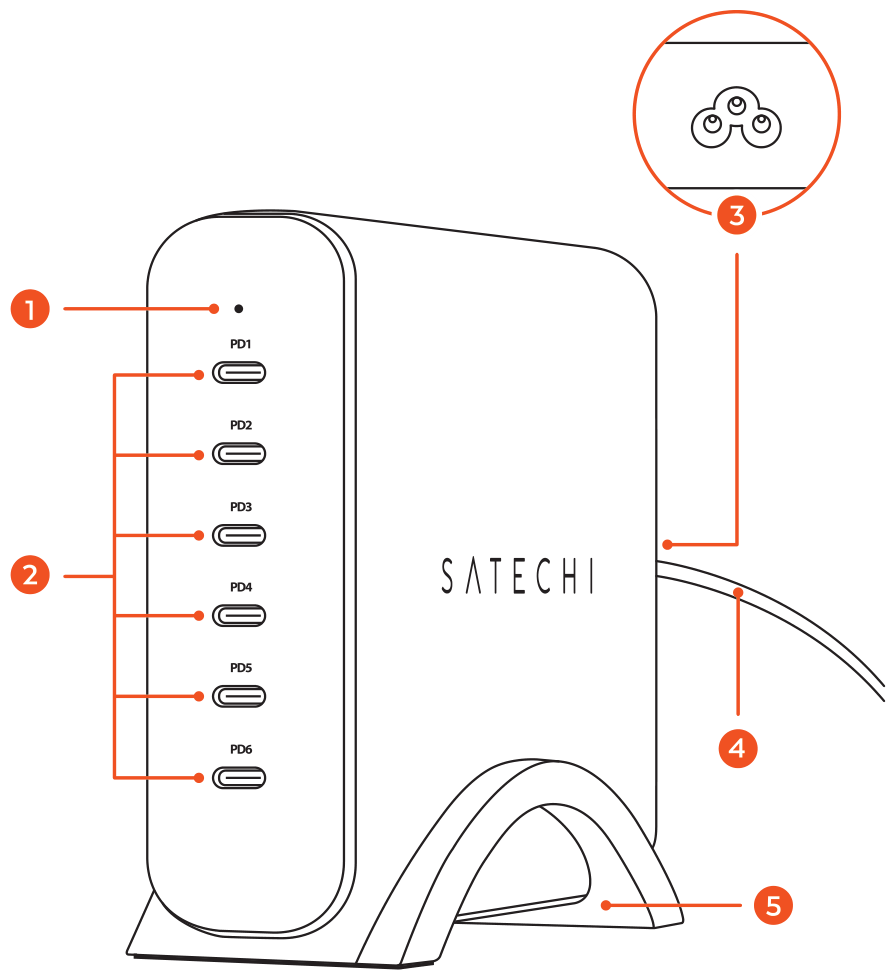

Parts labeled diagram of the 200W USB-C 6-Port PD GaN Charger with 5 labeled components.

1. LED Indicator
2. 6x USB-C PD Charging Ports: Labeled PD1 to PD6. Single port output: PD1 (PD3.1) and PD2 (PD3.1) 140W max, PD3 (PD3.0) and PD4 (PD3.0) 100W max, PD5 (PD3.0) and PD6 (PD3.0) 20W max. When more than one port is in use, see the Power Schematic below.
3. C5 Power Port
4. C5 Power Cord (included)
5. Desktop Stand

Features

- Plug and play.
- Six USB-C PD charging ports.
- PD1 and PD2 (PD3.1) up to 140W each as a single port, PD3 and PD4 (PD3.0) up to 100W, PD5 and PD6 (PD3.0) up to 20W.
- C5 power cord included.
- Desktop Stand.

Important Limitations

Only PD1 and PD2 reach 140W: Only the PD1 and PD2 ports will reach 140W charging rates with supporting host devices. Only one device can be connected at a time to either port in order to achieve 140W charging.

Connect your largest device to PD1: When connecting devices to all six charging ports, connect your largest device to the PD1 port.

Emark cables above 60W: Emark cables are required to reach wattage over 60W.

Keep away from liquids: Keep away from water, liquid, and moisture.

Output depends on ports in use: Each port's output changes with the combination of ports in use. See the Power Schematic below.

Specifications

Power Input: C5 power port, C5 power cord included
Ports & Speeds:
1x PD1 (PD3.1): up to 140W max
1x PD2 (PD3.1): up to 140W max
1x PD3 (PD3.0): up to 100W max
1x PD4 (PD3.0): up to 100W max
1x PD5 (PD3.0): up to 20W max
1x PD6 (PD3.0): up to 20W max

Power Schematic: Output wattage by port usage.

Single port output:
PD1 (PD3.1): 140W max
PD2 (PD3.1): 140W max
PD3 (PD3.0): 100W max
PD4 (PD3.0): 100W max
PD5 (PD3.0): 20W max
PD6 (PD3.0): 20W max

Double port output:
PD1 + PD2: 100W + 100W
PD1 + PD3: 100W + 100W
PD1 + PD4: 100W + 100W
PD1 + PD5: 140W + 20W
PD1 + PD6: 140W + 20W
PD2 + PD3: 100W + 100W
PD2 + PD4: 100W + 100W
PD2 + PD5: 140W + 20W
PD2 + PD6: 140W + 20W
PD3 + PD4: 100W + 100W
PD3 + PD5: 100W + 20W
PD3 + PD6: 100W + 20W
PD4 + PD5: 100W + 20W
PD4 + PD6: 100W + 20W
PD5 + PD6: 20W + 20W

Triple port output:
PD1 + PD2 + PD3: 100W + 45W + 45W
PD1 + PD2 + PD4: 100W + 45W + 45W
PD1 + PD2 + PD5: 100W + 45W + 20W
PD1 + PD2 + PD6: 100W + 45W + 20W
PD1 + PD3 + PD4: 100W + 45W + 45W
PD1 + PD3 + PD5: 100W + 45W + 20W
PD1 + PD3 + PD6: 100W + 45W + 20W
PD1 + PD4 + PD5: 100W + 45W + 20W
PD1 + PD4 + PD6: 100W + 45W + 20W
PD1 + PD5 + PD6: 100W + 20W + 20W
PD2 + PD3 + PD4: 100W + 45W + 45W
PD2 + PD3 + PD5: 100W + 45W + 20W
PD2 + PD3 + PD6: 100W + 45W + 20W
PD2 + PD4 + PD5: 100W + 45W + 20W
PD2 + PD4 + PD6: 100W + 45W + 20W
PD2 + PD5 + PD6: 100W + 20W + 20W
PD3 + PD4 + PD5: 100W + 45W + 20W
PD3 + PD4 + PD6: 100W + 45W + 20W
PD3 + PD5 + PD6: 100W + 20W + 20W
PD4 + PD5 + PD6: 100W + 20W + 20W

Quadruple port output:
PD1 + PD2 + PD3 + PD4: 100W + 45W + 20W + 20W
PD1 + PD2 + PD3 + PD5: 100W + 45W + 20W + 20W
PD1 + PD2 + PD3 + PD6: 100W + 45W + 20W + 20W
PD1 + PD2 + PD4 + PD5: 100W + 45W + 20W + 20W
PD1 + PD2 + PD4 + PD6: 100W + 45W + 20W + 20W
PD1 + PD2 + PD5 + PD6: 100W + 45W + 20W + 20W
PD1 + PD3 + PD4 + PD5: 100W + 45W + 20W + 20W
PD1 + PD3 + PD4 + PD6: 100W + 45W + 20W + 20W
PD1 + PD3 + PD5 + PD6: 100W + 45W + 20W + 20W
PD1 + PD4 + PD5 + PD6: 100W + 45W + 20W + 20W
PD2 + PD3 + PD4 + PD5: 100W + 45W + 20W + 20W
PD2 + PD3 + PD4 + PD6: 100W + 45W + 20W + 20W
PD2 + PD3 + PD5 + PD6: 100W + 45W + 20W + 20W
PD2 + PD4 + PD5 + PD6: 100W + 45W + 20W + 20W
PD3 + PD4 + PD5 + PD6: 100W + 45W + 20W + 20W

Pentuple port output:
PD1 + PD2 + PD3 + PD4 + PD5: 65W + 65W + 20W + 20W + 20W
PD1 + PD2 + PD3 + PD4 + PD6: 65W + 65W + 20W + 20W + 20W
PD1 + PD3 + PD4 + PD5 + PD6: 65W + 65W + 20W + 20W + 20W
PD2 + PD3 + PD4 + PD5 + PD6: 65W + 65W + 20W + 20W + 20W

Sextuple port output:
PD1 + PD2 + PD3 + PD4 + PD5 + PD6: 65W + 45W + 20W + 20W + 20W + 20W

The full port-by-port power schematic is in the attached PDF.

Certifications

FCC, CE, WEEE
