This User Manual article covers the Satechi ChargeView 140W Desktop Charger (ST-C4CV140C-US, ST-C4CV140C-EU, ST-C4CV140C-UK, ST-C4CV140C-AU, ST-C4CV140C-KR). It explains the parts, setup, charging technologies, power output per port, the digital screen, and the important notes from the printed User Manual.

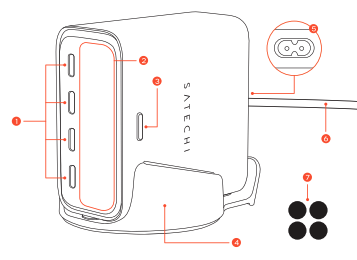

Parts of the Satechi ChargeView 140W Desktop Charger

• 1. 4 x USB-C Ports
• 2. Digital Display
• 3. Display Button
• 4. Desktop Stand (Horizontal or Vertical Use)
• 5. C7 Power Port
• 6. C7 Power Cord (included)
• 7. 4 x Silicone Dots

Important: Place the silicone dots on the bottom of the charger as shown in the User Manual to avoid stand interference and ensure stability. The placement diagram positions the 4 dots in two columns and two rows: 23mm from the edge to the first column and 30mm between columns; 11mm from the edge to the first row, 54mm between rows, and 11mm from the second row to the opposite edge.

How to set up the Satechi ChargeView 140W Desktop Charger

The ChargeView 140W Desktop Charger is plug and play.

1. Connect the desktop charger to the included C7 power cord.
2. Connect the power cord to a power outlet.
3. Connect your devices to the desktop charger.

Charging technologies in the Satechi ChargeView 140W Desktop Charger

Advanced USB-C charging technologies: The charger is equipped with the latest USB-C Power Delivery (PD) standards, including AVS (Adjustable Voltage Supply) and PPS (Programmable Power Supply). These technologies let the charger automatically adjust power output with exceptional precision. This enhances charging speed, temperature control, and overall efficiency when used with compatible devices.

PD 3.2 AVS: AVS is optimized for the latest iPhones. AVS dynamically fine tunes voltage in real time, so supported devices such as the newest iPhone models charge faster and more efficiently while maintaining lower operating temperatures.

PPS (PD 3.1): PPS is designed for Samsung and Android devices. PPS technology rapidly adjusts voltage and current in small increments to deliver the most efficient fast charging performance for compatible Android smartphones, including Samsung and Google's Super-Fast Charging.

Power output of the Satechi ChargeView 140W Desktop Charger

The power each port delivers depends on which ports are in use.

Single port output

• USB-C1 (PD 3.2 AVS): 140W max
• USB-C2 (PD 3.1 PPS): 140W max
• USB-C3 (PD 3.1 PPS): 40W max
• USB-C4 (PD 3.1 PPS): 40W max

Double port output

• C1 + C2: 70W + 70W
• C1 + C3: 100W + 40W
• C1 + C4: 100W + 40W
• C2 + C3: 100W + 40W
• C2 + C4: 100W + 40W
• C3 + C4: 20W + 20W

Triple port output

• C1 + C2 + C3: 65W + 45W + 30W
• C1 + C2 + C4: 65W + 45W + 30W
• C1 + C3 + C4: 70W + 40W + 30W
• C2 + C3 + C4: 70W + 40W + 30W

Quadruple port output

• C1 + C2 + C3 + C4: 65W + 40W + 20W + 15W

How to use the digital screen on the Satechi ChargeView 140W Desktop Charger

• Press and hold the power button for 1 second to switch between horizontal and vertical view.
• After 1 minute of inactivity, the screen automatically turns off and enters sleep mode.
• Each port's indicator turns green when the port is in use.
• The AVS indicator on port C1 turns green for 5 seconds when in use.

Temperature monitoring indicator on the ChargeView 140W Desktop Charger

• Blue: Excellent
• Green: Optimized
• Orange: Cooling

Important notes for the Satechi ChargeView 140W Desktop Charger

• Please use the included power adapter and cable for optimal functionality.
• Keep away from water or other liquids.
• If the product is damaged, stop using the product immediately and contact the manufacturer for support.
• Ambient temperature and altitude of the product: temperature 25°, altitude 2 km.

Specifications of the Satechi ChargeView 140W Desktop Charger

Model Number: MN25STI01
SKU: ST-C4CV140C-US / ST-C4CV140C-EU / ST-C4CV140C-UK / ST-C4CV140C-AU / ST-C4CV140C-KR
Input: 100 to 240V ~ 50/60Hz, 2.5A max
Total Output: 140W max
Operating Temperature: 25°C

Certifications of the Satechi ChargeView 140W Desktop Charger

FCC, CE, WEEE, EAC, CAN ICES(B)/NMB(B), ETL Listed (Intertek), Triman (France)

How to get help with the Satechi ChargeView 140W Desktop Charger

For help with the Satechi ChargeView 140W Desktop Charger, contact Satechi support at support@satechi.com or call +1 858 268 1800.
