This Quick Start Guide covers the setup of the USB-C Snap Hub | ST-HUSNSB ST-HUSNSP ST-HUSNSY

Setup

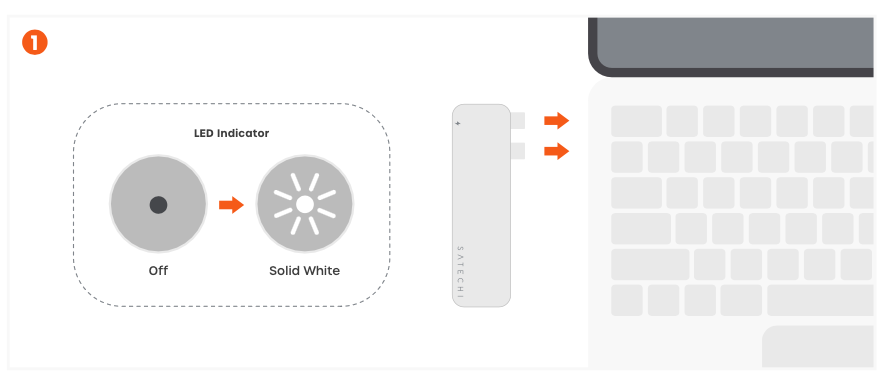

Connect the Snap Hub to Your Laptop

• Align the dual USB-C connectors with two adjacent USB-C ports on your laptop.

• Press the hub firmly into place until it snaps securely onto the laptop.

• The white LED indicator will turn on, confirming the hub is connected and powered.

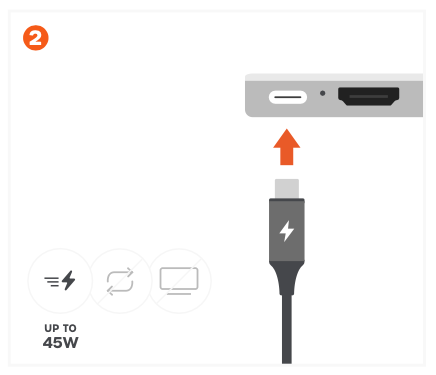

Charge Your Laptop via USB-C PD (Up to 45W)

• Connect a USB-C charging cable to the USB-C PD port to charge your laptop while using the hub.

• Supports up to 45W input.

• The USB-C PD port does not support data transfers or video output.

• Not compatible with CD/DVD drives or the Apple USB SuperDrive.

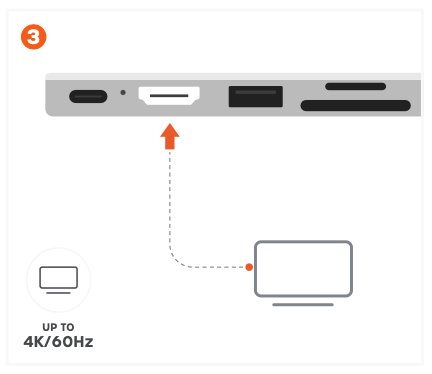

Connect an External Display via HDMI (Up to 4K/60Hz)

• Connect an HDMI cable from the hub's HDMI port to a 4K HDMI-equipped display.

• Supports video output up to 4K at 60Hz.

• Only supports direct HDMI connections.

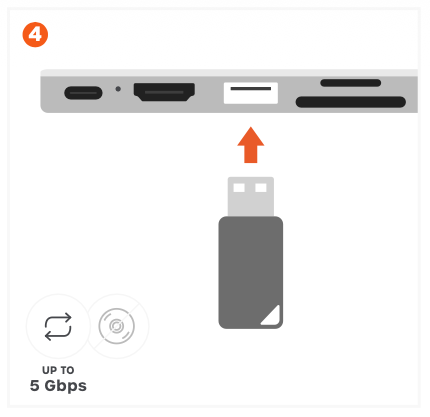

Connect USB-A Device (Up to 5Gbps)

• Connect a USB-A peripheral to the USB-A data port for data transfer at up to 5Gbps.

• Not compatible with Apple USB SuperDrive, CD readers, or DVD drives.

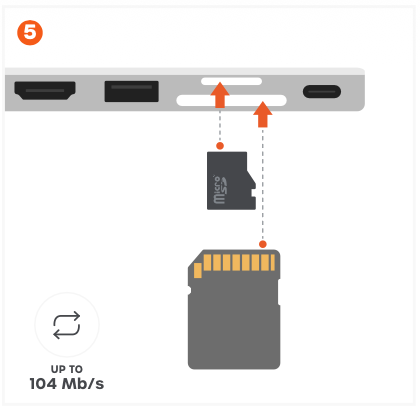

Insert microSD or SD Cards

• microSD card: Insert with pins facing down, label facing up.

• SD card: Insert with pins facing up, label facing down.

• Both slots support UHS-I speeds up to 104MB/s.

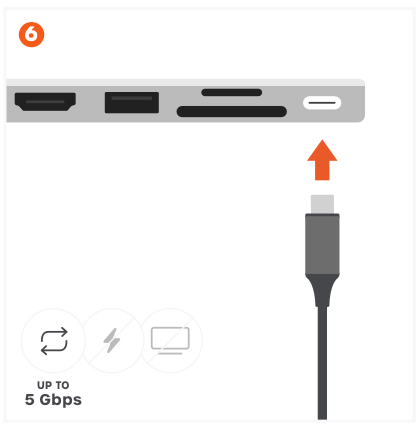

Connect USB-C Device (Up to 5Gbps)

• Connect a USB-C device to the USB-C data port for high-speed data transfers at up to 5Gbps.

• This port does not support video output or charging.

Important Notes

• USB-C ports (PD and data) do not support video output.

• Not compatible with Apple USB SuperDrive, CD readers, or DVD drives.

• Insert microSD cards with the pins facing down and SD cards with the pins facing up. Incorrect card                insertion may damage the card slot.

• Requires two adjacent USB-C ports on the same side of the host device.

• Keep away from water, liquids, and moisture.
