Instruction Manual — USB-C to USB-C 100W Charging Cable

This manual covers setup and features for the Satechi USB-C to USB-C 100W Charging Cable (Models: ST-TCC2MM / ST-TCC2MB / ST-TCC2MV).

📄 Download User Manual — USB-C to USB-C 100W Charging Cable · PDF · 1.3 MB

In the Box

USB-C to USB-C 100W Charging Cable, User Manual.

Specifications

Models: ST-TCC2MM / ST-TCC2MB / ST-TCC2MV
Length: 6.5 ft / 2 m
Weight: 3.8 oz / 107.7 g
Connector Type: USB-C to USB-C
Max Power Output: 100W
Data Transfer Speed: Up to 480 Mbps (USB 2.0)
Video Output: Not supported

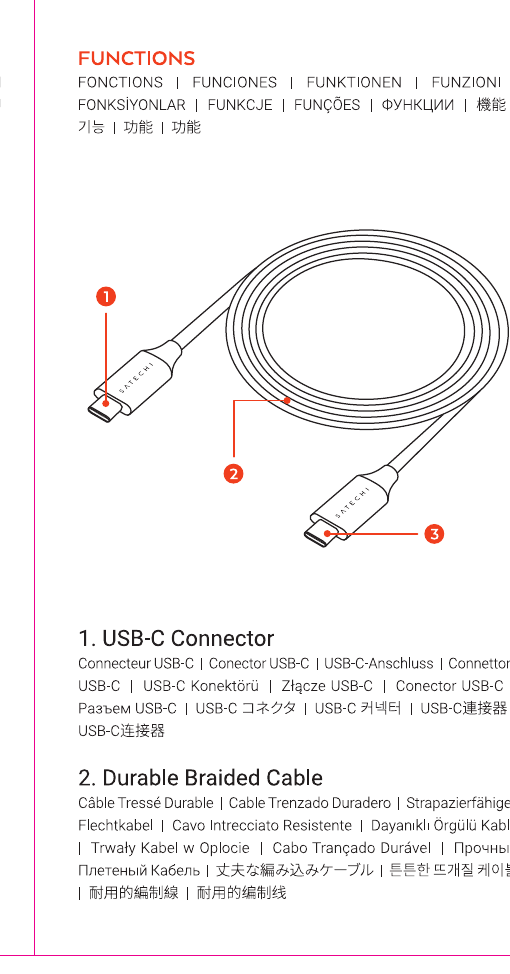

Parts Reference

1. USB-C Connector — USB-C plug at one end of the cable. Connect to your device (laptop, tablet, phone) or to your USB-C PD power source.
2. Durable Braided Cable — The nylon-braided 2-meter cable body, designed for durability and tangle resistance.
3. USB-C Connector — USB-C plug at the opposite end. Connect to your USB-C PD power source or device.

Setup

Charging: Connect one USB-C end to your USB-C PD power adapter, and the other USB-C end to your device. The cable supports up to 100W of power delivery for fast charging of laptops, tablets, and phones.

Data transfer: Connect one USB-C end to your computer and the other to a USB-C storage device or accessory. Data transfers at up to 480 Mbps (USB 2.0 speed).

Important Notes

Charging up to 100W: This cable supports up to 100W USB Power Delivery. To achieve 100W charging, both the power adapter and the device must also support 100W PD. The cable cannot exceed the wattage supported by either end.

Data transfer is limited to USB 2.0 (480 Mbps): This is a charging-optimized cable. Data transfer speeds are limited to USB 2.0 (480 Mbps) and are not suitable for high-speed data transfers.

Video output is not supported: This cable does not support video output to external monitors or displays. It is not an alt-mode video cable.

Frequently Asked Questions

Can this cable charge a laptop at 100W?
Yes, provided your USB-C power adapter and laptop both support 100W USB Power Delivery. The cable supports up to 100W PD.

Why are my data transfer speeds slow?
This cable is designed for charging. Data transfer is limited to USB 2.0 speeds (up to 480 Mbps). For faster data transfers, use a USB4 or Thunderbolt cable.

Can I use this cable to connect my laptop to an external monitor?
No. This cable does not support video output (DisplayPort Alt Mode). It is for charging and USB 2.0 data only.

How long is the cable?
The cable is 6.5 ft / 2 meters in length.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Do not bend, twist, or stretch the cable beyond its rated limits.
2. Keep away from liquids and moisture.
3. Do not use if the cable or connectors are damaged or frayed.
4. Unplug the cable when not in use for extended periods.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
