Instruction Manual — USB-C Magnetic Charging Dock for Apple Watch

This manual covers setup and features for the Satechi USB-C Magnetic Charging Dock for Apple Watch (Model: ST-TCMCAWM).

📄 Download User Manual — USB-C Magnetic Charging Dock for Apple Watch · PDF · 1.1 MB

In the Box

USB-C Magnetic Charging Dock for Apple Watch, User Manual.

Specifications

Model: ST-TCMCAWM
Dimensions: 1.73" × 2" × 0.45" (44 × 51 × 11.4 mm)
Weight: 1.1 oz
Connector: USB-C (male)
Output Power: 5W max
Certification: MFi-certified magnetic Apple Watch charger
Material: Aluminum housing
Compatibility: All Apple Watch models (Series 1 through Ultra 2)

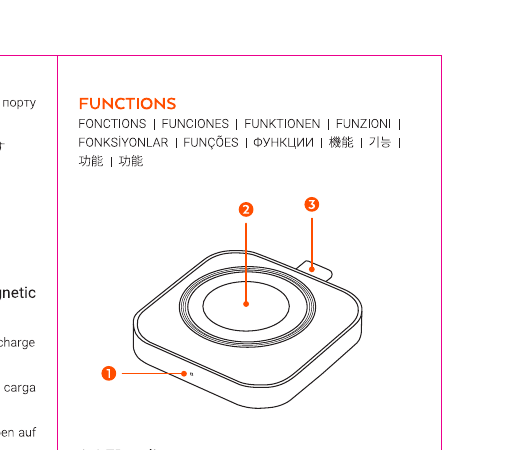

Parts Reference

1. LED Indicator — Lights up when the dock is connected to power and ready for charging.
2. Magnetic Charger (Max. 5W) — MFi-certified magnetic charging surface. Place your Apple Watch face-up on this surface to begin charging.
3. USB-C Connector — USB-C connector that plugs into a powered USB-C port (MacBook, iPad, USB-C wall adapter, or power bank).

Setup

The USB-C Magnetic Charging Dock is plug-and-play — no drivers required.

Step 1: Plug the USB-C connector into a powered USB-C port on your MacBook, iPad, USB-C wall adapter, or power bank.
Step 2: The LED indicator will light up when the dock is connected and powered.
Step 3: Place your Apple Watch face-up on the magnetic charging module. The watch will magnetically snap into position and begin charging.

Important Notes

Do not place metallic objects on the charger: Never place metal objects on or near the magnetic charging surface. Metallic items can interfere with charging and may damage the charger or the object.

Apple Watch must be placed face-up: Place the Apple Watch with the screen facing up on the magnetic charging puck. The magnetic alignment will hold it in place.

Requires USB-C power source of at least 5W: Connect the dock to a USB-C port that provides at least 5W. Compatible power sources include MacBook laptops, iPad Pro/Air, USB-C wall adapters, and USB-C power banks.

Charges at standard Apple Watch speed: This dock charges at the standard Apple Watch magnetic charging speed (5W). It does not support fast charging.

Frequently Asked Questions

Which Apple Watch models are compatible?
The USB-C Magnetic Charging Dock is compatible with all Apple Watch models, including Series 1 through Ultra 2.

What USB-C power sources can I use?
Any USB-C power source providing at least 5W is compatible — including MacBook, iPad Pro/Air, USB-C wall chargers, and USB-C power banks.

Is this MFi-certified?
Yes. The magnetic charging module is MFi-certified by Apple.

Does it support fast charging?
No. The dock charges at the standard Apple Watch magnetic charging speed of up to 5W. Fast charging is not supported.

What does the LED indicator tell me?
The LED lights up when the dock is connected to power. It confirms the dock is receiving power and ready for charging.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Do not place metallic objects on the charging surface.
2. Keep away from liquids and moisture.
3. Do not expose to extreme heat or direct sunlight for extended periods.
4. Do not drop or subject to strong impacts.
