This User Manual covers all features, setup, specifications, and troubleshooting for the Satechi USB-C Magnetic Charging Dock for Apple Watch (ST-TCMCAWM).

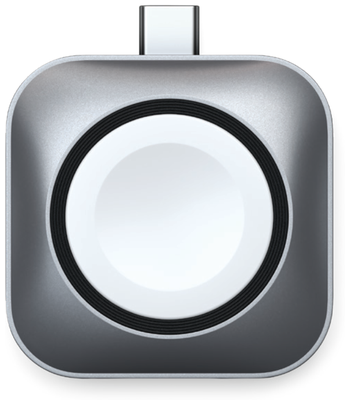

Photo of the Satechi USB-C Magnetic Charging Dock for Apple Watch, showing the aluminum charging puck with a USB-C connector on top and the magnetic Apple Watch charging surface.

What's In The Box

• USB-C Magnetic Charging Dock for Apple Watch
• User Manual

Functions

1. LED Indicator
2. Magnetic Charger (Max. 5W)
3. USB-C Connector

Product Overview

The Satechi USB-C Magnetic Charging Dock for Apple Watch is a compact charging accessory that connects directly to any powered USB-C port to charge a compatible Apple Watch. Its magnetic charging surface aligns automatically with the Apple Watch when placed face-up, so there's no cable or clip to manage. A built-in LED indicator confirms the Satechi USB-C Magnetic Charging Dock for Apple Watch is receiving power. The dock is MFi-certified and delivers up to 5W of standard Apple Watch charging speed - it does not support fast charging.

Setup

1. Plug the USB-C connector on the Satechi USB-C Magnetic Charging Dock for Apple Watch into a powered USB-C port on a MacBook, iPad, USB-C wall adapter, or power bank.
2. The LED indicator on the Satechi USB-C Magnetic Charging Dock for Apple Watch will light up when the dock is connected and receiving power.
3. Place the Apple Watch face-up on the magnetic charging module. The watch will magnetically snap into position and begin charging.

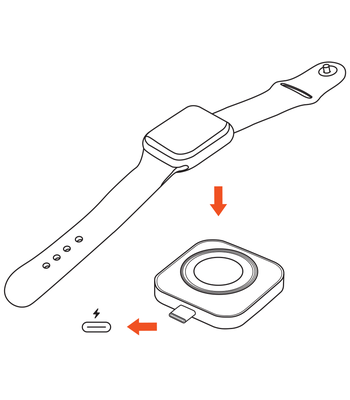

Plugging in the Satechi USB-C Magnetic Charging Dock for Apple Watch and placing the Apple Watch face-up on the magnetic charging module.

Ports and Features

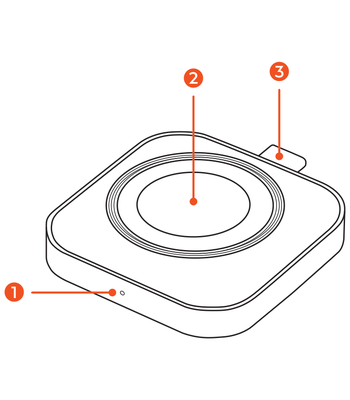

Labeled diagram of the Satechi USB-C Magnetic Charging Dock for Apple Watch: LED Indicator (1), Magnetic Charger (2), USB-C Connector (3).

1. LED Indicator - Lights up when the Satechi USB-C Magnetic Charging Dock for Apple Watch is connected to power and ready for charging.
2. Magnetic Charger (Max. 5W) - MFi-certified magnetic charging surface. Place a compatible Apple Watch face-up on this surface to begin charging at up to 5W.
3. USB-C Connector - Plugs directly into a powered USB-C port, such as a MacBook, iPad, USB-C wall adapter, or power bank.

Important Limitations

• Do not place metallic objects on or near the magnetic charging surface of the Satechi USB-C Magnetic Charging Dock for Apple Watch - metal items can interfere with charging and may damage the charger or the object.
• Place the Apple Watch face-up on the magnetic charging puck; the magnetic alignment holds it in place.
• Requires a USB-C power source of at least 5W, such as a MacBook, iPad Pro/Air, USB-C wall adapter, or USB-C power bank.
• Charges at the standard Apple Watch magnetic charging speed (up to 5W) - fast charging is not supported.
• Keep the Satechi USB-C Magnetic Charging Dock for Apple Watch away from liquids and moisture.
• Do not expose the Satechi USB-C Magnetic Charging Dock for Apple Watch to extreme heat or direct sunlight for extended periods.
• Do not drop the Satechi USB-C Magnetic Charging Dock for Apple Watch or subject it to strong impacts.

Specifications

Model: ST-TCMCAWM
Dimensions: 1.73" x 2" x 0.45" (44 x 51 x 11.4 mm)
Weight: 1.1 oz
Connector: USB-C (male)
Output Power: 5W max
Certification: MFi-certified magnetic Apple Watch charger
Material: Aluminum housing
Compatibility: All Apple Watch models (Series 1 through Ultra 2)

Certifications

The Satechi USB-C Magnetic Charging Dock for Apple Watch (IC: 24917-STTCMCAWM) complies with FCC Part 15 Class B requirements and the CE Declaration of Conformity (available at www.satechi.net/doc). Manufactured by Satechi LLC, 7365 Mission Gorge Rd. Ste. G, San Diego, CA 92120 USA. UK Representative: CMS Distribution Ltd., CasOne Freeway Drive, Castleford, W Yorkshire, WF10 5EJ, United Kingdom. EU Authorized Representative: QIMA EUROPE AR GmbH, Schleidenstrasse 1, 22083 Hamburg, Germany.
