Instruction Manual — Thunderbolt 4 Pro Cable - 1M

This manual covers setup and features for the Satechi Thunderbolt 4 Pro Cable - 1M (Model: ST-YTB100K).

📄 Download User Manual — Thunderbolt 4 Pro Cable - 1M · PDF · 1.3 MB

In the Box

Thunderbolt 4 Pro Cable - 1M, User Manual.

Specifications

Model: ST-YTB100K
Length: 1 meter
Connector Type: USB-C to USB-C
Data Transfer Speed: 40Gbps
Max Power Delivery: Up to 240W (Extended Power Range)
Video Output: Up to 8K/60Hz on single external monitor
Certification: Thunderbolt Certified
Compatibility: Downward compatible with USB4, Thunderbolt 3, Thunderbolt 2, USB 3.2/3.1/3.0/2.0

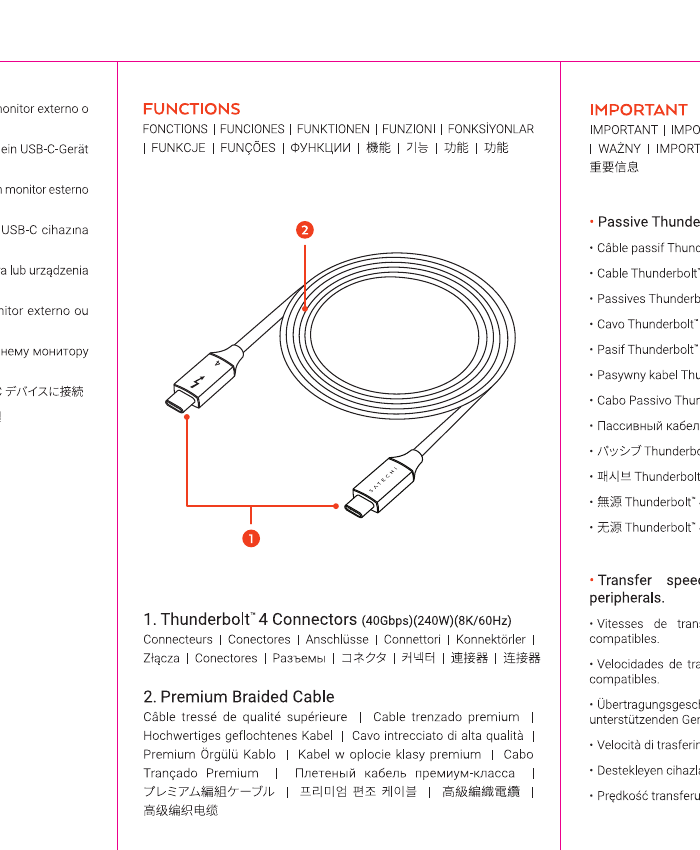

Parts Reference

1. Thunderbolt™ 4 Connectors (40Gbps / 240W / 8K/60Hz) — USB-C connector at each end of the cable. One end connects to your host device (laptop, computer, or USB-C power source); the other connects to your peripheral, display, or device being charged.
2. Durable Braided Cable — The premium braided cable body, designed for durability and flexibility.

Setup

Step 1: Connect one end of the cable to your device (laptop, computer, or USB-C PD power adapter).
Step 2: Connect the other end to the peripheral, monitor, or device you want to power, charge, or transfer data to.
Step 3: If connecting to an external display, ensure your monitor's input is set to the correct HDMI or DisplayPort/Alt Mode source.

Important Notes

Power delivery: Host device and peripherals must support Extended Power Range (EPR) / Power Delivery 3.1 to reach 240W.

Video output: Video output up to 8K/60Hz on a single external monitor. Not all host devices support 8K output — requires a compatible GPU and display.

Backward compatible: Downward compatible with USB4, Thunderbolt 3, Thunderbolt 2, USB 3.2/3.1/3.0/2.0. Full speed requires both ends to support Thunderbolt Certified.

Frequently Asked Questions

Can this cable charge a laptop?
Yes. This cable supports up to Up to 240W (Extended Power Range) USB Power Delivery. Both your power adapter and laptop must support the required wattage for maximum charging speed.

Can I connect an external monitor with this cable?
Yes. This cable supports video output: Up to 8K/60Hz on single external monitor. Your host computer must have a compatible GPU and display output.

Does this work with older USB-C devices?
Yes. Downward compatible with USB4, Thunderbolt 3, Thunderbolt 2, USB 3.2/3.1/3.0/2.0.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Do not bend, kink, or pinch the cable sharply.
2. Keep away from liquids and moisture.
3. Do not use if the cable or connectors are damaged or frayed.
4. Do not force connectors — ensure correct alignment before inserting.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
