This User Manual covers setup, features, compatibility, and specifications for the Satechi Qi2 Wireless Car Charger (ST-Q2CCM).

What's In The Box

Qi2 Wireless Car Charger, USB-C Cable, Vent Clip Mount, User Manual. (USB-C car adapter not included.)

Functions

1. Qi2 Magnetic Wireless Charger (Max. 15W)
2. Adjustable Hinge
3. Air Vent Mount
4. USB-C Connector

Product Overview

The Qi2 Wireless Car Charger mounts to your car's air vent and uses built-in magnets to align and wirelessly charge MagSafe and Qi2-compatible iPhones at up to 15W. The adjustable hinge lets you angle the charger for optimal viewing, and the vent clip rotates to fit both horizontal and vertical vent blades.

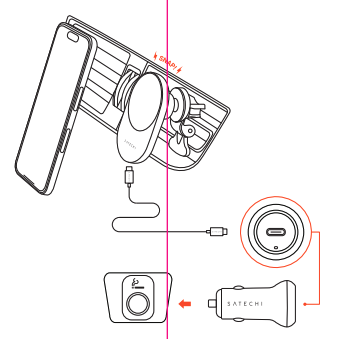

Setup

1. Attach to air vent: Clip the air vent mount (Port 3) onto a horizontal or vertical vent blade in your car. If your vent blades are horizontal, attach the clamp as-is. For vertical vent blades, rotate the clamp 90 degrees before attaching.
2. Connect power: Connect the included USB-C cable to the USB-C connector (Port 4). Plug the other end into a USB-C car adapter (sold separately, 20W+ recommended) and insert into your car's USB-C or USB-A socket.

3. Adjust the angle: Use the adjustable hinge (Port 2) to set your preferred viewing angle — up to 30 degrees up, down, left, or right.
4. Mount your phone: Place your MagSafe or Qi2-compatible iPhone on the charging pad (Port 1). The built-in magnets will snap it into alignment and charging will begin automatically.

Ports and Features

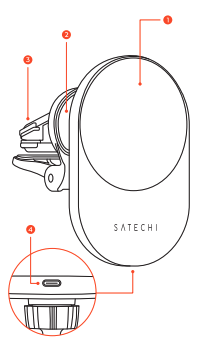

Parts labeled diagram of the Qi2 Wireless Car Charger with 4 labeled components.

1. Qi2 Magnetic Wireless Charger (Max. 15W) — The front-facing Qi2 magnetic wireless charging pad. Charges MagSafe and Qi2-compatible iPhones at up to 15W. Built-in magnets automatically align with MagSafe-compatible phones.
2. Adjustable Hinge — The hinge connecting the charger to the air vent mount. Allows the charger angle to be adjusted up, down, left, or right up to 30 degrees for optimal viewing.
3. Air Vent Mount — The adjustable clip that attaches the charger to your car's air vent. Can be rotated 90° to fit horizontal or vertical vents. Clamps securely to the vent blades.
4. USB-C Connector — USB-C power input port at the bottom of the charger. Connect the included USB-C cable here and plug the other end into a USB-C car adapter (sold separately, 20W+ recommended).

Features

- Qi2 magnetic alignment for fast, secure wireless charging up to 15W
- MagSafe compatible
- Adjustable hinge for up to 30 degrees of viewing angle in any direction
- Rotating vent clip mount fits horizontal and vertical air vent blades
- Compact, low-profile design built for in-car use

Important Limitations

Only compatible with MagSafe phone cases or cases with included magnets: For wireless charging through a case, use a MagSafe-compatible case or a case that includes built-in magnets. Standard non-magnetic cases will prevent proper alignment and wireless charging.

15W charging requires a Qi2 or MagSafe-compatible phone: To reach 15W wireless charging, your iPhone must support Qi2 or MagSafe technology (iPhone 12 and later). Non-Qi2 phones will charge at lower speeds.

For 15W charging, your USB-C car adapter must support at least 20W: The USB-C car adapter (sold separately) must provide at least 20W to achieve the full 15W wireless charging speed.

Vent mount fits horizontal and vertical vents: Rotate the clamp 90 degrees to adapt from horizontal to vertical vent blades.

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.
1. Do not use while driving in a way that distracts from the road.
2. Keep away from liquids and moisture.
3. Do not expose to extreme heat or direct sunlight for extended periods.
4. Ensure the vent mount is securely fastened before placing a phone on the charger.

Specifications

Model: ST-Q2CCM
Dimensions: 3.62" × 2.35" × 1.1" (9.2 × 5.97 × 2.8 cm)
Weight: 75.8 g
Wireless Standard: Qi2 (MagSafe compatible)
Charging Speed: Up to 15W wireless
Input: USB-C
Mount Type: Adjustable air vent clip, 360° rotation
Compatibility: iPhone 12 / 13 / 14 / 15 / 16 series (including Pro, Pro Max, Plus, Mini)

Certifications

FCC, CE, RoHS, WEEE, UL/ETL, California Proposition 65
