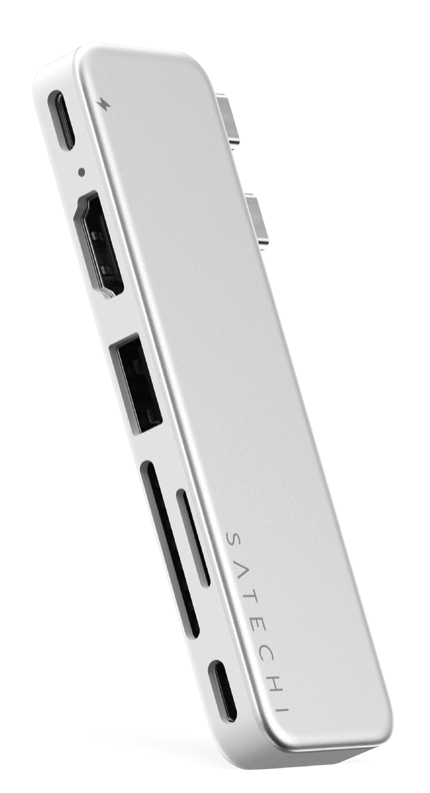

This User Manual covers setup, features, compatibility, and specifications for the Satechi USB-C Snap Hub (ST-HUSNS / ST-HUSNB / ST-HUSNY / ST-HUSNP).

What's In The Box

USB-C Snap Hub, User Manual.

Product Overview

The USB-C Snap Hub snaps onto the dual USB-C ports on your laptop and expands them into seven connections: USB-C PD pass-through charging, 4K/60Hz HDMI, USB-A and USB-C data ports, and microSD and SD card readers, with an LED power indicator.

Setup

The USB-C Snap Hub is plug-and-play, no drivers required.

1. Connect to a laptop: Plug the Dual USB-C Connectors into the USB-C ports on your laptop.

2. Connect your devices: Connect your devices to the hub's ports.

Functions

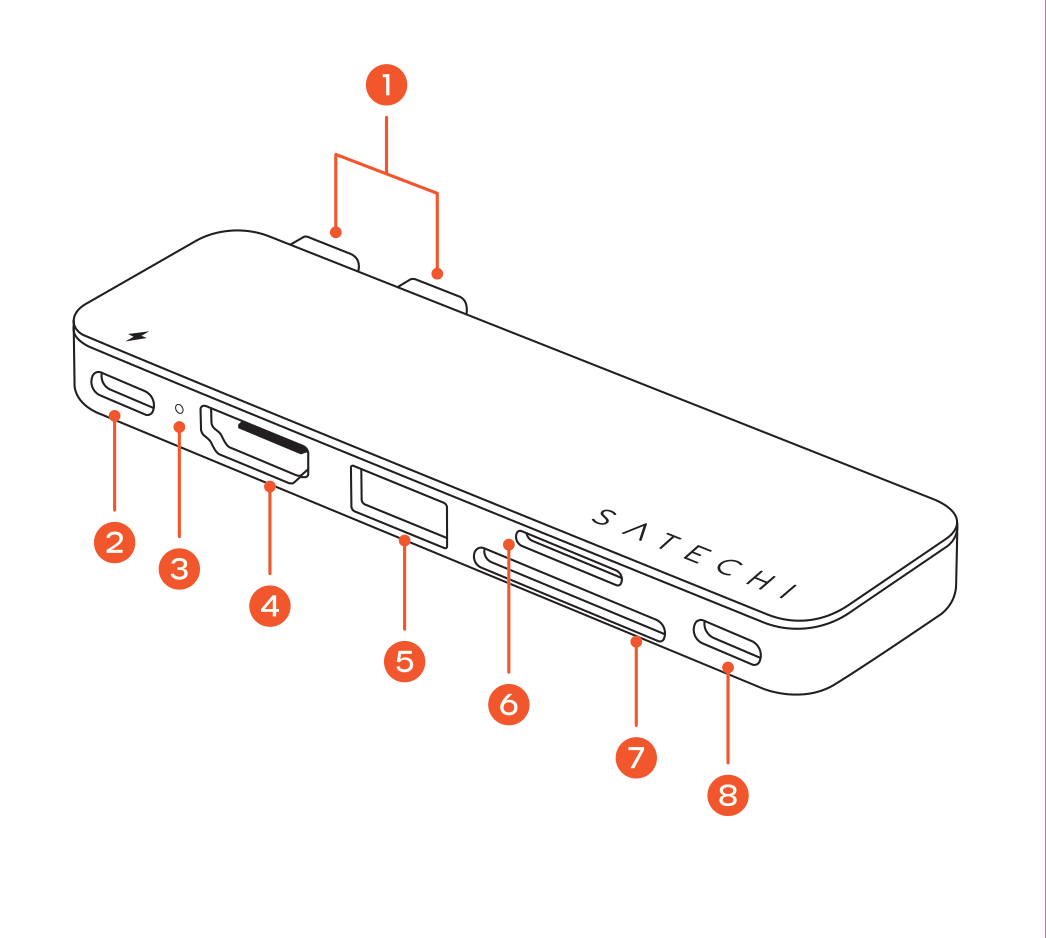

Parts labeled diagram of the USB-C Snap Hub with 8 labeled components.

1. Dual USB-C Connectors (Host): The two USB-C connectors that snap the hub onto your laptop's USB-C ports.
2. USB-C PD Port (45W max): USB-C Power Delivery pass-through charging up to 45W. Does not support data or video.
3. LED Indicator: Powering on: white LED. Powering off: LED off.
4. HDMI Port (up to 4K/60Hz): HDMI video output supporting up to 4K at 60Hz.
5. USB-A Data Port (up to 5Gbps): USB-A port for data transfer up to 5 Gbps.
6. microSD Reader (up to 104MB/s) (UHS-I): microSD card reader, UHS-I speeds up to 104 MB/s.
7. SD Reader (up to 104MB/s) (UHS-I): SD card reader, UHS-I speeds up to 104 MB/s.
8. USB-C Data Port (up to 5Gbps): USB-C port for data transfer up to 5 Gbps.

Features

- Snap-on fit for dual USB-C laptops
- Up to 45W USB-C PD pass-through charging
- 4K/60Hz HDMI video output
- USB-A and USB-C data ports (up to 5 Gbps)
- microSD and SD card readers (UHS-I, up to 104 MB/s)

Important Limitations

USB-C ports do not support video output. The USB-C PD and USB-C data ports cannot drive a display. Use the HDMI port for external monitors.

Insert microSD card with the pins facing down. Insert standard SD card with the pins facing up.

Not compatible with Apple USB SuperDrive or CD Readers.

Keep away from water, liquid, and moisture.

Specifications

Model: ST-HUSNS (Silver) / ST-HUSNB (Black) / ST-HUSNY (Yellow) / ST-HUSNP (Pink)
Connector: Dual USB-C (Host)
Ports & Speeds:
1x USB-C PD: up to 45W pass-through charging
1x HDMI: up to 4K 60Hz
1x USB-A: up to 5 Gbps
1x USB-C data: up to 5 Gbps
1x microSD reader: up to 104 MB/s (UHS-I)
1x SD reader: up to 104 MB/s (UHS-I)

Certifications

FCC, CE, WEEE, CAN ICES(B)/NMB(B), KC
