This User Manual covers setup, features, compatibility, and specifications for the Satechi OntheGo™ 5-in-1 Multiport Adapter (ST-POTG5S / ST-POTG5B / ST-POTG5Y / ST-POTG5P).
What's In The Box
OntheGo™ 5-in-1 Multiport Adapter, 2x 3M Adhesive Rings, User Manual.
Product Overview
The OntheGo™ 5-in-1 Multiport Adapter expands a single USB-C port on your laptop, tablet, or phone into five connections: USB-C data at 5Gbps, USB-C pass-through charging up to 60W, USB-A data at 5Gbps, a UHS-I SD card reader, and HDMI video up to 4K at 60Hz. The braided host cable is built in and wraps into a groove on the underside, and two included 3M adhesive rings let you mount the adapter to the back of a laptop or device for a setup that stays put.
Setup
The OntheGo™ 5-in-1 Multiport Adapter is plug-and-play. No drivers are required.
- Connect to a USB-C host device: Plug the built-in braided USB-C cable into the USB-C port on your laptop, tablet, or phone.
- Connect your devices: Plug your accessories, display, card, and charger into the adapter's ports.

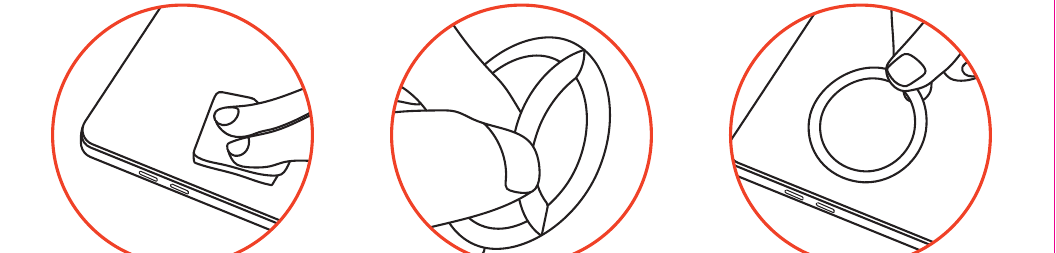

Attach the 3M adhesive ring (optional)
1. Clean the surface where you will place the 3M Adhesive Ring.
2. Before peeling the adhesive, check that the USB-C cable reaches your device's port. Adjust placement if needed.
3. Remove the protective film from the 3M Adhesive Ring to expose the adhesive.
4. Press the 3M Adhesive Ring firmly onto a clean, flat surface. Avoid curved or textured areas.
5. Attach the adapter and connect your devices.

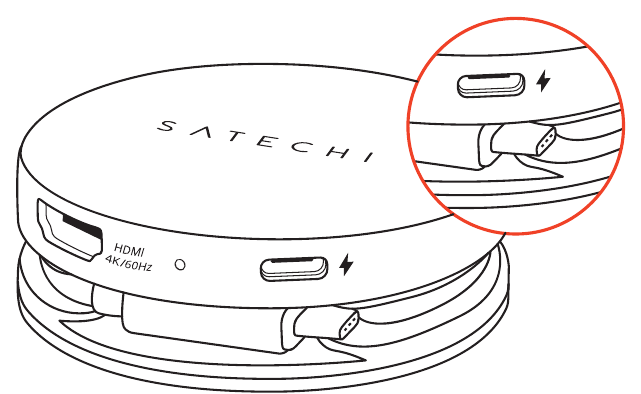

Wrap and secure the cable
1. Coil the USB-C cable into the bottom groove of the adapter, following the circular path.
2. Push the USB-C connector into the designated clips to lock it in place.
3. Ensure the cable sits flush and the connector is firmly held to prevent it from coming loose during travel.
Functions

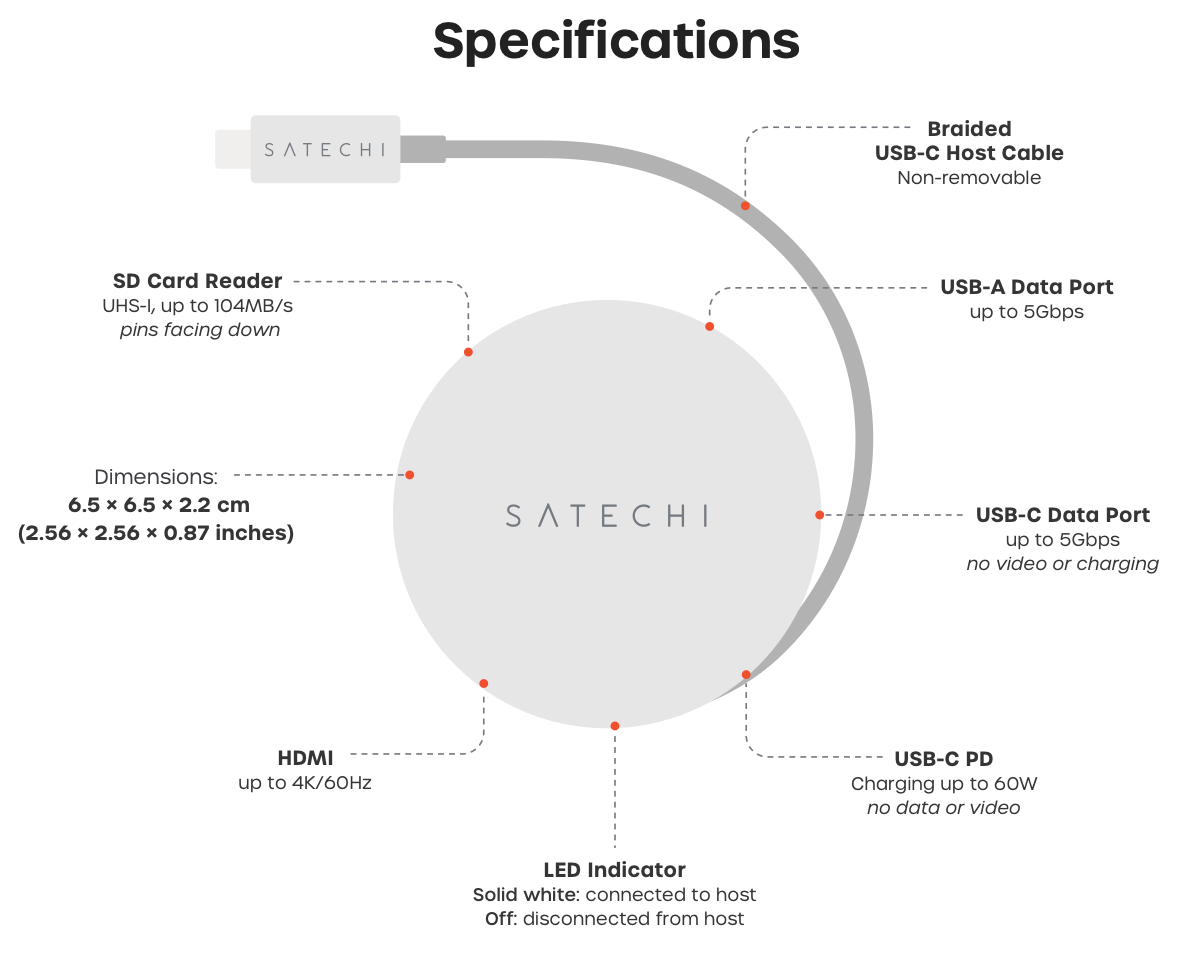

Parts labeled diagram of the OntheGo™ 5-in-1 Multiport Adapter with 8 labeled components.
1. Braided USB-C Cable (Host): Built-in, non-removable cable that connects the adapter to your USB-C laptop, tablet, or phone. It wraps into the groove on the underside for travel.
2. USB-C Data Port (up to 5Gbps): Data transfer up to 5Gbps. Does not support video output or charging.
3. USB-C PD Port (60W max): Pass-through charging up to 60W. Does not support data transfer or video output.
4. LED Indicator: Solid white when the adapter is connected to the host. Off when it is disconnected.
5. USB-A Data Port (up to 5Gbps): Data transfer up to 5Gbps.
6. SD Reader (up to 104MB/s) (UHS-I): UHS-I card reader, up to 104MB/s. Insert the card with the pins facing down and the label facing up.
7. HDMI Port (up to 4K/60Hz): Video output up to 4K at 60Hz. This is the only port on the adapter that supports video.
8. 2x 3M Adhesive Rings: Two adhesive rings for mounting the adapter to the back of a laptop or device. Mounting only, they do not provide wireless charging.
Features
- Compact, circular design with a built-in braided USB-C host cable
- Five connections from one USB-C port: USB-C data, USB-C PD charging, USB-A data, SD card reader, and HDMI
- Cable wraps into a built-in groove and locks in place for travel
- Two 3M adhesive rings included for mounting to a laptop or device
- White LED power indicator
Important Limitations
The USB-C ports do not support video output: Neither the USB-C data port nor the USB-C PD port outputs video. Use the HDMI port for video.
Insert SD cards with the pins facing down: Insert the card with the metal contact pins facing down and the label facing up.
The magnetic base does not provide wireless charging: The base and the adhesive rings are for mounting and positioning only.
Not compatible with the Apple USB SuperDrive or other CD readers: The adapter cannot power the Apple USB SuperDrive, CD readers, or DVD drives.
Keep away from water, liquid, and moisture: Do not expose the adapter to liquids or damp conditions.
Use a USB 3.2 Gen 1 host port or better for full speed: For best performance, connect the adapter to a host USB-C port that supports USB 3.2 Gen 1 (5Gbps) or higher.
Specifications
Models: ST-POTG5S (Silver), ST-POTG5P (Blush), ST-POTG5B (Indigo), ST-POTG5Y (Citrus)
Dimensions: 6.5 x 6.5 x 2.2 cm (2.56 x 2.56 x 0.87 inches)
Connector: Built-in, non-removable braided USB-C host cable
Ports & Speeds:
1x HDMI: up to 4K at 60Hz
1x USB-C data: up to 5Gbps, no video output or charging
1x USB-C PD: charging up to 60W, no data transfer or video output
1x USB-A data: up to 5Gbps
1x SD card reader: UHS-I, up to 104MB/s, insert with pins facing down
Certifications
FCC Class B, CE, CAN ICES(B)/NMB(B), WEEE
