This Quick Start Guide covers getting started with the Satechi ChargeView 240W Desktop Charger (ST-C6CV240C-US).

How to set up the Satechi ChargeView 240W Desktop Charger

The ChargeView 240W Desktop Charger is plug and play.

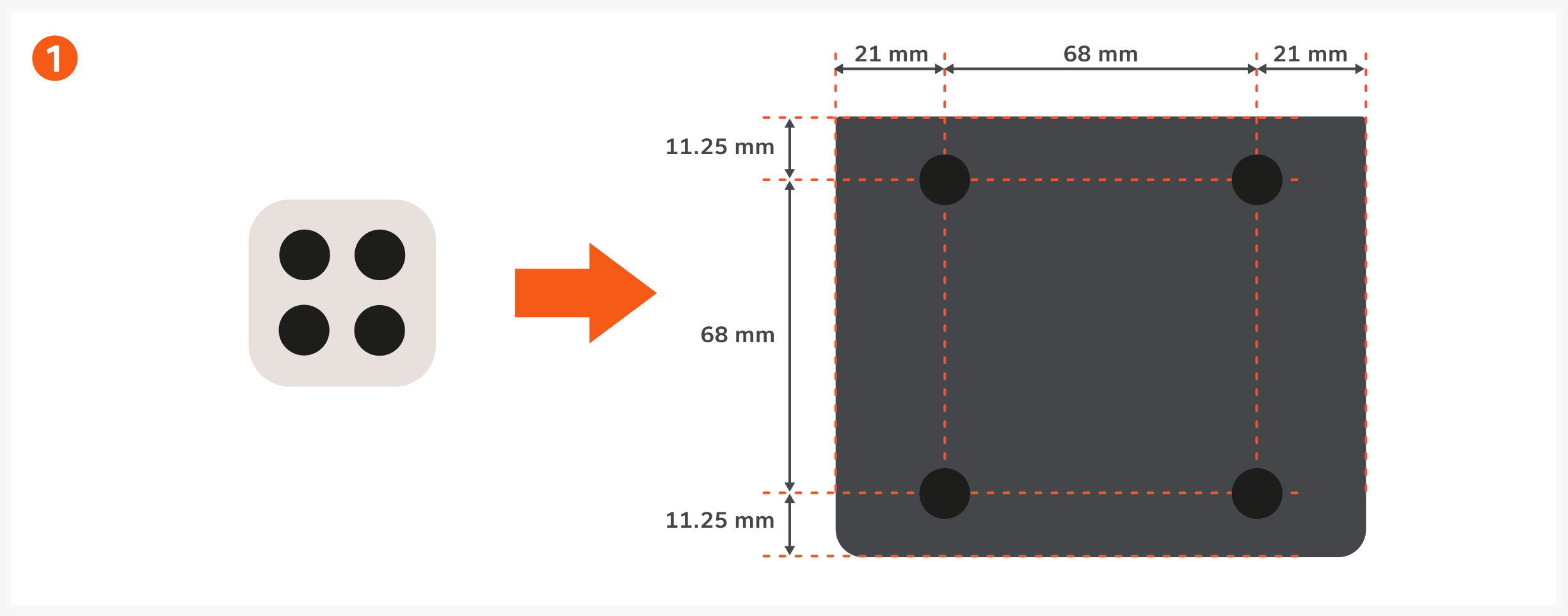

1. Place the 4 silicone dots on the bottom of the charger as shown, then press firmly to secure them. Placing the dots as shown avoids stand interference and ensures stability. Without the stand, the dots also keep the charger stable on flat surfaces and prevent slipping.

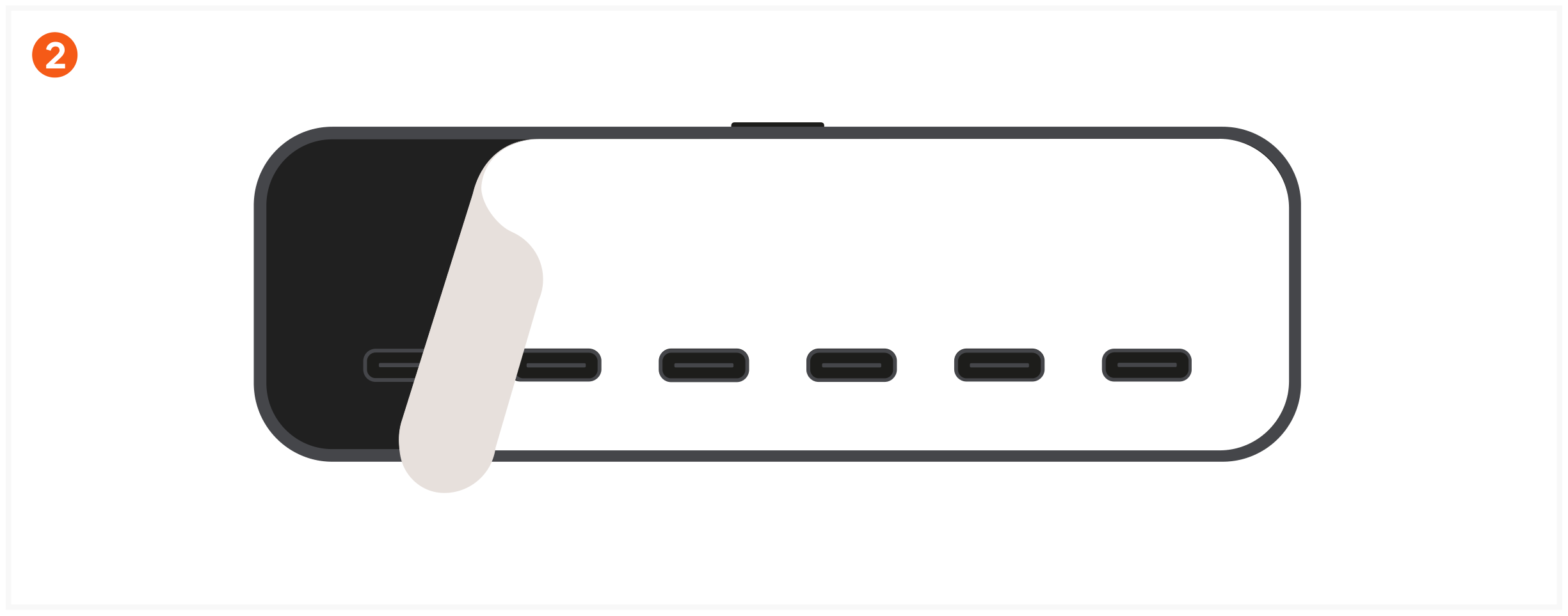

2. Peel off the protective film from the display.

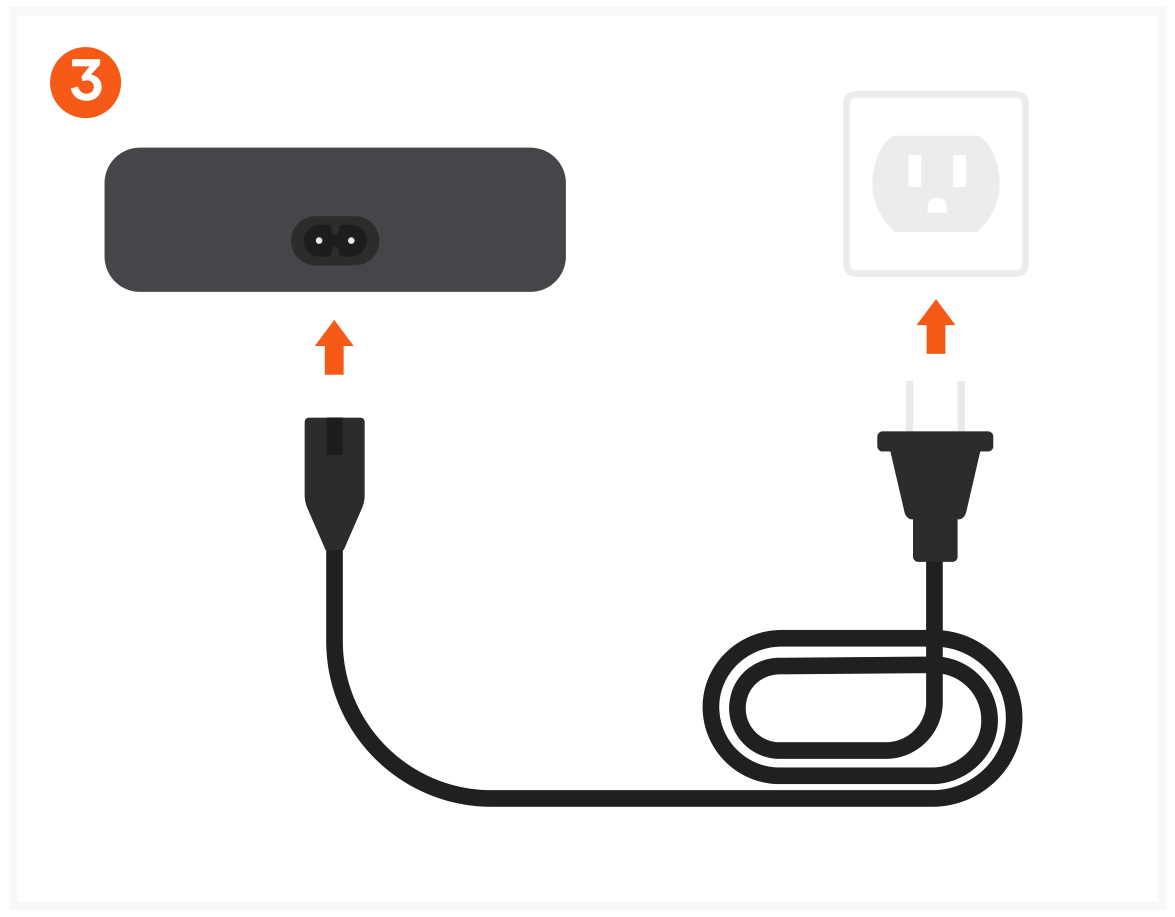

3. Connect the included 1.5 m C7 power cord to the C7 Power Port on the rear of the charger.



4. Plug the other end of the power cord into a standard wall outlet.
5. Use the included desktop stand to position the charger horizontally (flat) or vertically (upright). When placed horizontally on the stand, the charger rests at a slight forward incline for a better viewing angle of the display.

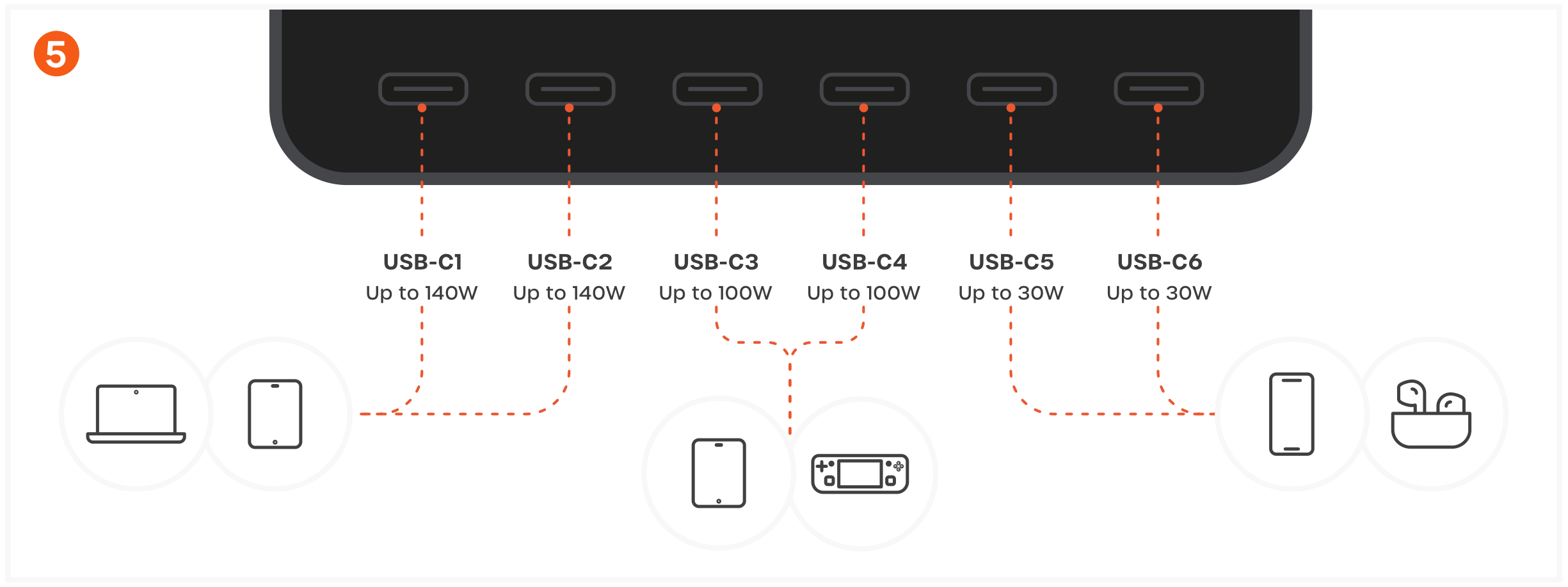

6. Connect your devices to any of the 6 USB-C (Universal Serial Bus Type-C) ports using compatible USB-C cables.



ChargeView 240W Desktop Charger ports and controls

The charger uses USB-C Power Delivery (PD) standards, including AVS (Adjustable Voltage Supply) and PPS (Programmable Power Supply). PD 3.2 AVS is optimized for the latest iPhones. PPS is designed to optimize fast charging for Samsung and other Android devices.

• USB-C1 (PD 3.2 AVS): 140W Max (single port output).
• USB-C2 (PD 3.2 AVS): 140W Max (single port output).
• USB-C3 (PD 3.0 PPS): 100W Max (single port output).
• USB-C4 (PD 3.0 PPS): 100W Max (single port output).
• USB-C5 (PD 3.0 PPS): 30W Max (single port output).
• USB-C6 (PD 3.0 PPS): 30W Max (single port output).
• Digital Display: real-time power and thermal monitoring.
• Display Button
• Desktop Stand: horizontal or vertical use.
• C7 Power Port
• C7 Power Cord (included): 1.5 m.
• 4 x Silicone Dots

ChargeView 240W Desktop Charger power input and output

• Input: 100 - 240V ~ 50/60 Hz 3.5A Max. The charger is compatible with international outlets when used with the appropriate plug adapter.
• Total Output: Up to 240.0W Max, with two, three, four, five or six ports in use.
• All six ports in use (C1+C2+C3+C4+C5+C6): 70W + 70W + 30W + 30W + 20W + 20W

The power each port delivers depends on which ports are in use. For the fastest single-device charging, use USB-C1 or USB-C2. Power output adjusts automatically when multiple devices are connected. Scan the Quick Response (QR) code in the User Manual for detailed port configurations.

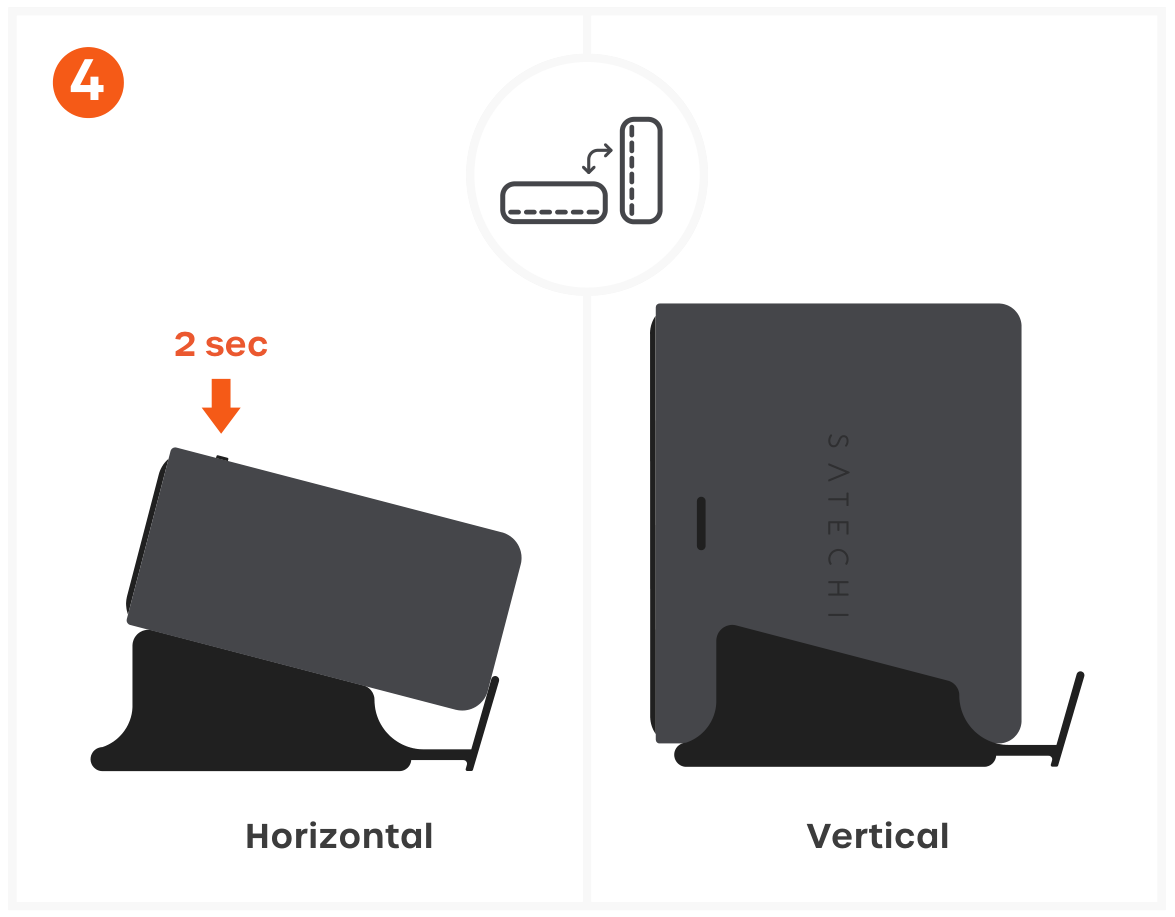

How to switch between horizontal and vertical view on the ChargeView 240W Desktop Charger

The Desktop Stand holds the charger for horizontal or vertical use. Press and hold the power button for 2 seconds to switch from horizontal to vertical view, so the display orientation matches your chosen position.

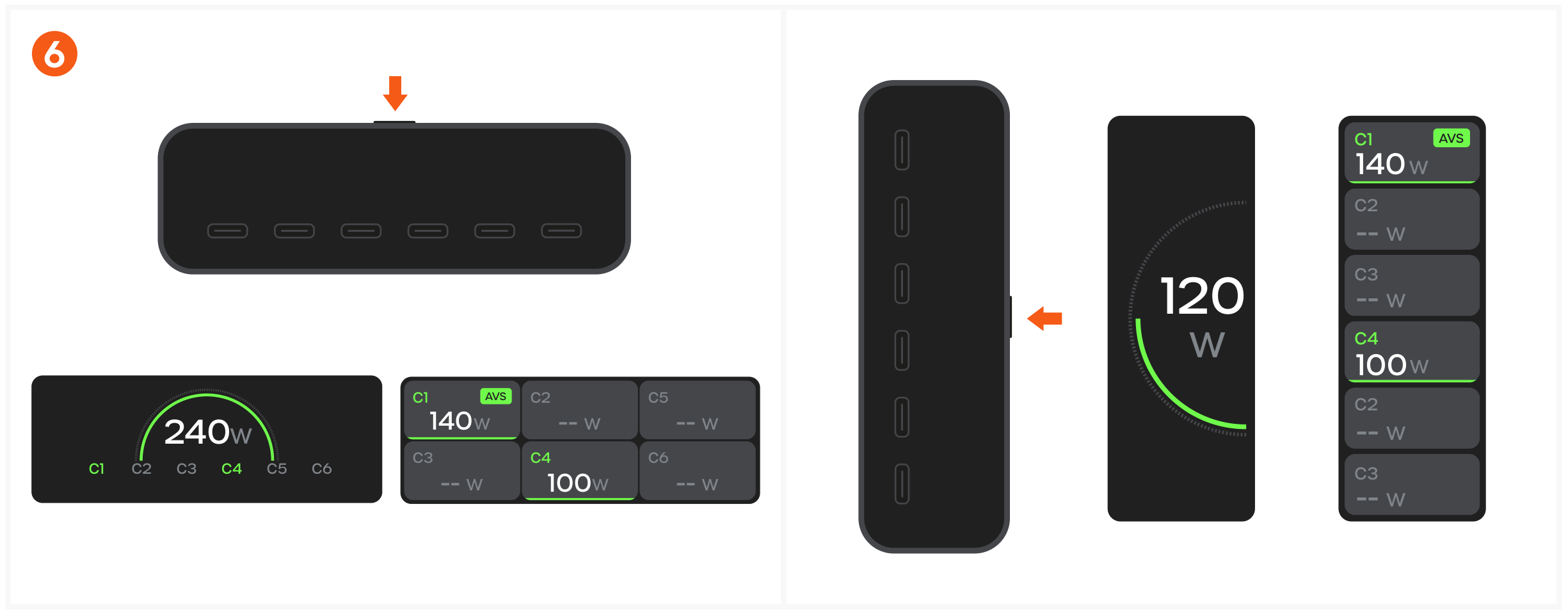

ChargeView 240W Desktop Charger digital display and indicator meanings

• When powered on, the Satechi logo appears for 3 seconds.
• Press the power button to cycle through display screens, such as the total combined output view and the per-port individual view.
• The display shows real-time wattage and charging status for each active port.
• Each port's indicator will turn green when the port is in use.
• The AVS indicator on port C1 will turn green for 5 seconds when in use, which indicates fast charging is active on compatible devices such as the iPhone 17 series and newer.
• After 1 minute of inactivity, the screen will automatically turn off and enter sleep mode. The display sleep timer is fixed and cannot be adjusted or disabled.
• The display wakes when a device is connected or the power button is pressed.

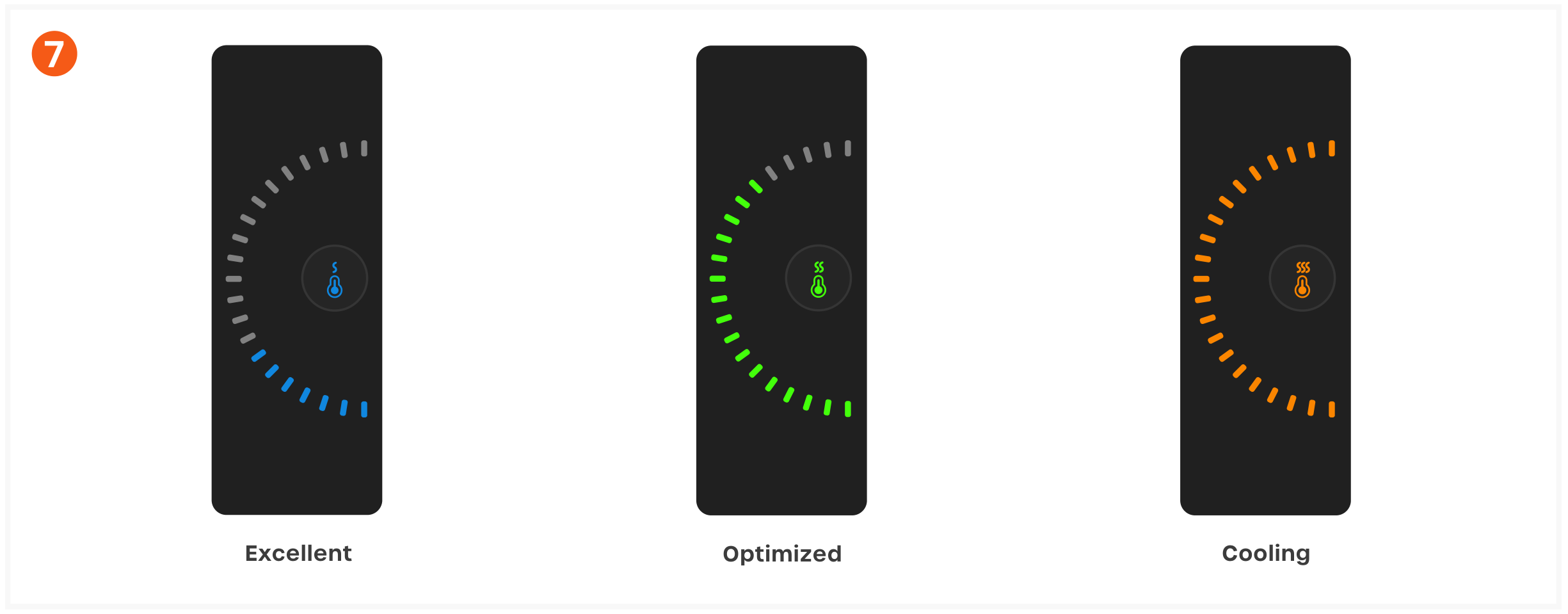

ChargeView 240W Desktop Charger temperature monitoring indicator

The temperature monitoring indicator reflects the charger's current thermal state.

• Blue: Excellent
• Green: Optimized
• Orange: Cooling

ChargeView 240W Desktop Charger specifications

• Dimensions: 11 × 9.2 × 3.85 cm (4.3 × 3.6 × 1.5 inches).
• Weight: 680 g (24.0 oz).
• Includes: stand, 1.5 m C7 power cord, 4x silicone dots.

Important notes for the ChargeView 240W Desktop Charger

• Important: Place silicone dots on the bottom of the charger as shown to avoid stand interference and ensure stability.
• Please use included power adapter and cable for optimal functionality.
• For optimal performance, ensure adequate airflow around the charger and avoid placing the charger in enclosed or confined spaces.
• Keep away from water or other liquids.
