This User Manual covers all features, setup, and troubleshooting for the Satechi ChargeView 240W Desktop Charger. This User Manual covers all features, port functions, power distribution, digital display operation, setup instructions, and charging technology for the Satechi ChargeView™ 240W Desktop Charger (ST-C6CV240C-US / ST-C6CV240C-EU / ST-C6CV240C-UK / ST-C6CV240C-AU / ST-C6CV240C-KR).

What's In The Box

ChargeView™ 240W Desktop Charger, C7 power cord, desktop stand, 4 × silicone dots, user documentation.

Product Overview

The Satechi ChargeView™ 240W Desktop Charger (model MN25STI05) is a high-output six-port USB-C charging station featuring a built-in digital display that shows real-time power output and thermal status. It supports USB Power Delivery 3.2 with AVS (Adjustable Voltage Supply) on ports C1 and C2 for up to 140W each, and PD 3.0 with PPS (Programmable Power Supply) on ports C3 through C6. Total simultaneous output reaches 240W across all six ports. The included desktop stand supports both horizontal and vertical placement.

Parts and Functions

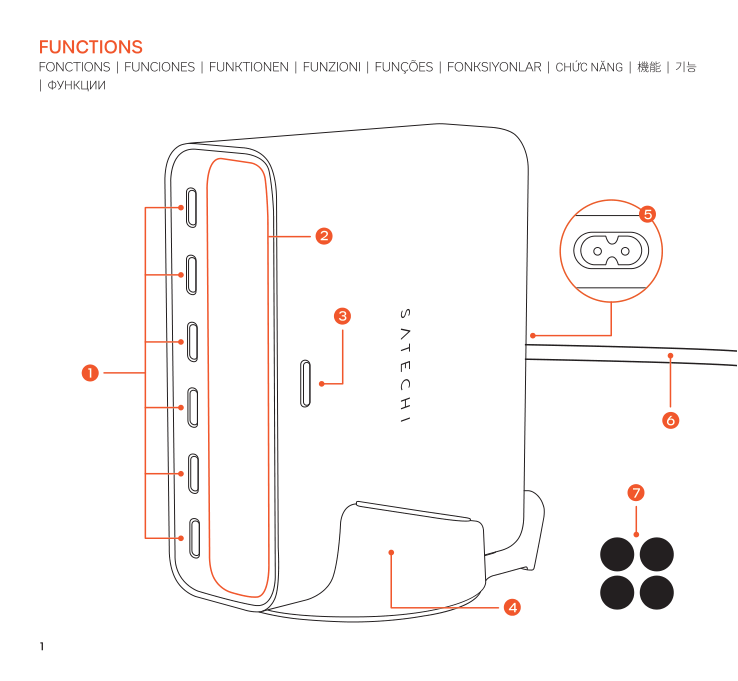

Labeled diagram of the ChargeView™ 240W Desktop Charger showing all seven components: six USB-C ports (1), digital display (2), display button (3), desktop stand (4), C7 power port (5), C7 power cord (6), and four silicone dots (7).

The seven primary components of the ChargeView™ 240W Desktop Charger are:

1. 6 × USB-C Ports — Six USB-C ports for simultaneous device charging. Ports C1 and C2 support PD 3.2 AVS at up to 140W each. Ports C3 and C4 support PD 3.0 PPS at up to 100W each. Ports C5 and C6 support PD 3.0 PPS at up to 30W each.

2. Digital Display — Front-facing screen that shows total wattage output in real time and displays thermal status using color-coded indicators.

3. Display Button — Press and hold for 2 seconds to toggle the display between horizontal and vertical orientation to match how the charger is positioned. After 1 minute of inactivity the screen turns off automatically and enters sleep mode.

4. Desktop Stand — Detachable base that allows the charger to sit horizontally (flat) or stand vertically (upright) on your desk.

5. C7 Power Port — The AC inlet on the rear of the charger that accepts the included C7 power cord.

6. C7 Power Cord (included) — The AC power cable included in the box. Always use the included cord for optimal performance.

7. 4 × Silicone Dots — Four adhesive silicone feet that attach to the underside of the charger to prevent stand interference and keep the unit stable on your desk.

Setup

Step 1 — Attach the silicone dots

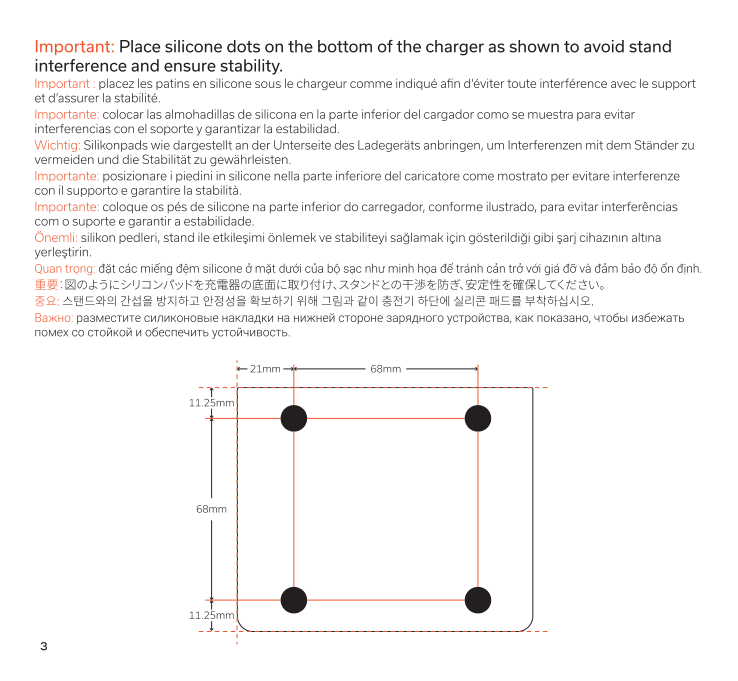

Placement guide for the four silicone dots on the underside of the charger. Place each dot 11.25mm from the edge, with 68mm center-to-center spacing both horizontally and vertically.

Before placing the charger on a desk, attach all four silicone dots to the underside exactly as shown in the diagram above. Correct placement prevents the charger from rocking against the stand and ensures stability during use.

Step 2 — Connect the power cord

Plug the included C7 power cord into the C7 power port on the rear of the charger, then connect the other end to a standard AC wall outlet (100–240V ~ 50/60Hz).

Step 3 — Connect your devices

Connect USB-C cables from your devices into any of the six ports. The digital display will activate and begin showing total output wattage. Each port's indicator on the display turns green when that port is actively delivering power.

Power Distribution

The ChargeView™ 240W Desktop Charger dynamically allocates power across all active ports. Total output never exceeds 240W regardless of how many ports are in use. The tables below show per-port maximums based on which ports are active simultaneously.

Single Port Output

USB-C1 (PD 3.2 AVS): 140W MAX · USB-C2 (PD 3.2 AVS): 140W MAX · USB-C3 (PD 3.0 PPS): 100W MAX · USB-C4 (PD 3.0 PPS): 100W MAX · USB-C5 (PD 3.0 PPS): 30W MAX · USB-C6 (PD 3.0 PPS): 30W MAX

Multi-Port Output (selected combinations)

For the full port configuration table covering all combinations, scan the QR code in the printed manual or visit satechi.com.

Electrical Specifications

Input: 100–240V ~ 50/60Hz, 3.5A Max

C1/C2 Output (PD 3.2 AVS): 5.0/9.0/15.0V=3.0A (45W Max), 20.0V=5.0A (100W Max), 28.0V=5.0A (140W Max); AVS 9.0–15.0V=2.67A (40W Max), 15.0–28.0V=5.0A (140W Max); PPS 5.0–21.0V=5.0A (100W Max)

C3/C4 Output (PD 3.0 PPS): 5.0/9.0/15.0V=3.0A (45W Max), 20.0V=5.0A (100W Max); PPS 5.0–21.0V=5.0A (100W Max)

C5/C6 Output (PD 3.0 PPS): 5.0/9.0V=3.0A (27W Max), 15.0V=2.0A (30W Max), 20.0V=1.5A (30W Max); PPS 5.0–11.0V=2.72A (30W Max)

Total Max Output: 240W · Operating Temperature: 0°C – 25°C

Digital Display Guide

The front-facing digital display on the ChargeView™ 240W Desktop Charger shows real-time wattage and thermal status at a glance.

Switching display orientation

Press and hold the display button for 2 seconds to toggle between horizontal and vertical screen orientation. Set the orientation to match how you have positioned the charger on your desk.

Auto-sleep

After 1 minute of inactivity the display automatically turns off and enters sleep mode. It reactivates as soon as charging activity resumes.

Port activity indicators

Each port has an individual indicator on the display. When a port is actively delivering power, its indicator lights green. The C1 port's AVS indicator lights green for 5 seconds each time a compatible device begins drawing AVS-mode power.

Temperature monitoring indicator

The display uses four color-coded states to show the charger's thermal condition: Blue = Excellent · Green = Optimized · Orange = Cooling · These states help you understand when the charger is managing heat from heavy simultaneous loads.

Advanced Charging Technologies

PD 3.2 AVS — Adjustable Voltage Supply (C1 and C2)

Ports C1 and C2 support USB Power Delivery 3.2 with AVS (Adjustable Voltage Supply). AVS dynamically fine-tunes voltage output in real time, allowing compatible devices such as the latest iPhone models to charge faster and more efficiently while maintaining lower operating temperatures. AVS delivers up to 140W on a single port.

PPS — Programmable Power Supply (C3–C6)

Ports C3 through C6 support PPS (Programmable Power Supply), part of the USB Power Delivery standard. PPS dynamically adjusts voltage and current in small increments to deliver the most efficient fast-charging performance for compatible Android smartphones, including Samsung Super Fast Charging and Google Pixel fast charging. PPS delivers up to 100W on C3 and C4, and up to 30W on C5 and C6.

Important Safety Notes

Always use the included C7 power cord and power adapter for optimal performance. Do not substitute with third-party cables. Keep the charger away from water or other liquids at all times. Do not cover ventilation areas while the charger is in use. If the charger is damaged, stop using it immediately and contact Satechi support at support@satechi.com.

Compliance and Certifications

The Satechi ChargeView™ 240W Desktop Charger (MN25STI05) complies with FCC Part 15 Class B, CE (EC directives — Declaration of Conformity available at https://satechi.com/pages/doc-1), WEEE, CAN ICES(B)/NMB(B), and Intertek/ETL standards. The product is rated for use at temperatures between 0°C and 25°C, altitude up to 2 km.

Contact and Support

Manufacturer: Satechi LLC, 10637 Scripps Summit Ct, San Diego, CA 92131 USA · +1 858 268 1800 · support@satechi.com · www.satechi.com

For setup guides, troubleshooting, and warranty information, visit satechi.com or contact our support team.
