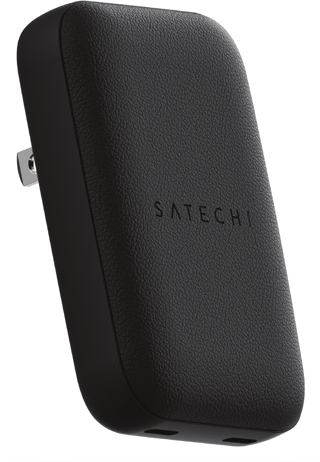

This User Manual covers setup, features, compatibility, and specifications for the Satechi OntheGo™ 67W Slim Wall Charger (ST-COTG67K-US / ST-COTG67R-US / ST-COTG67W-US).
Product Overview
The OntheGo™ 67W Slim Wall Charger has a foldable plug and two USB-C ports. It delivers up to 67W from a single port, or 45W + 20W when both ports are in use.

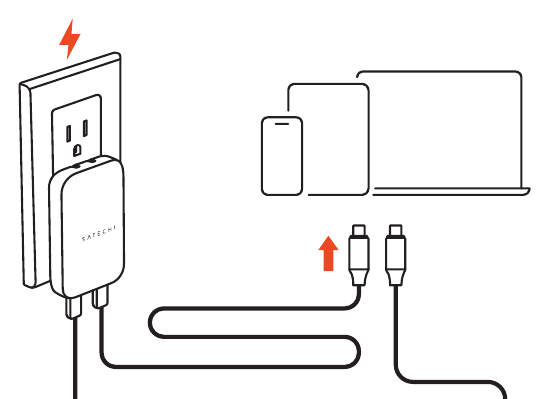

Setup
- Plug the wall charger into a US power outlet.
- Insert a USB-C cable into the charger: Connect it to your USB-C compatible device or peripheral to charge. USB-C cables not included.
Functions

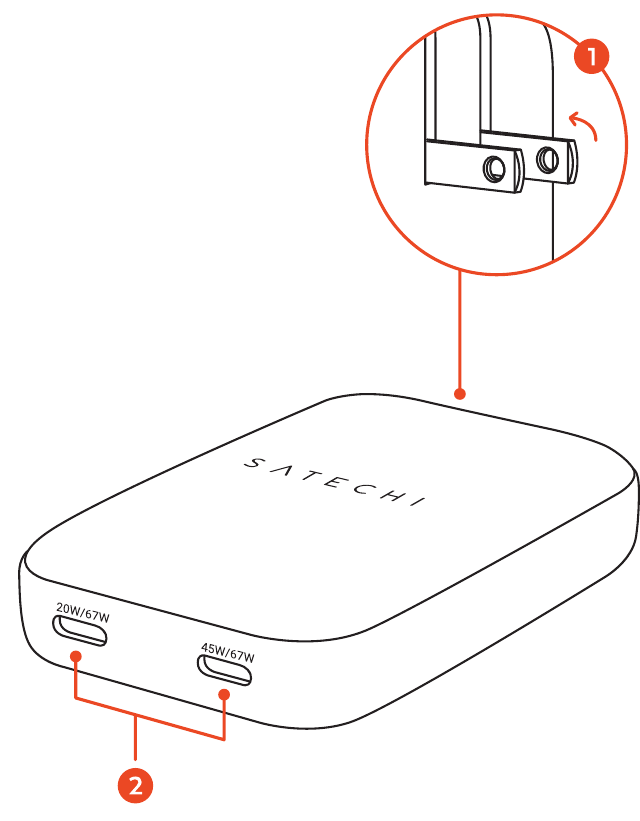

Parts labeled diagram of the OntheGo™ 67W Slim Wall Charger with 2 labeled components.
1. Foldable Plug
2. 2 x USB-C Ports: Marked 20W/67W and 45W/67W. Single port output: 67W max. Dual port output: 45W + 20W. USB-C cables not included.
Features
- Foldable plug
- 2 x USB-C ports
- Single port output up to 67W; dual port output 45W + 20W
Important Limitations
Output is shared when both ports are in use: Single port output is 67W max. Dual port output is 45W + 20W.
USB-C cables not included.
Use the original device cable or a certified alternative: For optimal speed and safety, use the original device cable or a certified alternative.
Keep away from water, liquid, and moisture.
Specifications
Model: ST-COTG67K-US / ST-COTG67R-US / ST-COTG67W-US
Plug: Foldable
Ports: 2 x USB-C
Single Port Output: 67W max
Dual Port Output: 45W + 20W
Certifications
FCC, CAN ICES(B)/NMB(B)
