📥 Download User Manual — Thunderbolt 4 Multimedia Pro Dock · PDF · 1.8 MB

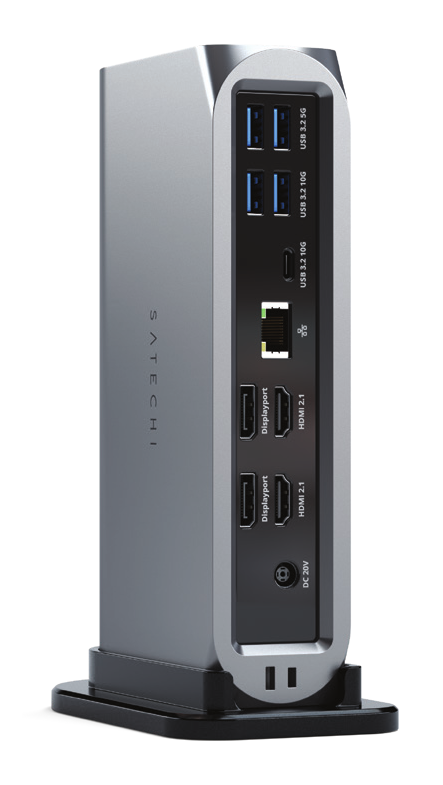

This User Manual covers setup, port reference, display configuration, and troubleshooting for the Satechi Thunderbolt 4 Multimedia Pro Dock (ST-DT4PMM-US / ST-DT4PMM-EU / ST-DT4PMM-UK). The Thunderbolt 4 Multimedia Pro Dock is a desktop docking station that expands a single Thunderbolt 4 or USB4 port into a comprehensive workstation hub — supporting multiple displays, high-speed data, USB peripherals, Ethernet, SD card readers, and up to 96W laptop charging.

What's in the Box

• Thunderbolt 4 Multimedia Pro Dock (ST-DT4PMM-US, ST-DT4PMM-EU, or ST-DT4PMM-UK)
• Thunderbolt 4 host cable
• Power adapter
• User Manual

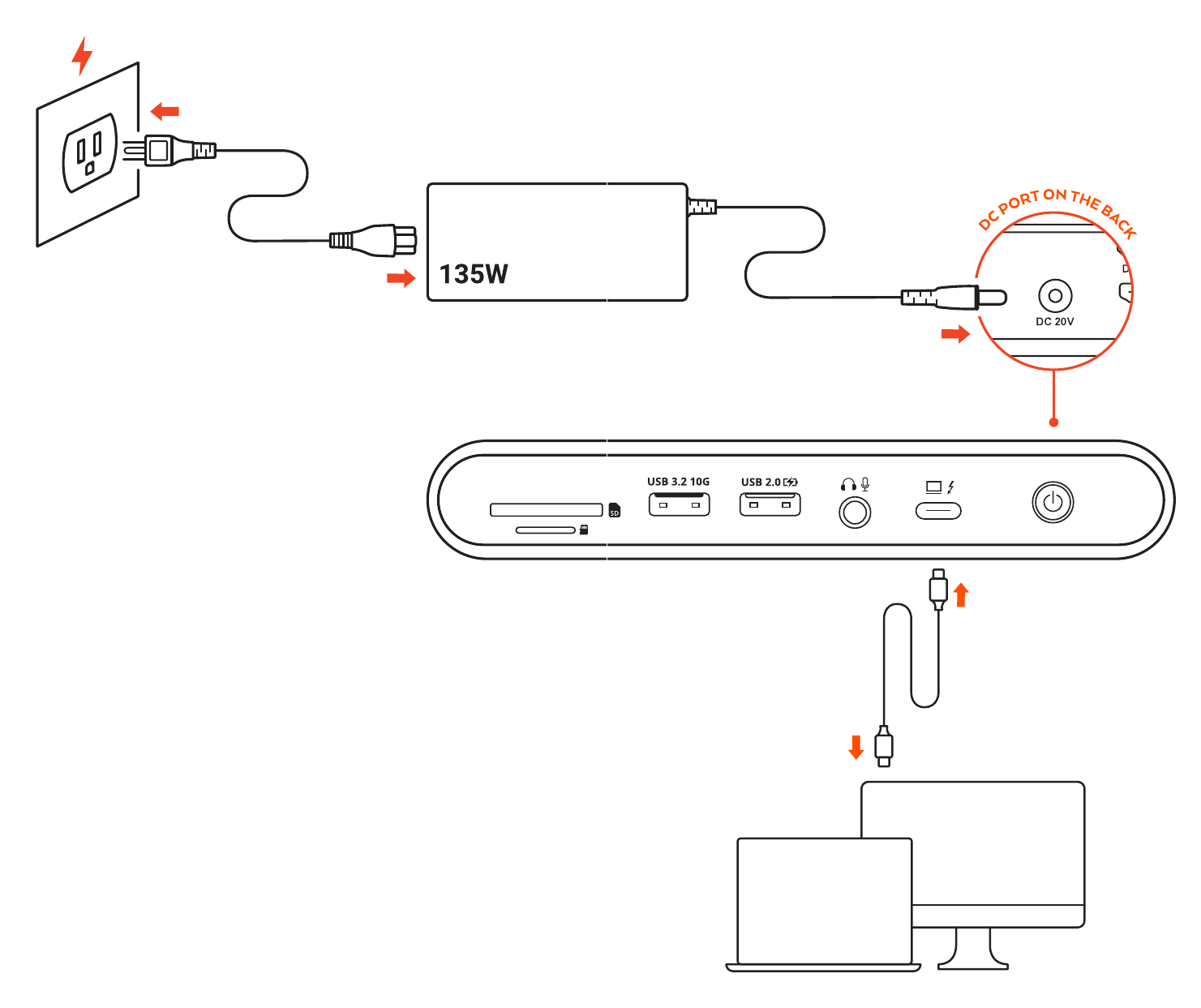

Setup

1. Connect the power adapter to the dock and plug into a wall outlet.
2. Connect the included Thunderbolt 4 cable from the dock's Host port to a Thunderbolt 4 or USB4 port on your MacBook, MacBook Pro, or compatible Windows laptop.
3. Connect your peripherals — displays, USB devices, storage, Ethernet — to the appropriate ports on the dock.
4. The dock is recognized automatically on macOS and Windows. No drivers are required for most functions.

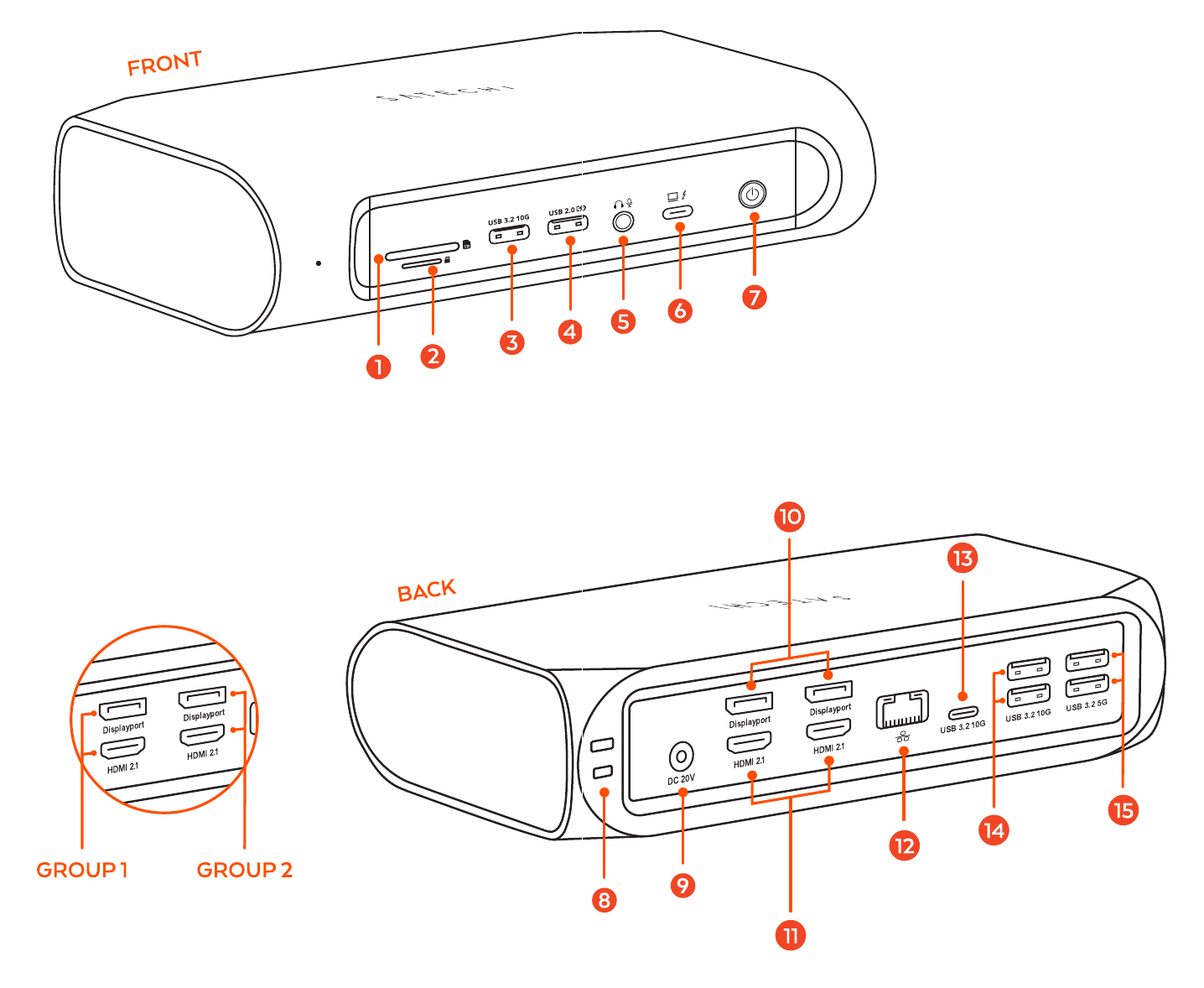

Port Reference

• Thunderbolt 4 Host Port — Connect your laptop here (up to 96W Power Delivery to host)
• Thunderbolt 4 Downstream Port(s) — Connect Thunderbolt 4 devices, docks, or displays (40Gbps per port)
• HDMI Port(s) — Connect HDMI displays (up to 4K @ 60Hz)
• USB-A 3.2 Ports — For USB peripherals (keyboards, mice, flash drives)
• USB-C Port — For USB-C peripherals or charging
• SD / microSD Card Reader — For memory cards (UHS-II or UHS-I)
• 3.5mm Audio Jack — Headphones or headset with microphone
• 2.5GbE Ethernet — Wired network connection up to 2.5 Gigabit

Display Configuration

The Thunderbolt 4 Multimedia Pro Dock supports multiple external displays depending on the host computer's capabilities:

• Mac with Apple Silicon (M1/M2/M3/M4) — Supports up to 2 external displays via the dock (one via Thunderbolt 4 downstream, one via HDMI). Requires macOS Ventura or later with DisplayLink support for additional displays.
• Mac with Intel — Supports up to 2 external displays natively.
• Windows laptops (Thunderbolt 4) — Up to 2 external displays at 4K @ 60Hz.

For non-mirrored (extended) display setup on macOS: System Settings > Displays > Arrangement, then disable Mirror Displays.

Troubleshooting

• Dock not recognized — Ensure the power adapter is connected. Use the included Thunderbolt 4 cable and connect to the Thunderbolt 4 (⚡) port on your laptop. Try a different Thunderbolt 4 port.
• Display not detected — Connect display before powering on the dock. On macOS go to System Settings > Displays and click "Detect Displays." Ensure the display cable supports the target resolution.
• USB devices not working — Unplug and reconnect the device. Try a different USB port on the dock. Some USB devices require direct connection to the computer rather than a hub.
• Ethernet not detected — Check the Ethernet cable connection. On macOS, go to System Settings > Network and confirm the Ethernet interface is active. A 2.5GbE switch or router is required for 2.5Gbps speeds.
• Laptop charging slowly — Confirm the power adapter is connected to the dock. MacBook Pro models requiring more than 96W may charge slowly when the dock is also powering multiple peripherals.

Specifications

• Models: ST-DT4PMM-US (US plug), ST-DT4PMM-EU (EU plug), ST-DT4PMM-UK (UK plug)
• Host Connection: Thunderbolt 4 (40Gbps)
• Power to Host: Up to 96W
• Display Output: Up to 2 × 4K @ 60Hz
• Ethernet: 2.5GbE
• USB-A Ports: USB 3.2 Gen 2 (10Gbps)
• Card Reader: SD + microSD
• Audio: 3.5mm combo jack
