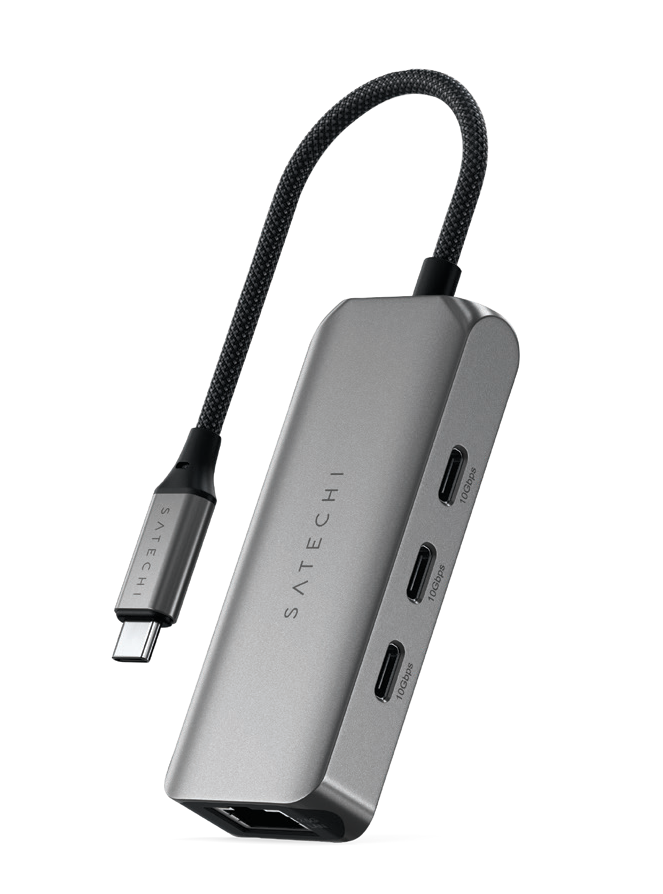

This User Manual covers setup, features, compatibility, and specifications for the Satechi 4-in-1 USB-C Hub with 2.5 Gigabit Ethernet (ST-H3C25EM).

What's In The Box

4-in-1 USB-C Hub with 2.5 Gigabit Ethernet, User Manual.

Functions

1. USB-C Connector
2. Ethernet Port (2.5 Gigabit)
3. 3x USB-C Data Ports (10Gbps)
4. Durable Braided Cable

Product Overview

The 4-in-1 USB-C Hub with 2.5 Gigabit Ethernet expands a single USB-C port into a 2.5 Gigabit wired Ethernet connection and three USB-C data ports (up to 10 Gbps each), connecting to your laptop or desktop with its built-in braided USB-C cable.

Setup

The 4-in-1 USB-C Hub with 2.5 Gigabit Ethernet is plug-and-play, no drivers required.

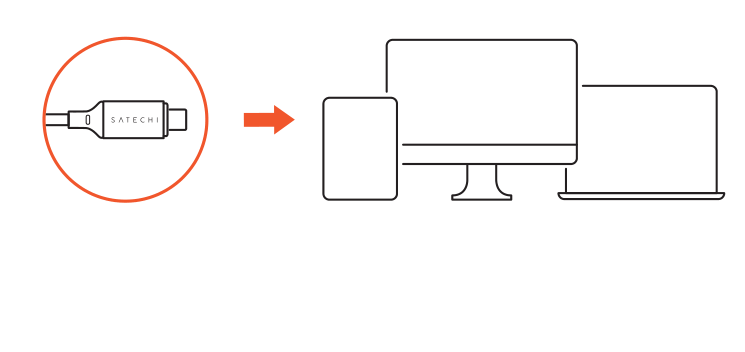

1. Connect to a USB-C host device: Plug the built-in USB-C cable into a USB-C port on your host device.

2. Connect your devices: Connect your Ethernet cable and USB-C devices to the hub's ports.

Ports and Features

Parts labeled diagram of the 4-in-1 USB-C Hub with 2.5 Gigabit Ethernet with 4 labeled components.

1. USB-C Connector: Plugs into the USB-C port on your host device.
2. Ethernet Port (2.5 Gigabit): Wired network connectivity up to 2.5 Gigabit.
3. 3x USB-C Data Ports (10Gbps): Three USB-C data ports, up to 10 Gbps each. Data transfer only.
4. Durable Braided Cable: Built-in braided USB-C cable.

Features

- 2.5 Gigabit Ethernet for fast wired networking
- Three 10 Gbps USB-C data ports
- Built-in durable braided cable
- Compact, travel-friendly design

Important Limitations

USB-C ports are for data transfer only, they do not support video output or charging.

2.5 Gigabit speeds only supported with supporting internet service providers, router/modem supporting multi-Gigabit speeds, and CAT5 cable and above.

Product designed for USB-C 3.2 Gen 2 host devices and above. Performance may vary depending on host device capabilities.

Specifications

Model: ST-H3C25EM
Connector: USB-C (built-in braided cable)
Ports & Speeds:
1x Ethernet: up to 2.5 Gigabit
3x USB-C data: up to 10 Gbps each (no video or charging)

Certifications

FCC, CE, WEEE, CAN ICES(B)/NMB(B)
