This User Manual covers setup, operation, and safety information for the Satechi 30W Dual-Port Wall Charger (ST-MCCAM).

What's In The Box

• Charger
• User Manual

Product Overview

The Satechi 30W Dual-Port Wall Charger delivers up to 30W total output across one USB-C Power Delivery (PD) port and one USB-A port, so you can charge a laptop and a phone or other accessory at the same time. A built-in light sensor automatically adjusts the brightness of the LED indicator based on the ambient light in the room.

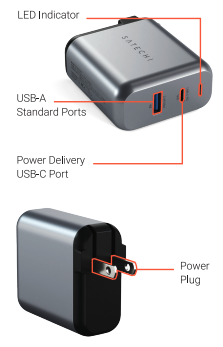

Functions

• LED Indicator
• USB-A Standard Port
• Power Delivery USB-C Port
• Power Plug

Power Output

• Total output: 30W
• USB-C PD port: 18W Max (5V/3A, 9V/2A, 12V/1.5A, 15V/1.2A)
• USB-A port: 5V/2.4A Max

Setup

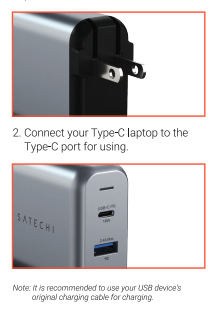

Step 1: Connect the charger to a reliable power outlet.

Step 2: Connect your Type-C laptop to the USB-C PD port for charging.

Step 3: Connect your phone, tablet, power bank, Bluetooth earphones, or other USB-powered device to the USB-A port for charging.

Note: We recommend using an original or certified charging cable.

Safety

• Keep away from heat, flammable materials, and corrosive substances.
• Keep away from water, liquids, and moisture.
• Do not drop, knock, or attempt to disassemble the charger.
• Keep out of reach of children.
• Unplug from the wall when not in use for extended periods.
• Use an original or certified cable for the fastest, safest charge.
