This User Manual covers functions, setup, pairing, charging, and battery life for the Satechi Slim Wireless Keypad (USB-C) (ST-KSALKPM / ST-KSALKPS), a keypad with a rechargeable battery.

Specifications

Model: ST-KSALKPM / ST-KSALKPS
Connectivity: Wireless (Bluetooth)
Charging Port: USB-C
Included Cable: USB-C to USB-C
Charging Time: 2 to 3 hours
Battery Life: Up to 45 hours of continuous usage
Charging Power: 0.0 to 5.0 W
Power Adapter: Not included

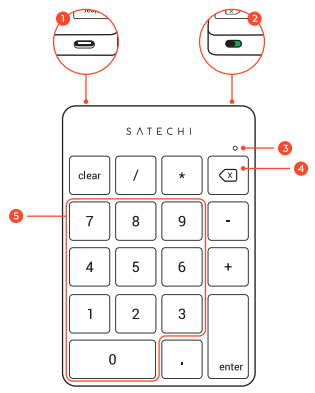

Functions

1. USB-C Port: Connect the included USB-C to USB-C cable here to charge the keypad.
2. On/Off Switch: Turns the keypad on or off.
3. LED Indicator: Shows pairing and charging status.
4. Delete Key
5. Number Keys

Note: The keypad layout function is based on iOS and macOS default settings. The output might differ for different operating systems.

Setup

Powering On / Off

Slide the On/Off switch to ON to turn the keypad on, or to OFF to turn it off.

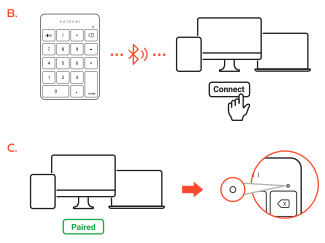

Pairing (Bluetooth)

1. Press and hold the "Conn." button for 5 seconds until the blue LED flashes.
2. On your device, select the keypad and click Connect.
3. Once paired, the LED turns off.

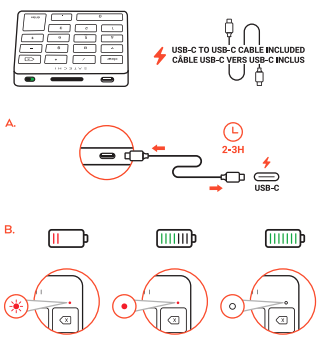

Charging

Connect the included USB-C to USB-C cable to the keypad's USB-C Port and to a USB-C power source. Charging takes 2 to 3 hours.

Note: While the keypad cannot be used by plugging directly into your computer, it can be used wirelessly while charging.

Battery Life

The keypad's rechargeable battery will last up to 45 hours of continuous usage.

Note: To preserve battery life, the keypad will enter sleep mode automatically after 1 hour of inactivity.

LED Indicators

Blue LED flashing: Pairing mode.
LED turns off: Paired.
Red LED flashing: Low battery.
Red LED on: Charging.
Red LED turns off: Fully charged.

Important

Keep away from water, liquid, and moisture.

Certifications

FCC, CE, WEEE, ISED
