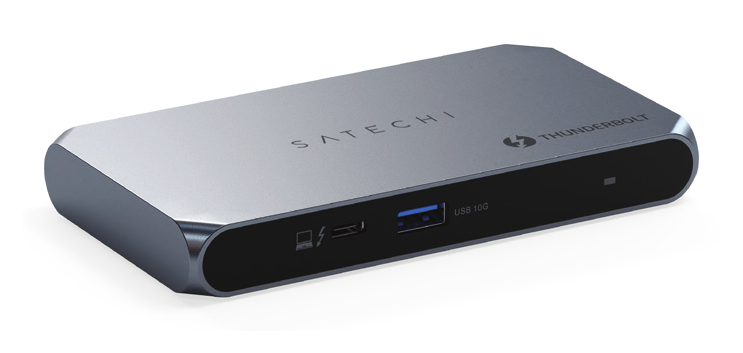

This User Manual covers functions, setup, important notes, and specifications for the Satechi Thunderbolt™ 4 Slim Hub Pro (ST-HT4SHM-US / ST-HT4SHM-EU).

What's In the Box

A power adapter (150W) and one Thunderbolt™ cable are included.

Specifications

Ports:
1x Thunderbolt™ 4 Host Port (PD 96W)
3x Thunderbolt™ 4 USB-C Ports
1x USB-A 3.2 Gen 2 Port (10 Gbps)
1x DC Port (DC 21V)
1x LED Light

Video Output: Up to 8K@30Hz if one display is connected

Power Adapter: 150W (included)

Functions

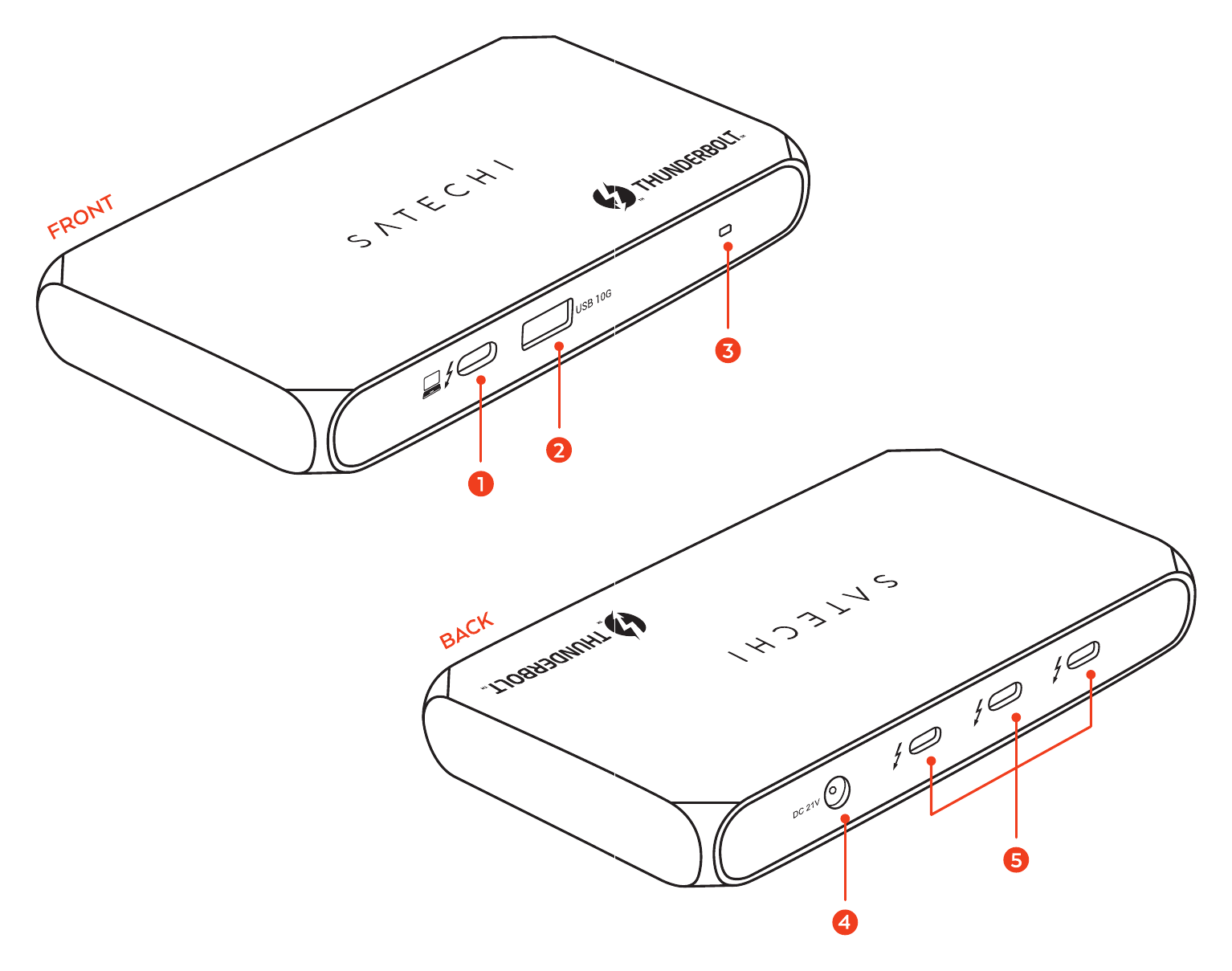

The hub's parts are numbered below to match the FRONT and BACK views.

Front and back views of the Thunderbolt 4 Slim Hub Pro with all 5 parts numbered.

1. Thunderbolt™ 4 Host Port (PD 96W)
2. USB-A 3.2 Gen 2 Port (10 Gbps)
3. LED Light
4. DC Port
5. 3x Thunderbolt™ 4 USB-C Ports

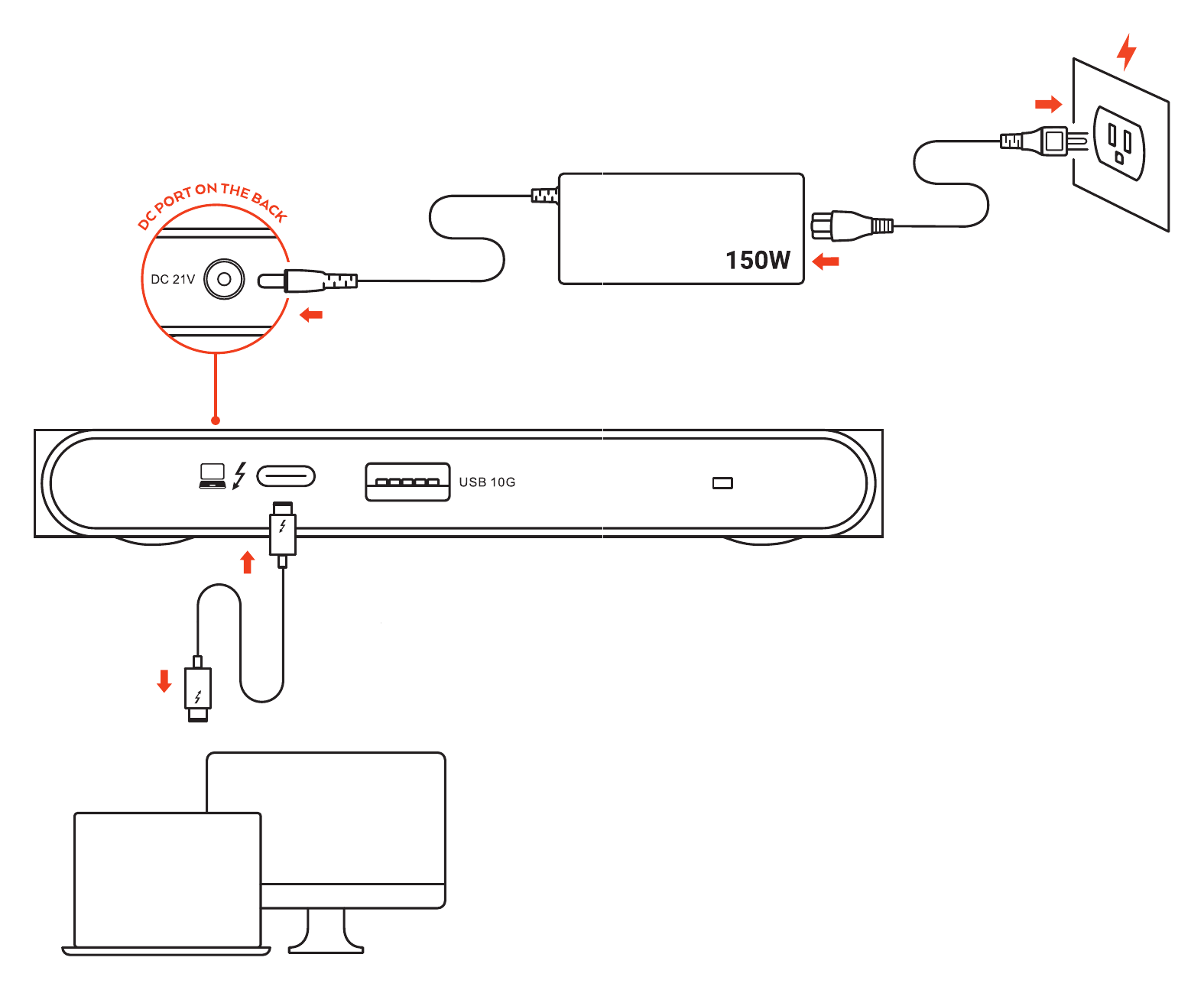

Setup

Plug & Play:
1. Connect the included 150W power adapter to the DC port on the back of the hub (DC 21V), then plug the adapter into a power outlet.
2. Connect the included Thunderbolt™ cable from the hub's Thunderbolt™ 4 Host Port to your computer.

Important Notes

Thunderbolt™ 4 supports USB4 and is downwards compatible with Thunderbolt™ 3 and other USB-C peripherals.

Video output up to 8K@30Hz if one display is connected.

Dual display output is not supported on Apple M1/M2/M3 processors.

Certifications

FCC (Part 15, Class B), CE, WEEE, CAN ICES-003 (B)/NMB-003(B)
