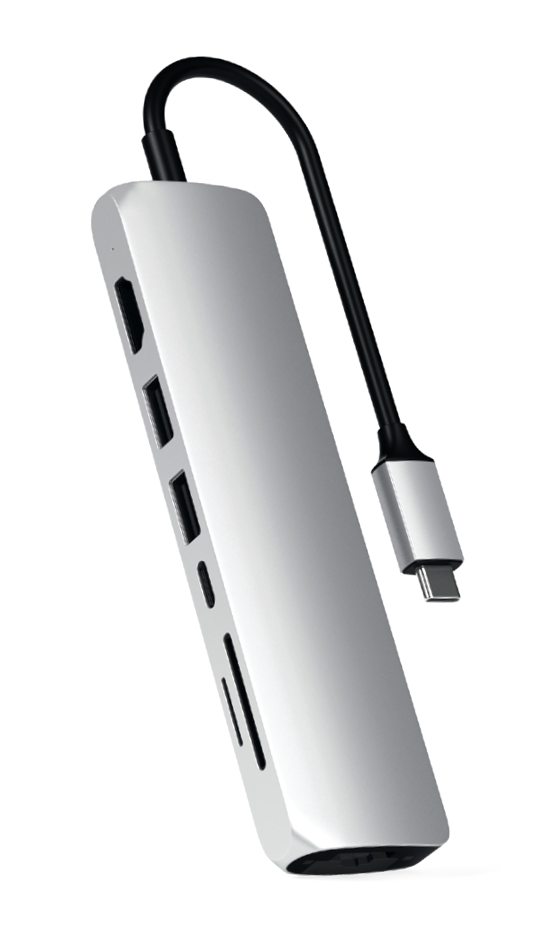

This User Manual covers setup, features, compatibility, and specifications for the Satechi USB-C Slim Multi-Port with Ethernet Adapter (ST-UCSMA3K / ST-UCSMA3S / ST-UCSMA3M).

What's In The Box

USB-C Slim Multi-Port with Ethernet Adapter, User Manual.

Functions

1. USB-C Connector
2. Ethernet Port
3. LED Indicators for Ethernet Connection
4. SD & Micro SD Card Reader (UHS-I)
5. USB-C Charging Port (up to 60W)
6. 2X USB-A Data Ports (5Gbps)
7. HDMI Video Port (4K@60Hz)

Product Overview

This adapter turns one USB-C port on your laptop or tablet into seven connections: 4K at 60Hz video over HDMI, Gigabit Ethernet for a wired network, two USB-A data ports, SD and Micro SD card slots that work at the same time, and a USB-C port that passes up to 60W of charging through to your machine.

Setup

The USB-C Slim Multi-Port with Ethernet Adapter is plug-and-play, no drivers or software required.

1. Connect to a laptop or tablet: Plug the adapter's USB-C connector into the USB-C port on your laptop or tablet.

2. Connect your devices: Connect your devices to the adapter's ports.

Note: To keep your laptop charging while the adapter is in use, plug your own USB-C charging cable into the adapter's USB-C charging port. That port passes power through only, up to 60W.

Ports and Features

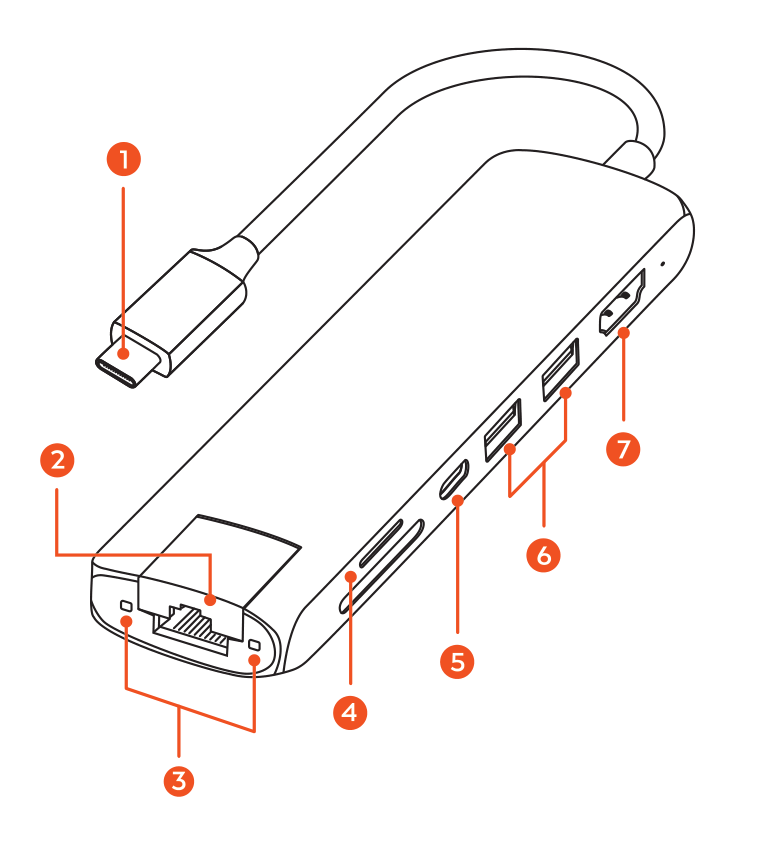

Parts labeled diagram of the USB-C Slim Multi-Port with Ethernet Adapter with 7 labeled components.

1. USB-C Connector: The attached USB-C cable and connector that plugs into the USB-C port on your laptop or tablet. This is the only connection the adapter needs.
2. Ethernet Port: Wired network connection at Gigabit speeds, up to 1 Gbps.
3. LED Indicators for Ethernet Connection: The two small LEDs beside the Ethernet port. They show link and activity status for the wired network connection.
4. SD & Micro SD Card Reader (UHS-I): SD and Micro SD card slots running at UHS-I speeds. Both slots can be used at the same time.
5. USB-C Charging Port (up to 60W): USB-C pass-through charging for your laptop or tablet, up to 60W. This port does not support data transfer or video output.
6. 2X USB-A Data Ports (5Gbps): Two USB-A 3.0 ports for data transfer, up to 5 Gbps, with a maximum output of 5V/1A per port. They do not support the Apple SuperDrive, and only one external hard drive should be connected at a time.
7. HDMI Video Port (4K@60Hz): Video output to a single external display, up to 4K at 60Hz. It needs a direct HDMI to HDMI connection, not an adapter or converter chain.

Features

- 4K at 60Hz video output to one external display over HDMI
- Gigabit Ethernet for a stable wired network connection
- Two USB-A 3.0 data ports, up to 5 Gbps each
- SD and Micro SD card slots that can be used at the same time
- USB-C pass-through charging, up to 60W
- Plug and play, no drivers or software required

Important Limitations

USB-C charging port will not support data transfer or video output. It is a pass-through power port only, rated up to 60W. Use the HDMI port for video and the USB-A ports for data.

Do not connect more than one external hard drive at a time. Connect a single external hard drive to the USB-A ports. The Apple SuperDrive is not supported either.

The HDMI port needs a direct HDMI to HDMI connection. Adapters, converters and cable chains on the HDMI port are not supported.

Specifications

Model: ST-UCSMA3K / ST-UCSMA3S / ST-UCSMA3M
Connector: USB-C
Ports & Speeds:
1x HDMI: up to 4K at 60Hz
1x Ethernet: up to 1 Gbps
2x USB-A 3.0: up to 5 Gbps, 5V/1A maximum output per port
1x SD and Micro SD card reader: UHS-I
1x USB-C charging port: up to 60W pass-through, no data or video

Certifications

FCC, CE, WEEE, ICES-003 / NMB-003 (Canada)
