This User Manual covers setup, functions, features, specifications, and certifications for the Satechi Stand & Hub for Mac Mini with SSD Enclosure (SATA only) (ST-MMSHS).

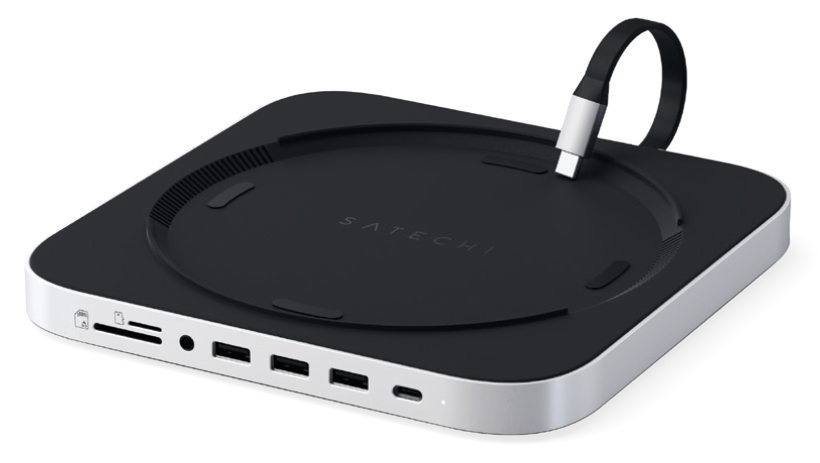

Product Overview

The Stand & Hub for Mac Mini with SSD Enclosure is plug and play. It connects to your Mac Mini through its built-in USB-C connector and has SD & Micro SD card slots (UHS-I speeds), an audio jack port, 3x USB Type-A ports (5 Gbps), a USB Type-C port (5 Gbps, 2.5W max), and an M.2 SATA SSD card enclosure.

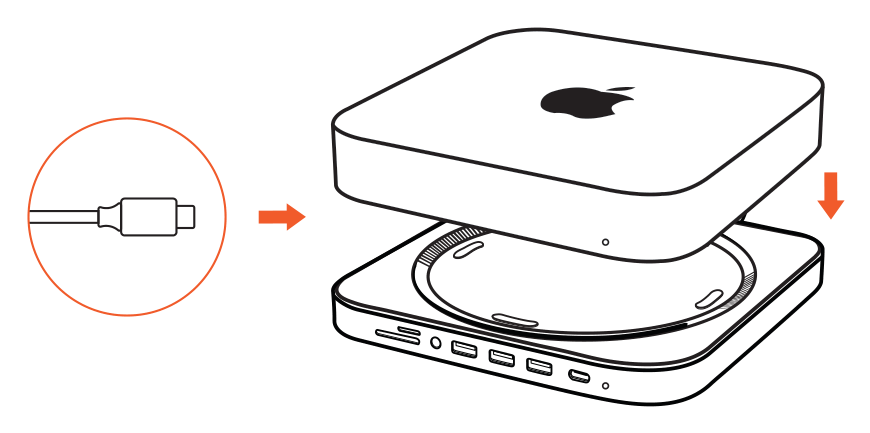

Setup

The Stand & Hub is plug and play.

1. Connect to your Mac Mini: Connect the stand's built-in USB-C connector to your Mac Mini.

2. Connect your devices: Connect your devices to the stand's ports.

Note: Upon initial installation, please ensure your SSD is properly formatted to your host device OS.

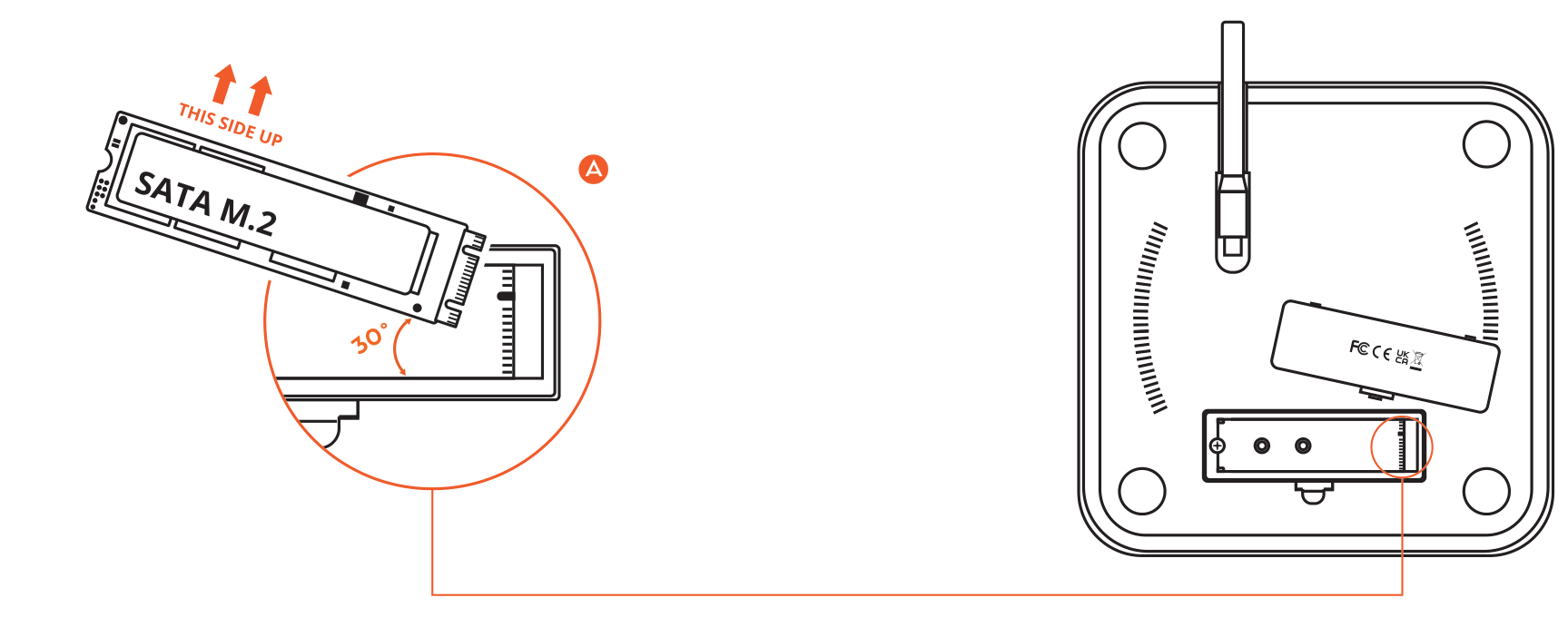

Installing the SSD

1. Step A: Insert the SATA M.2 SSD with THIS SIDE UP facing up, at a 30° angle.
2. Step B: Complete step B as shown in the illustration.

Note: Only compatible with SATA M.2 drive.

Functions

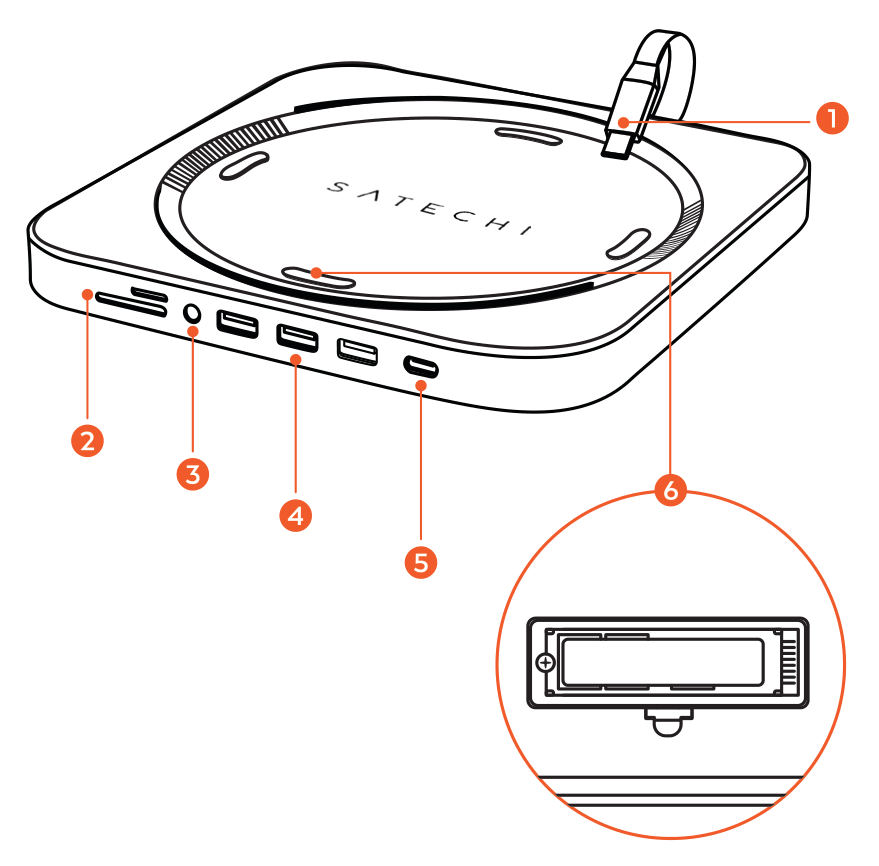

Parts labeled diagram of the Stand & Hub for Mac Mini with SSD Enclosure (SATA only) with 6 labeled components.

1. Built-in USB-C Connector: Connect to your Mac Mini.
2. SD & Micro SD Card Slots (UHS-I Speeds)
3. Audio Jack Port
4. 3X USB Type-A Ports (5 Gbps): For device syncing, data transfer and USB peripherals. Not designed for charging. iPad will only sync via USB-A due to its power wattage requirement for syncing.
5. USB Type-C Port (5 Gbps) (2.5W Max): For device syncing, data transfer and USB peripherals. Not designed for charging.
6. M.2 SATA SSD Card Enclosure: Only compatible with SATA M.2 drive. Upon initial installation, ensure your SSD is properly formatted to your host device OS.

Features

- Built-in USB-C connector
- M.2 SATA SSD card enclosure
- 3x USB Type-A ports (5 Gbps) and a USB Type-C port (5 Gbps, 2.5W max)
- SD & Micro SD card slots (UHS-I speeds)
- Audio jack port
- Plug and play

Important Limitations

The USB ports are not designed for charging, only for device syncing, data transfer and USB peripherals.

Upon initial installation, please ensure your SSD is properly formatted to your host device OS.

iPad will only sync via USB-A due to its power wattage requirement for syncing.

The enclosure is only compatible with SATA M.2 drives.

Specifications

Connector: Built-in USB-C connector
SSD Enclosure: M.2 SATA only
Ports & Speeds:
3x USB Type-A: 5 Gbps
1x USB Type-C: 5 Gbps, 2.5W max
SD & Micro SD card slots: UHS-I speeds
1x audio jack port
1x M.2 SATA SSD card enclosure

Certifications

FCC, CE, UKCA, WEEE, CAN ICES-3 (B) / NMB-3 (B), French recycling (Triman) marking

For Europe, a copy of the Declaration of Conformity for this product may be obtained at www.satechi.net/doc.
