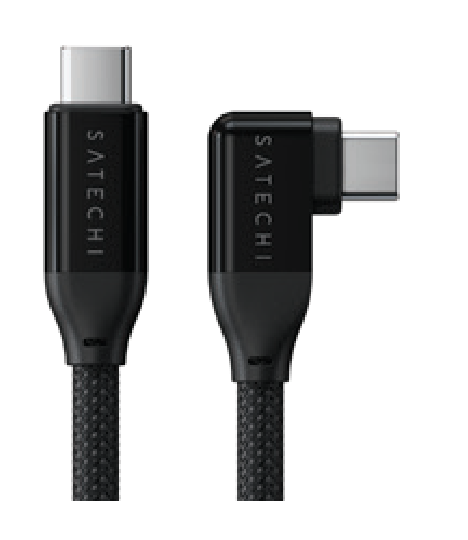

This User Manual covers setup, features, compatibility, and specifications for the Satechi Right Angle Data & Charge Cable (AP-YCR100K).

What's In The Box

Right-Angle USB-C to USB-C Data and Charge Cable (1m), User Manual.

Functions

1. USB-C Connectors
2. Durable Braided Cable
3. Vegan-Leather Cable Organizer

Product Overview

One 1 metre braided cable that carries up to 240W of USB Power Delivery, up to 20 Gbps of data and a single display at up to 4K 60Hz. One end is a right angle connector, so the plug lies flat along the side of a laptop or tablet instead of sticking straight out and catching on things.

Setup

Plug-and-play, no drivers or software required.

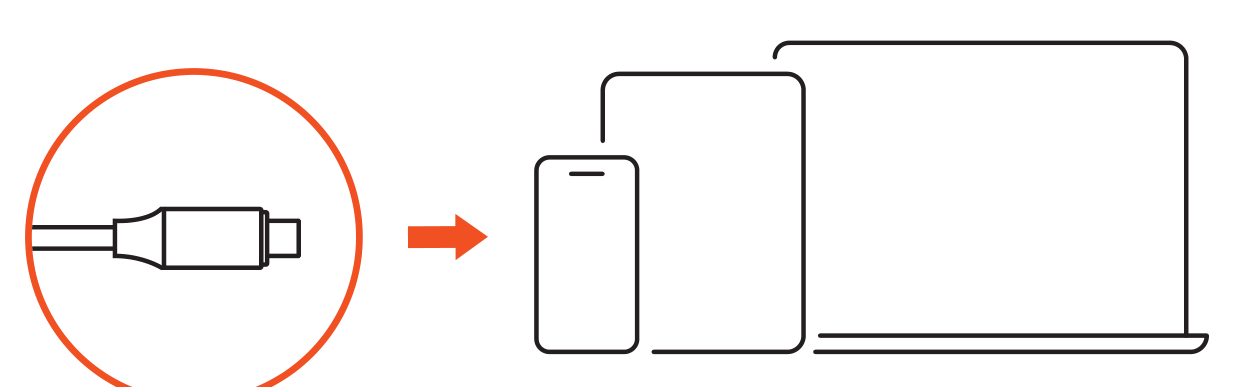

1. Connect to your device: Plug the right angle connector into the USB-C port on your device. It lies flat against the side of a laptop or tablet instead of sticking out.

2. Connect to a USB-C PD power adapter, external monitor, or USB-C peripheral: Plug the other connector into a USB-C PD charger to charge, into a USB-C or Thunderbolt monitor for video, or into a USB-C peripheral for data.

Ports and Features

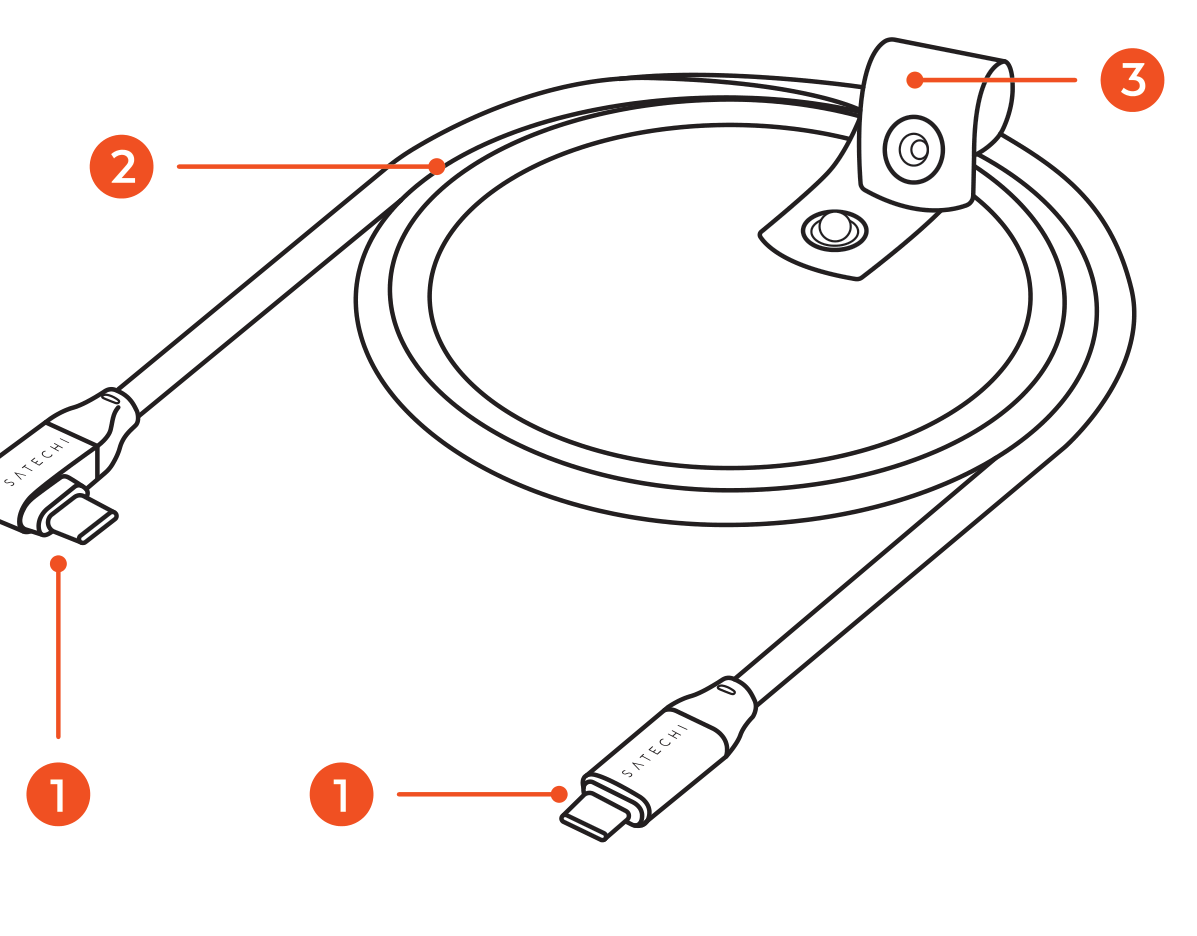

Parts labeled diagram of the Right Angle Data & Charge Cable with 3 labeled components.

1. USB-C Connectors: One right angle connector and one straight connector, both USB-C. The right angle end goes into your device, and the straight end goes to the charger, monitor or peripheral.
2. Durable Braided Cable: The 1 metre braided run between the two connectors. It carries up to 240W of power, up to 20 Gbps of data and up to 4K at 60Hz of video on the same cable.
3. Vegan-Leather Cable Organizer: A vegan-leather strap fixed to the cable. Snap it around the coiled cable to keep it tidy in a bag.

Features

- 240W Power Delivery (EPR)
- 20Gbps Transfer Speeds
- 4K/60Hz Video Output (Max)
- 1 metre braided cable with a right angle connector on one end
- Vegan-leather organizer strap attached to the cable
- Works with Thunderbolt 4, Thunderbolt 3, USB4, USB 3.2, USB 3.1, USB 3.0 and USB 2.0 Type-C ports

Important Limitations

240W power output only supported with compatible host devices. Not every device can take 240W. Check your device's own technical specifications for the charging ceiling it supports.

20Gbps transfer speeds only supported with compatible host devices and peripherals. Both ends of the link have to support the speed. Whichever end is slower sets the actual transfer rate.

Video output needs a USB-C port that supports DisplayPort over Alt Mode. On a port without DisplayPort Alt Mode the cable still charges and moves data, but no picture reaches the monitor. Video is a single display at up to 4K at 60Hz.

Specifications

Model: AP-YCR100K
Length: 1 m
Connector: USB-C to USB-C, one right angle end and one straight end
Ports & Speeds:
2x USB-C connectors, one right angle and one straight: up to 240W charging, up to 20 Gbps data transfer, single display up to 4K at 60Hz

Certifications

FCC, CE, WEEE, ICES-003 / NMB-003 (Canada)
