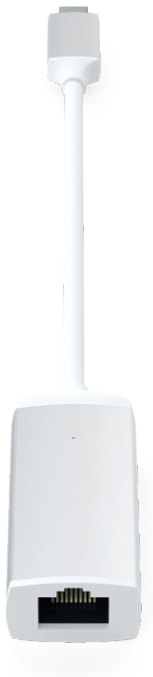

This User Manual covers setup, features, compatibility, and specifications for the Satechi Aluminum Type-C to Gigabit Ethernet Adapter (ST-TCENS / ST-TCENM).

Functions

1. USB-C Connector
2. LED Indicator
3. Ethernet Port (Up to 1 Gigabit)
4. Aluminum Construction

Product Overview

The Aluminum Type-C to Gigabit Ethernet Adapter gives a laptop or tablet that only has USB-C a wired Gigabit network connection, so HD streaming, online gaming and large downloads do not have to depend on Wi-Fi. It is plug and play, with a slim brushed aluminum housing for on the go use.

Setup

The Aluminum Type-C to Gigabit Ethernet Adapter is plug and play, no drivers or software required.

1. Connect to a laptop or tablet: Plug the adapter's USB-C connector into the USB-C or Thunderbolt 3 port on your laptop or tablet.

2. Connect your devices: Plug an Ethernet cable into the adapter's Ethernet port, then connect the other end to a LAN port on your modem or router.

Ports and Features

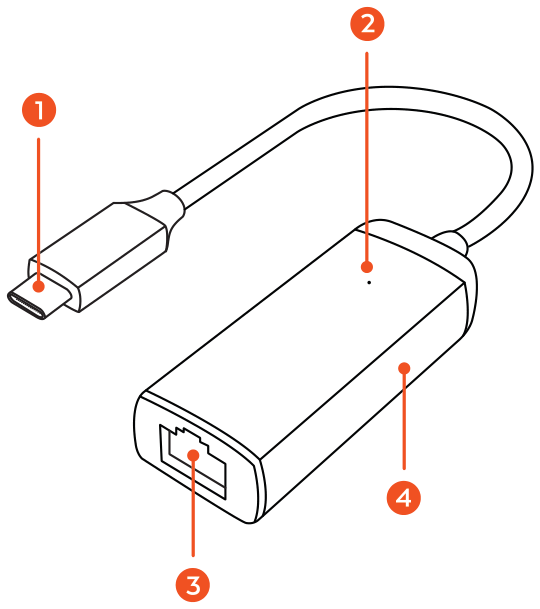

Parts labeled diagram of the Aluminum Type-C to Gigabit Ethernet Adapter with 4 labeled components.

1. USB-C Connector: Plugs into the USB-C or Thunderbolt 3 port on your host device. This is also where the adapter draws its power, so no separate power supply is needed.
2. LED Indicator: Status light on the top of the adapter, next to the cable.
3. Ethernet Port (Up to 1 Gigabit): RJ-45 port for a wired network connection at up to 1 Gigabit. An Ethernet cable is not included.
4. Aluminum Construction: Brushed aluminum housing with a slim profile for portable, on the go use.

Features

- Wired Gigabit network connection at up to 1 Gigabit
- Plug and play, no drivers or software required
- Bus powered, no external power adapter needed
- Slim brushed aluminum housing for portable use

Important Limitations

We recommend customers use genuine cables when they are trying to sync.

The host device needs a USB-C or Thunderbolt 3 port.

An Ethernet cable is not included. You supply your own cable to reach your modem or router.

Specifications

Model: ST-TCENS (Silver) / ST-TCENM (Space Gray)
Connector: USB-C
Ports & Speeds:
1x Ethernet (RJ-45): up to 1 Gigabit

Certifications

FCC, CE, ICES-003 / NMB-003 (Canada)
