This Quick Start Guide covers getting started with the Satechi USB-C Slim Type-C Multi-Port Adapter V2.

How to set up the Satechi USB-C Slim Type-C Multi-Port Adapter V2

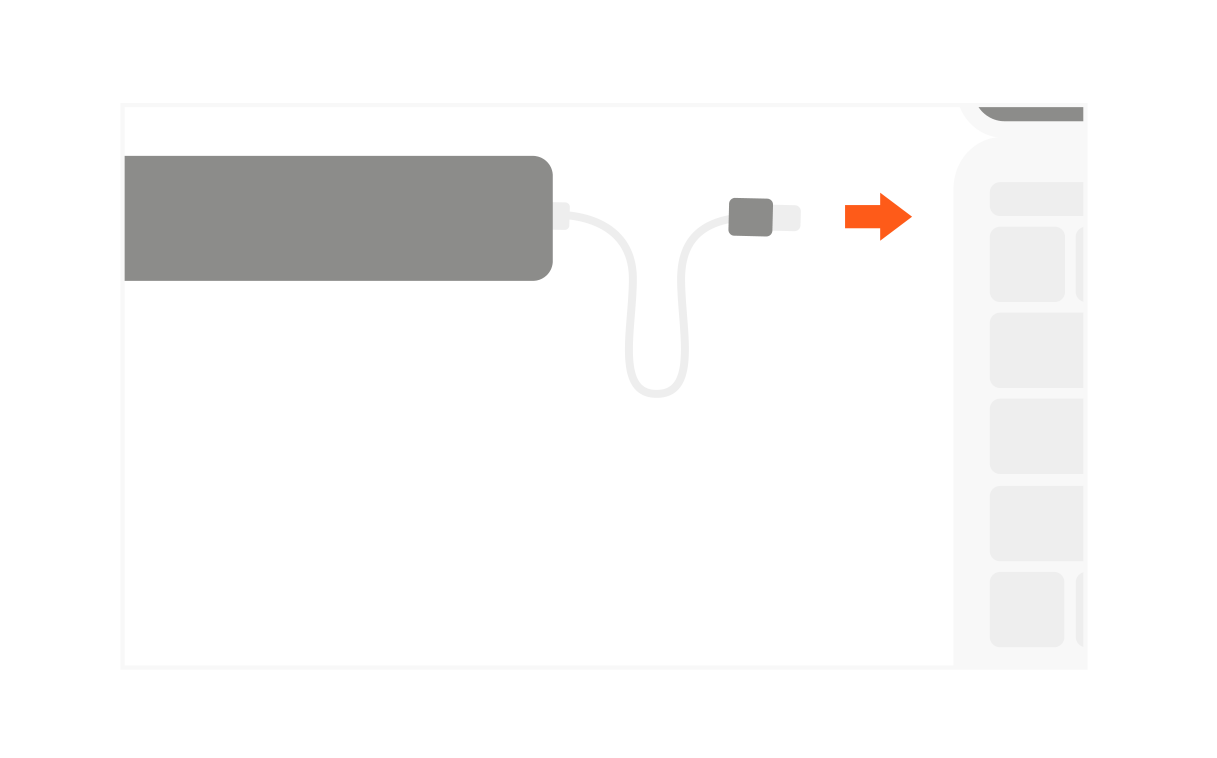

1. Connect to a laptop or tablet: plug the adapter's USB-C (Universal Serial Bus Type-C) Connector into a USB-C port on your laptop or tablet, such as the Type-C port of your MacBook.

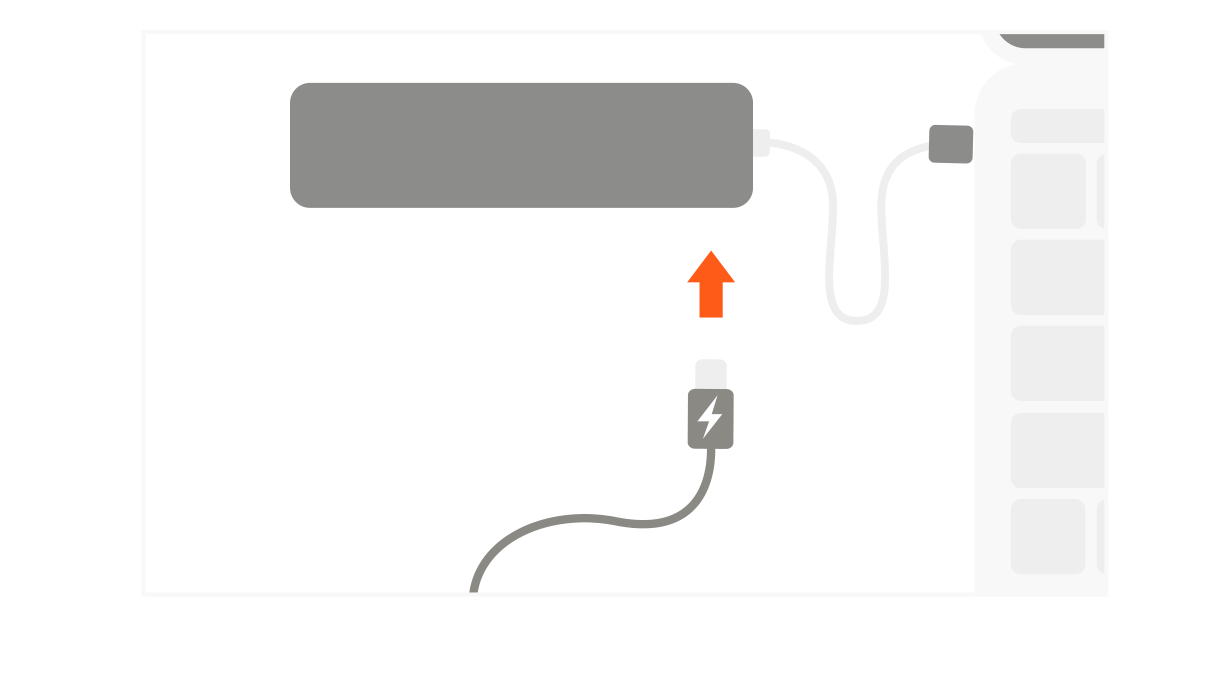

2. Connect your native MacBook charger to the USB-C Power Delivery (PD) Port to charge your MacBook. USB-C PD max output: 60W.

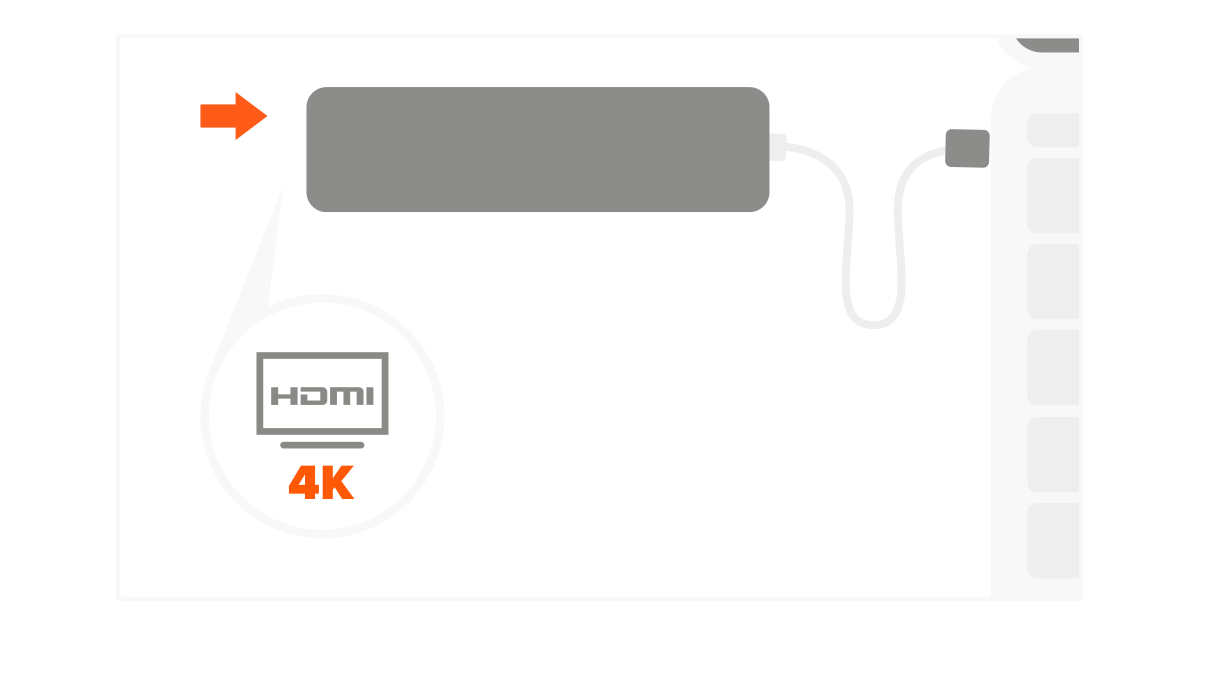

3. Connect an HDMI-enabled monitor to the adapter's High-Definition Multimedia Interface (HDMI) port using a high speed HDMI cable. A direct HDMI to HDMI connection is required.

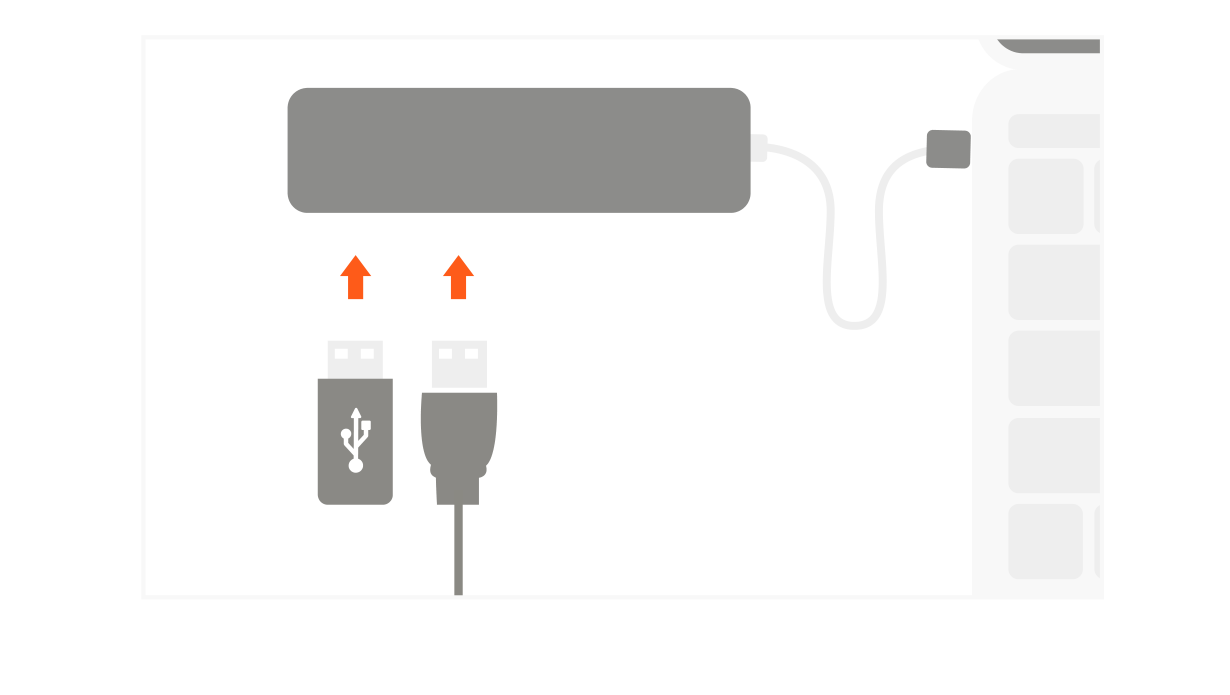

4. Connect USB devices to the USB-A (Universal Serial Bus Type-A) ports. Connect 1 hard drive at a time. The USB-A ports are not compatible with the Apple SuperDrive.

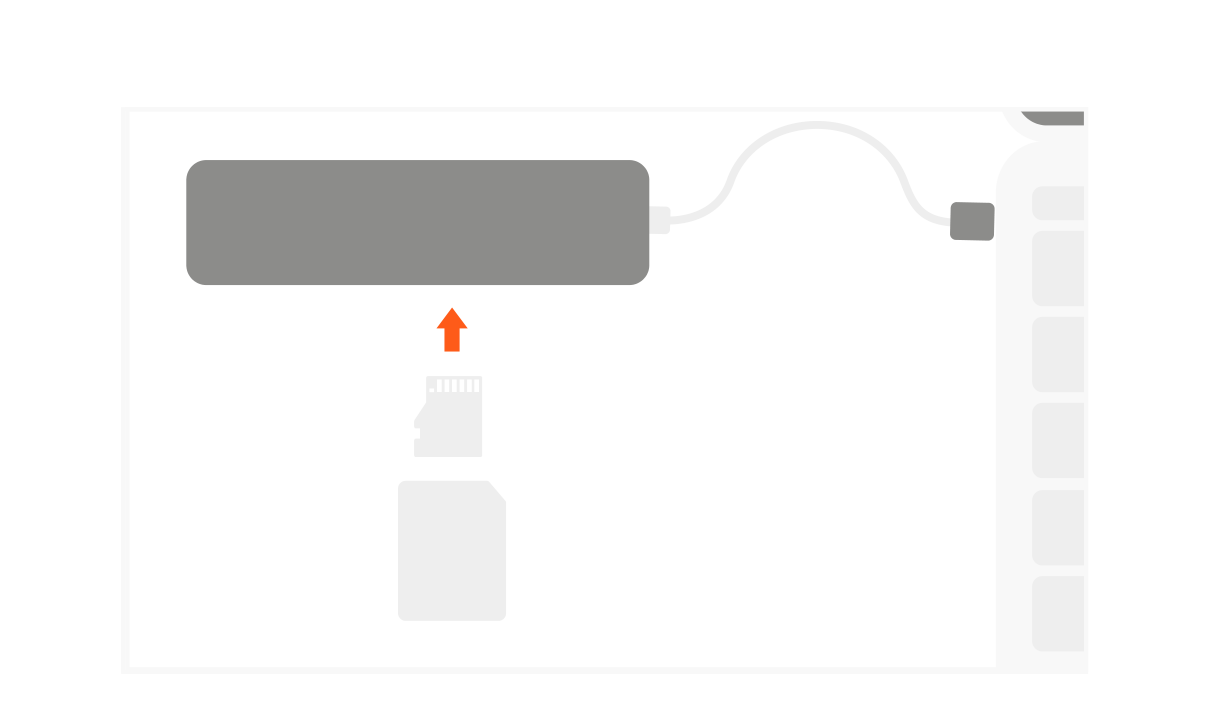

5. Insert micro SD or SD cards into the card reader slots.

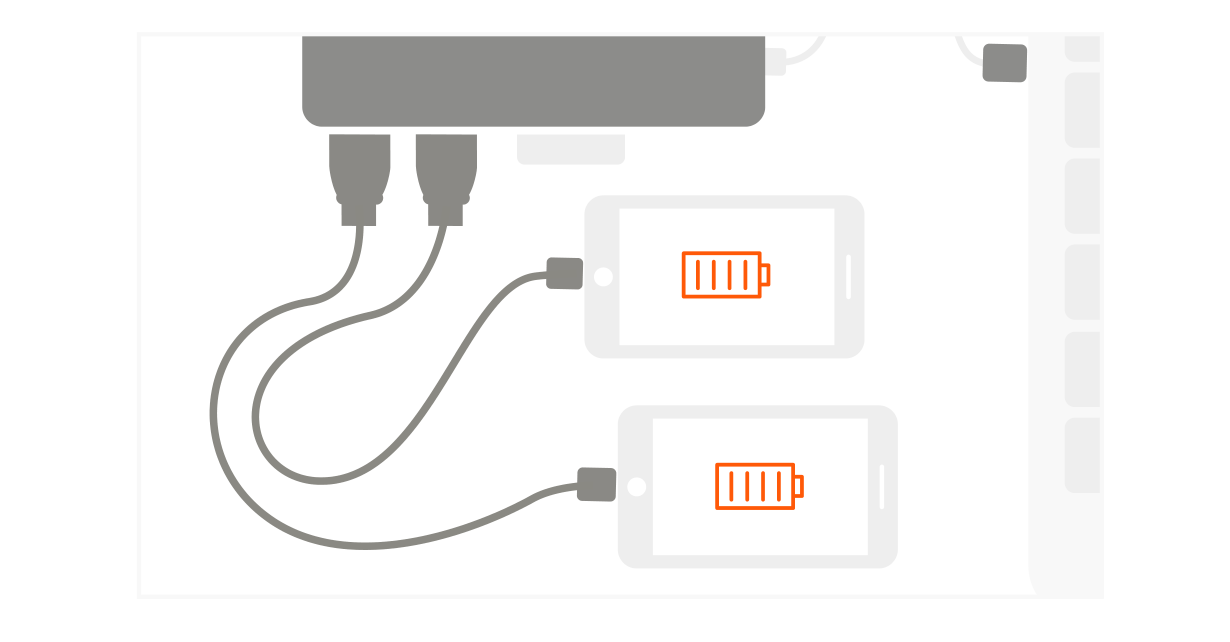

6. All ports can be used simultaneously.



USB-C Slim Type-C Multi-Port Adapter V2 ports and controls

• USB-C Connector
• HDMI Video Port (4K@60Hz): requires a direct HDMI to HDMI connection using a high speed HDMI cable.
• light-emitting diode (LED) Indicator
• 2x USB-A 3.0 Ports: not compatible with the Apple SuperDrive.
• Secure Digital (SD) & Micro SD Card Reader (UHS-I, short for Ultra High Speed I, short for Ultra High Speed I)
• USB-C PD Port (60W Max): the USB-C charging port. Connect your native MacBook charger here.

Important notes for the USB-C Slim Type-C Multi-Port Adapter V2

• USB-C charging port will not support data transfer or video output.
• Do not connect more than one external hard drive at a time.
• Connected Universal Serial Bus (USB) devices should not exceed an input current of 900mA.
• All ports can be used simultaneously.
• Operating temperature: 86°F to 122°F.
