This Quick Start Guide covers getting started with the Satechi USB4 V2 Pro Cable (ST-YU4120K).

How to set up the Satechi USB4 V2 Pro Cable

The cable is plug and play.

1. Connect the cable to the USB-C port on your compatible host device for fast data transfer speeds up to 80Gbps maximum.



2. Connect the other end to a USB-C (Universal Serial Bus Type-C) Power Delivery (PD) power adapter, external monitor, or USB-C peripheral.





USB4 V2 Pro Cable ports and controls

• USB-C Connectors: 80Gbps, 240W, 8K.
• Premium Braided Cable: 1.2 m.

Important notes for the USB4 V2 Pro Cable

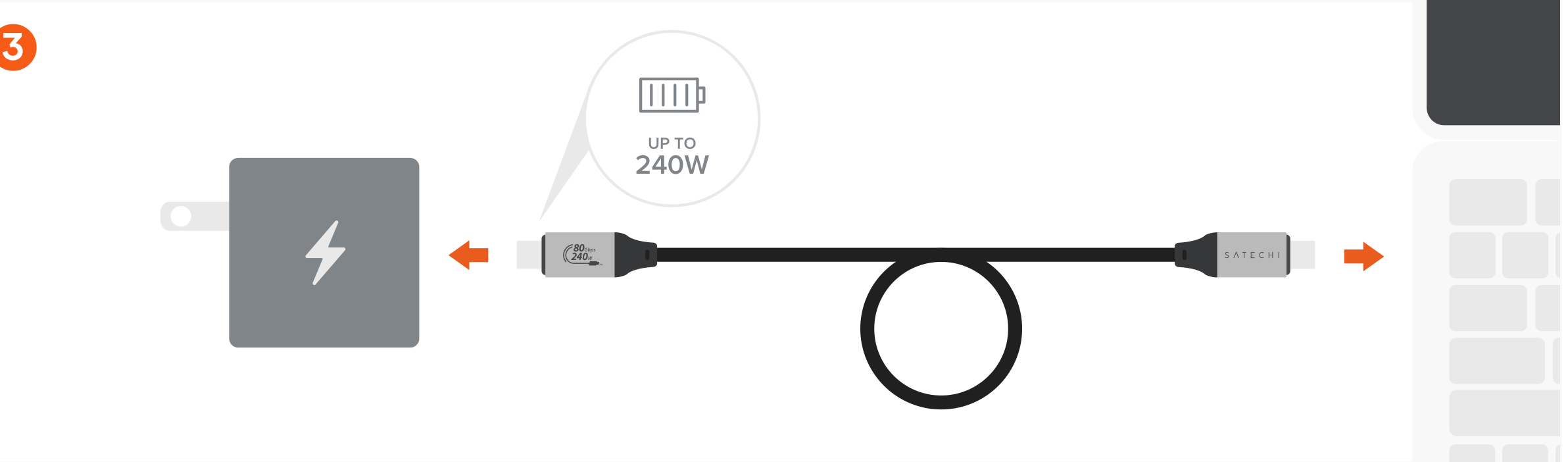

• Cable can support up to 240W charging. Not all host devices support 240W charging. Refer to your device's technical specifications for supported charging wattages.
• Data Transfer Speeds up to 80Gbps. The cable is compatible with USB-C ports that do not support 80Gbps transfer speeds or use different protocols; transfer speeds may vary. Refer to your device's technical specifications for supported transfer speeds via USB-C.

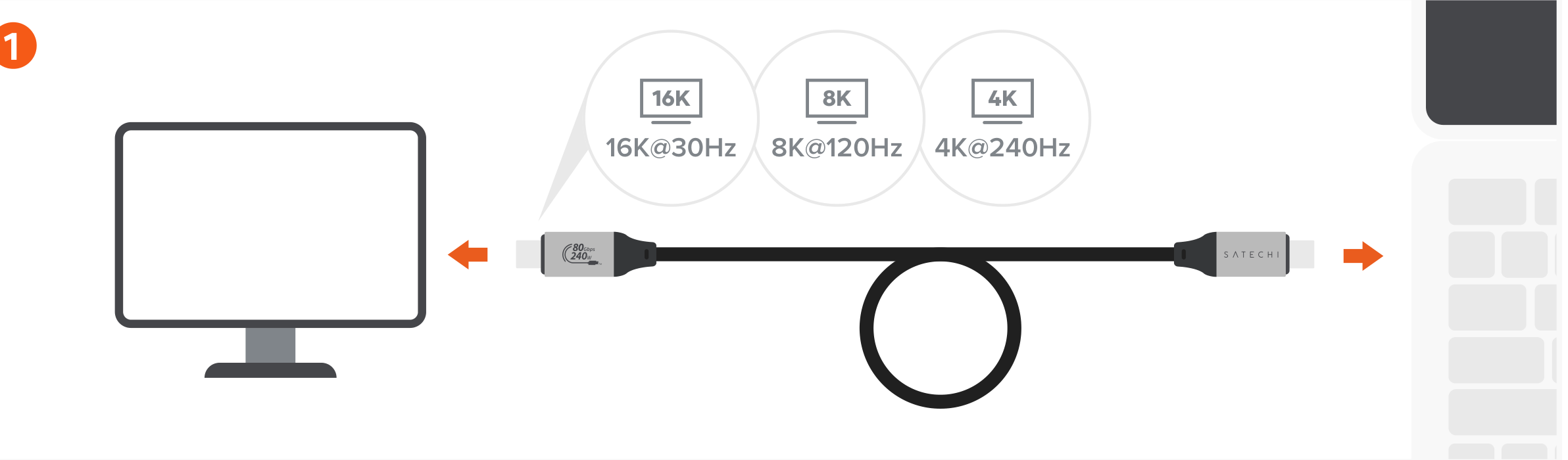

• Video Output up to 8K on a single external monitor connection, with support for 8K resolution at 120Hz or 4K resolution at 240Hz.
• For video output, the USB-C port must support DisplayPort via Alt mode. Refer to your device's technical specifications for supported video output resolutions.
