This Quick Start Guide covers setup of the Satechi Bluetooth Extended Keypad (ST-XLABKS ST-XLABKM): adds an extended Bluetooth numeric keypad, rechargeable via USB-C.

Setup steps

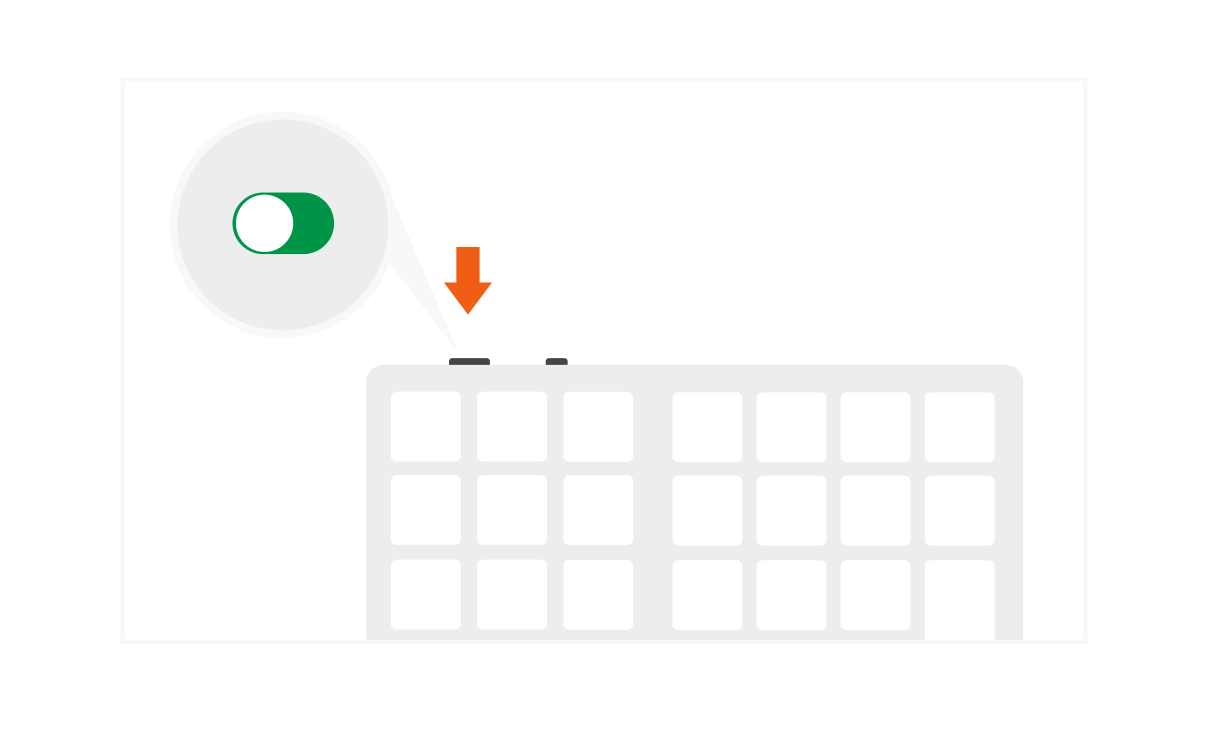

Step 1: Move the power switch to the “On” position to turn on the keypad.

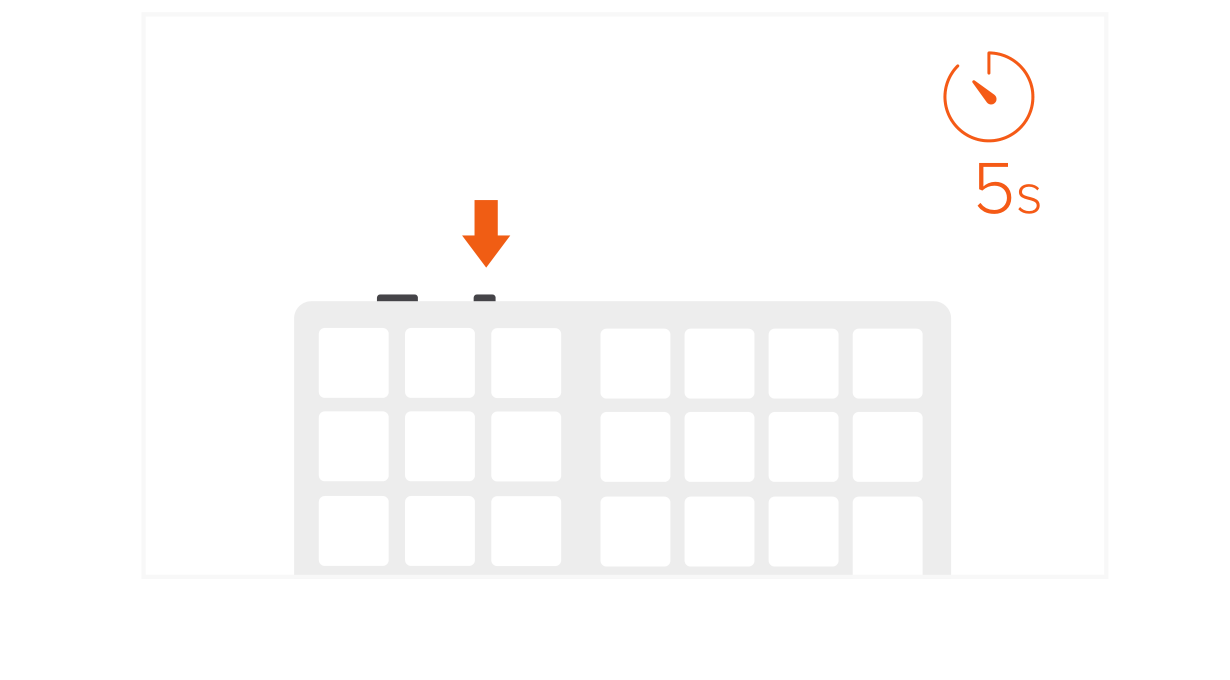

Step 2: Press and hold the “Connect” button for ~5 seconds then release.

Fast blinking blue light means pairing mode

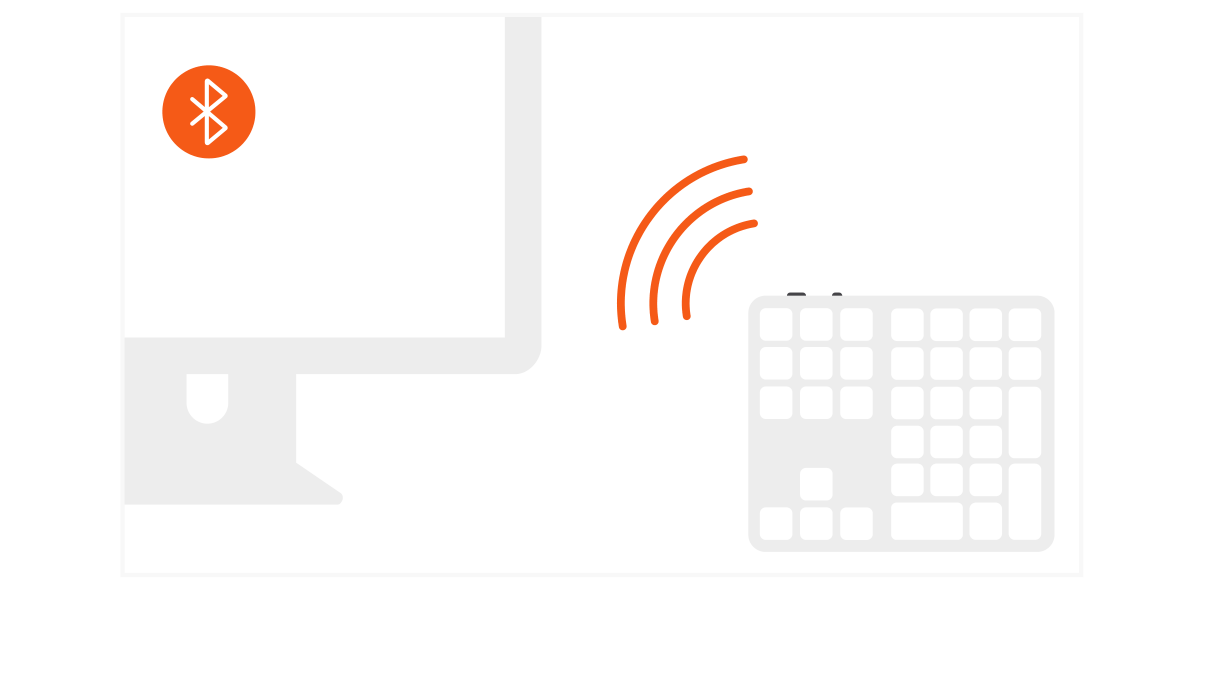

Step 3: Open Bluetooth settings on your device to complete connection process.

Connection is indicated by solid blue light for ~5 seconds, then light turns off

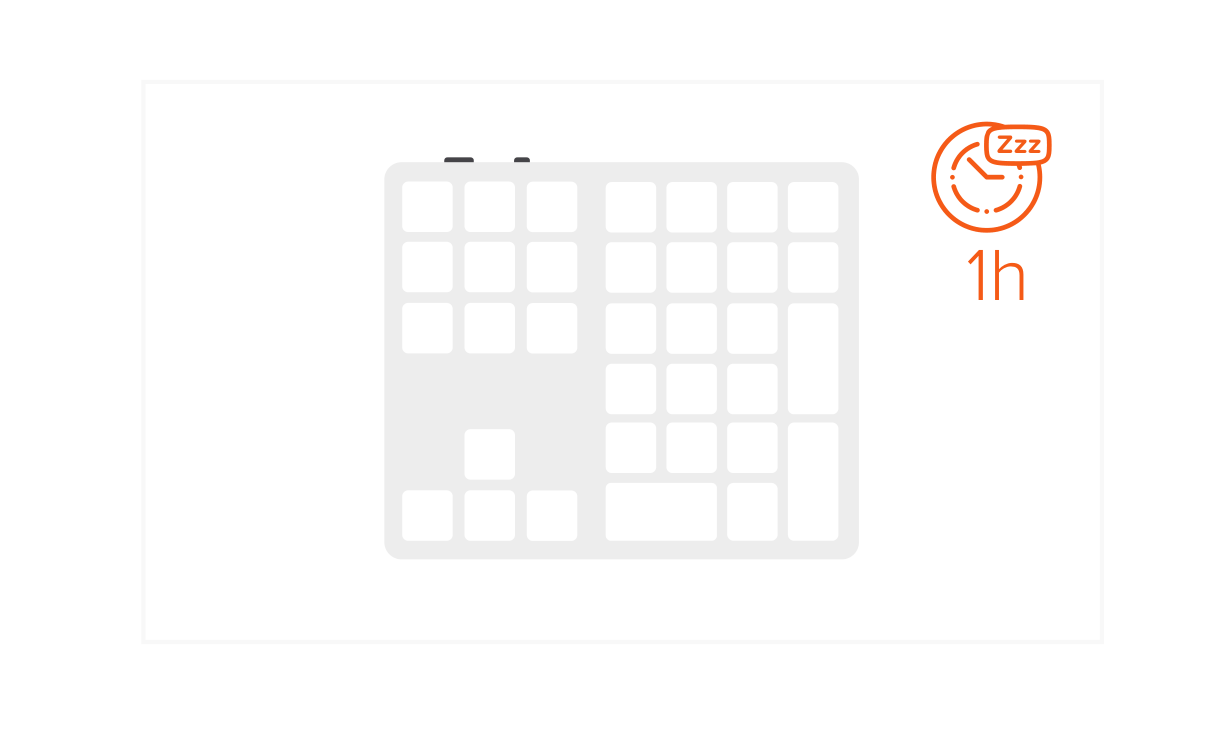

Step 4: To preserve battery life, the keypad will enter automatically sleep mode after ~1 hour of inactivity.

Press any key to wake up the keypad

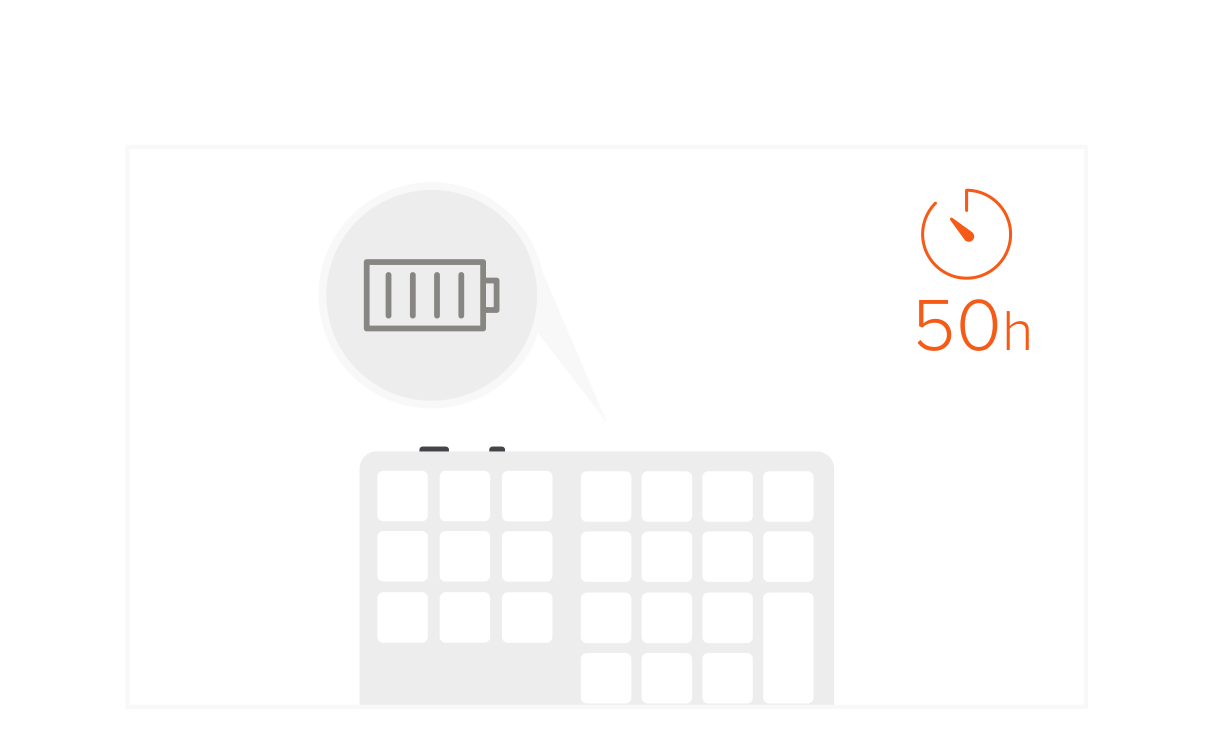

Step 5: The keypad can be continuously used for up to 50 hours between full charges.

Low battery is indicated by slow blinking blue light

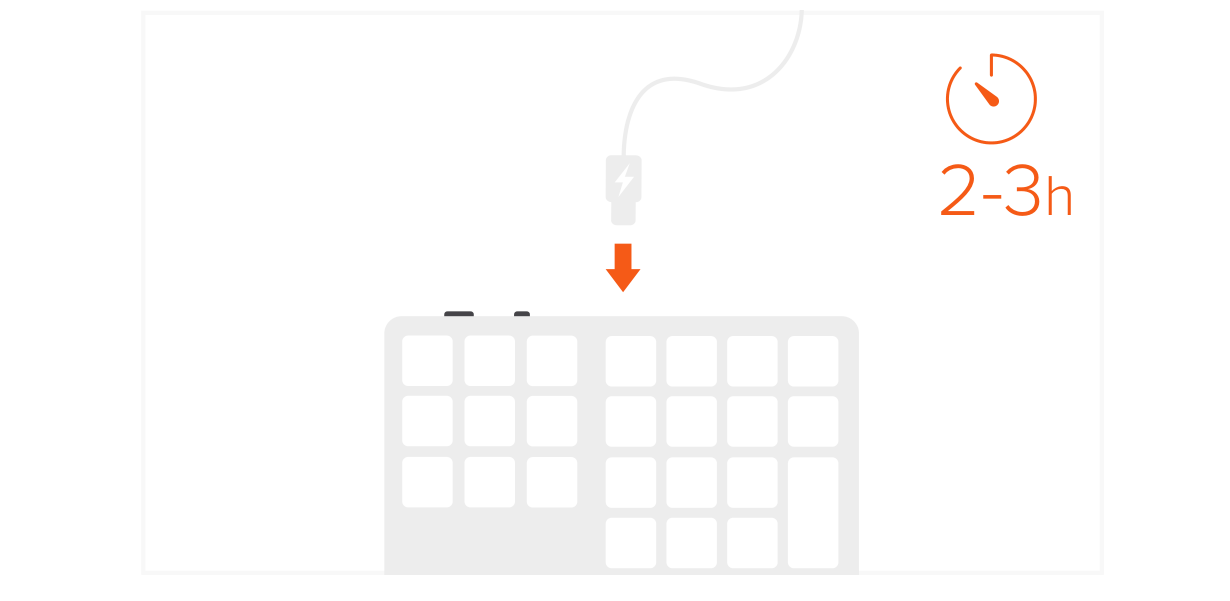

Step 6: Please use the included cable to recharge your keypad for 2-3 hours or until red light turns off.

Solid red light means charging. When solid red light turns off keypad is fully charged
