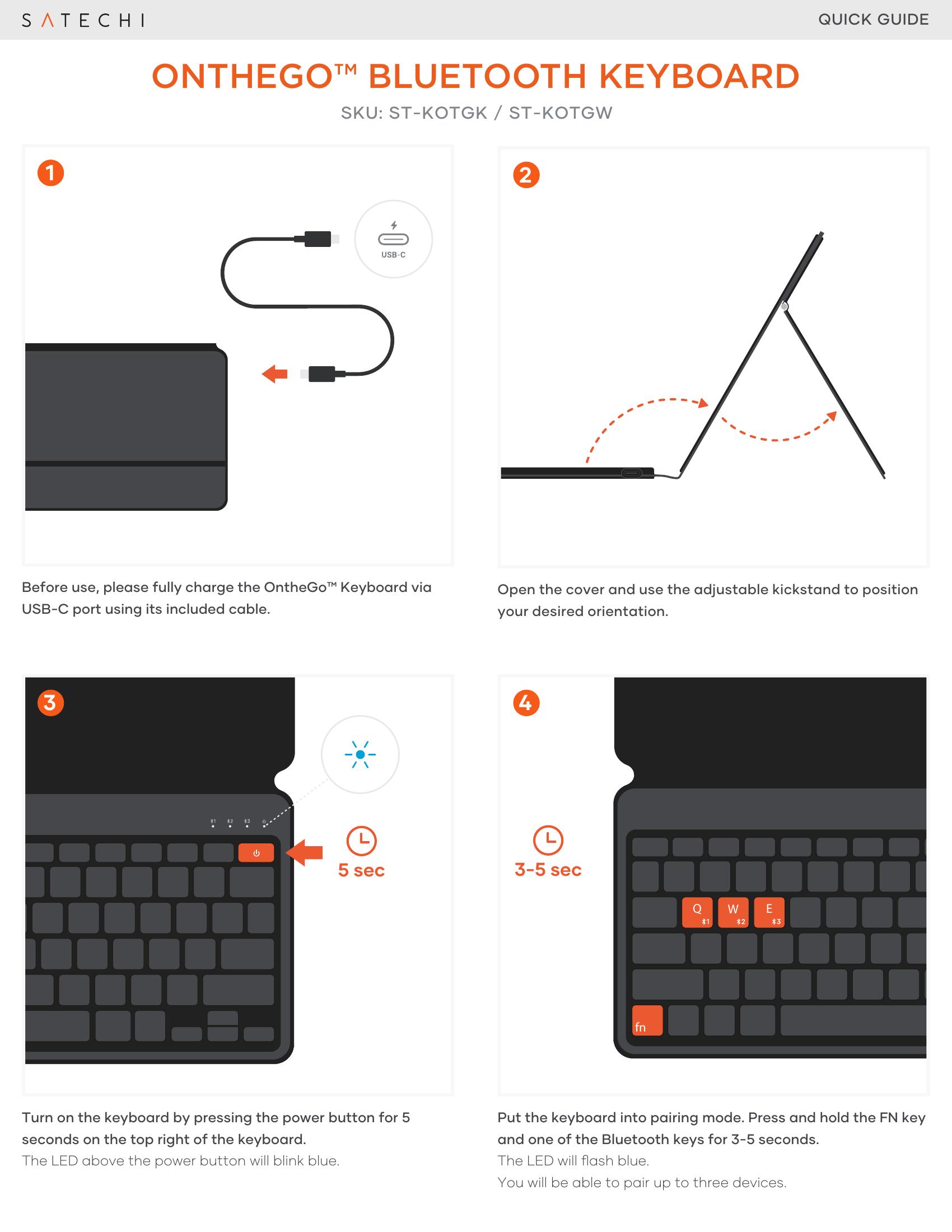

This Quick Start Guide covers getting started with the Satechi OntheGo™ Bluetooth Keyboard (ST-KOTGK ST-KOTGW).
How to set up the Satechi OntheGo™ Bluetooth Keyboard

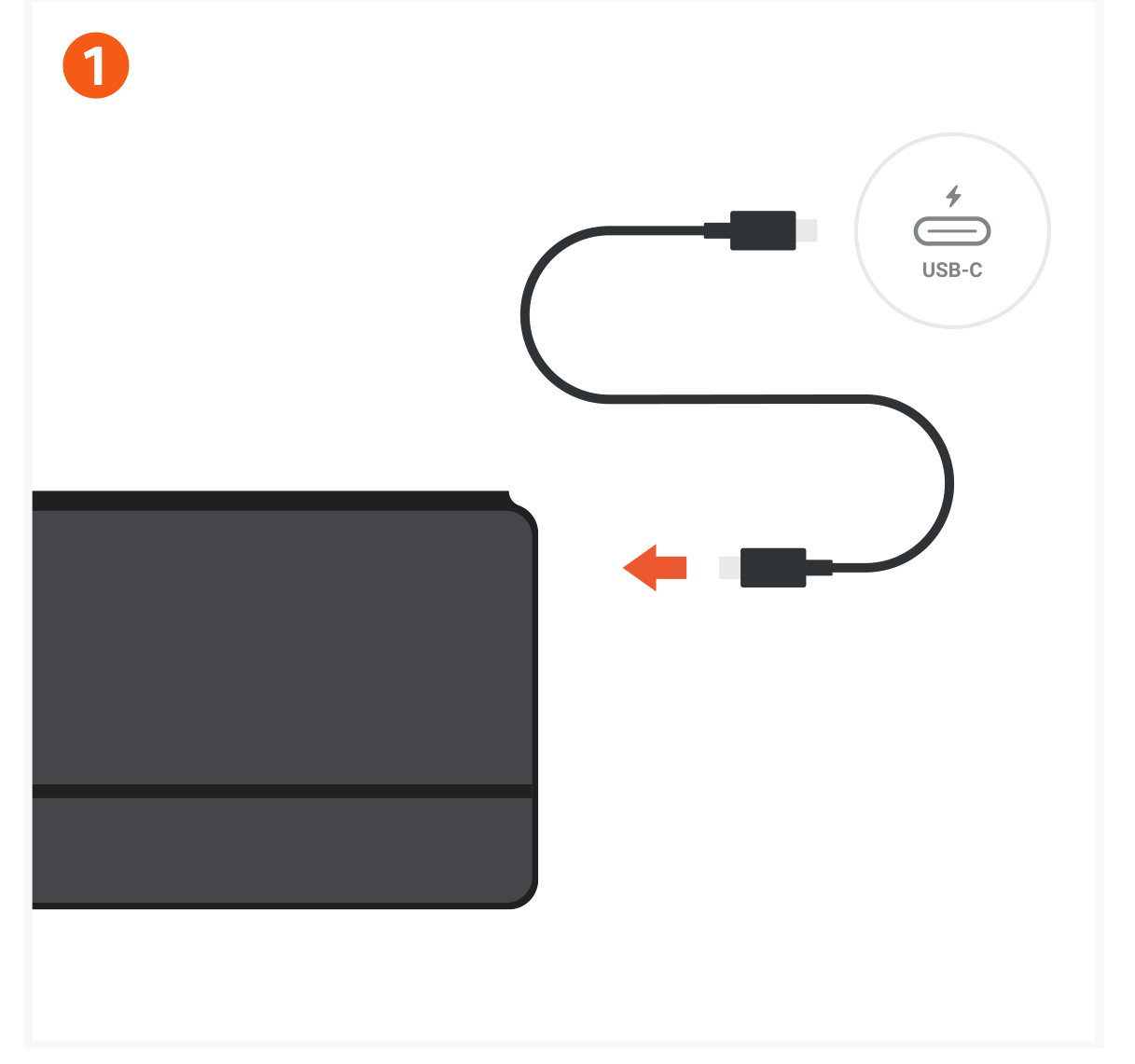

- Before use, please fully charge the OntheGo™ Keyboard through the USB-C (Universal Serial Bus Type-C) Charging Port using its included cable.

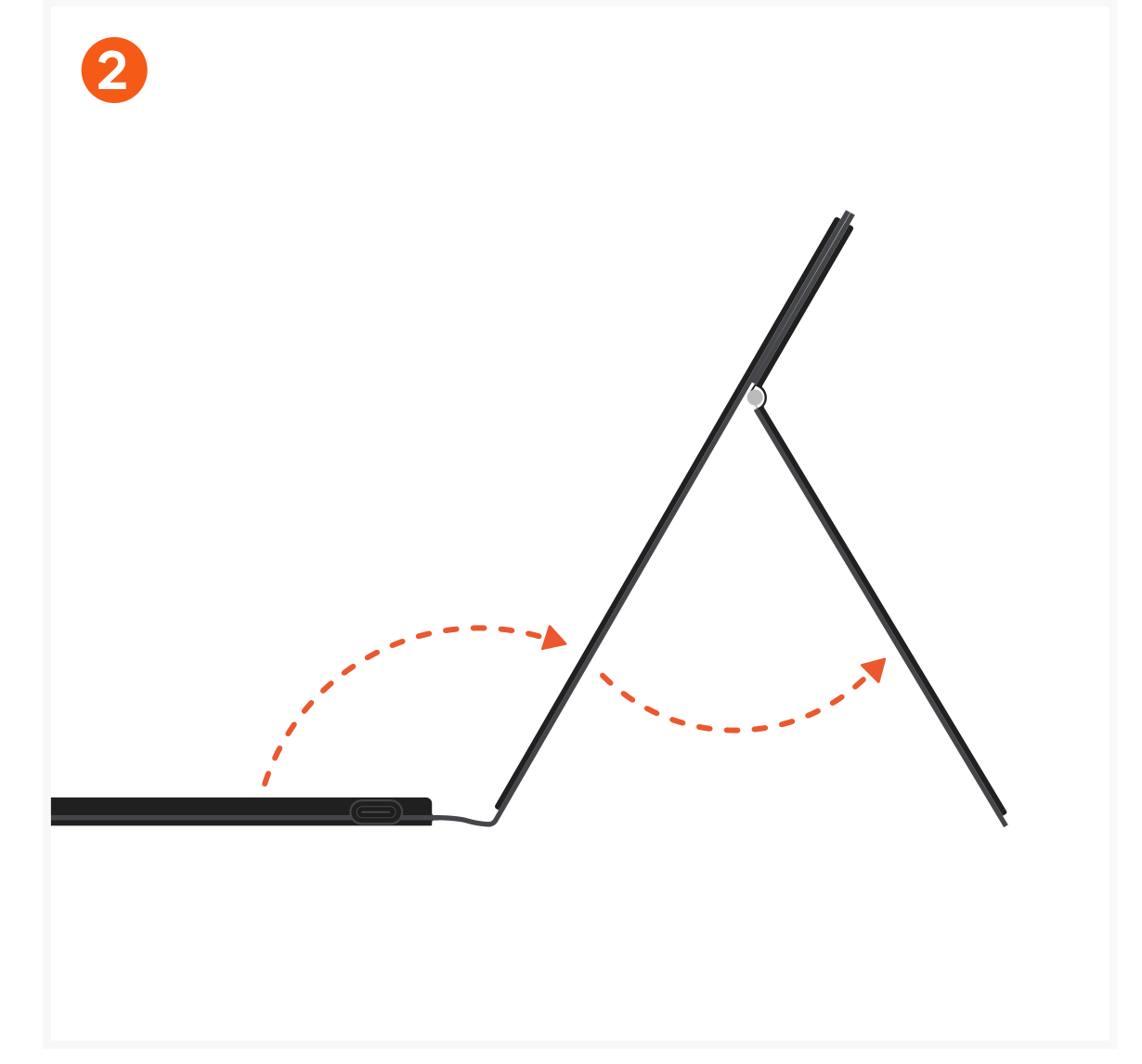

- Open the cover and use the adjustable kickstand to position your desired orientation.

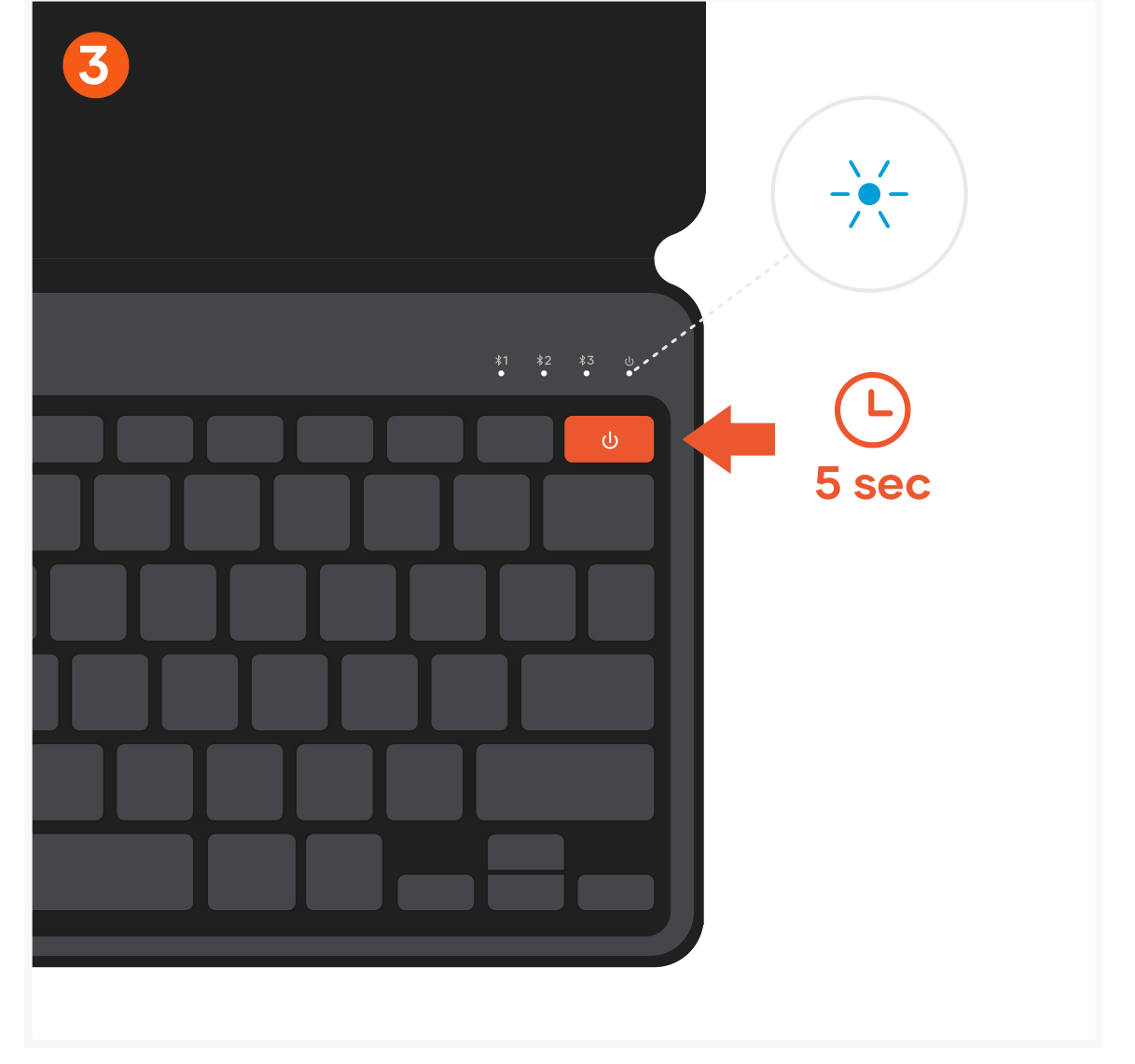

- To turn on the keyboard, press and hold the power button on the top right of the keyboard for 3 seconds. The Power / Charging light-emitting diode (LED) Indicator above the power button shows a blue light for 3 seconds, then turns off.

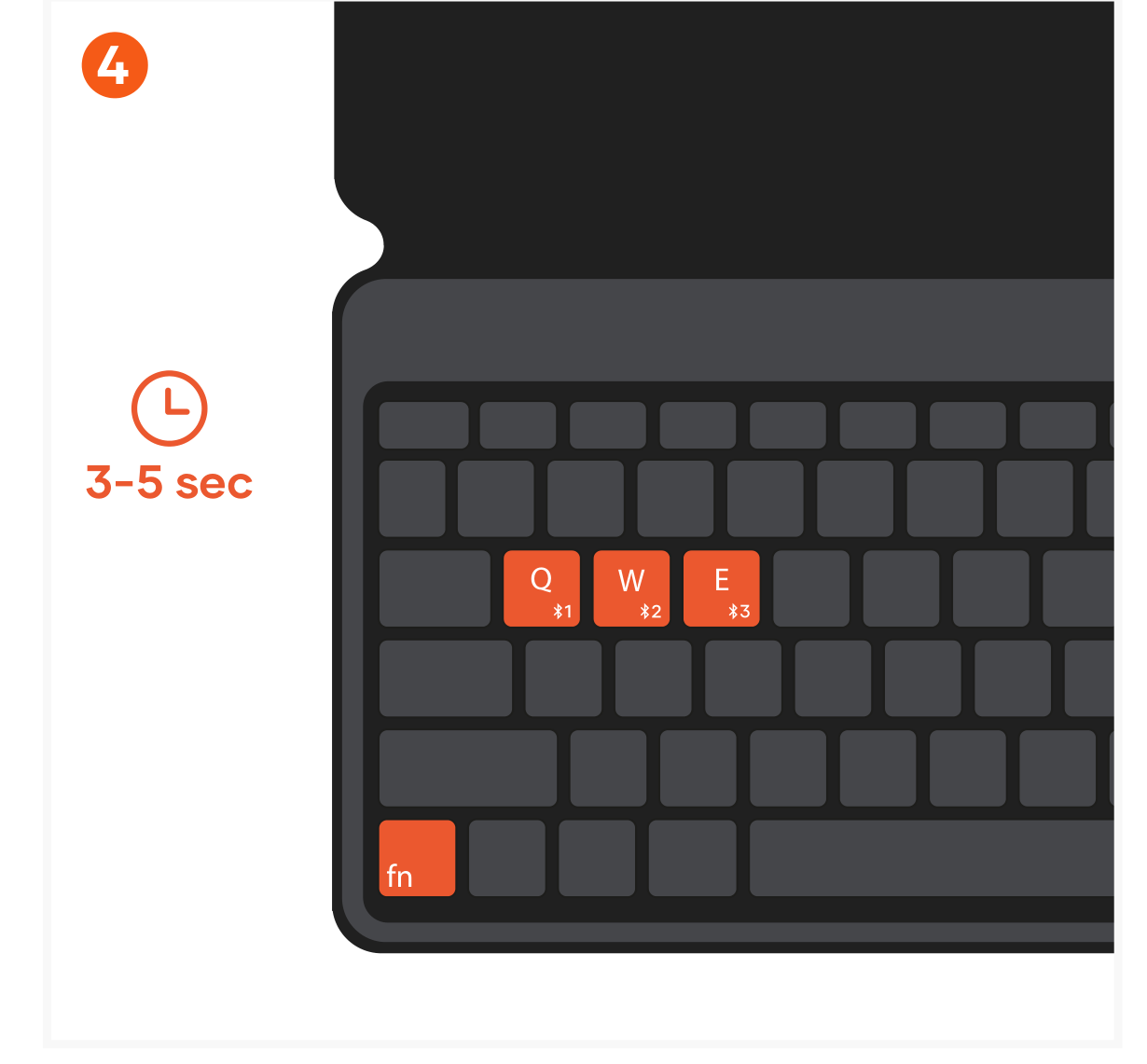

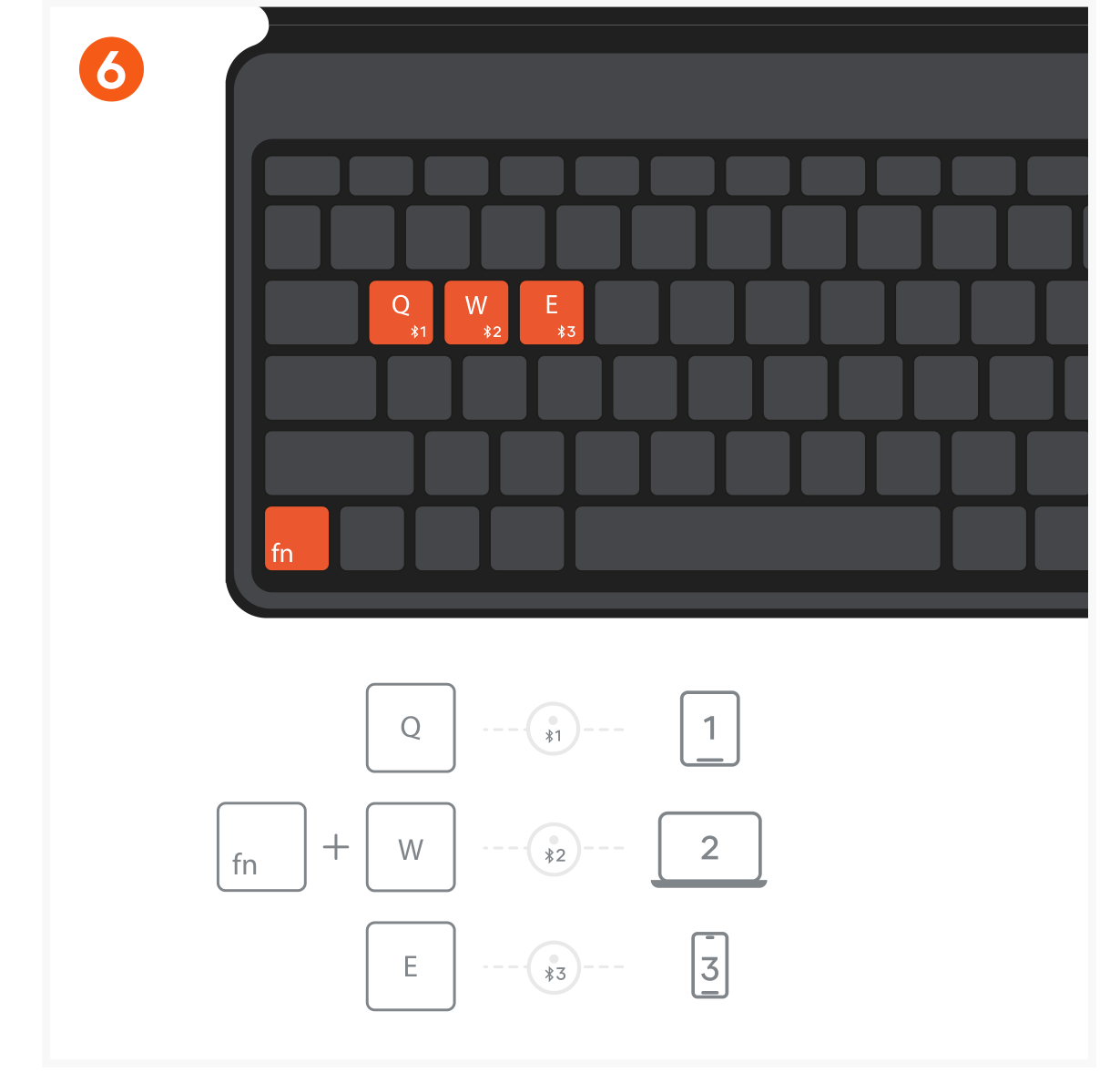

- Short press fn + Q, W, or E to select a Bluetooth channel. Long press fn + Q/W/E for 3 seconds to enter pairing mode. The blue light flashes once per second while in pairing mode. You will be able to pair up to three devices.

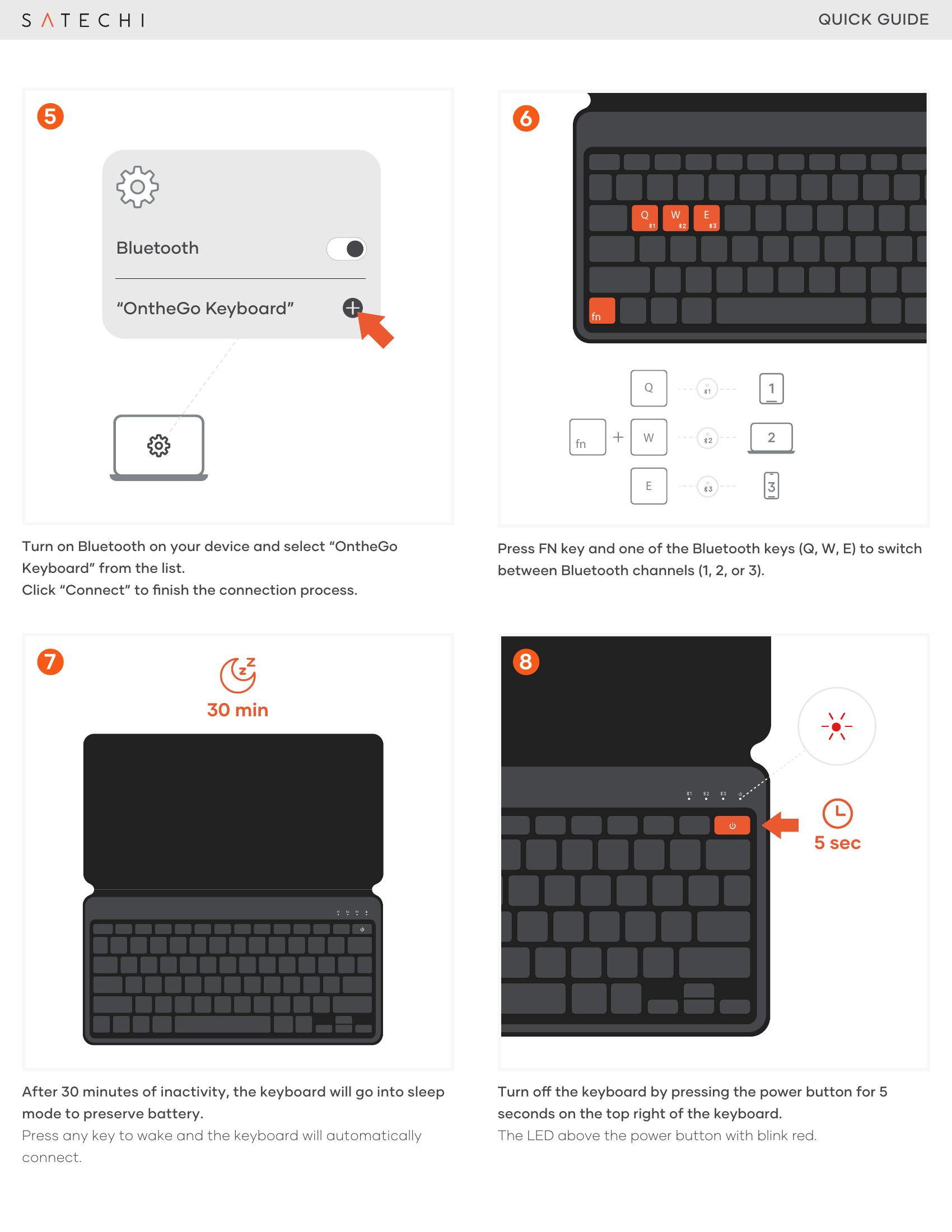

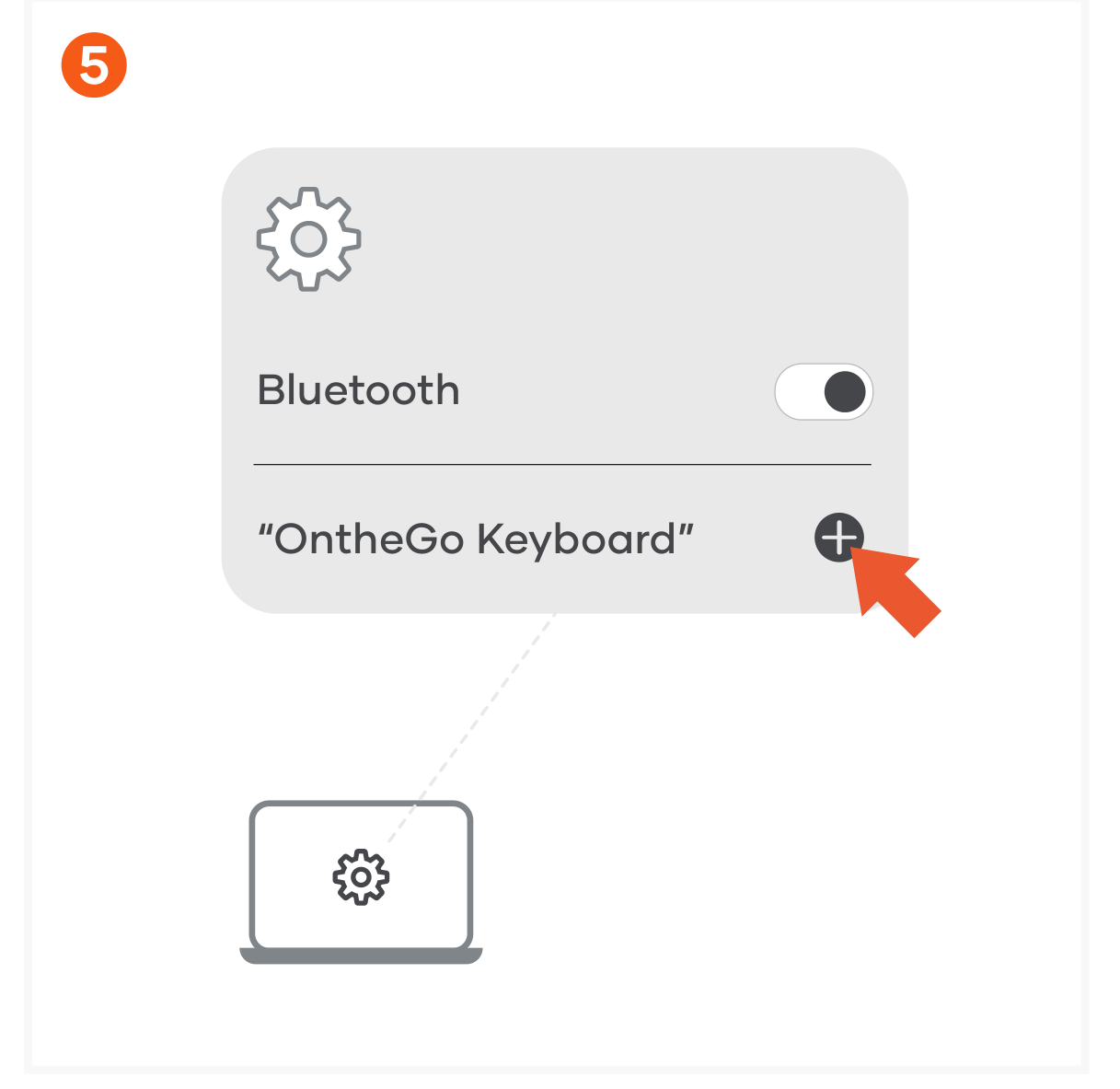

- Turn on Bluetooth and open the Bluetooth settings on your device.
- Select "OnTheGo Keyboard" from the list of available devices, then click "Connect" to finish the connection process.
- Once connected, the pairing indicator light will turn off.
How to switch devices on the OntheGo™ Bluetooth Keyboard
- Short press fn + Q, W, or E to select a Bluetooth channel (1, 2, or 3).
- The corresponding channel light flashes once when switching between channels 1, 2 and 3.
How to charge and power off the OntheGo™ Bluetooth Keyboard
- Connect the keyboard to a USB-C power source using the included USB-C to USB-C cable.
- Charge for about 2.5 hours for a full battery. The keyboard can be used while charging, and a full charge lasts up to 2 months.
- When the battery reaches 0%, the keyboard will automatically shut down.
- To turn it off, press and hold the power button on the top right of the keyboard for 3 seconds again. The red light above the power button stays on for 3 seconds, then turns off.
OntheGo™ Bluetooth Keyboard ports and controls
- Power / Charging LED Indicator: above the power button.
- Bluetooth LED Indicator
- USB-C Charging Port
- On/Off Switch: the power button on the top right of the keyboard.
- Function Keys
- Bluetooth Device Key: Q, W, or E with fn.
- Caps Lock LED Indicator
- Fn Key
OntheGo™ Bluetooth Keyboard LED indicator meanings
- Powering On: blue light stays on for 3 seconds, then turns off.
- Powering Off: red light stays on for 3 seconds, then turns off.
- While Charging: red light remains on.
- Fully Charged: blue light remains on.
- Low Battery Warning: when battery drops below 20%, the red light flashes twice per second.
- Switching Channels: the corresponding channel light flashes once when switching between channels 1, 2 and 3.
- Pairing Mode: the blue light flashes once per second while in pairing mode.
Important notes for the OntheGo™ Bluetooth Keyboard

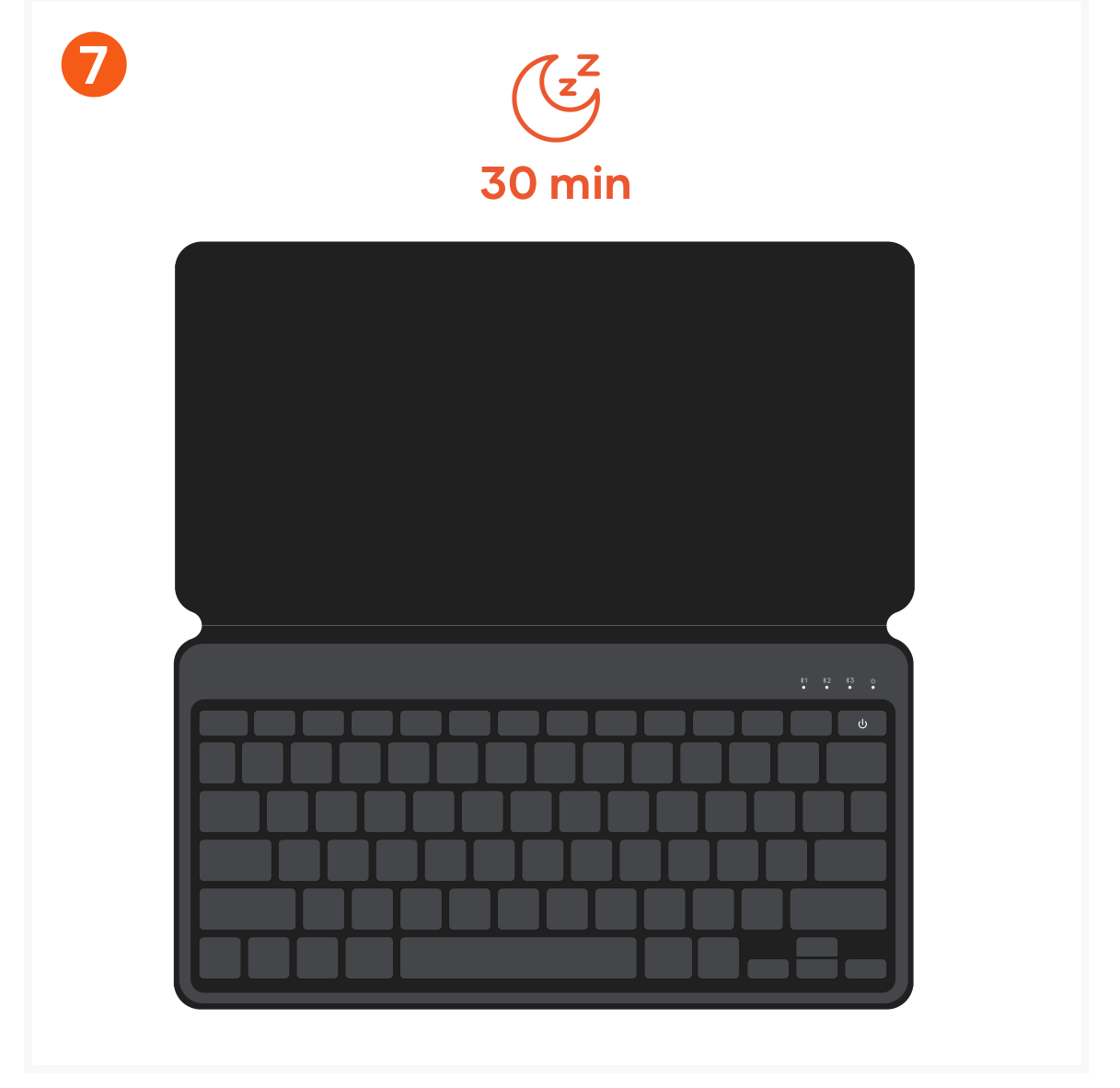

- After 30 minutes of inactivity, the keyboard will enter sleep mode to preserve battery. Press any key to wake it up, and the keyboard will automatically connect.
- If no device connects within 180 seconds of entering pairing mode, the keyboard enters sleep mode.
