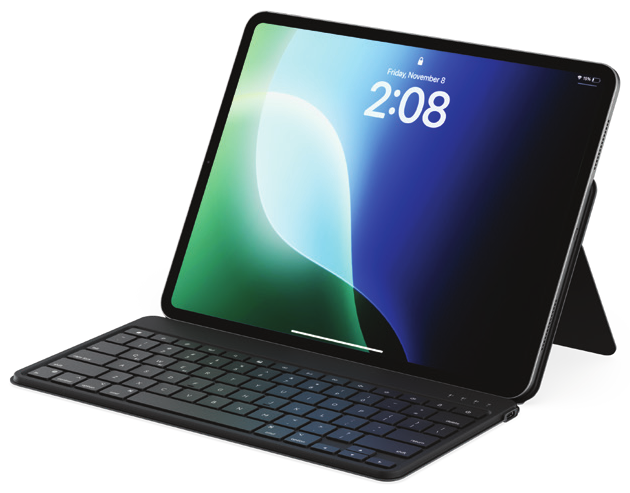

This User Manual covers setup, features, compatibility, and specifications for the Satechi OntheGo™ Bluetooth Keyboard (ST-KOTGK / ST-KOTGW).
Product Overview
The OntheGo™ Bluetooth Keyboard has three Bluetooth channels that you select with fn + Q, W, or E. Its function keys carry shortcuts for iPadOS / iOS, Android, and macOS. You can use it while it charges over USB-C, and a full charge lasts up to 2 months.
Setup
Power on and off: To turn on the keyboard, press and hold the power button for 3 seconds. To turn it off, press and hold the power button for 3 seconds again.
- Select a Bluetooth channel: Short press fn + Q, W, or E to select a Bluetooth channel.
- Enter pairing mode: Long press fn + Q, W, or E for 3 seconds to enter pairing mode. The blue light flashes once per second while in pairing mode.
- Open Bluetooth on your device: Open the Bluetooth settings on your device.
- Select the keyboard: Select "OnTheGo Keyboard" from the list of available devices.
- Confirm the connection: Once connected, the pairing indicator light turns off.
Note: If no device connects within 180 seconds of entering pairing mode, the keyboard enters sleep mode. After 30 minutes of inactivity, the keyboard enters sleep mode. Press any key to wake it up.

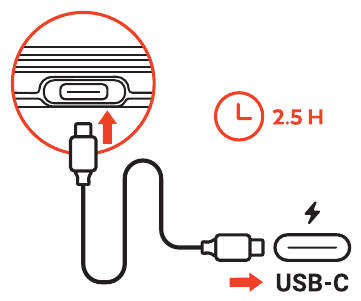

Charging the keyboard
1. Connect the keyboard to a USB-C power source using the included USB-C to USB-C cable.
2. Charge for about 2.5 hours for a full battery. The keyboard can be used while charging, and a full charge lasts up to 2 months.
Note: When the battery reaches 0%, the keyboard will automatically shut down.
Functions

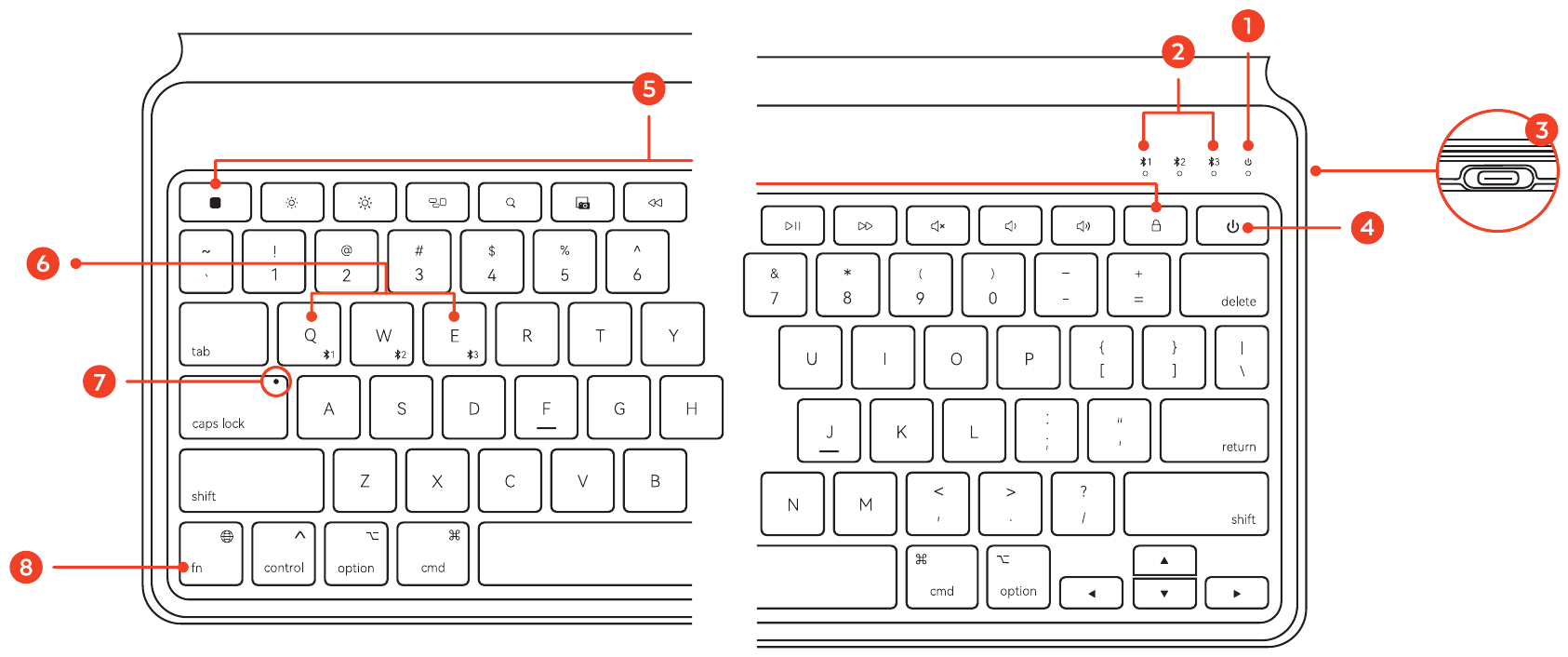

Parts labeled diagram of the OntheGo™ Bluetooth Keyboard with 8 labeled components.
1. Power / Charging LED Indicator: Powering on: blue light stays on for 3 seconds, then turns off. Powering off: red light stays on for 3 seconds, then turns off. While charging: red light remains on. Fully charged: blue light remains on. Low battery warning: when the battery drops below 20%, the red light flashes twice per second.
2. Bluetooth LED Indicator: Switching channels: the corresponding channel light flashes once when switching between channels 1, 2, and 3. Pairing mode: the blue light flashes once per second. Once connected, the pairing indicator light turns off.
3. USB-C Charging Port: Connect the included USB-C to USB-C cable here to charge the keyboard from a USB-C power source.
4. On/Off Switch: Press and hold the power button for 3 seconds to turn the keyboard on. Press and hold for 3 seconds again to turn it off.
5. Function Keys: See the Function Key Guide below for each key's function on iPadOS / iOS, Android, and macOS.
6. Bluetooth Device Key: Short press fn + Q, W, or E to select a Bluetooth channel. Long press fn + Q, W, or E for 3 seconds to enter pairing mode.
7. Caps Lock LED Indicator
8. Fn Key: Used with Q, W, or E to select a Bluetooth channel or enter pairing mode, and for Language Switching (Fn combo).
Function Key Guide
Each function key performs the function below on your operating system.
| Key | iPadOS / iOS | Android | macOS |
|---|---|---|---|
| Home | Home | - | - |
| Decrease Brightness | Decrease Brightness | Decrease Brightness | Decrease Display Brightness |
| Increase Brightness | Increase Brightness | Increase Brightness | Increase Display Brightness |
| App Switcher | App Switcher (iPad only) | - | App Switcher |
| Spotlight Search | Spotlight Search | Search | Spotlight Search |
| Screenshot | Screenshot | Screenshot | Screenshot |
| Previous Track | Last Track | Last Track | Previous Track |
| Play / Pause | Play / Pause | Play / Pause | Play / Pause |
| Next Track | Next Track | Next Track | Next Track |
| Mute | Mute | Mute | Mute |
| Volume Down | Volume Down | Volume Down | Volume Down |
| Volume Up | Volume Up | Volume Up | Volume Up |
| Lock Screen | Lock Screen | Lock Screen | Lock Screen |
| Language Switch | Language Switching (Fn combo) | Language Switching (Fn combo) | Language Switching (Fn combo) |
Features
- Three Bluetooth channels, selected with fn + Q, W, or E
- Function key shortcuts for iPadOS / iOS, Android, and macOS
- Up to 2 months of use on a full charge
- Can be used while charging over USB-C
- Sleep mode after 30 minutes of inactivity, press any key to wake
Important Limitations
The keyboard sleeps after 30 minutes of inactivity: Press any key to wake it up. If no device connects within 180 seconds of entering pairing mode, the keyboard also enters sleep mode.
The keyboard shuts down at 0% battery: When the battery reaches 0%, the keyboard automatically shuts down. Charge for about 2.5 hours for a full battery.
Safety instructions: Fire, electric shock, or damage to the keyboard could occur if the following instructions are not obeyed.
Keep away from microwave radiation sources.
Do not place heavy objects on the keyboard: Do not drop or bend it.
Keep away from oil, chemicals, or organic solvents.
Specifications
Model: ST-KOTG (SKU: ST-KOTGK-EN / ST-KOTGW-EN)
Bluetooth Channels: 3, selected with fn + Q, W, or E
Charging: USB-C, USB-C to USB-C cable included
Charge Time: About 2.5 hours for a full charge
Battery Life: Up to 2 months per full charge
Sleep Timer: 30 minutes of inactivity
Charging Power: 0.0 to 5.0 W
Power Adapter: Not included
Certifications
FCC, CE, ISED (IC: 24917-STKOTG), KC (R-R-laz-ST-KOTG), EAC
