This Quick Start Guide covers getting started with the Satechi Mac Mini M4 Stand & Hub with SSD Enclosure (ST-GNMMES): installing an M.2 Non-Volatile Memory Express (NVMe) solid-state drive (SSD) in the enclosure and connecting the hub to your Mac Mini (2024+). The Mac Mini and the M.2 NVMe SSD are not included.

How to set up the Satechi Mac Mini M4 Stand & Hub with SSD Enclosure

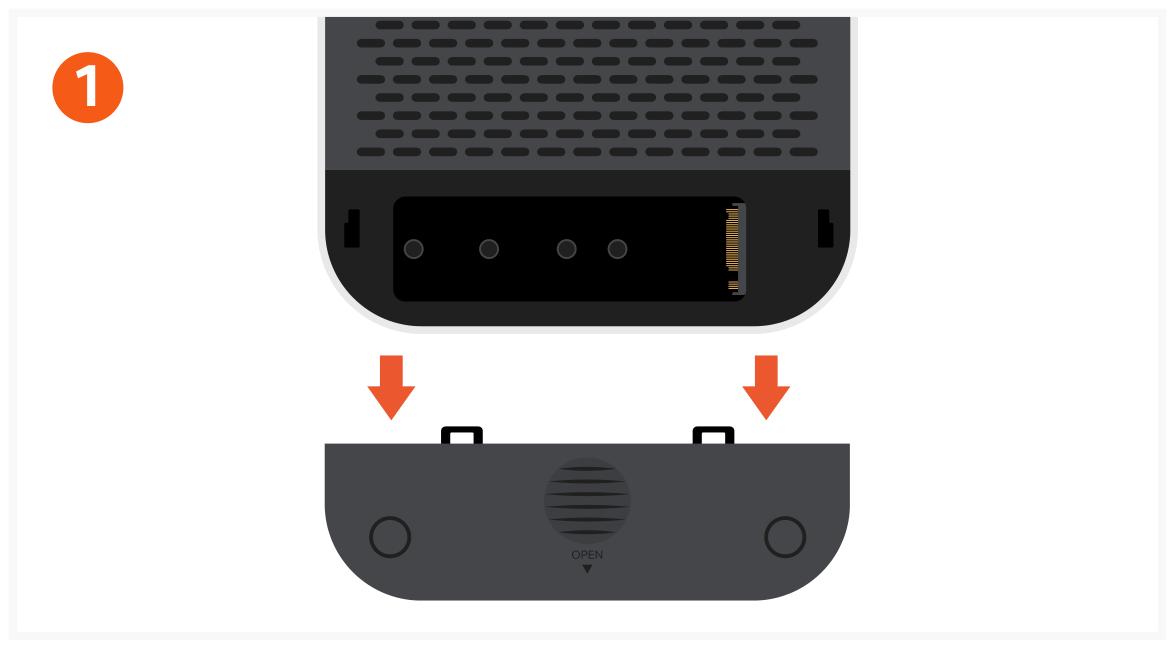

1. Remove the SSD enclosure cover on the bottom of the stand.

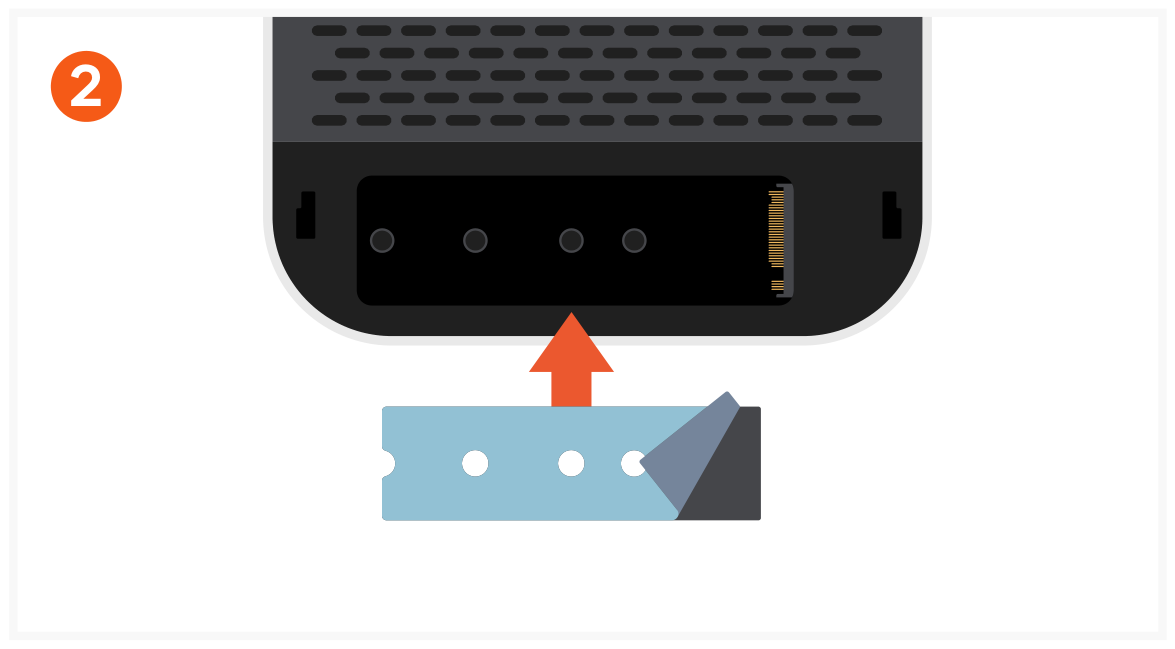

2. Before installing the NVMe SSD, apply the included thermal pad: remove the plastic from both sides, align it with the screw holes and apply it.

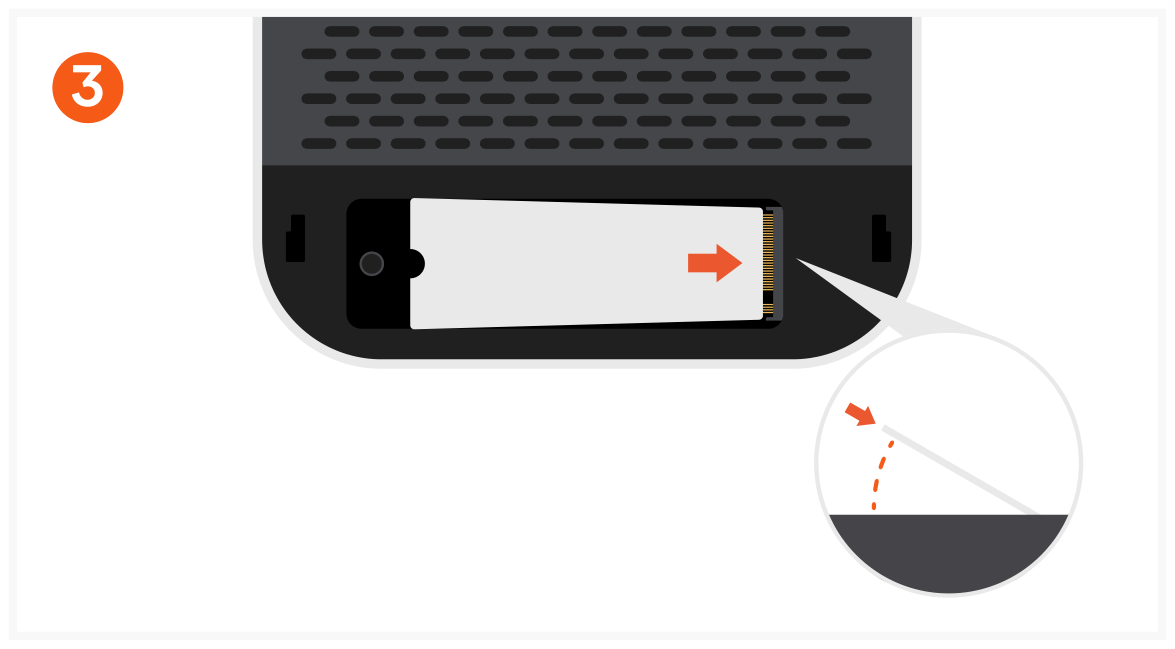

3. Insert SSD at a 30° angle and ensure the SSD is fully seated in the Peripheral Component Interconnect Express (PCIe) slot.

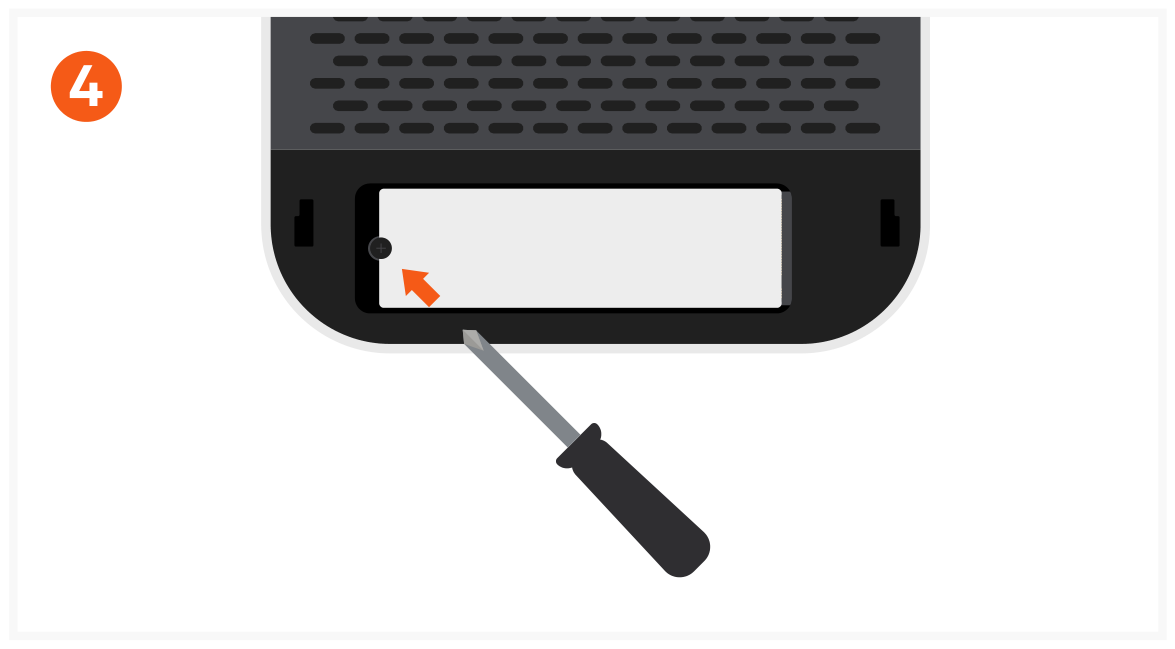

4. Use the included screw and screwdriver to keep SSD secure. Tip: To prevent stripping the screw, do not overtighten.

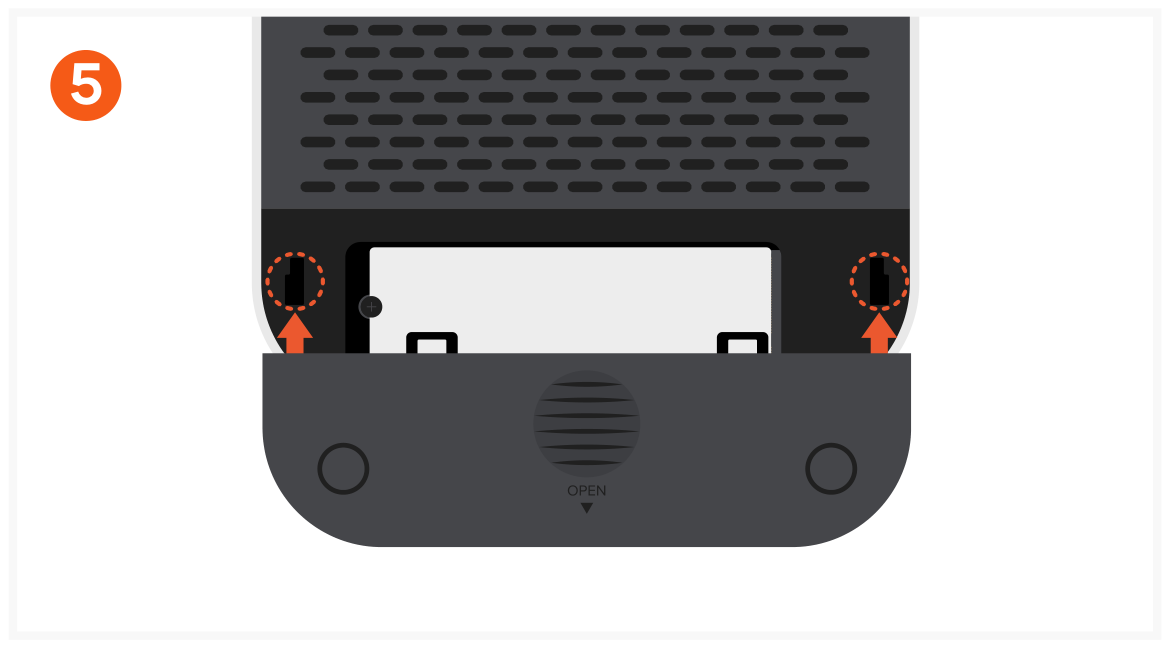

5. Carefully re-install the enclosure cover: insert the side clips first, then slide the door into place.

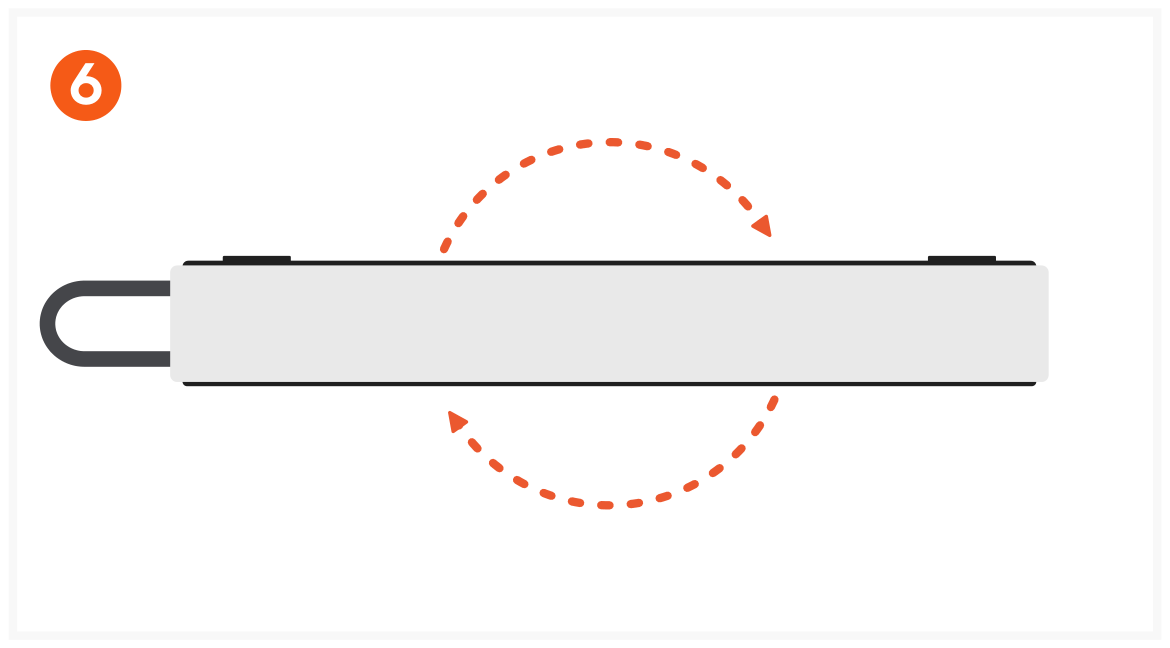

6. Flip the stand back over.

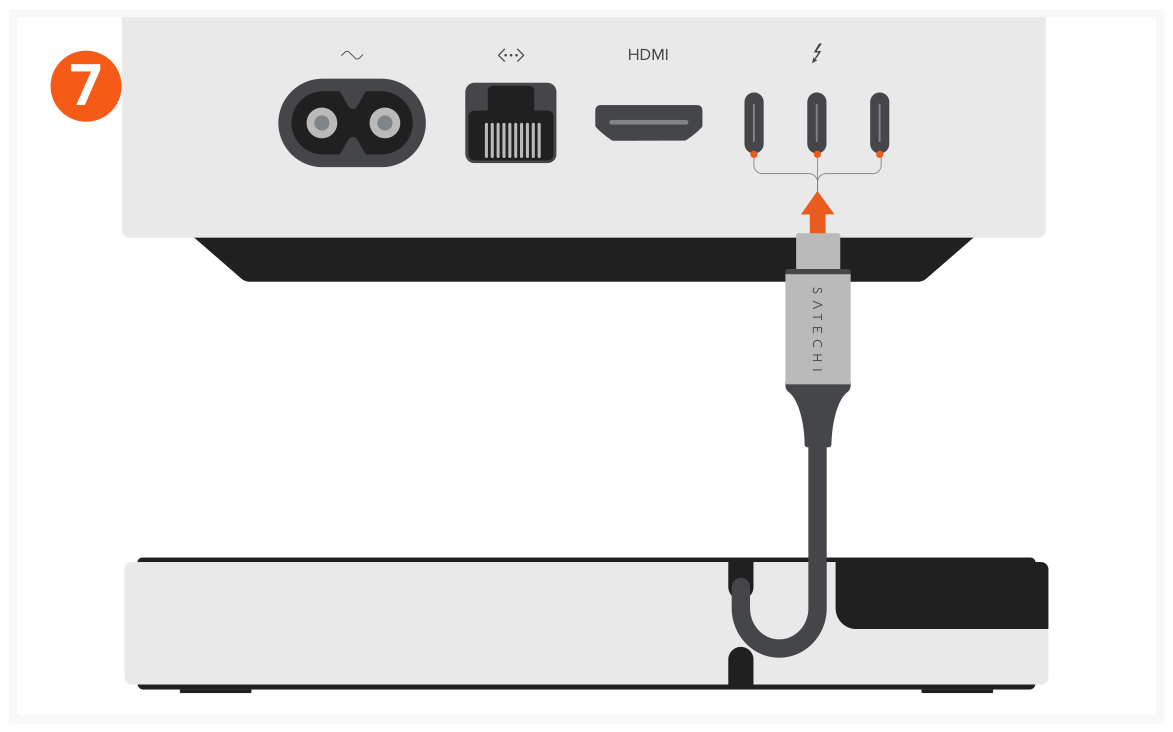

7. Place the stand on a flat surface and connect to your Mac Mini (2024+) with the USB-C (Universal Serial Bus Type-C) Braided Host Cable.



8. Connect your devices.

Mac Mini M4 Stand & Hub with SSD Enclosure ports and controls

• USB-C Braided Host Cable: connects the hub to your Mac Mini.

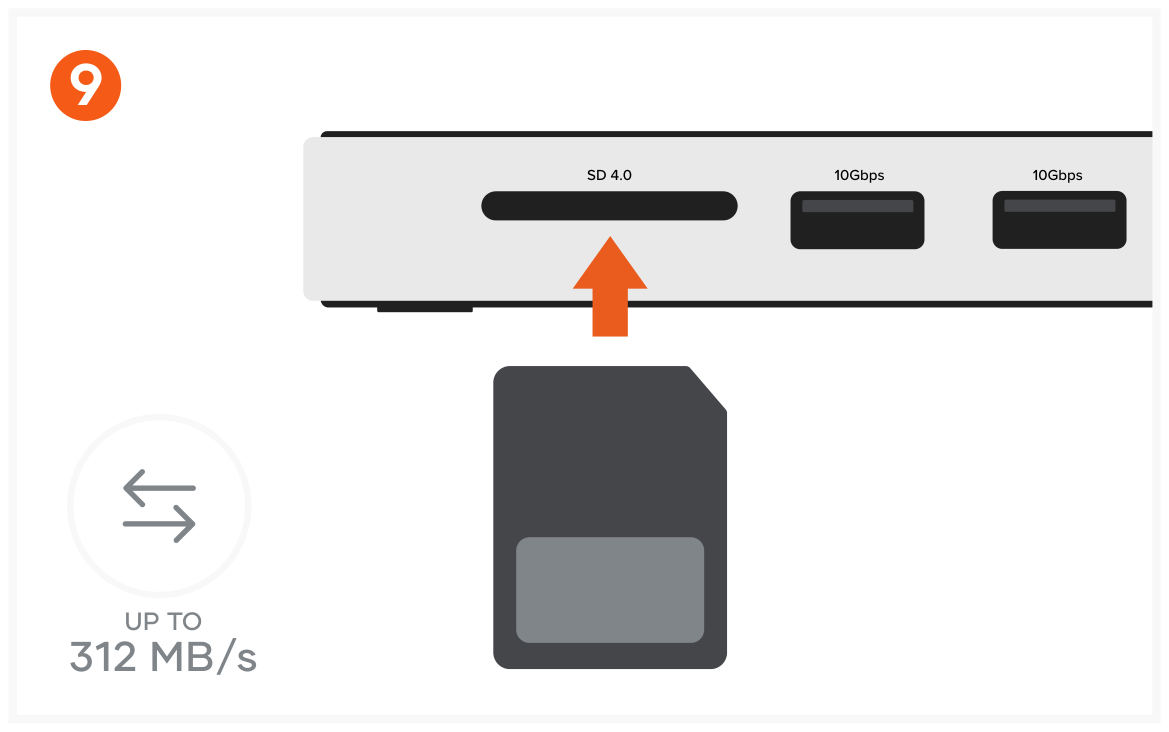

• Secure Digital (SD) Reader (UHS-II, short for Ultra High Speed II, short for Ultra High Speed II): up to 312 MB/s, for high-speed data transfer from SD cards. Insert the card with the label facing up and the pins facing down.

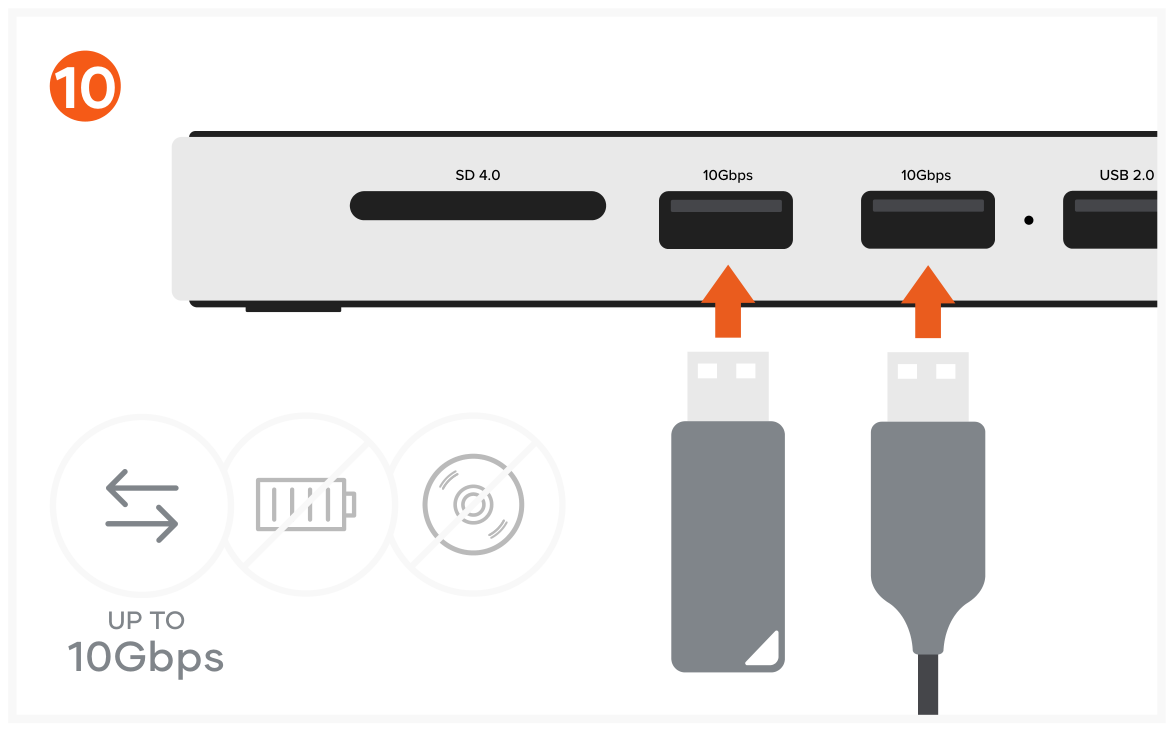

• 2x USB-A (Universal Serial Bus Type-A) Data Ports: 10Gbps (up to 1250 MB/s), two high-speed data transfer ports for external drives. The two USB-A 10Gbps ports do not support charging or compact disc (CD) drives, including the Apple SuperDrive.



• light-emitting diode (LED) Indicator

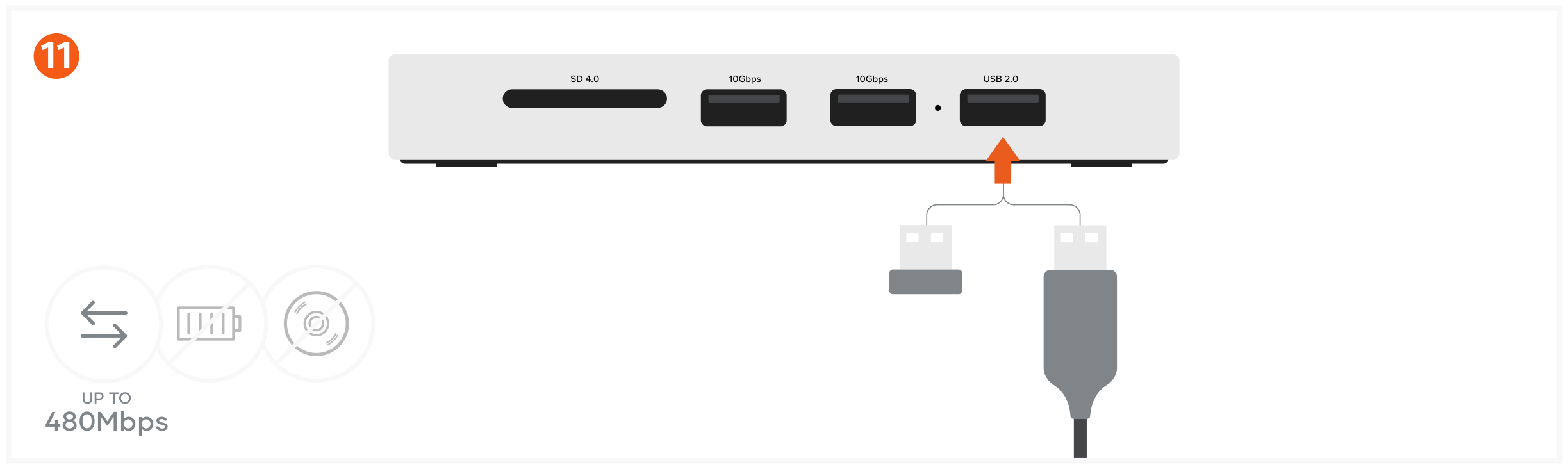

• USB-A Data Port (USB, short for Universal Serial Bus 2.0): 480Mbps (up to 60 MB/s). Ideal for low-power devices and peripherals such as USB dongles and wired keyboards. The USB 2.0 port does not support charging or CD drives, including the Apple SuperDrive.



• M.2 NVMe SSD Enclosure: 2230/2242/2260/2280 sizes, 10Gbps.
• Thermal Pad

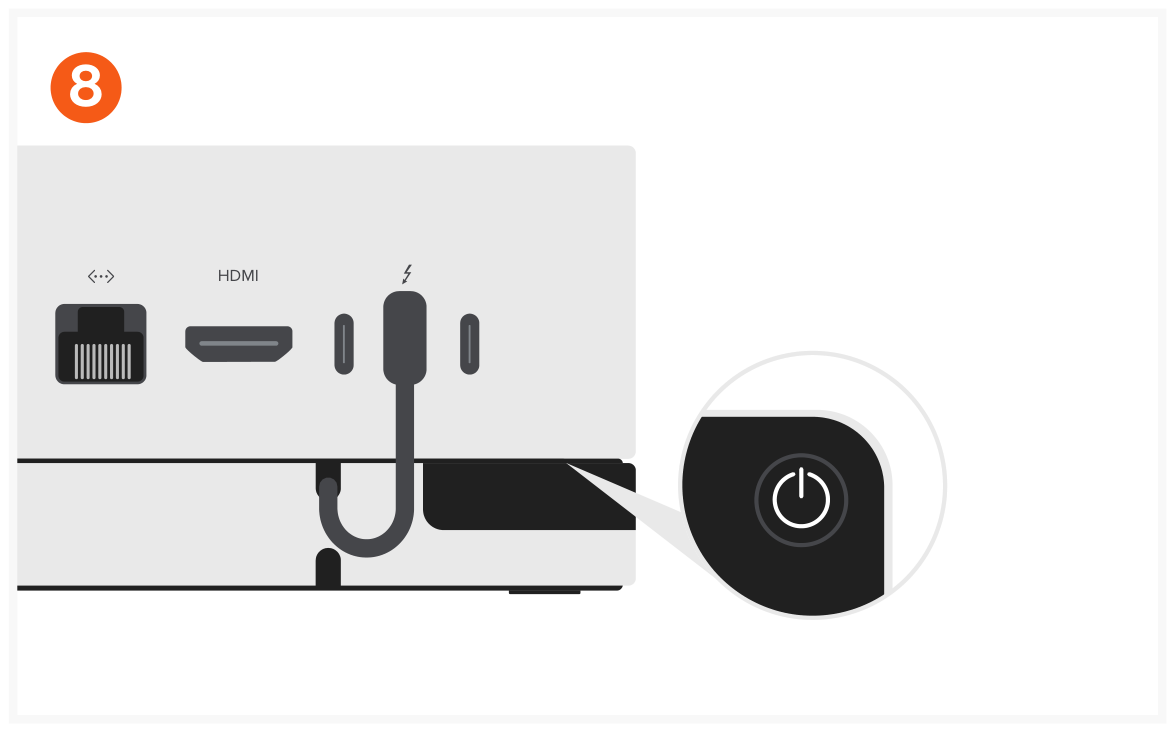

• Power button accessibility: easily access the Mac Mini power button through the cutout.



Important notes for the Mac Mini M4 Stand & Hub with SSD Enclosure

• Supports Mac Mini (M4, 2024). Does not support M2, M1, or 2018 Mac Mini or Mac Studio models.
• Compatible with M.2 NVMe SSD Drive. SSDs equipped with heatsinks and double-sided SSDs are not compatible.
• If using a brand new SSD, format drive to support host device operating system. Upon initial installation, please ensure your SSD is properly formatted to your host device operating system (OS).
• Please eject the SSD from your host device prior to disconnecting the USB-C cable. Failure to do so can result in lost or corrupted files.
• When using SSD, do not connect more than one high-powered peripheral or external storage device to the hub due to power requirements. Connecting more than one may cause SSD or other connected peripherals to unmount.
• The USB ports are not designed for charging, only for device syncing, data transfer and USB peripherals.
• Keyboards, mice and other low data peripherals are recommended to be connected to the USB 2.0 port.
• Not compatible with Apple USB SuperDrive or other CD Reader.
