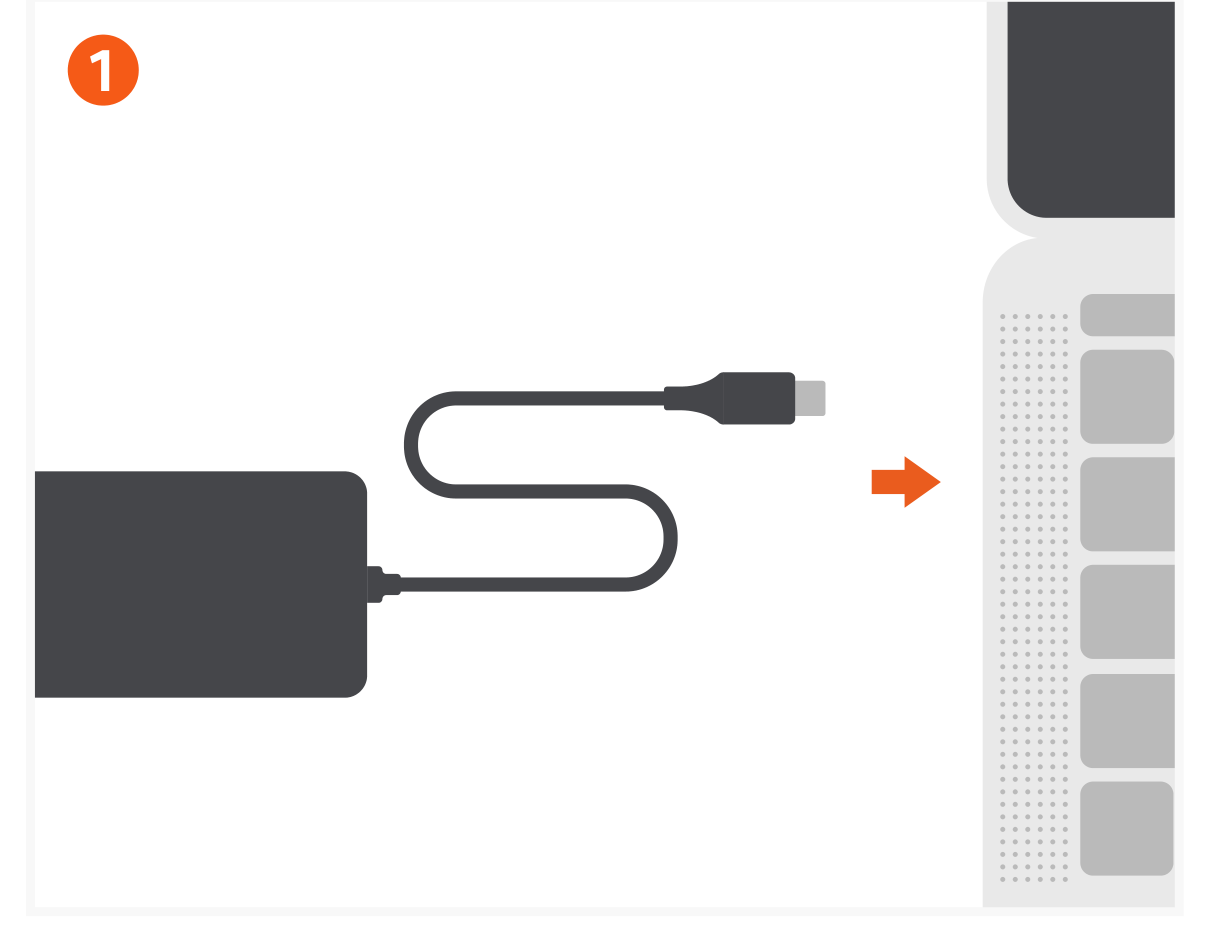

1. Connect the adapter to a compatible host device.
   • LED indicator would turn on once connected.

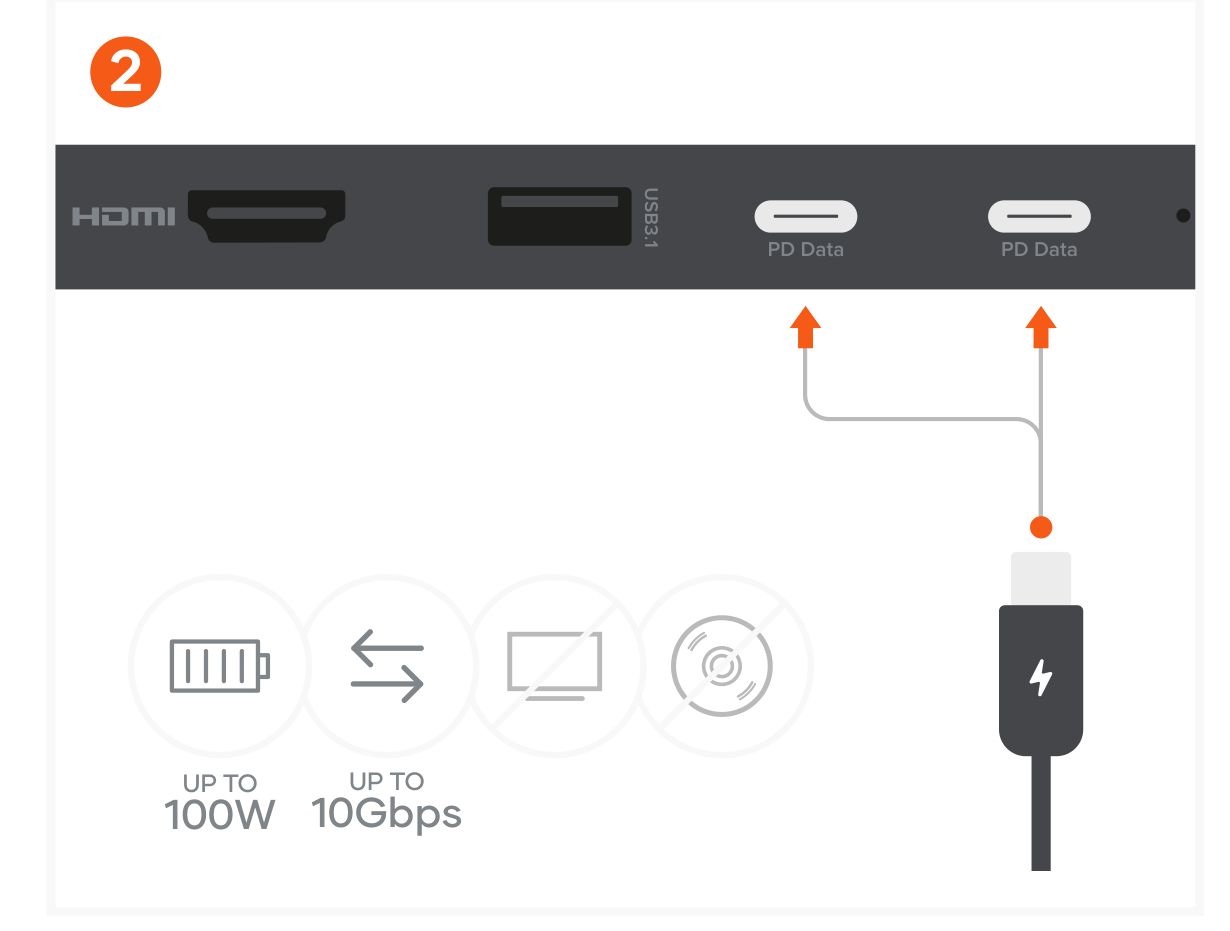

2. PD Data PD Data
   • Connect USB-C charging cable to either USB-C PD port.
   • Supports up to 100W, max 85W downstream (15W used for operation), USB 3.1 data transfer speeds (10Gbps).
   • Does not support video output. Does not support CD/ DVD Drives or Apple SuperDrive.

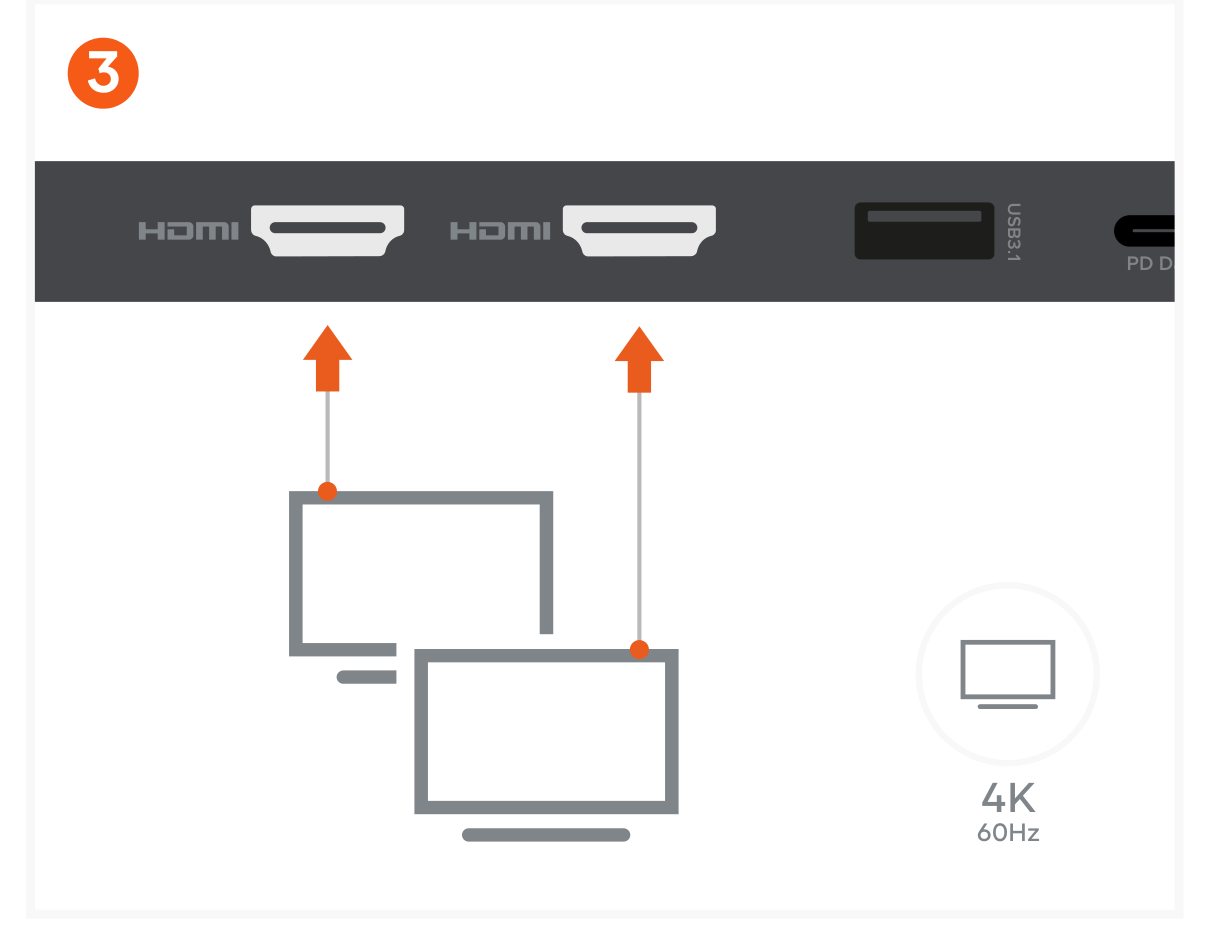

3. Connect HDMI cables from the adapter to a 4K HDMI- equipped display.
   • Up to 4K at 60Hz.
   • Only supports direct HDMI connections.
   • MST-supported for multi-display function for some Windows PCs.
   • macOS, iOS, and iPadOS devices support only one extended display at a time.
   • Any other monitors connected to the adapter will output mirrored displays.

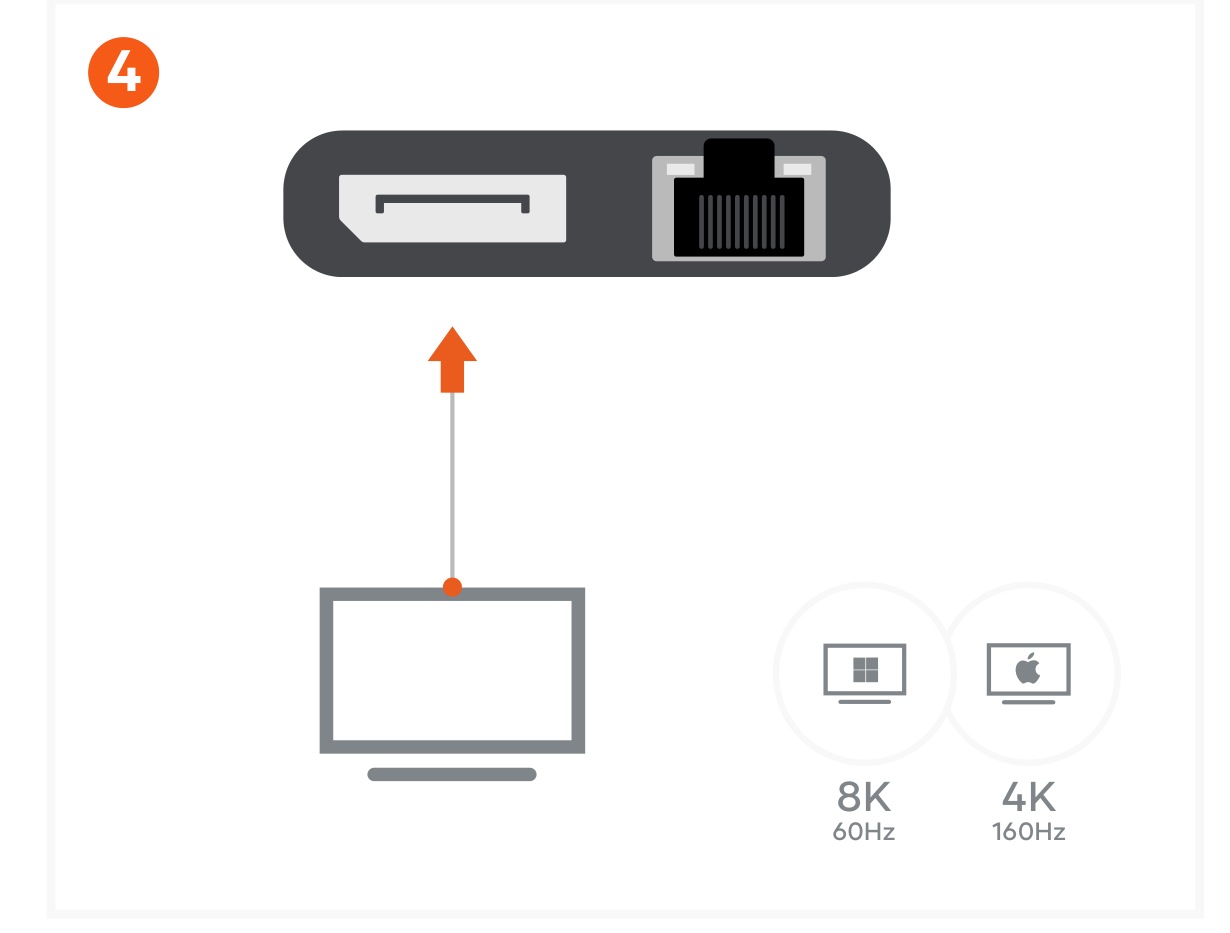

4. Connect DisplayPort cable from the adapter to a 4K DisplayPort-supported display.
   • Up to 8K at 60Hz via Windows PCs.
   • Up to 4K at 160Hz via Apple devices.
   • Only supports direct DisplayPort connections.
   • MST-supported for multi-display function for some Windows PCs.
   • USB 3.1 (10Gbps) PD Data PD Data

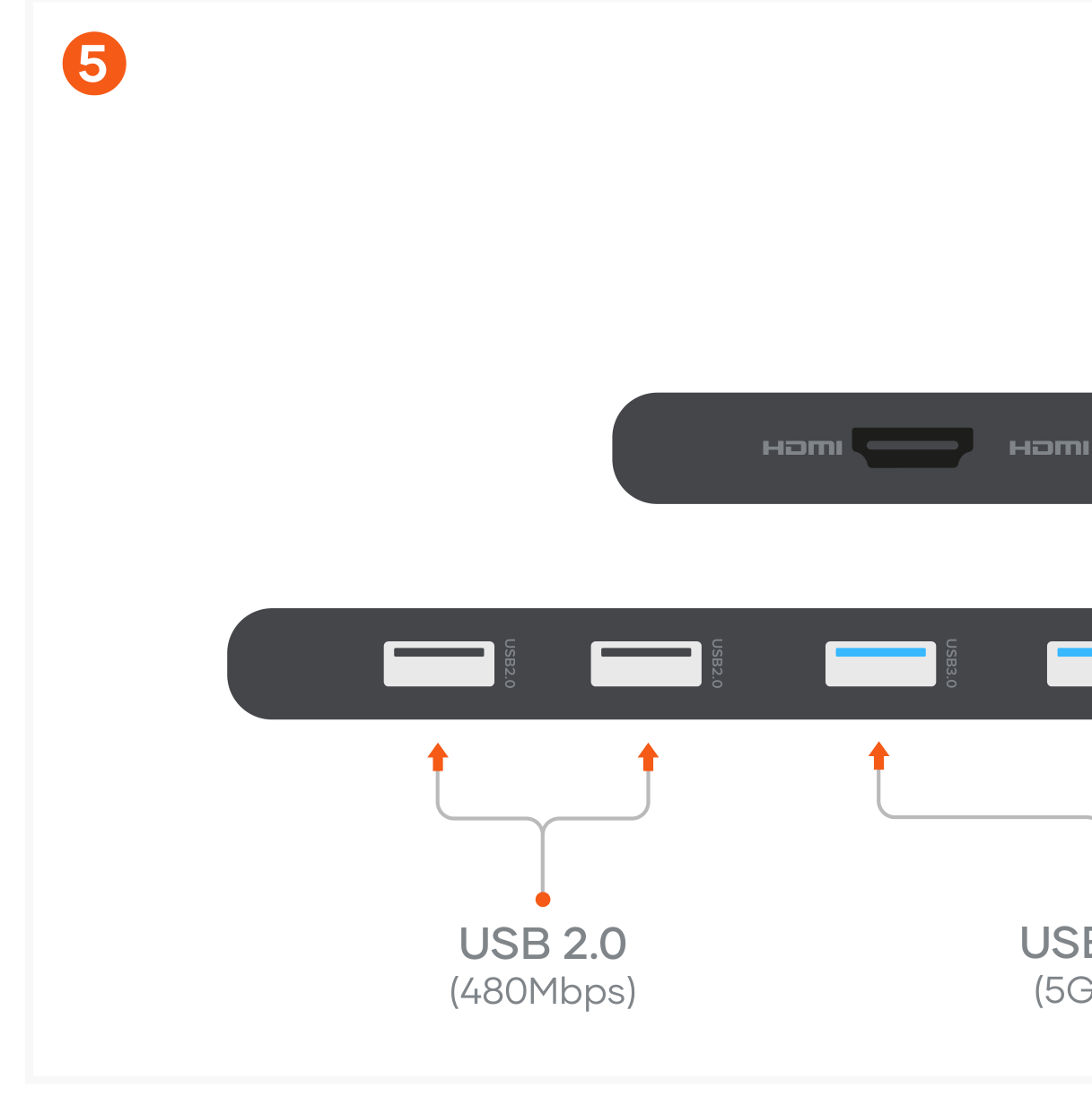

5. USB 2.0 (480Mbps) USB 3.0 (5Gbps) Connect up to 6 USB-A peripherals/devices for data transfer.
   • 2x USB 2.0 (480Mbps), 3x USB 3.0 (5Gbps), 1x USB3.1 (10Gbps).
   • Does not support charging or CD readers including the Apple SuperDrive.

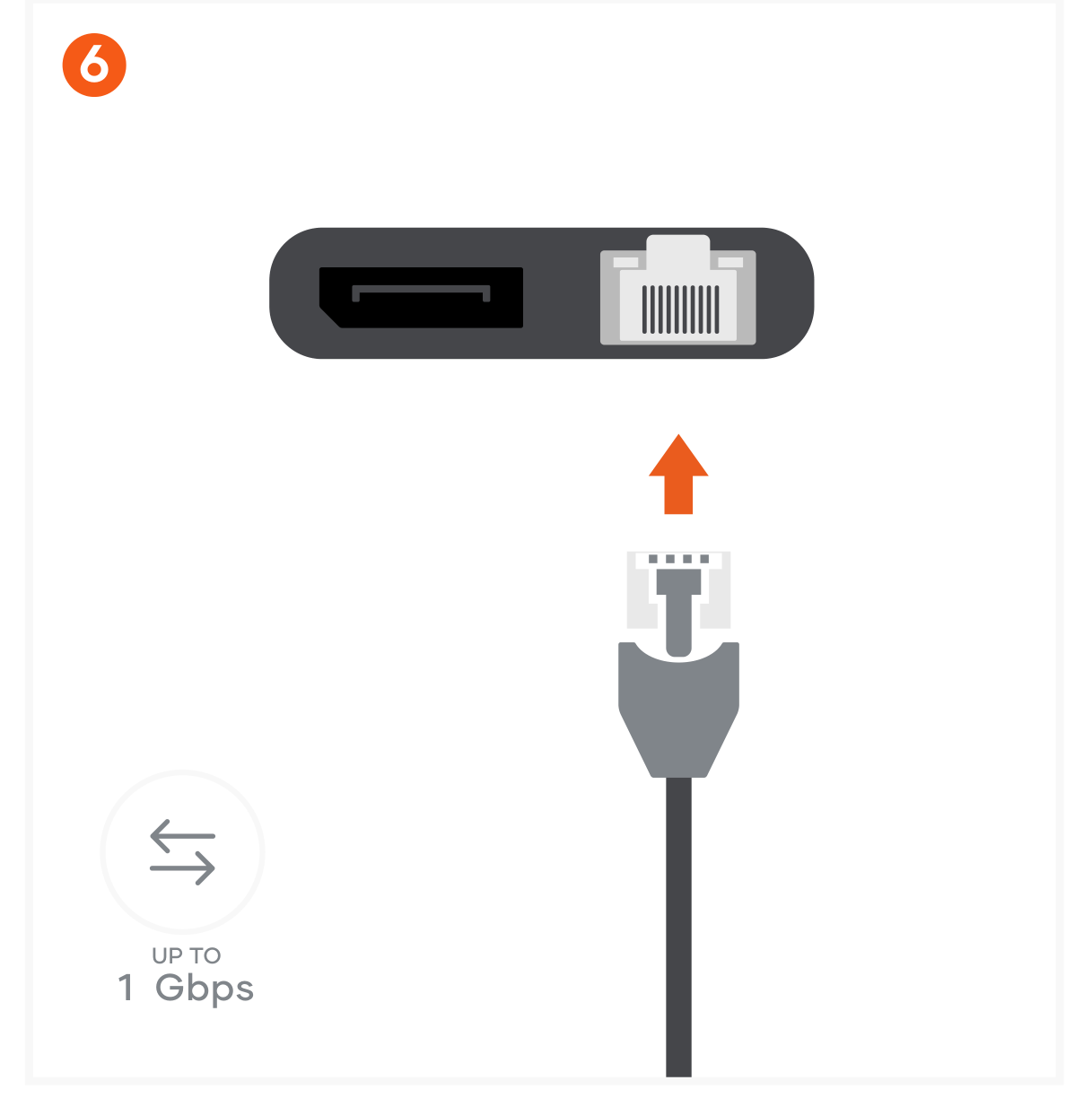

6. Insert RJ45 Ethernet cable into the adapter’s Gigabit Ethernet port.
   • Supports up to 1 Gbps.

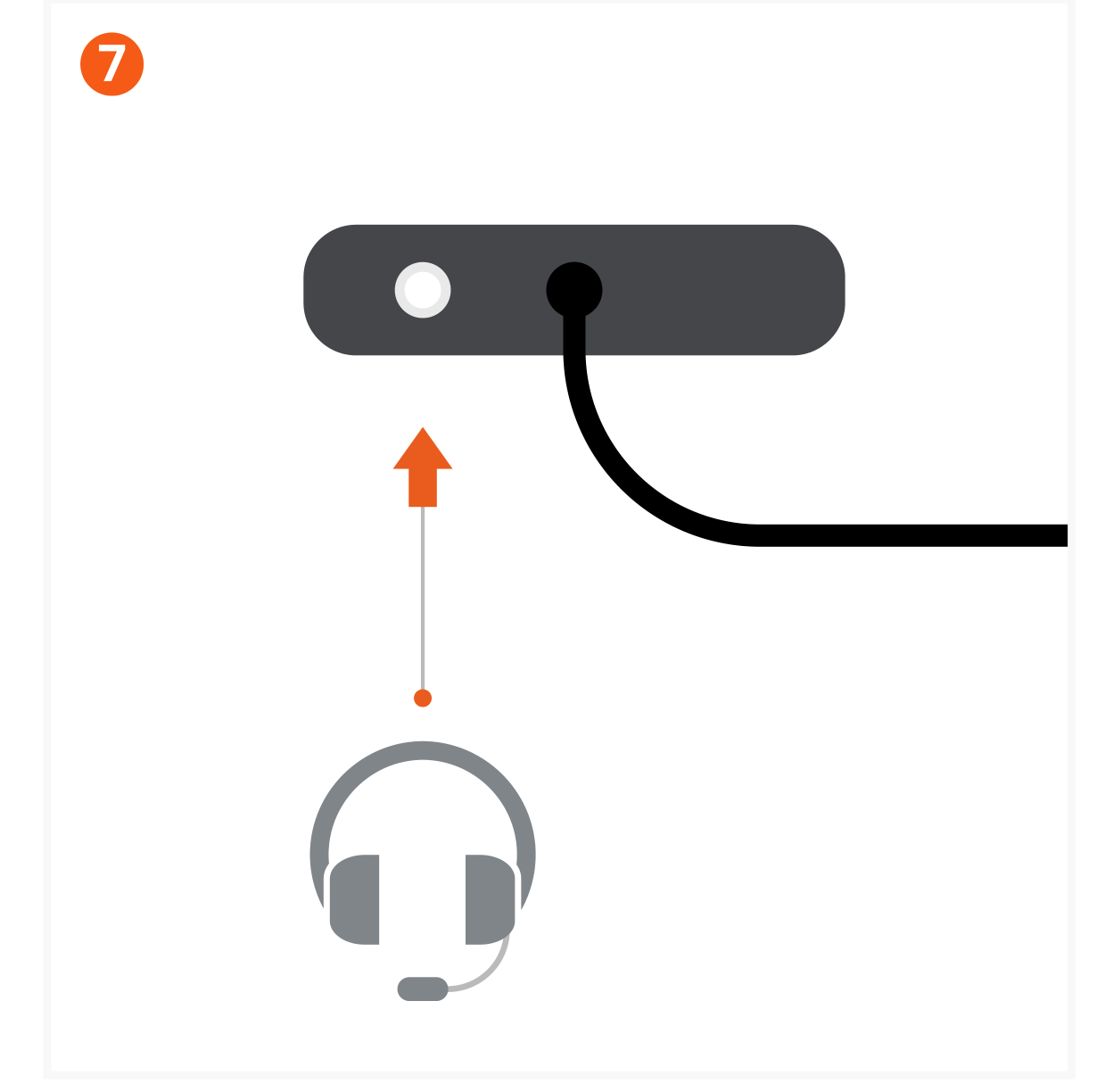

7. Insert audio device into 3.5mm auxiliary port.
   • Supports both input and output.
   • Source detected as “AB13X USB Audio”
