This Quick Start Guide covers getting started with the Satechi Pro Hub Mini (ST-UCPHMIM ST-UCPHMIS).

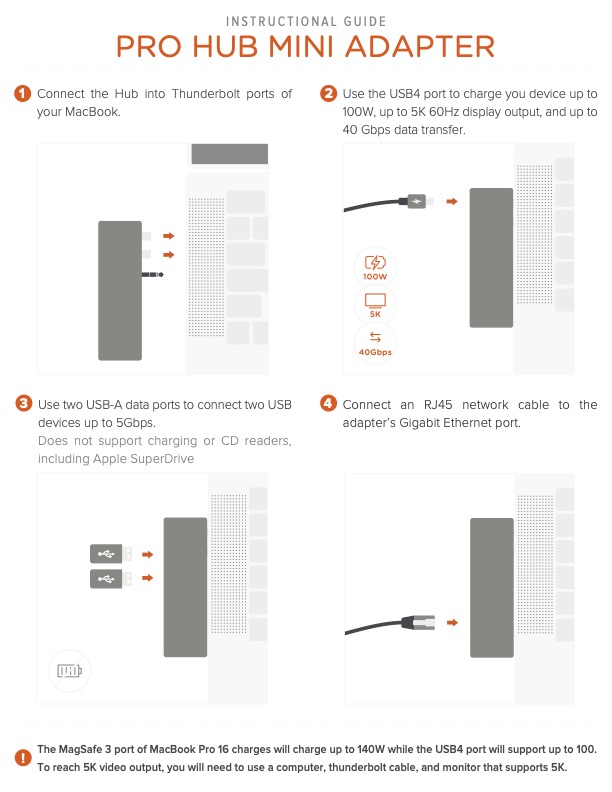

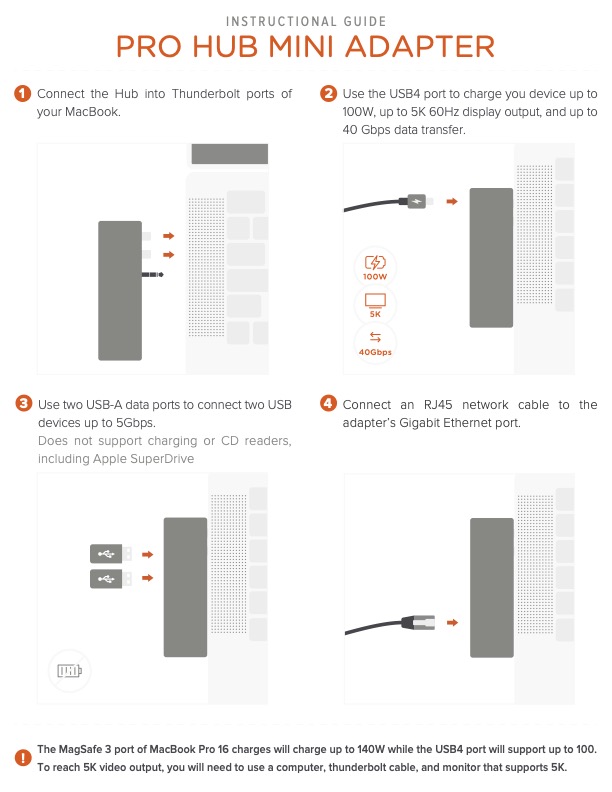

How to set up the Satechi Pro Hub Mini

The Pro Hub Mini is plug and play.

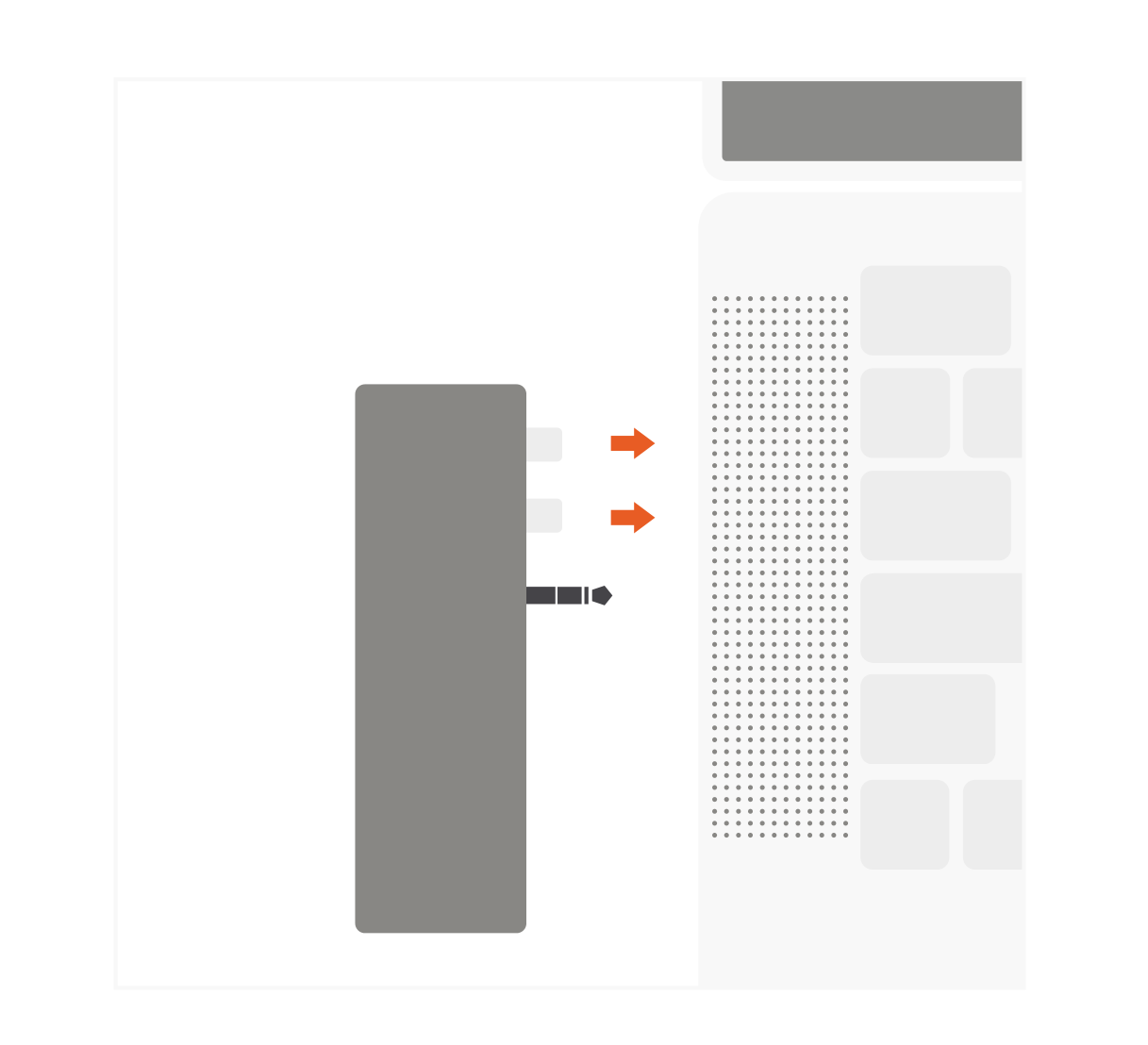

1. Connect the hub's Dual USB-C (Universal Serial Bus Type-C) Connectors to a laptop, such as the Thunderbolt ports of your MacBook.

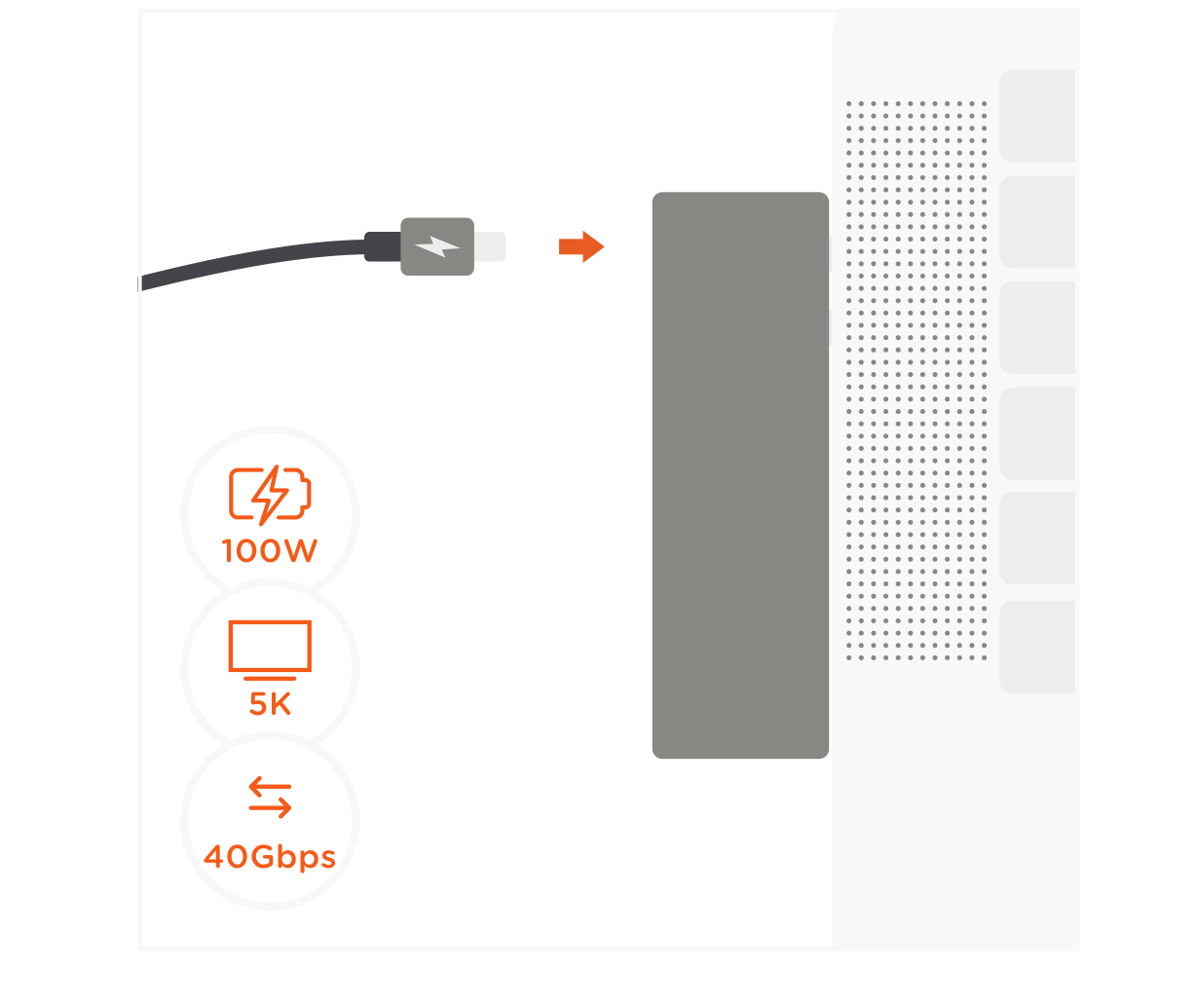

2. Use the USB4 (Universal Serial Bus 4) Port to charge your device up to 100W, for up to 5K 60Hz display output, and for up to 40 gigabits per second (Gbps) data transfer.

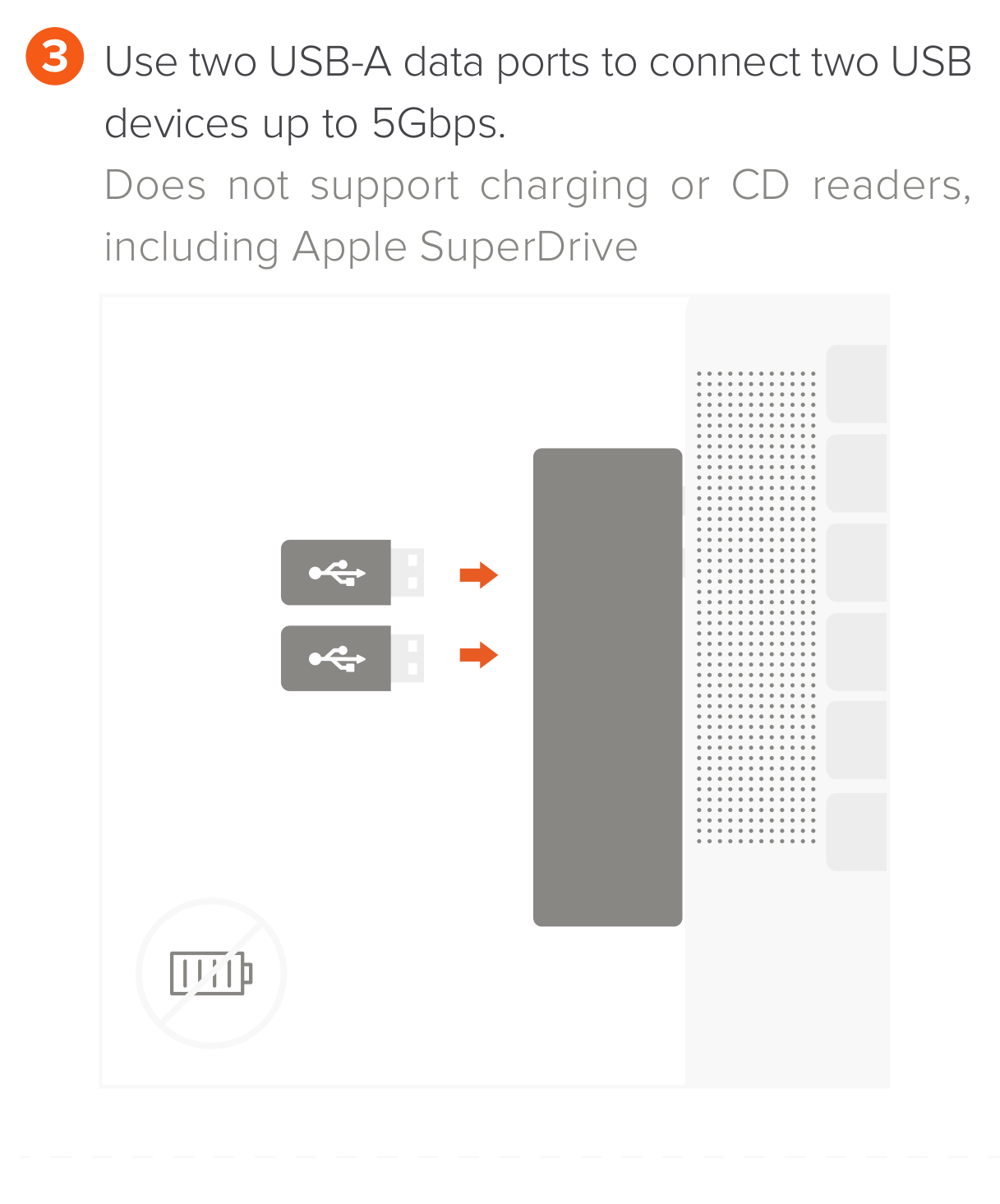

3. Use the two USB-A (Universal Serial Bus Type-A) data ports to connect two USB devices at up to 5Gbps. The USB-A ports do not support charging or compact disc (CD) readers, including the Apple SuperDrive.

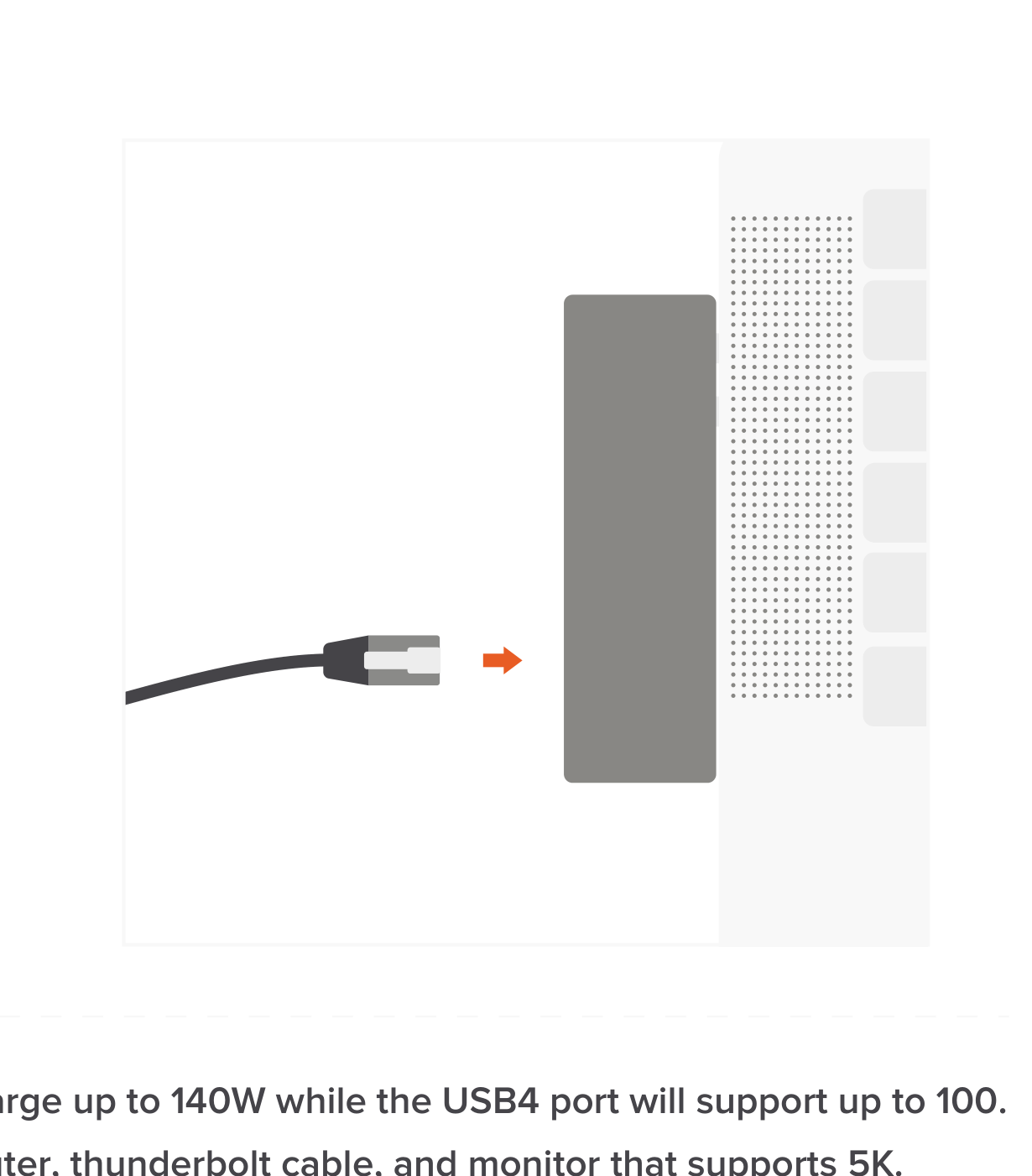

4. Connect a Registered Jack 45 (RJ45) network cable to the hub's Gigabit Ethernet Port.



5. Connect your other devices to the hub's ports.

Pro Hub Mini ports and controls

• Dual USB-C Connectors: connect the hub to your laptop.
• Audio Jack Connector
• Audio Jack Port
• USB4 Port: charges your device up to 100W, with up to 5K 60Hz display output and up to 40Gbps data transfer.
• Ethernet Port: Gigabit Ethernet, using an RJ45 network cable.
• 2X USB-A 3.1 Port Gen 1: two data ports up to 5Gbps. Do not support charging or CD readers, including the Apple SuperDrive.
• light-emitting diode (LED) Indicator
• USB-C Data Port

Important notes for the Pro Hub Mini

• Connected Universal Serial Bus (USB) devices should not exceed an input current of 900mA.
• The MagSafe 3 port of the MacBook Pro 16 charges up to 140W, while the USB4 Port supports up to 100W.
• To reach 5K video output, you will need to use a computer, Thunderbolt cable, and monitor that supports 5K.
