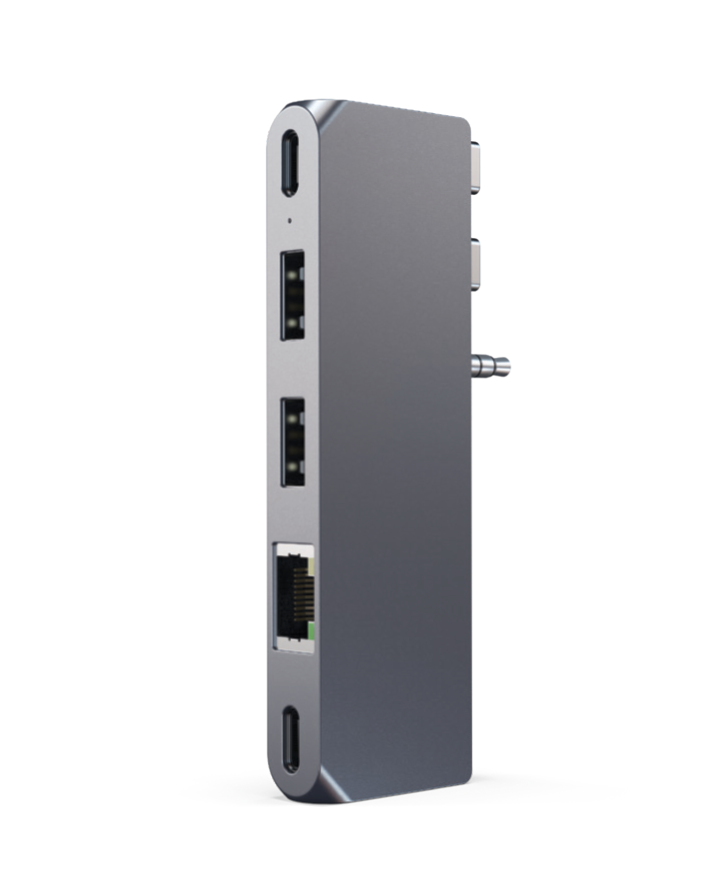

This User Manual covers setup, features, compatibility, and specifications for the Satechi Pro Hub Mini (ST-UCPHMIM / ST-UCPHMIS).

What's In The Box

USB-C Pro Hub Mini Adapter, User Manual.

Product Overview

The Pro Hub Mini expands the dual USB-C ports on your MacBook into eight connections: a USB4 port with pass-through charging and display output, Gigabit Ethernet, two USB-A ports, a USB-C data port, and a 3.5mm audio jack with an adjustable connector arm.

Setup

The Pro Hub Mini is plug-and-play, no drivers required.

1. Connect to a laptop: Plug the Dual USB-C Connectors into the USB-C ports on your laptop.

2. Connect your devices: Connect your devices to the hub's ports.

Note: The audio jack connector arm is adjustable to accommodate laptops of different thicknesses.

Functions

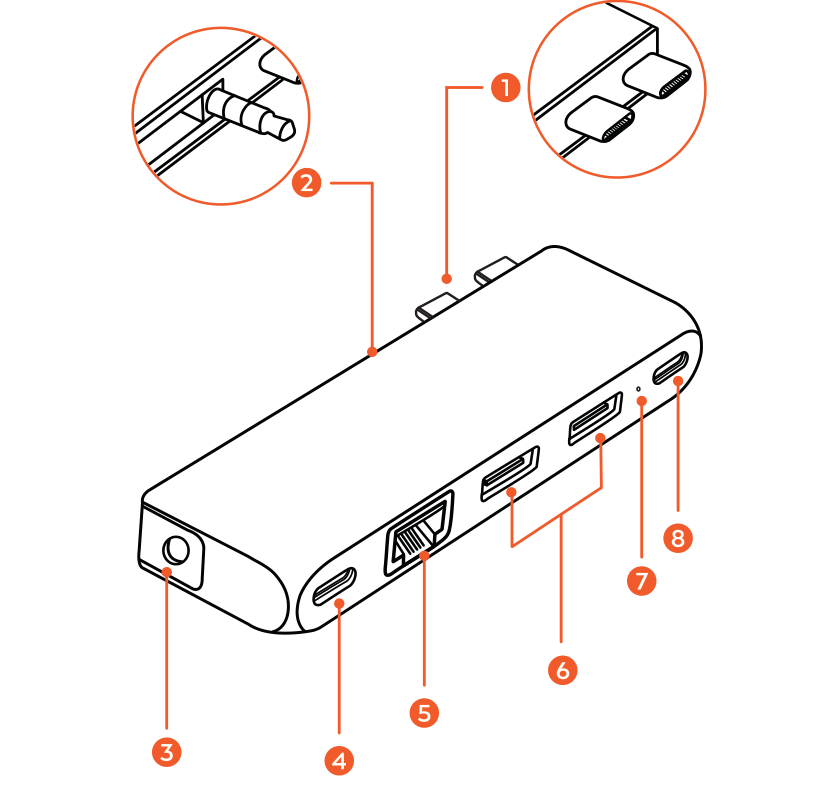

Parts labeled diagram of the Pro Hub Mini with 8 labeled components.

1. Dual USB-C Connectors: The two USB-C connectors that attach the hub to your laptop's USB-C ports.
2. Audio Jack Connector: The adjustable audio jack connector arm.
3. Audio Jack Port: 3.5mm audio jack for headphones or speakers.
4. USB4 Port: Supports up to 96W charging pass-through, up to 6K 60Hz display output, and up to 40 Gbps data transfer.
5. Ethernet Port: Gigabit Ethernet for wired network connectivity.
6. 2x USB-A 3.1 Port Gen 1: Two USB-A ports for data transfer up to 5 Gbps. Do not support charging or CD drives.
7. LED Indicator: Lights up when the hub is connected and powered.
8. USB-C Data Port: USB-C port for data transfer up to 5 Gbps.

Features

- USB4 with up to 96W pass-through charging and 6K 60Hz display output
- Gigabit Ethernet
- Two USB-A 3.1 data ports
- Adjustable audio jack connector arm
- Compact snap-on design for dual USB-C MacBooks

Important Limitations

Connected USB devices should not exceed an input current of 900mA.

Specifications

Model: ST-UCPHMIM (Space Gray) / ST-UCPHMIS (Silver)
Dimensions: 3.97" x 1.5" x 0.47"
Connector: Dual USB-C (with adjustable headphone jack)
Ports & Speeds:
1x USB4: up to 96W charging, 6K 60Hz display, 40 Gbps data
2x USB-A 3.1 Gen 1: up to 5 Gbps each
1x USB-C data: up to 5 Gbps
1x Ethernet: Gigabit
1x 3.5mm audio jack

Certifications

FCC, CE, WEEE
