Setup Steps

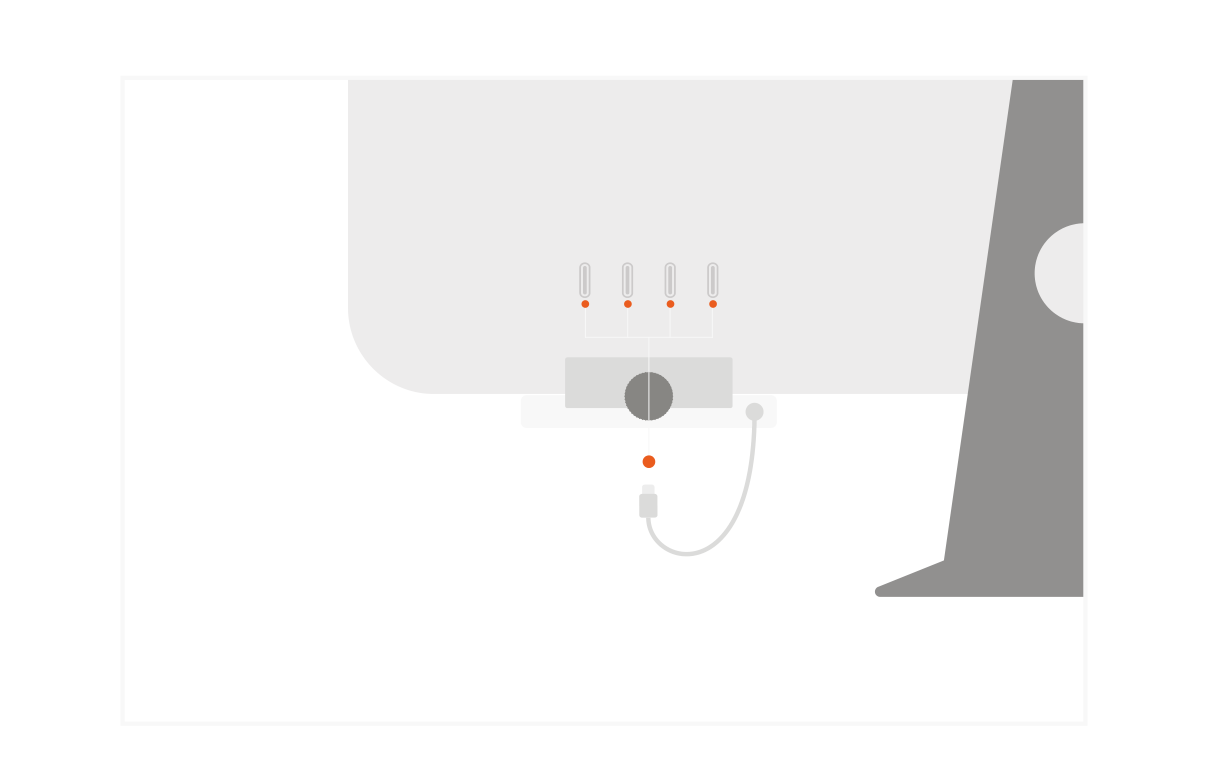

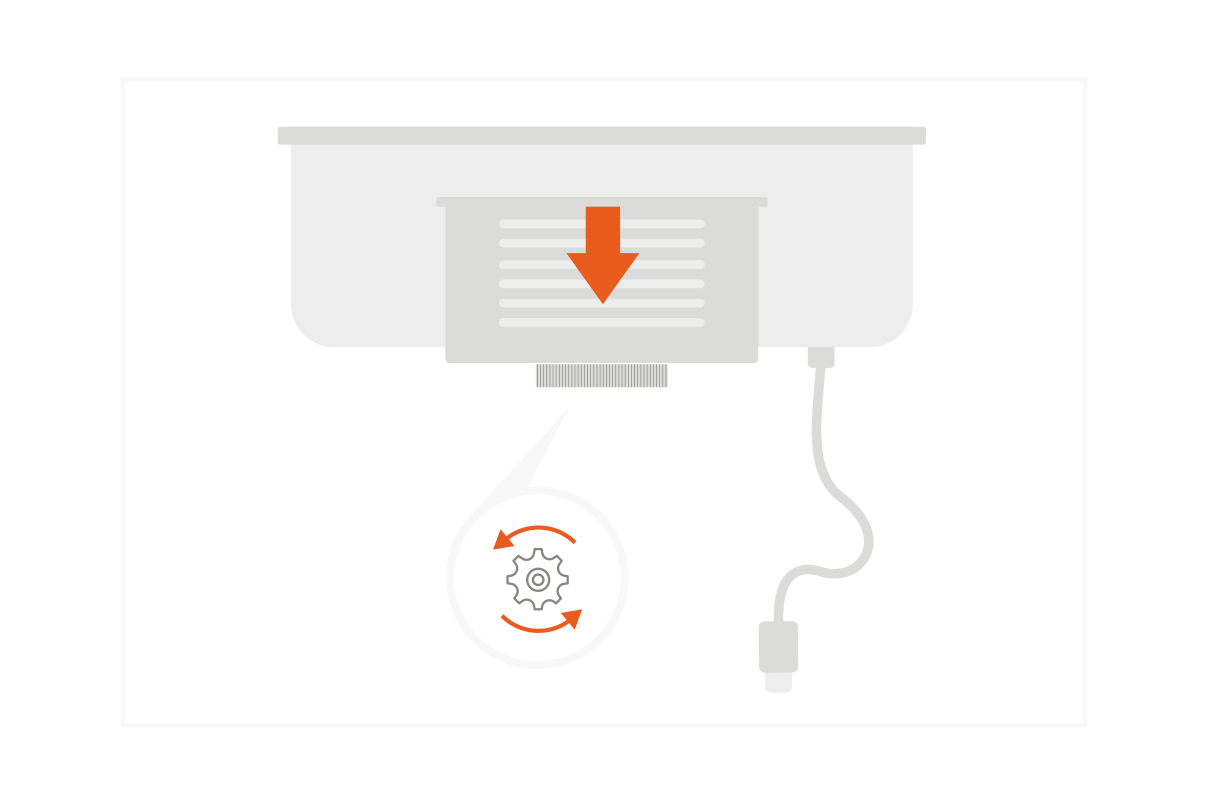

1. Turn the knob counterclockwise to adjust the mount and fit your iMac's groove.

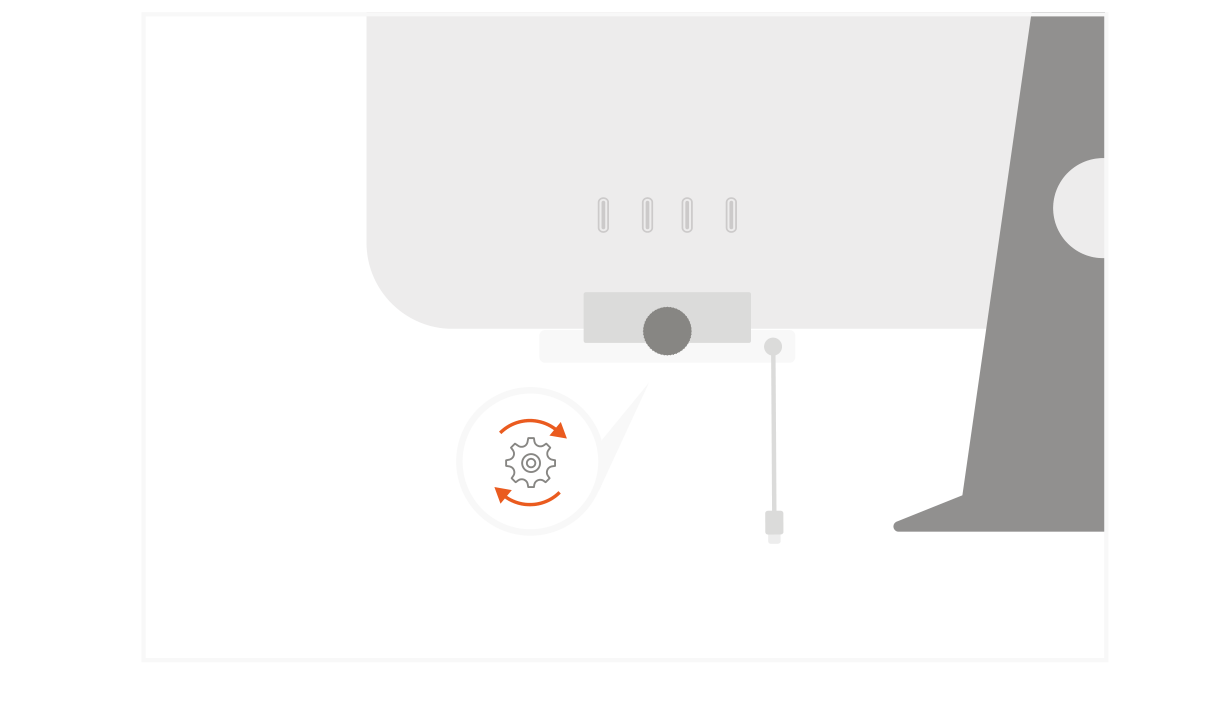

2. Turn the knob clockwise to fasten the hub to your iMac. Adjust the knob to align with the iMac's bezel and tighten in the same direction as a screw.

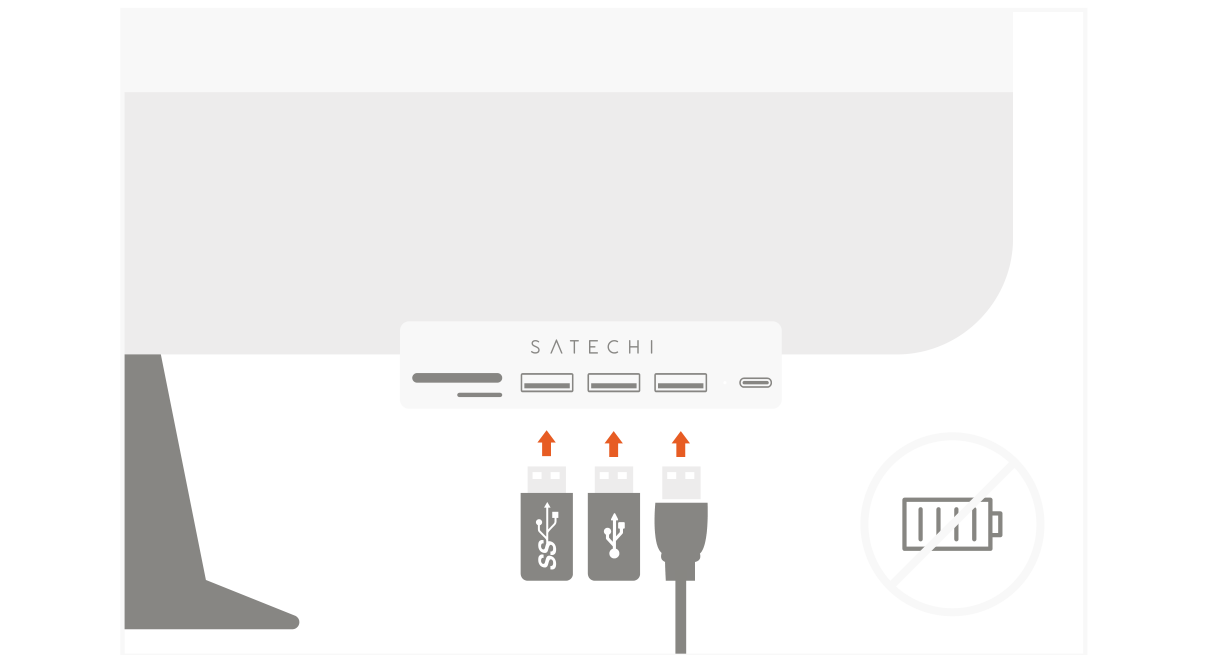

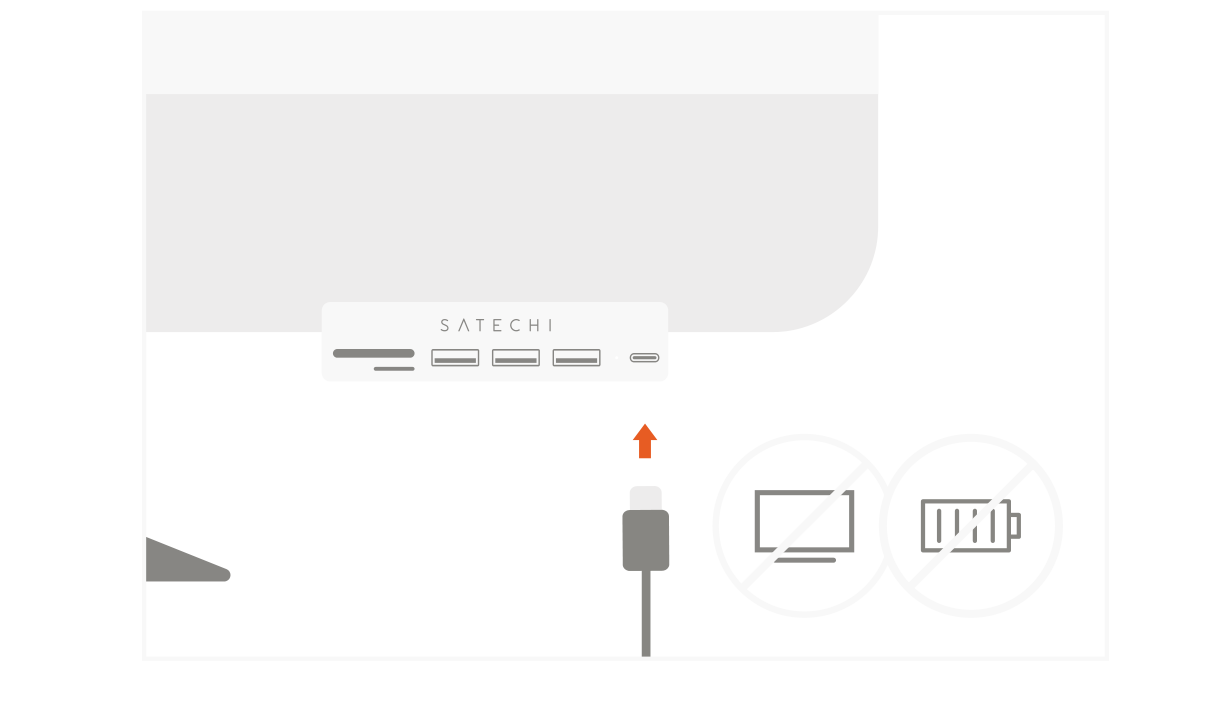

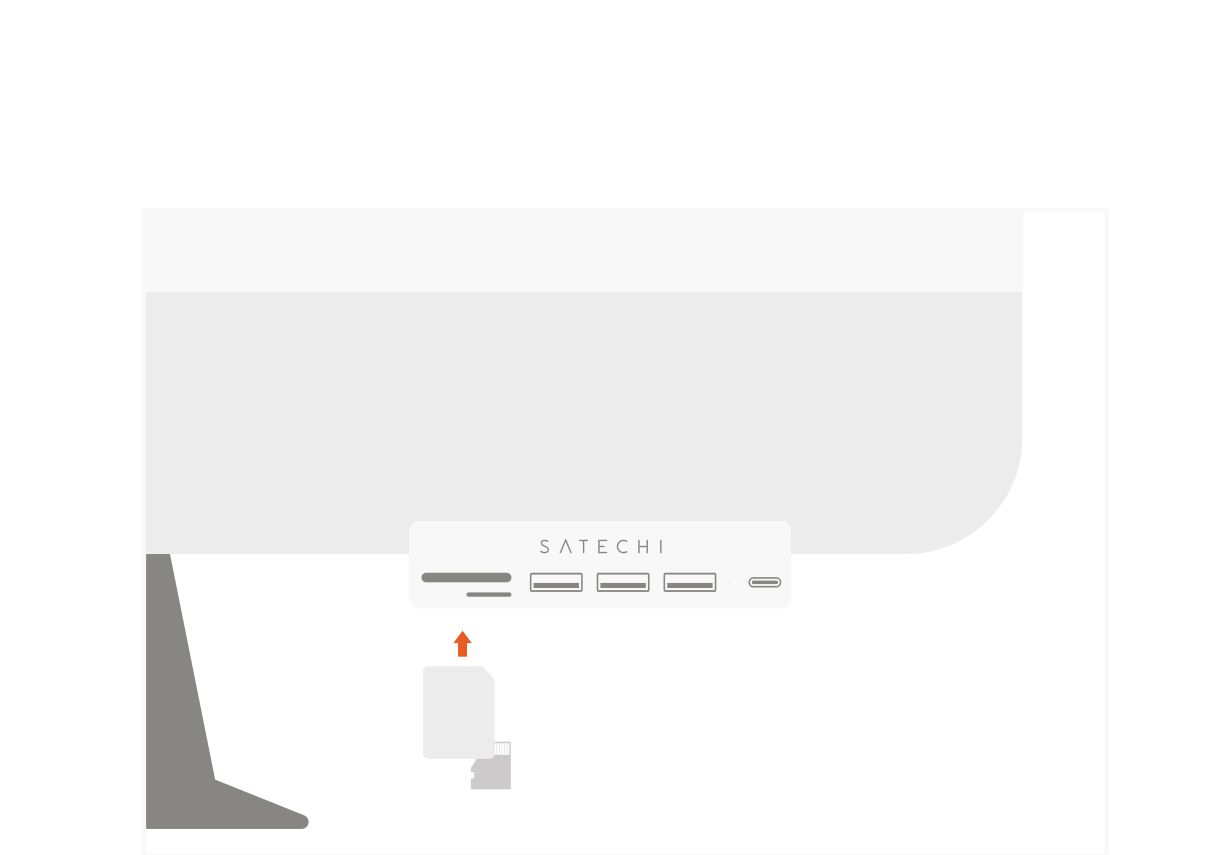

3. Connect your iMac and peripheral devices to the hub. Ports include: USB-C Connector, Adjustable Clamp, SD and Micro SD Card Reader (UHS-I, simultaneous read supported), 3x USB-A Data Ports (5Gbps), LED Indicator, and USB-C Data Port (5Gbps). Note: USB-C Data Port does not support charging or video output. Connected USB devices must not exceed 900mA input.
Download Quick Start Guide (PDF): USB-C Clamp Hub 24 iMac UM.pdf
Getting Started with Your USB-C Clamp Hub for 24" iMac M1
1. Remove the USB-C Clamp Hub for 24" iMac M1 from its packaging along with any included accessories.
2. Connect the USB-C connector to an available USB-C or Thunderbolt port on your computer. Ensure the port supports data transfer.
3. Your computer should automatically recognize the hub. No drivers or software installation required.
4. Connect your peripherals (USB drives, keyboards, mice, displays, SD cards) to the available ports on the hub.
5. If the hub has a USB-C Power Delivery passthrough port, connect your laptop charger to it to charge while using the hub.
6. Verify connected devices appear in System Information (Mac) or Device Manager (Windows).
Tips
For the best experience, use a high quality USB-C cable if one is not built in. Not all USB-C ports support video output; check your computer specifications if you plan to connect an external display. For more details, see the Technical Specifications and Device Compatibility articles for this product in our Help Center or visit satechi.com.
