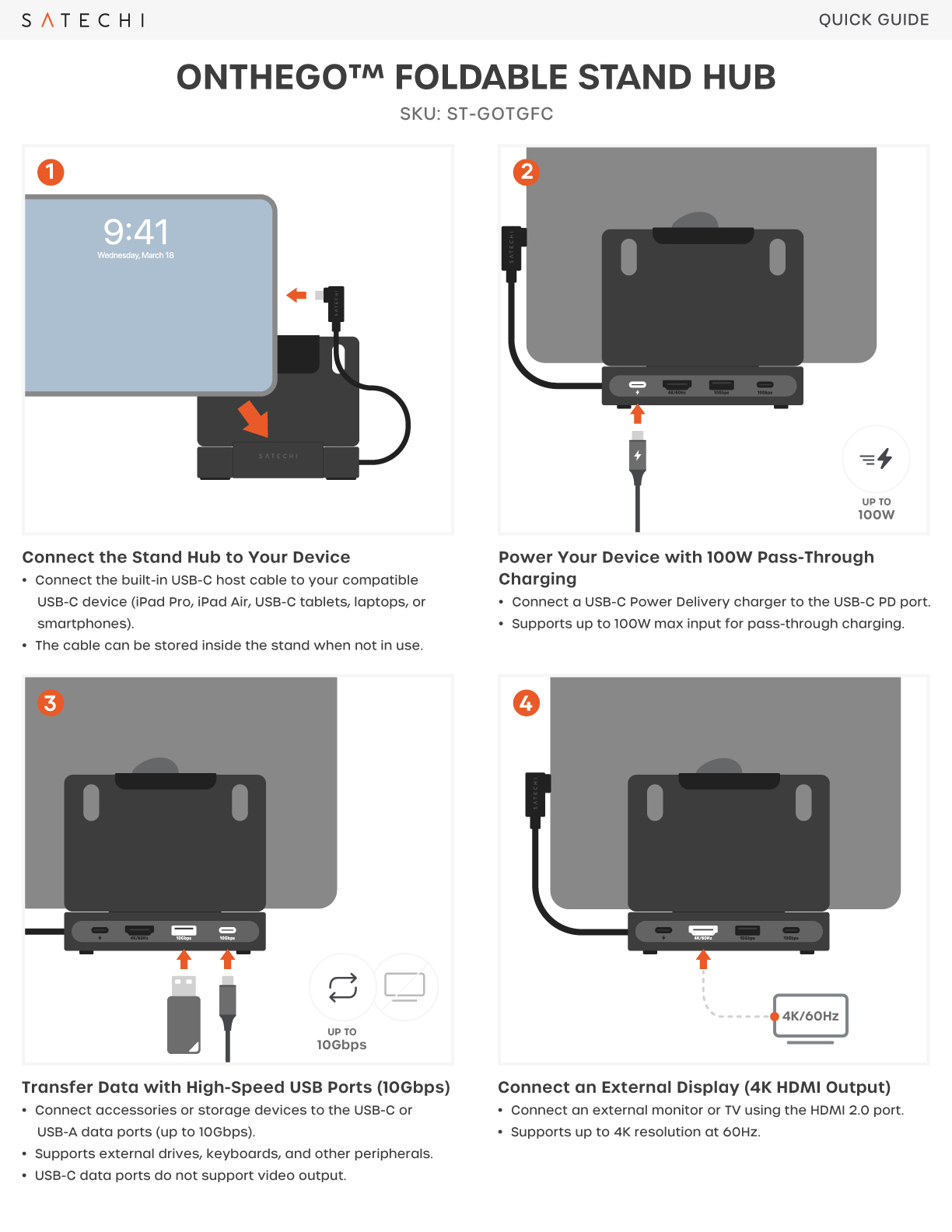

Quick Start Guide

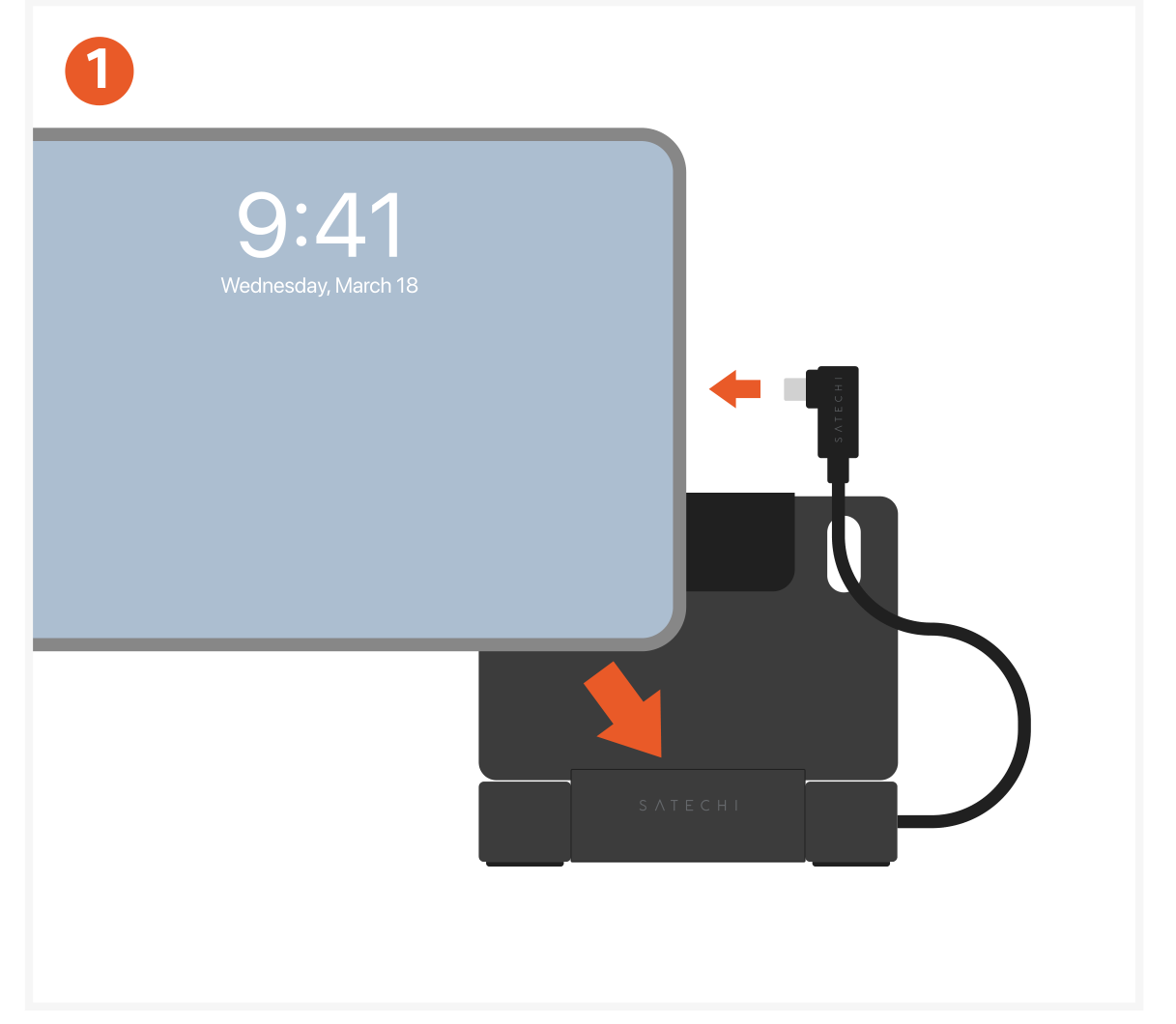

Connect the Stand Hub to Your Device
- Connect the built-in USB-C host cable to your compatible USB-C device (iPad Pro, iPad Air, USB-C tablets, laptops, or smartphones).
- The cable can be stored inside the stand when not in use.

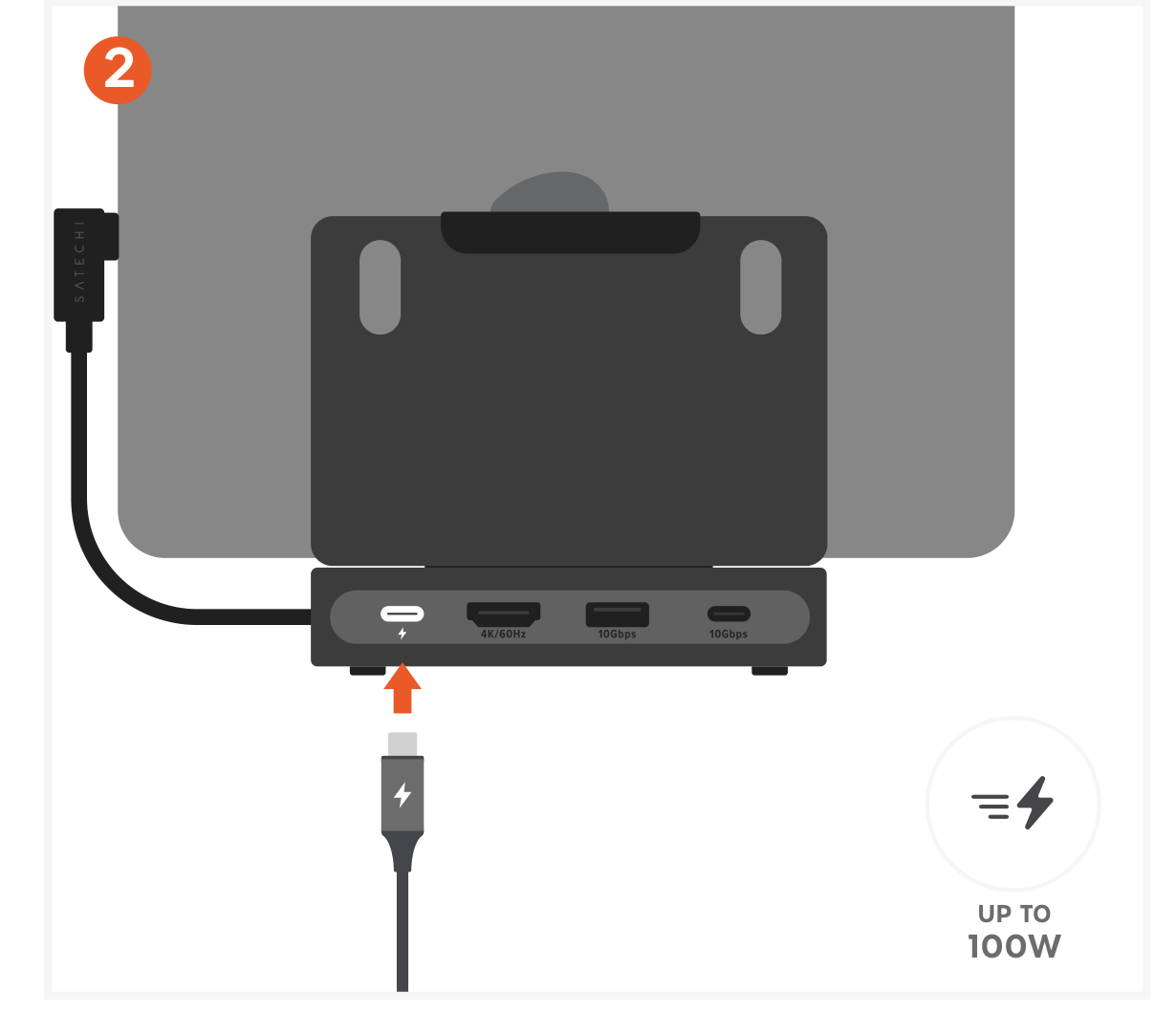

Power Your Device with 100W Pass-Through Charging
- Connect a USB-C Power Delivery charger to the USB-C PD port.
- Supports up to 100W max input for pass-through charging.

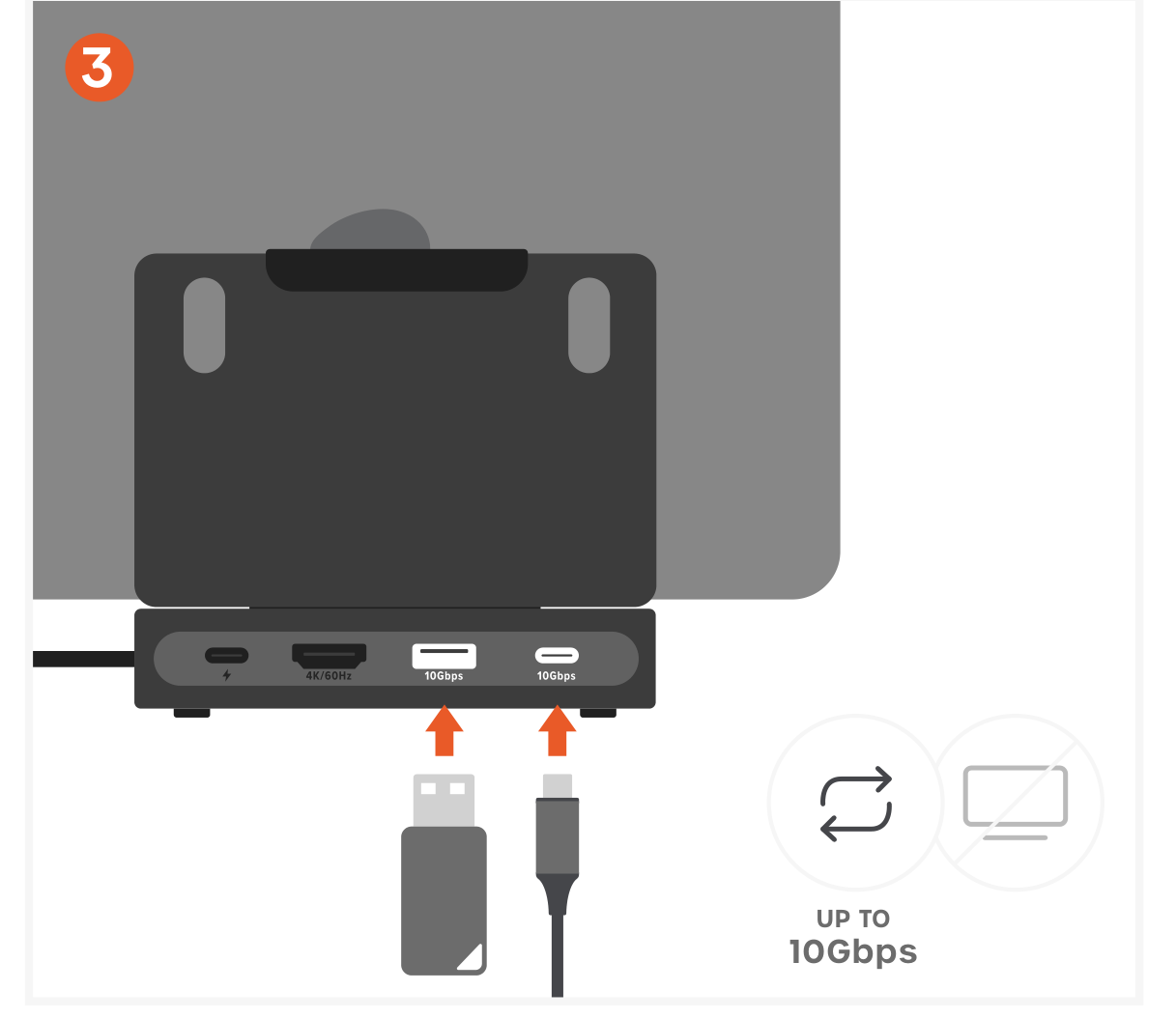

Transfer Data with High-Speed USB Ports (10Gbps)
- Connect accessories or storage devices to the USB-C or USB-A data ports (up to 10Gbps).
- Supports external drives, keyboards, and other peripherals.
- USB-C data ports do not support video output.

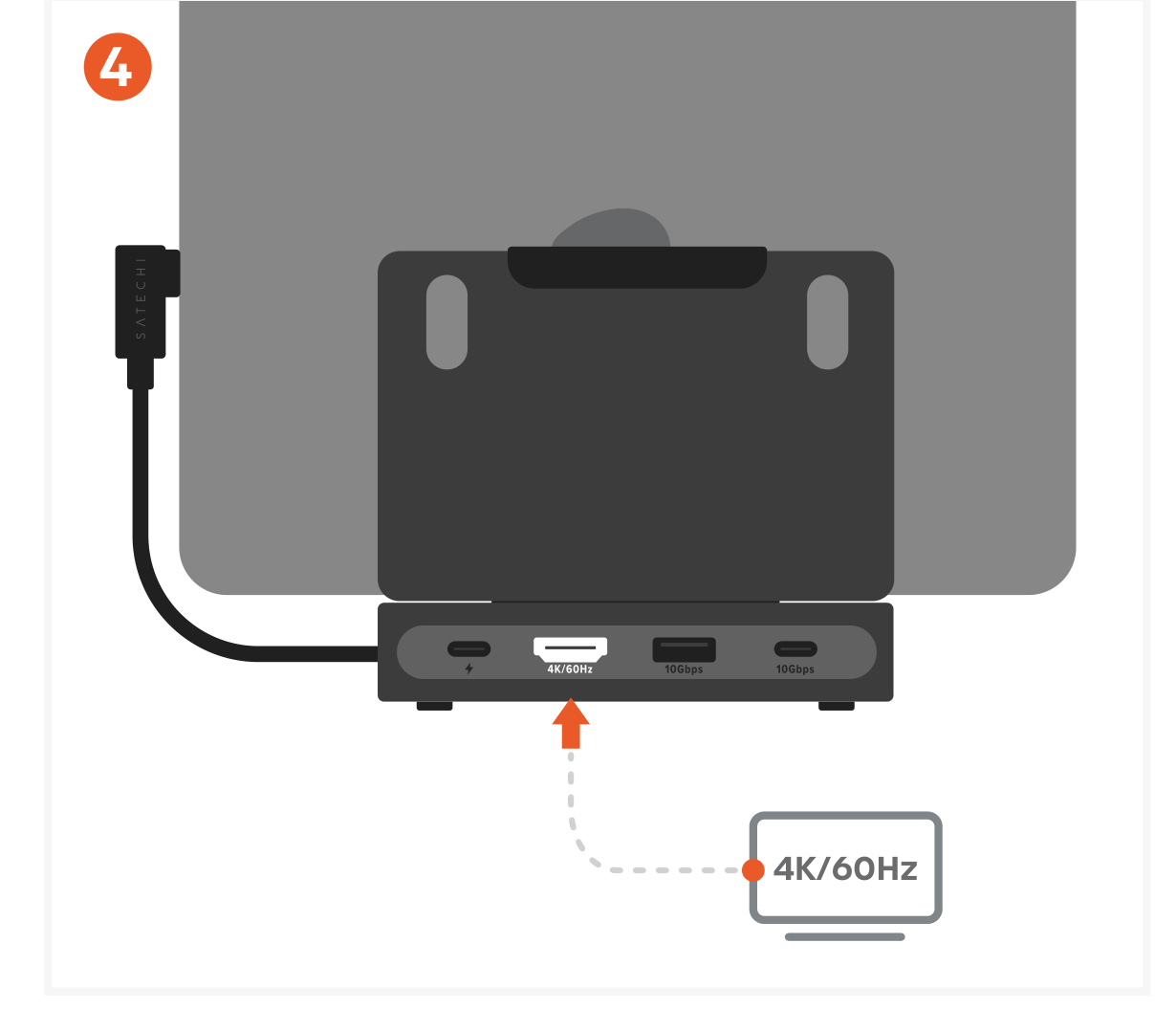

Connect an External Display (4K HDMI Output)
- Connect an external monitor or TV using the HDMI 2.0 port.
- Supports up to 4K resolution at 60Hz.

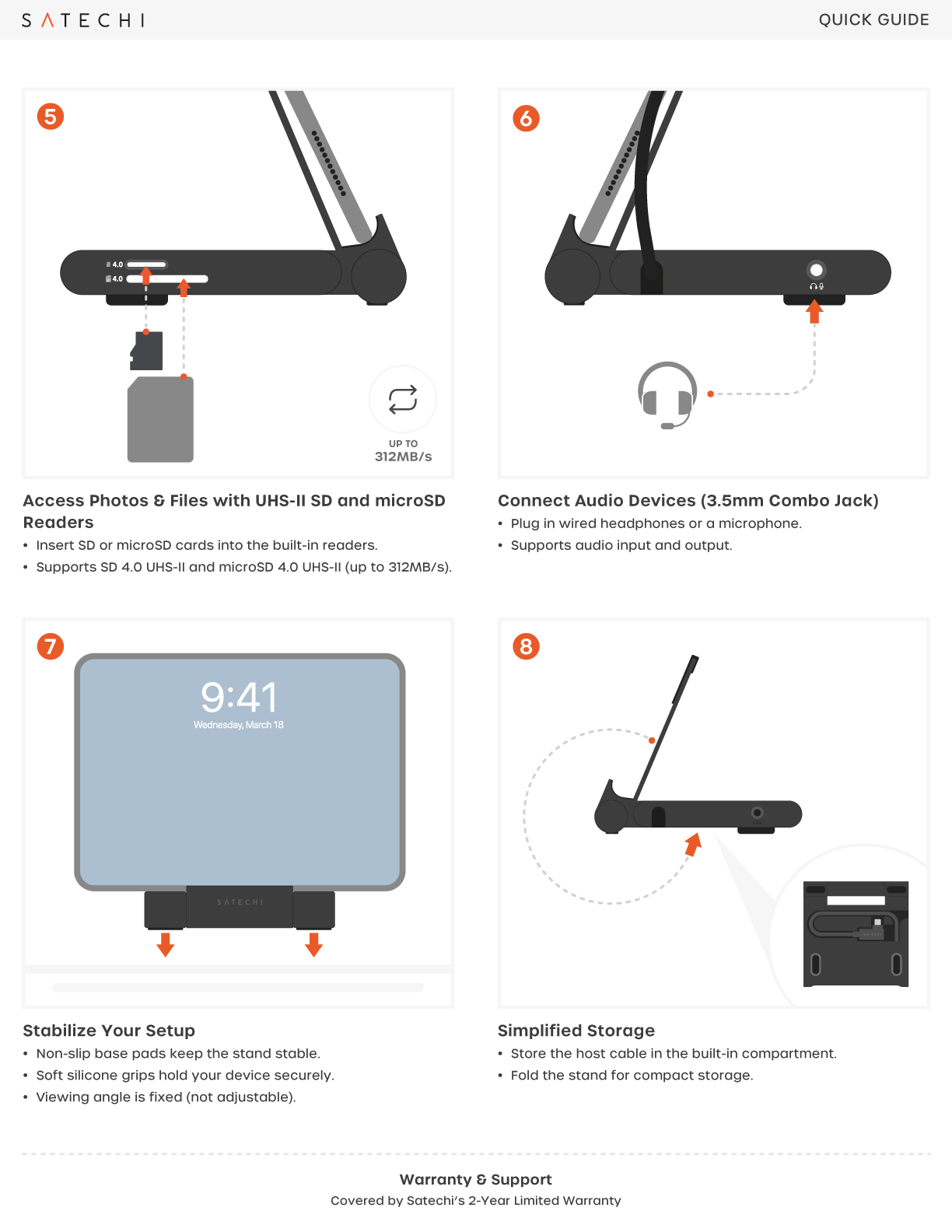

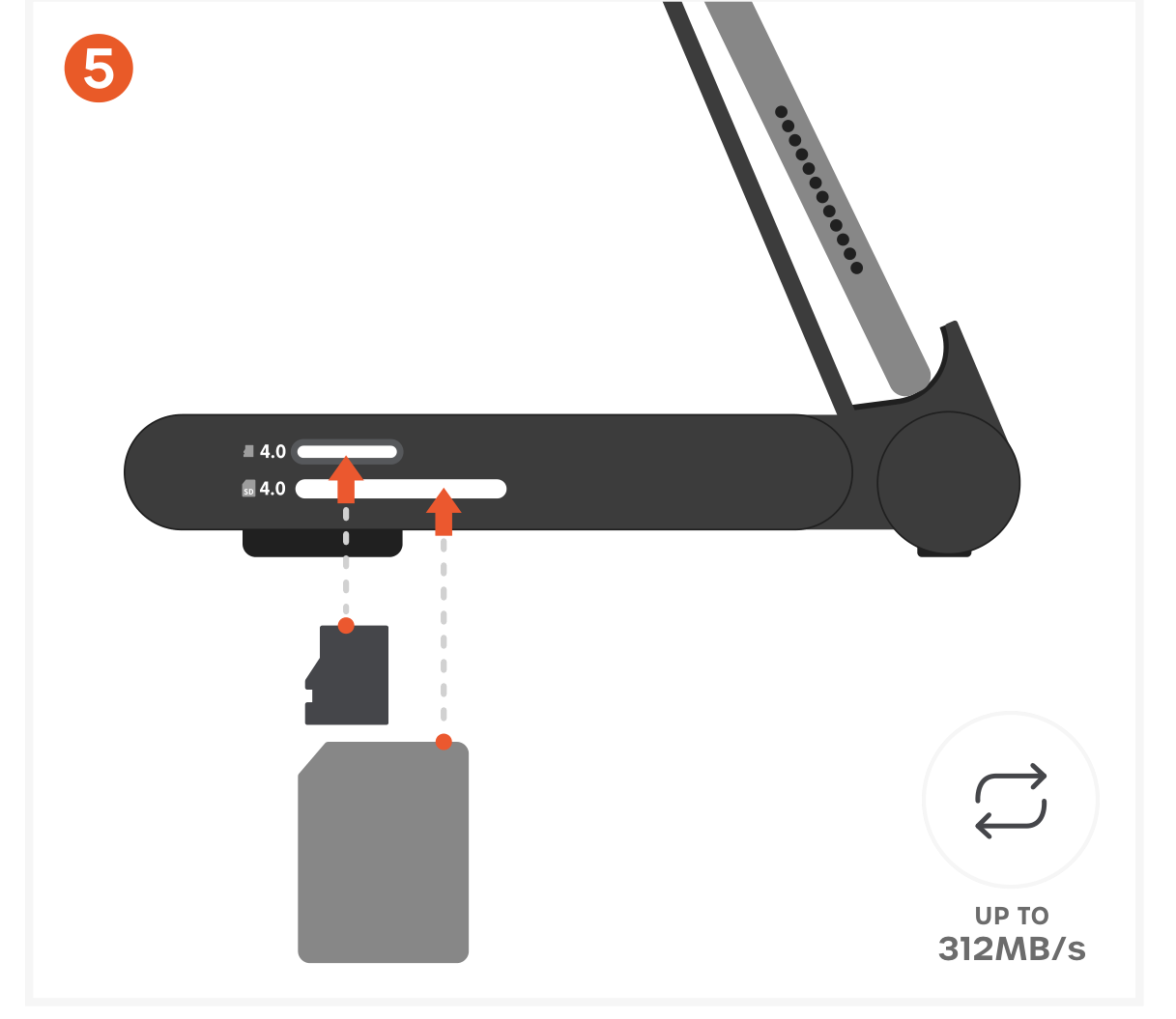

Access Photos & Files with UHS-II SD and microSD Readers
- Insert SD or microSD cards into the built-in readers.
- Supports SD 4.0 UHS-II and microSD 4.0 UHS-II (up to 312MB/s).

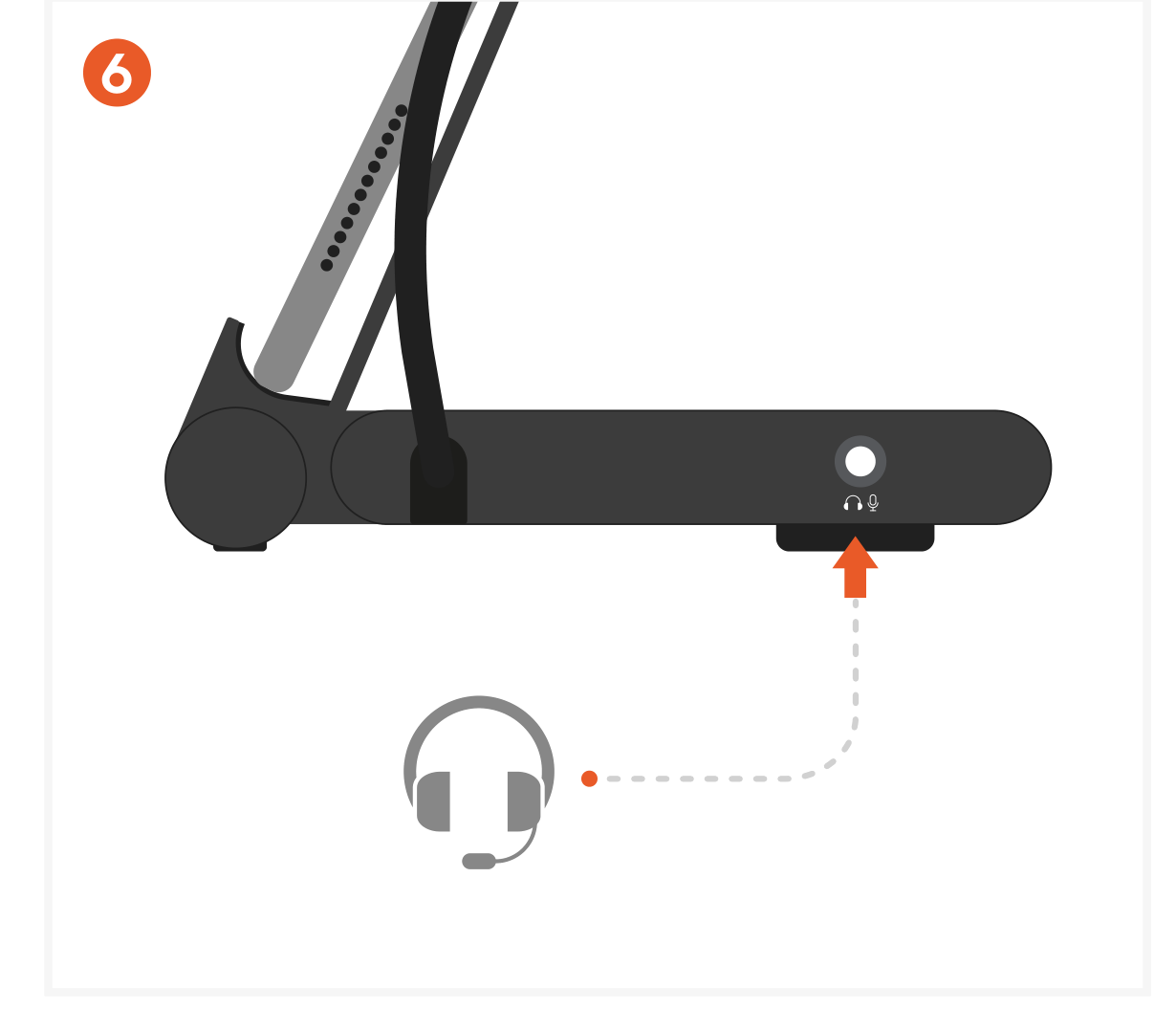

Connect Audio Devices (3.5mm Combo Jack)
- Plug in wired headphones or a microphone.
- Supports audio input and output.

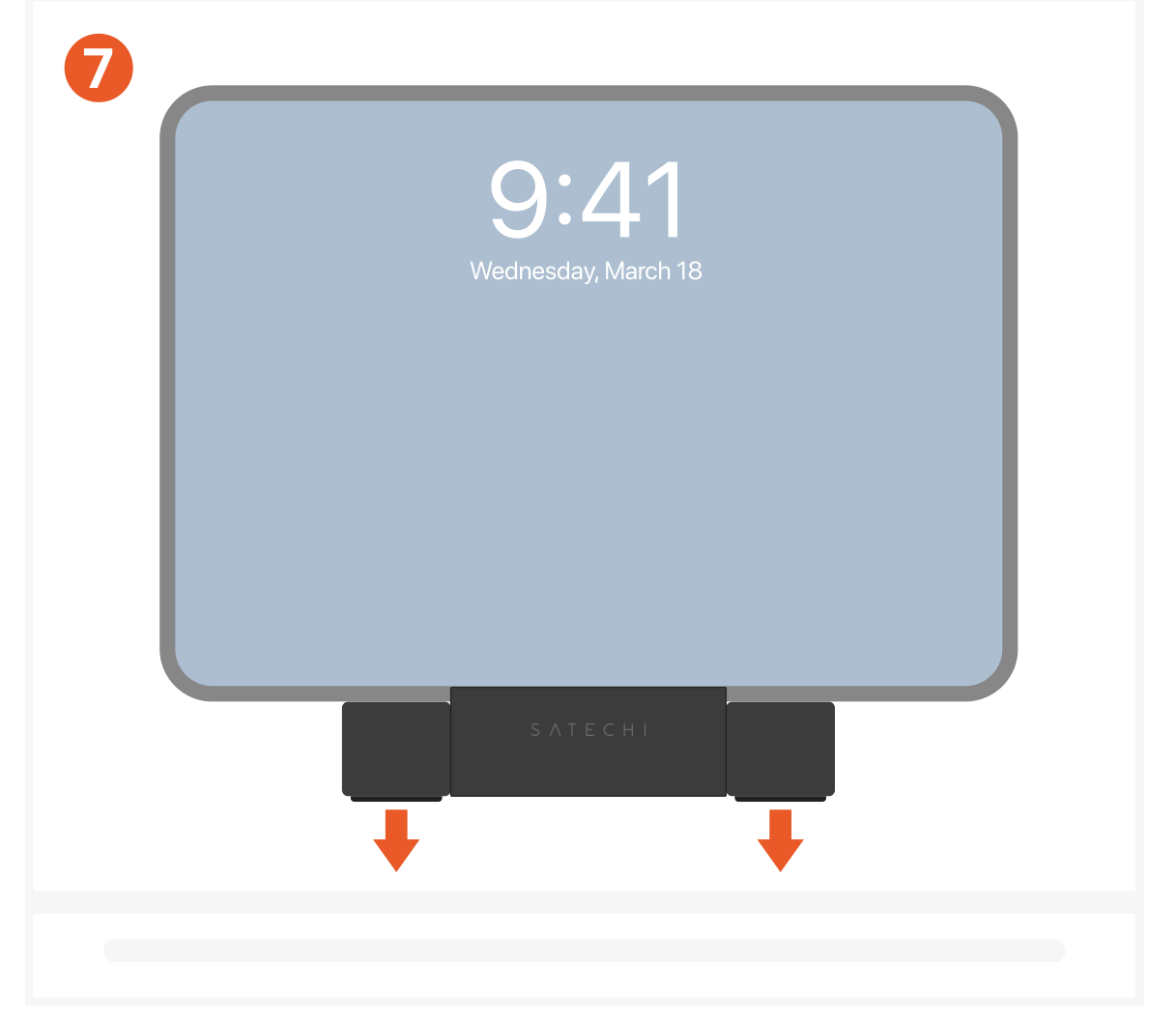

Stabilize Your Setup
- Non-slip base pads keep the stand stable.
- Soft silicone grips hold your device securely.
- Viewing angle is fixed (not adjustable).

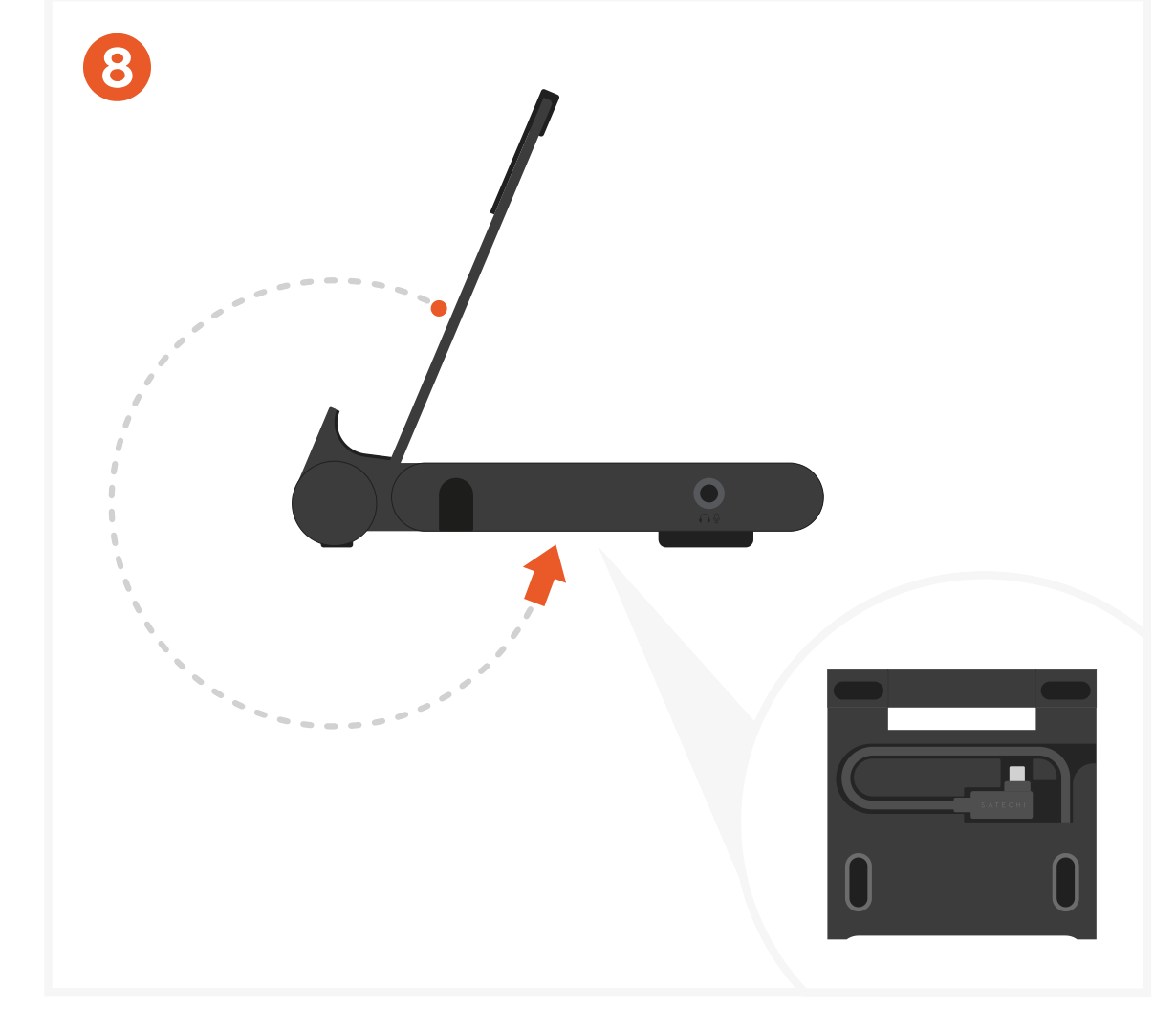

Simplified Storage
- Store the host cable in the built-in compartment.
- Fold the stand for compact storage.
