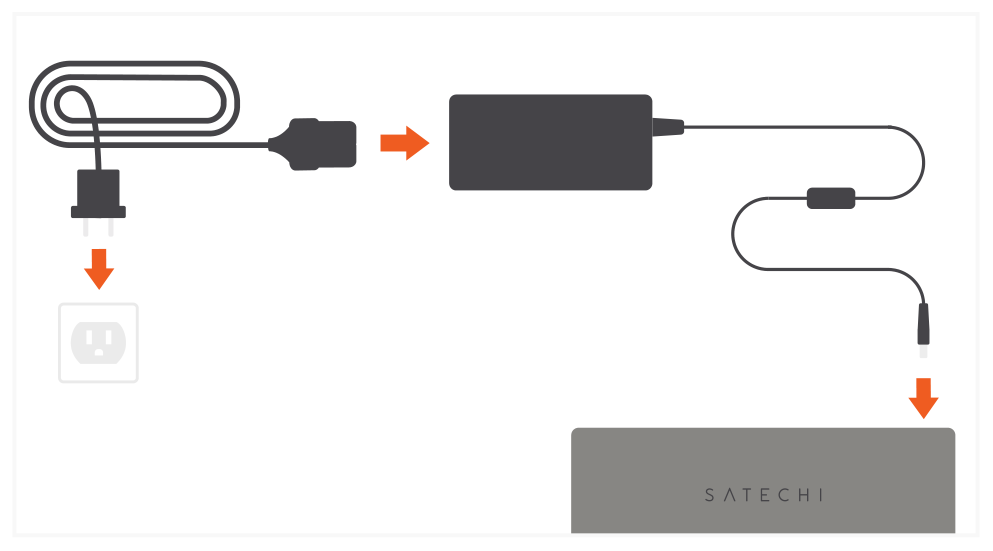

- Connect the power adapter from the dock’s DC input port directly to a wall outlet.
- Using the included cable, connect the dock to your host device from its Thunderbolt 4 host port.
-

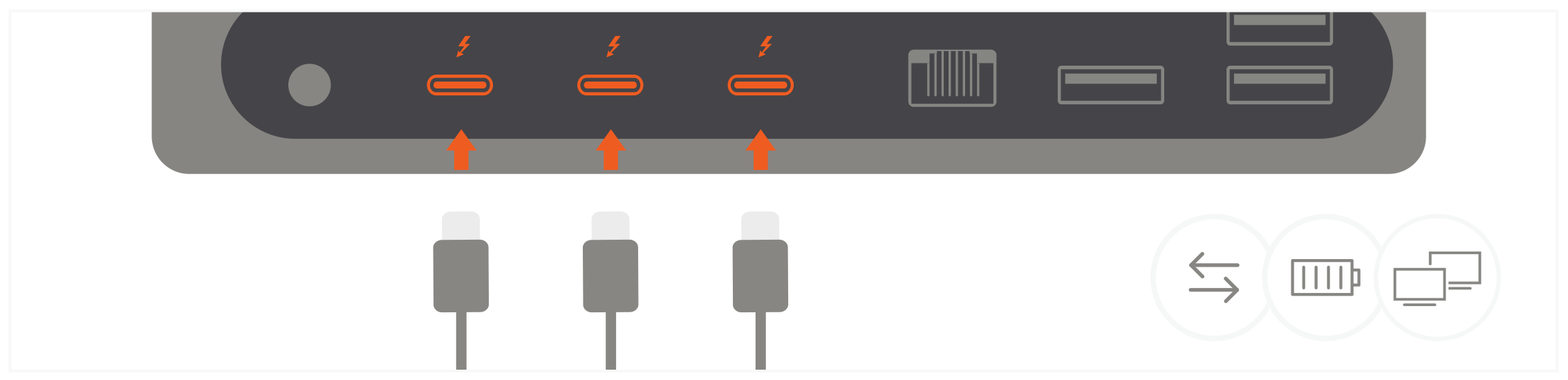

Connect up to three USB-C devices to the dock’s Thunderbolt 4 ports.
- Supports 40 Gbps data transfer & 15W charging each port. Supports dual 4K HDMI output up to 60Hz total.

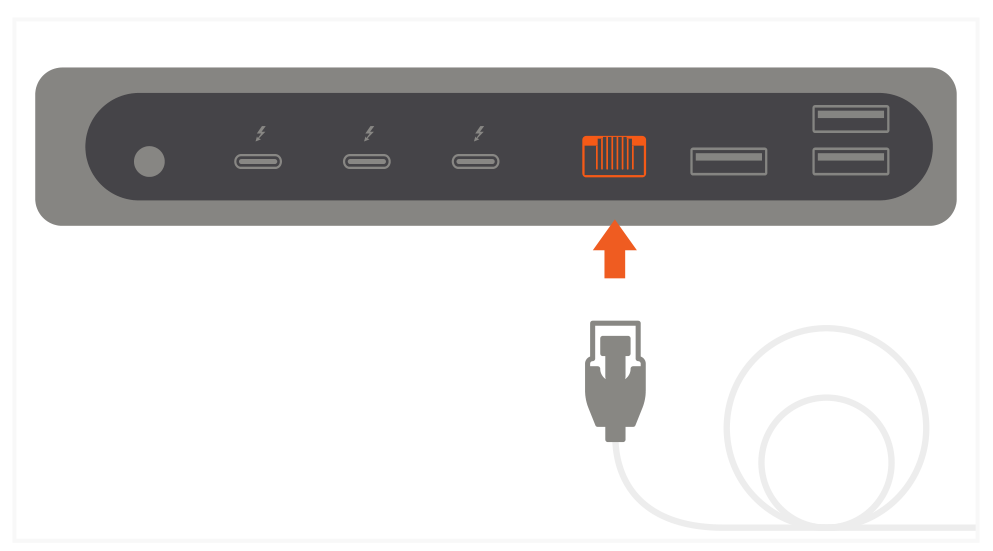

- Connect a RJ45 cable to the dock’s Gigabit Ethernet port.
-

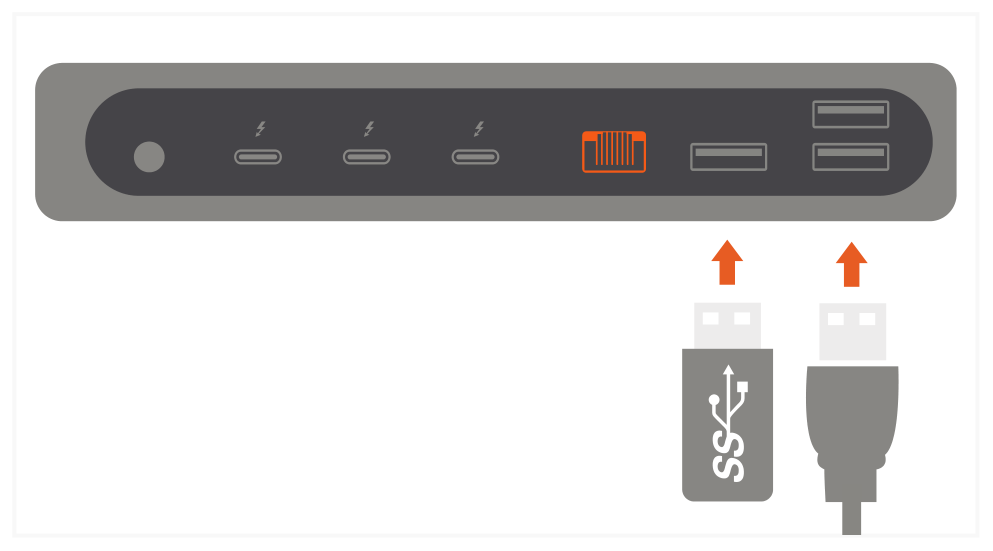

Use the three USB-A 3.2 data ports for fast transfer & back up – up to 10 Gbps.
- Insert an SD card into the dock’s UHS-II card reader slot.

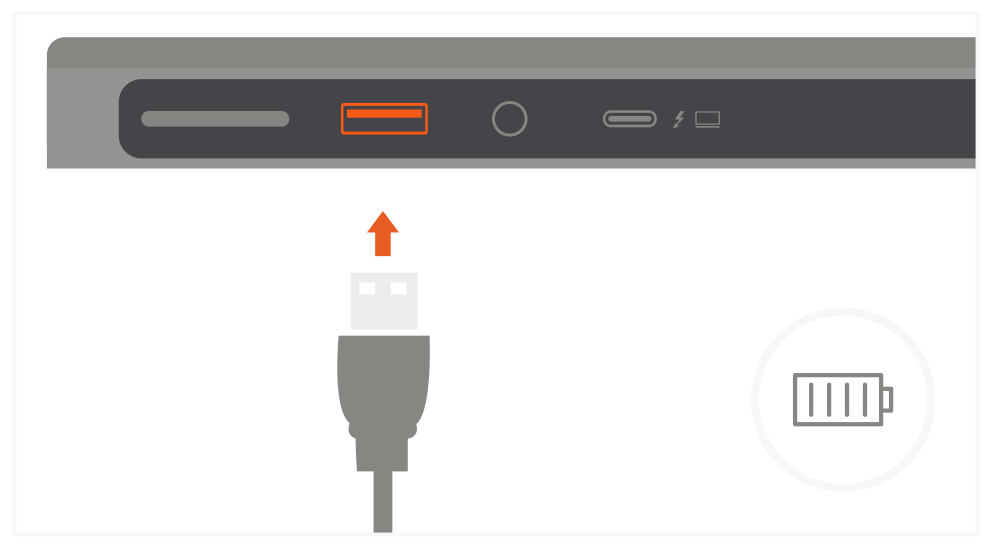

- Use the USB-A charging port to power an USB device – up to 7.5W.
Quick Start Guide
What's in the Box
Thunderbolt 4 Dock, Thunderbolt 4 cable (0.8m), power adapter, user manual.
Step 1: Connect Power
Plug the included power adapter into the dock's DC input on the rear. The dock requires external power to operate and charge your laptop.
Step 2: Connect to Your Computer
Use the included Thunderbolt 4 cable to connect the dock's upstream Thunderbolt 4 port to your laptop's Thunderbolt/USB-C port. The dock delivers up to 96W of pass-through charging to your laptop over this single cable.
Step 3: Connect Peripherals
- HDMI 2.0: Connect an external display at up to 4K @ 60Hz.
- 3x Thunderbolt 4 Downstream: Connect Thunderbolt displays, storage devices, or daisy-chain additional docks.
- USB-A 3.2 Gen 2 (rear): Up to 10 Gbps for external drives or peripherals.
- USB-A 2.0 (front): For mice, keyboards, or low-bandwidth devices.
- Gigabit Ethernet: Wired network connection.
- SD / Micro SD (UHS-II): High-speed card reader for photo and video workflows.
- 3.5mm Audio: Headphone/microphone combo jack.
Display Configuration
The dock supports up to dual 4K @ 60Hz displays (one via HDMI, one via Thunderbolt downstream). On Apple Silicon Macs, the number of supported external displays depends on the Mac model and macOS version. Check Apple's support page for your specific Mac model's display limits.
Troubleshooting
Dock Not Powering On
Verify the power adapter is connected to both the dock and a wall outlet. The dock cannot operate without external power.
Laptop Not Charging Through Dock
Make sure you are using the included Thunderbolt 4 cable connected to the upstream port (marked with a laptop icon). Third-party cables may not support the required power delivery.
External Display Not Detected
Try a different HDMI or Thunderbolt cable. On Mac, go to System Settings > Displays and hold Option to reveal "Detect Displays." On Windows, press Win + P to select your display mode.
