In this article
- What are the standard operating temperatures?
- Can I use the dock with older Thunderbolt 3 devices?
- Does this device require firmware updates?
- I lost the power supply. What specifications are required for a replacement?
- Is this dock Thunderbolt-certified?
- Does this dock come with its own power supply?
- Will a Samsung T7 external SSD work with this dock?
- Will this dock support a USB-C webcam or microphone?
- Can my M1 Mac Studio run dual displays with the Thunderbolt 4 Dock?
- Does this dock support dual HDMI monitors?
- Can I connect an additional card reader to this dock?
- Is this dock available in other colors?
- How long is the included Thunderbolt 4 cable?
The Thunderbolt 4 Dock (ST-UCT4DM) is Satechi's premium native Thunderbolt 4 docking station. Key specs: delivers up to 96W charging passthrough to your connected MacBook, supports up to 2x 4K/60Hz external displays (no additional software required), 3x Thunderbolt 4 downstream ports at 40Gbps (15W each), 3x USB-A 3.2 Gen 2 data ports at 10Gbps, USB-A 2.0 charging port, Gigabit Ethernet, UHS-II SD card reader, and 3.5mm audio jack. Thunderbolt certified. Includes 135W power supply and 0.8m Thunderbolt 4 cable. Compatible with MacBook Pro and MacBook Air M1/M2/M3, note: base M1/M2/M3 MacBook models are limited to 1 external display maximum.
Recommended for: MacBook Pro users who want a certified Thunderbolt 4 experience with dual 4K monitors and up to 96W charging, without needing DisplayLink software.
What are the standard operating temperatures?
The operating temperature of the Thunderbolt 4 Dock ranges from 86°F to 131°F (30°C to 55°C). Surface temperatures may feel warm or hot to the touch due to the dock’s large surface area. This is normal behavior and will not affect functionality or cause hardware damage, as the dock is compliant with IEC 62368-1 safety standards.
Can I use the dock with older Thunderbolt 3 devices?
Yes. The Thunderbolt 4 Dock is fully compatible with Thunderbolt 3 devices. Please note that certain features, such as maximum data transfer speeds or power delivery, may be limited to Thunderbolt 3 specifications when used with Thunderbolt 3 hosts.
Does this device require firmware updates?
No. The Thunderbolt 4 Dock is designed for plug-and-play use and does not require any firmware updates. It is ready to use out of the box.

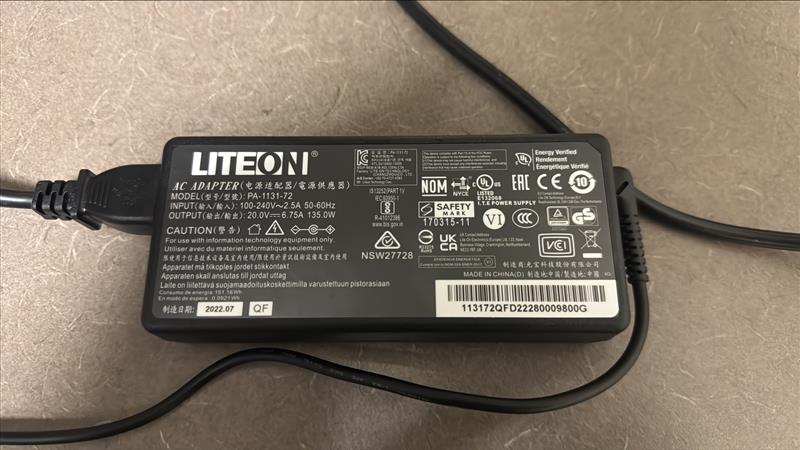

I lost the power supply. What specifications are required for a replacement?
If you need a third-party replacement power supply, it must meet the following specifications to ensure proper operation and performance: at least 135W power output, with a barrel connector measuring 7.4mm outer diameter and 5.1mm inner diameter.
Is this dock Thunderbolt-certified?
Yes. The Thunderbolt 4 Dock has been reviewed and certified by Thunderbolt™ Technology, confirming compliance with Thunderbolt standards and requirements.
Does this dock come with its own power supply?
Yes. The Thunderbolt 4 Dock includes a 135W power supply. Of this, up to 96W is allocated to charge the connected host device, while the remaining power is used to operate the dock itself and supply power to connected peripherals through the Thunderbolt 4 downstream ports.
Will a Samsung T7 external SSD work with this dock?
Yes. Through internal testing, the Samsung T7 has been confirmed to work properly with the Thunderbolt 4 Dock.
Will this dock support a USB-C webcam or microphone?
Yes. USB-C webcams and microphones can be used with this dock through any of the Thunderbolt 4 ports (up to 15W) or the USB 3.2 ports (up to 10W).
Can my M1 Mac Studio run dual displays with the Thunderbolt 4 Dock?
Yes. While M1 and M2 MacBooks support only one external display, the M1 Mac Studio and M1 Mac mini natively support up to two external displays. A supported configuration includes one display connected through a Thunderbolt 4 port on the dock (via HDMI or USB-C), and a second display connected directly to the Mac Studio or Mac mini’s HDMI port.
Does this dock support dual HDMI monitors?
The Thunderbolt 4 ports support displays up to 4K at 60Hz. To use HDMI displays, a USB-C to HDMI cable is required. Dual display is not supported on base M1 or M2 Mac models due to system limitations. Compatible systems can run dual displays using appropriate USB-C to HDMI adapters or cables. https://satechi.net/products/usb-c-to-hdmi-2-1-8k-cable?variant=40260285726808?queryID=1fba66451f14c53d2225024aa2ad4249
Can I connect an additional card reader to this dock?
Yes. You can connect an external card reader through one of the Thunderbolt 4 ports. Please note that the dock supports reading only one memory card at a time.
Is this dock available in other colors?
Currently, the Thunderbolt 4 Dock is only available in Space Gray. There are no confirmed plans for additional color options at this time.
How long is the included Thunderbolt 4 cable?
The included Thunderbolt 4 cable is approximately 28 inches in length.
