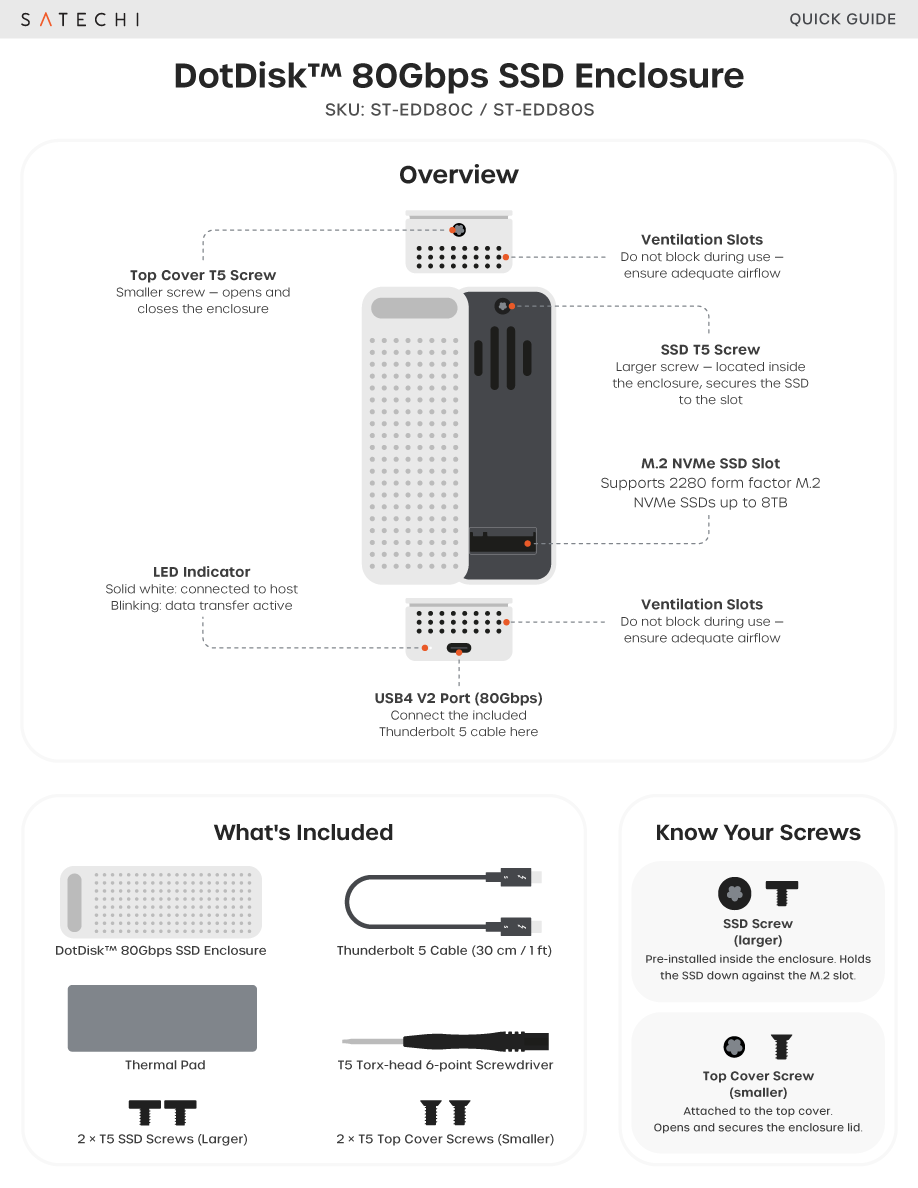

This Quick Start Guide covers setup of the Satechi DotDisk™ 80Gbps SSD Enclosure (ST-EDD80C, ST-EDD80S): an 80Gbps SSD enclosure for M.2 NVMe SSDs.

Setup steps

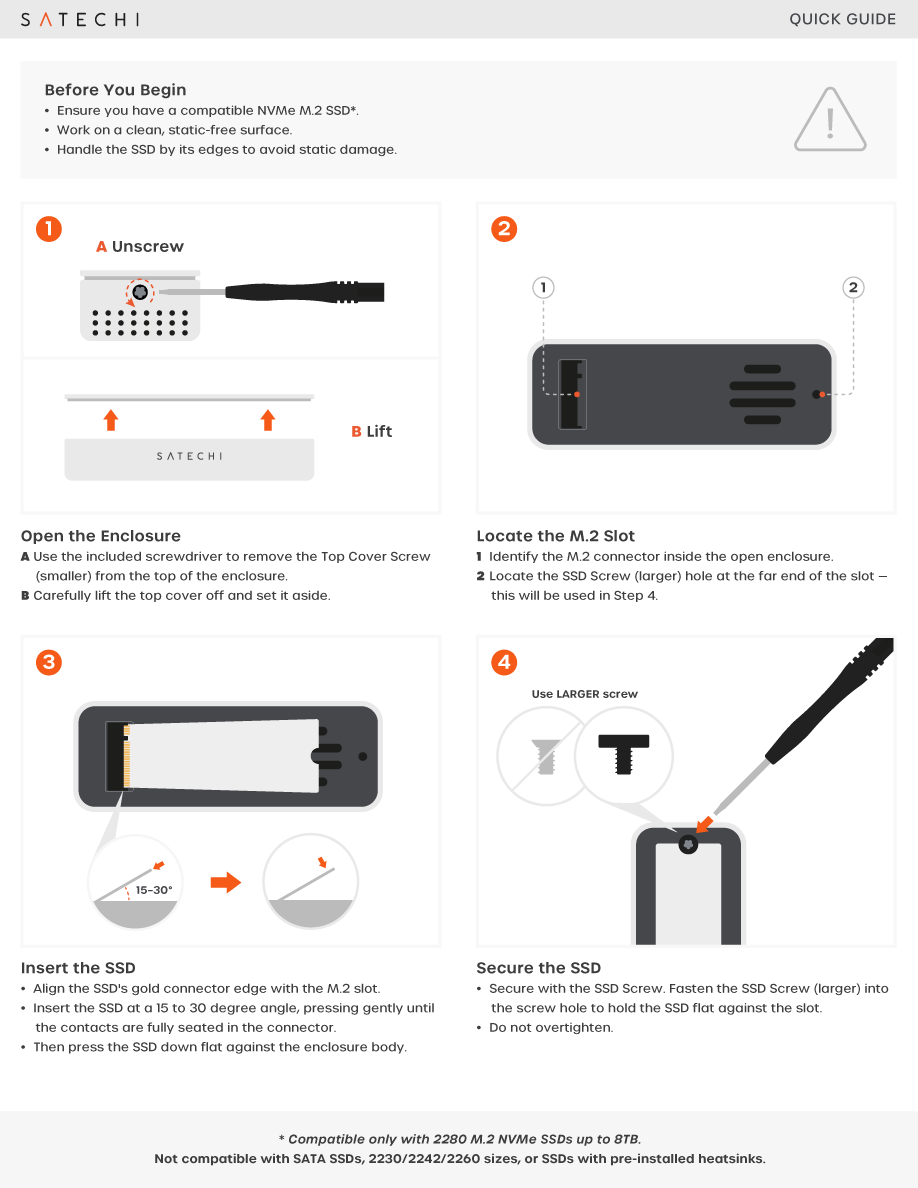

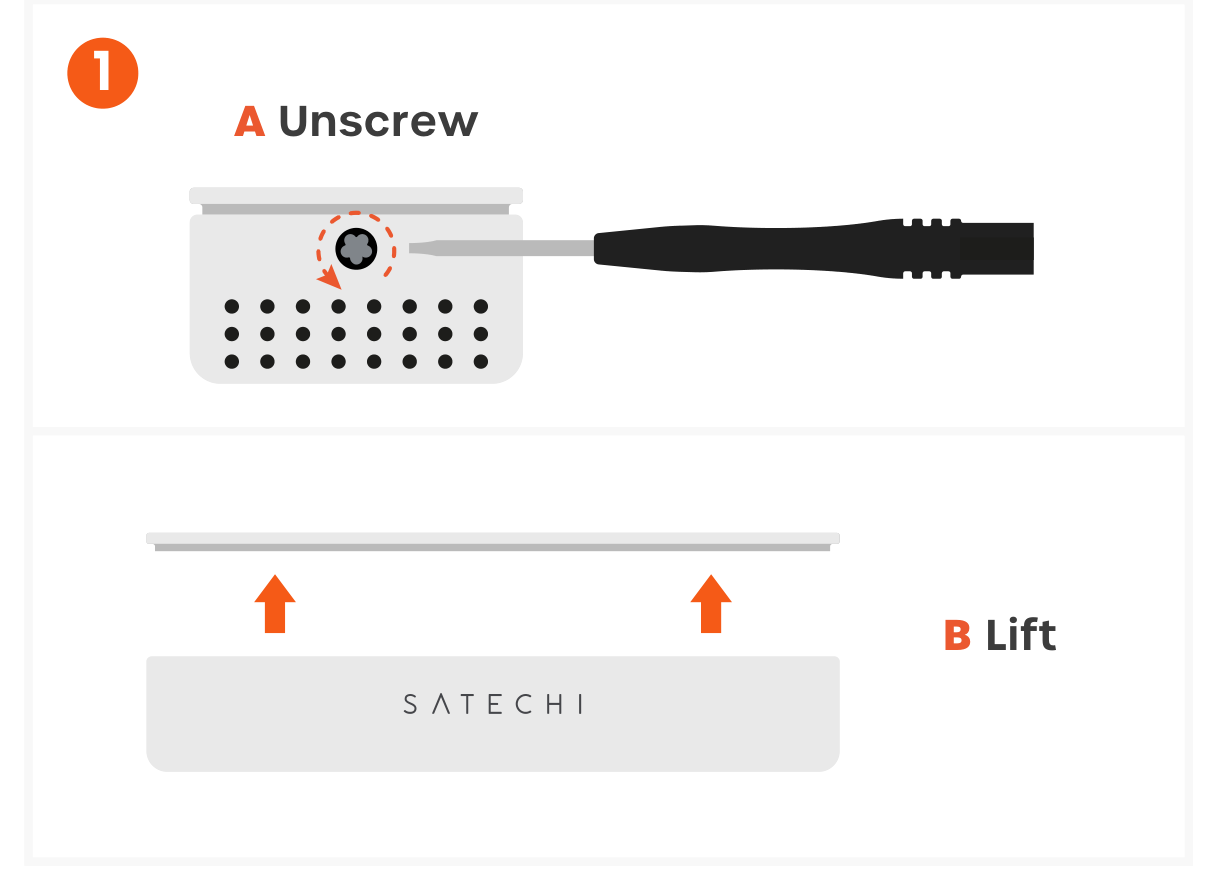

Step 1: Open the Enclosure A Use the included screwdriver to remove the Top Cover Screw (smaller) from the top of the enclosure. B Carefully lift the top cover off and set it aside.

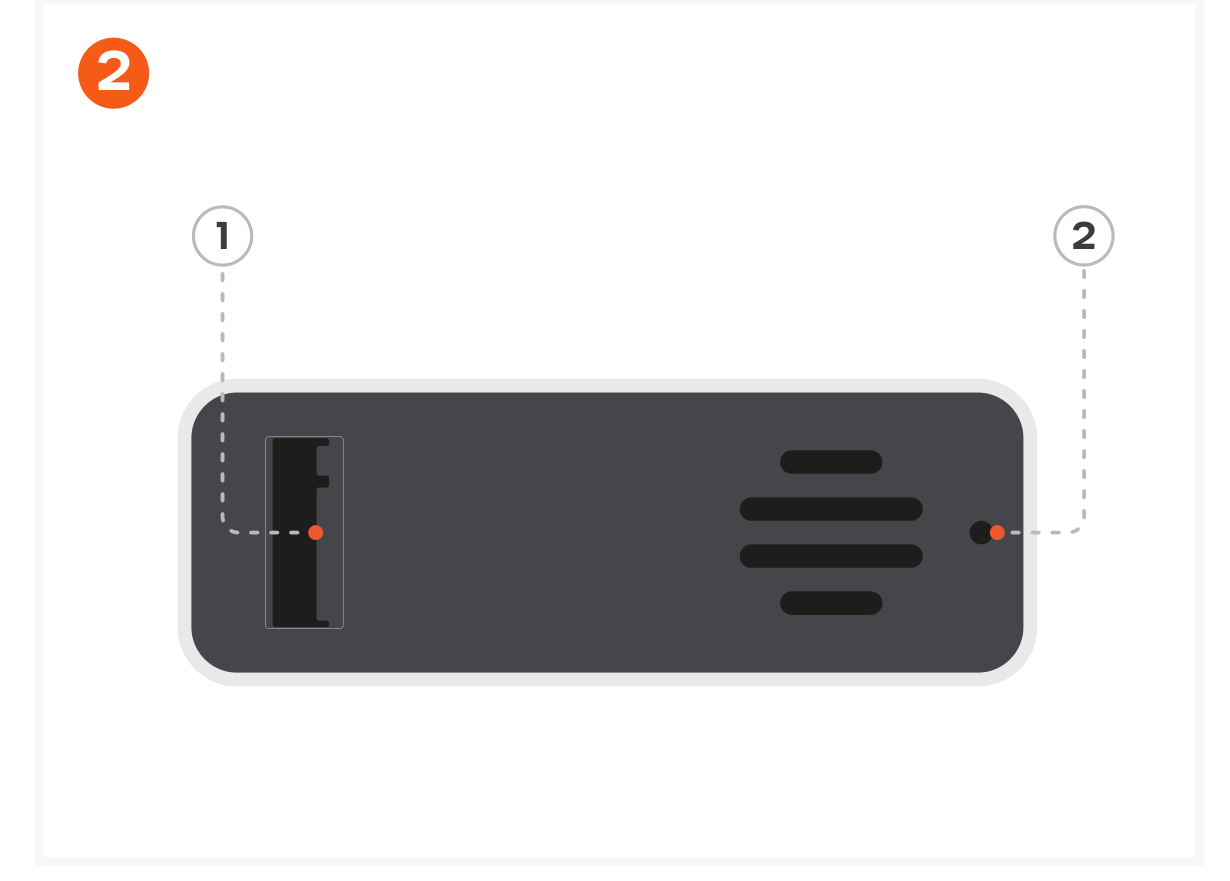

Step 2: Locate the M.2 Slot 1 Identify the M.2 connector inside the open enclosure. 2 Locate the SSD Screw (larger) hole at the far end of the slot — this will be used in Step 4.

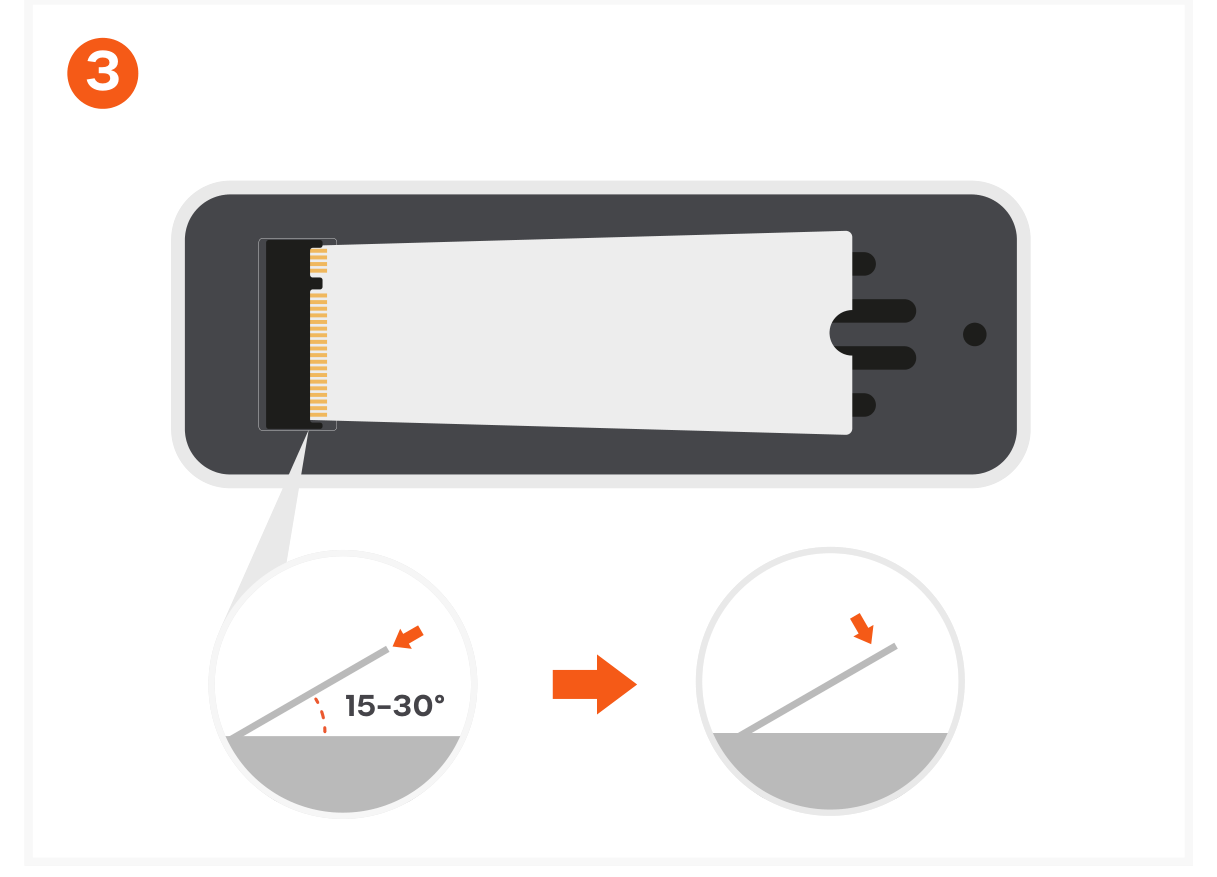

Step 3: Insert the SSD • Align the SSD's gold connector edge with the M.2 slot. • Insert the SSD at a 15 to 30 degree angle, pressing gently until the contacts are fully seated in the connector. • Then press the SSD down flat against the enclosure body.

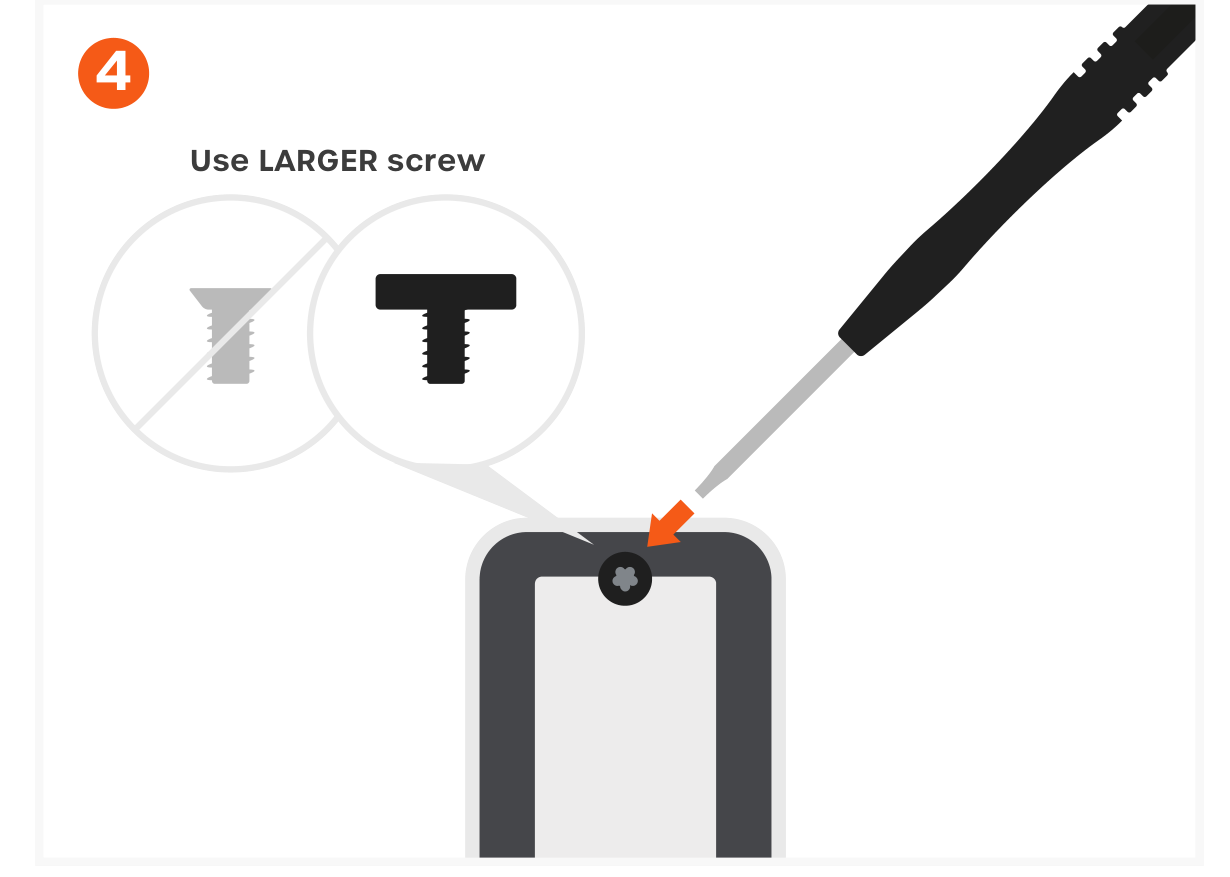

Step 4: Secure the SSD • Secure with the SSD Screw. Fasten the SSD Screw (larger) into the screw hole to hold the SSD flat against the slot. • Do not overtighten.

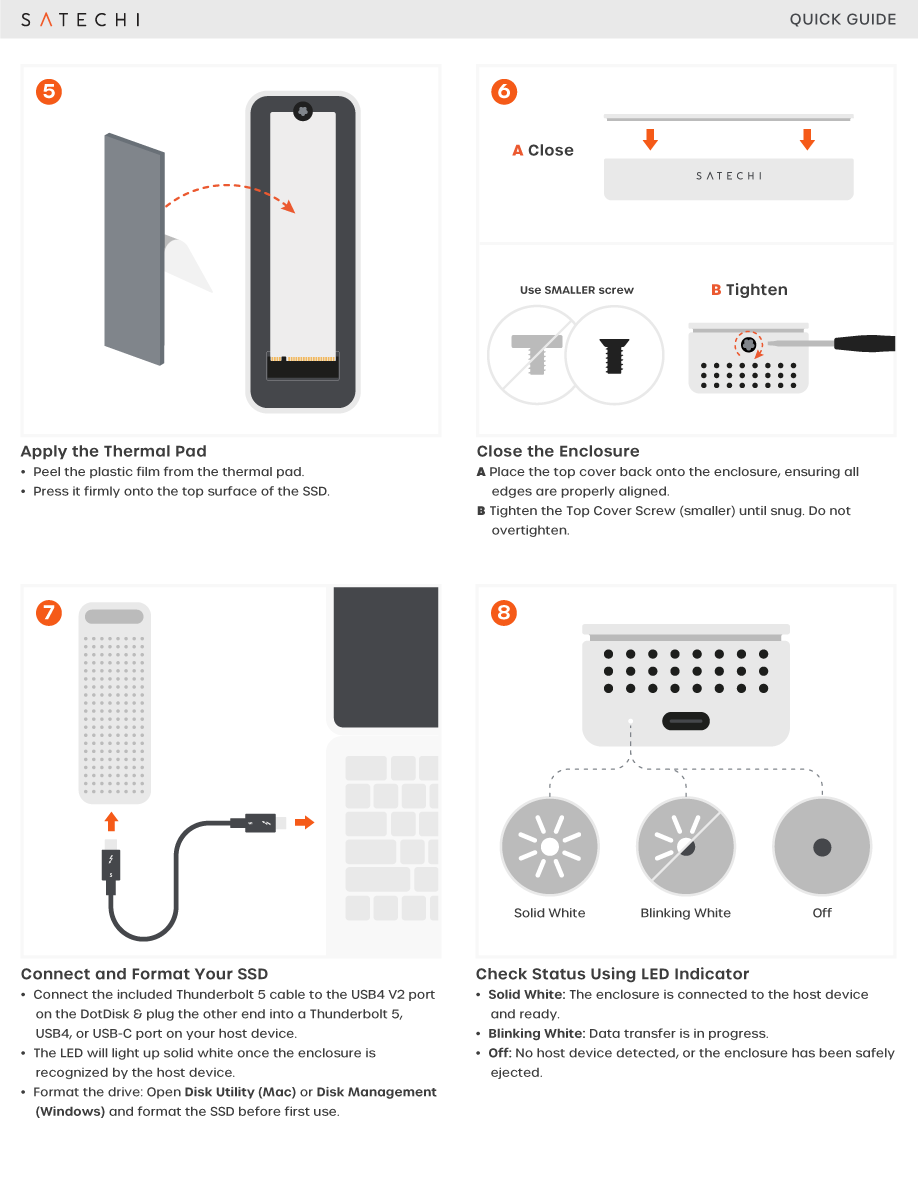

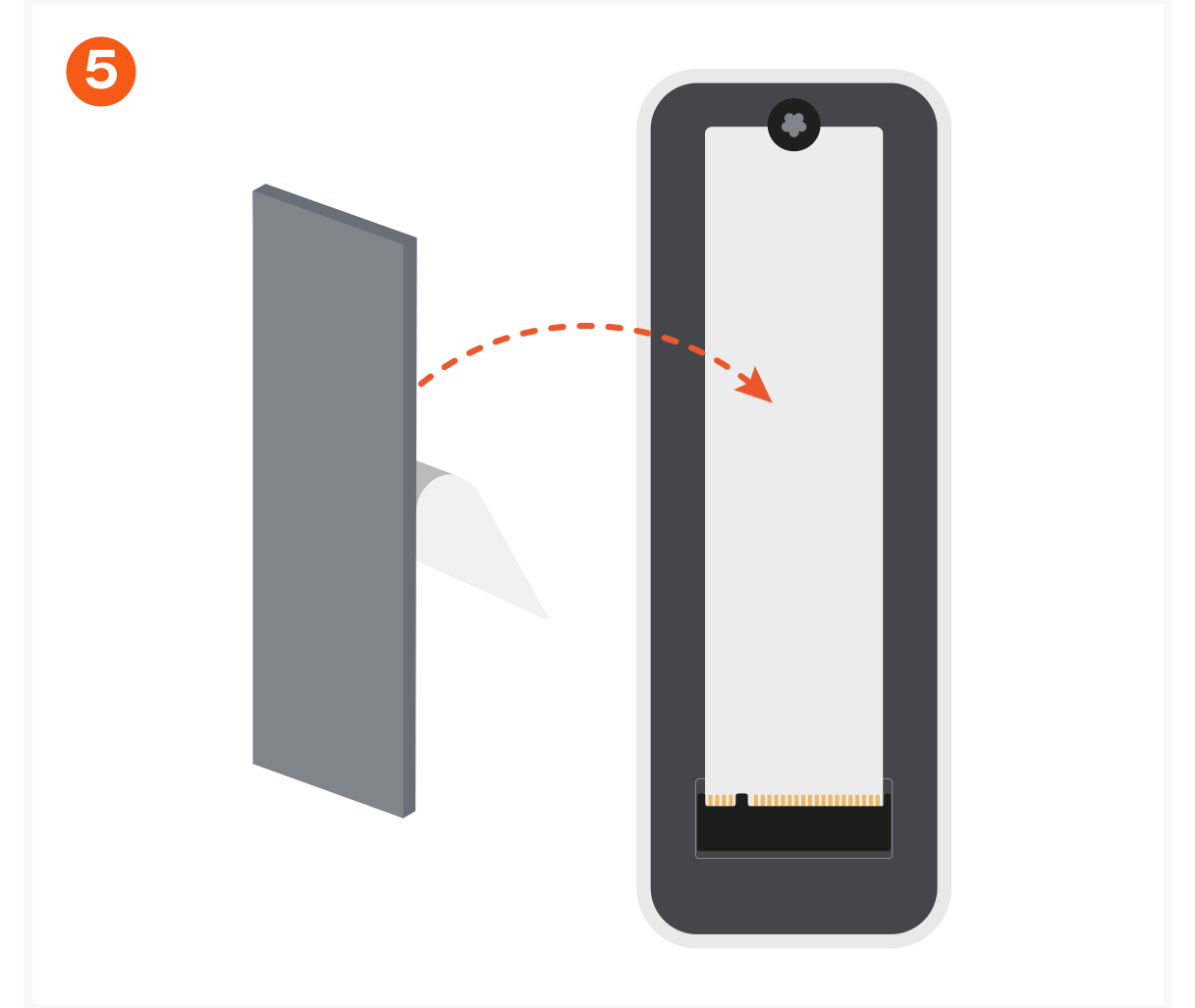

Step 5: Apply the Thermal Pad • Peel the plastic film from the thermal pad. • Press it firmly onto the top surface of the SSD.

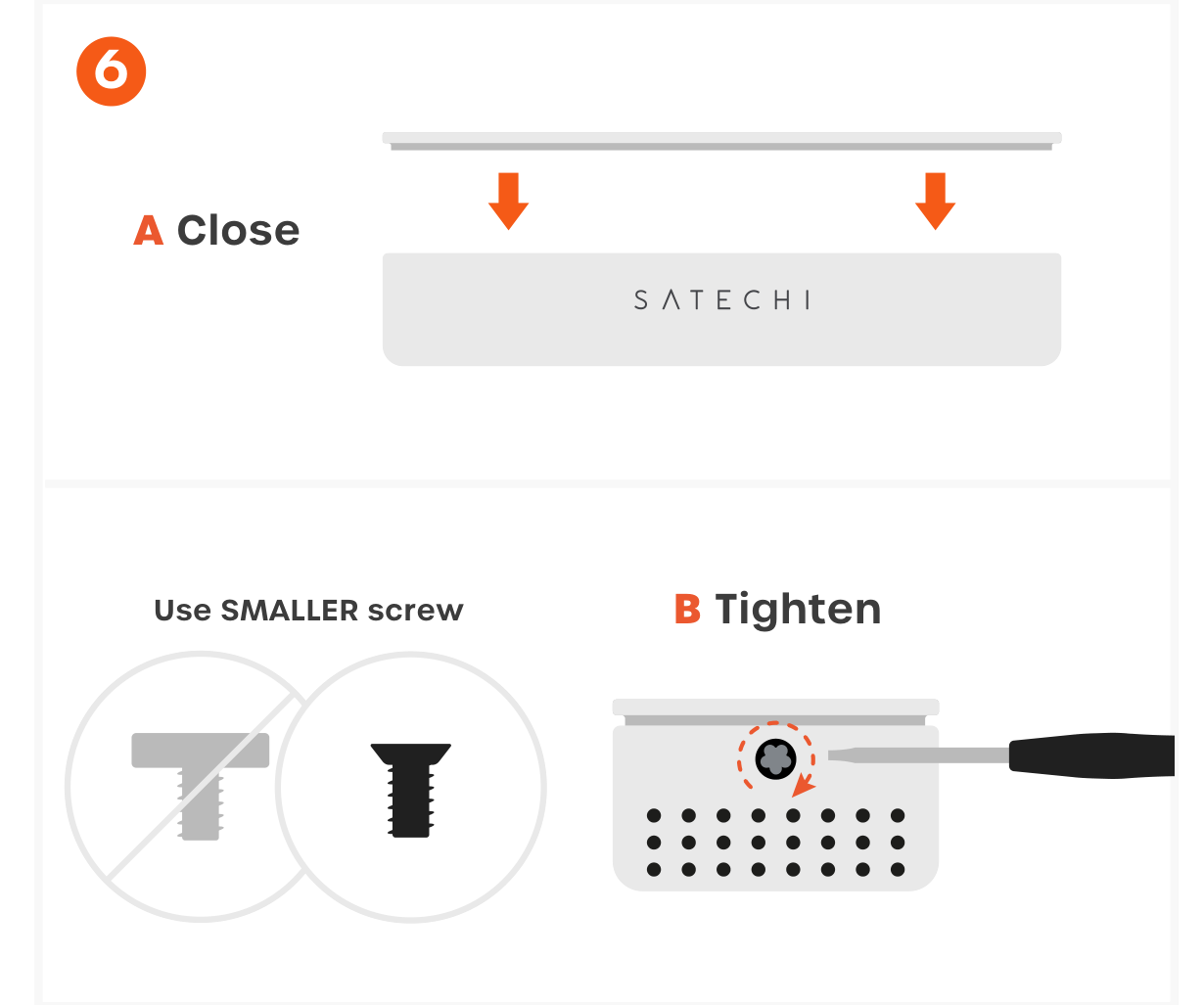

Step 6: Close the Enclosure A Place the top cover back onto the enclosure, ensuring all edges are properly aligned. B Tighten the Top Cover Screw (smaller) until snug. Do not overtighten.

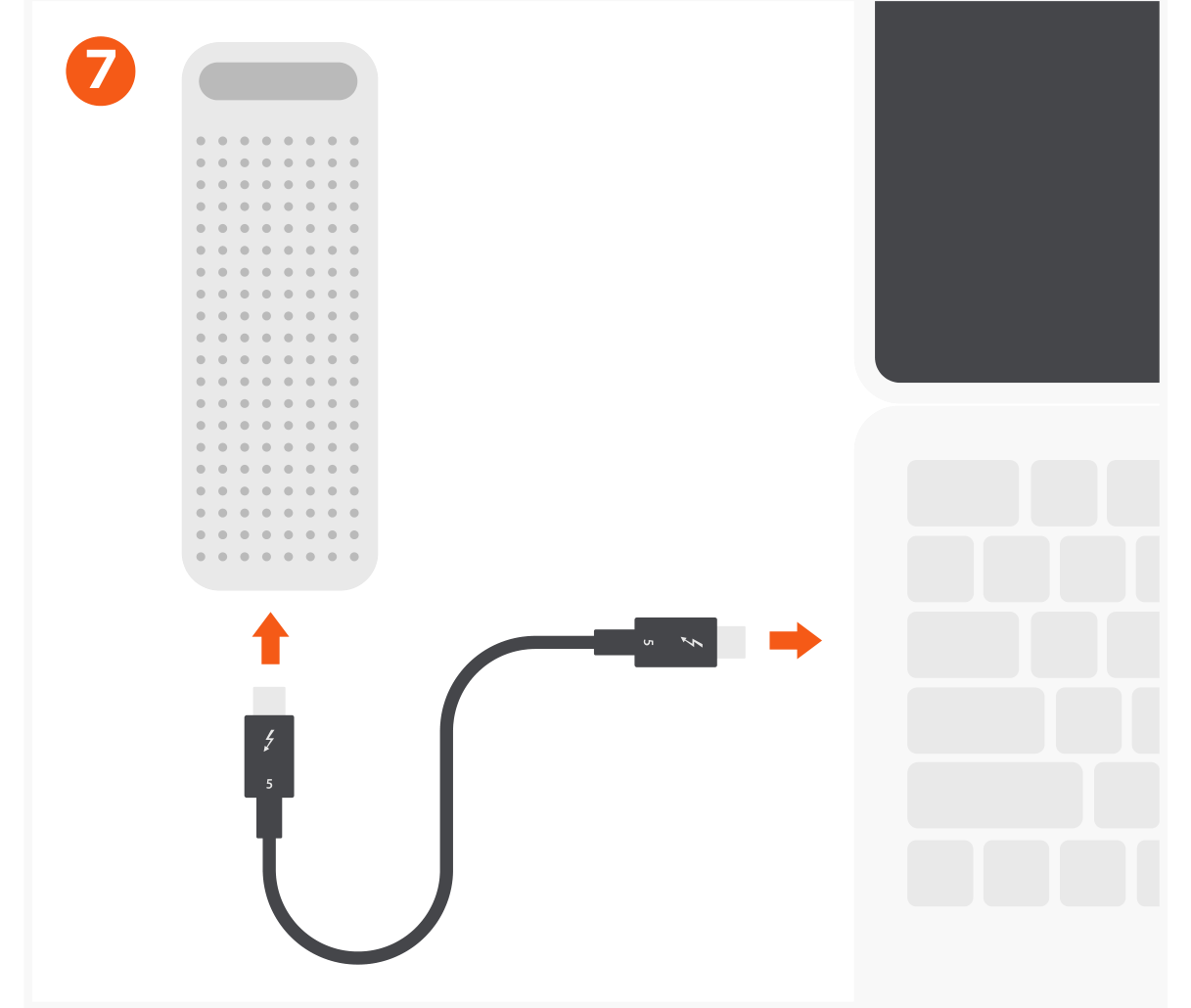

Step 7: Connect and Format Your SSD • Connect the included Thunderbolt 5 cable to the USB4 V2 port on the DotDisk & plug the other end into a Thunderbolt 5, USB4, or USB-C port on your host device. • The LED will light up solid white once the enclosure is recognized by the host device. • Format the drive: Open Disk Utility (Mac) or Disk Management (Windows) and format the SSD before first use.

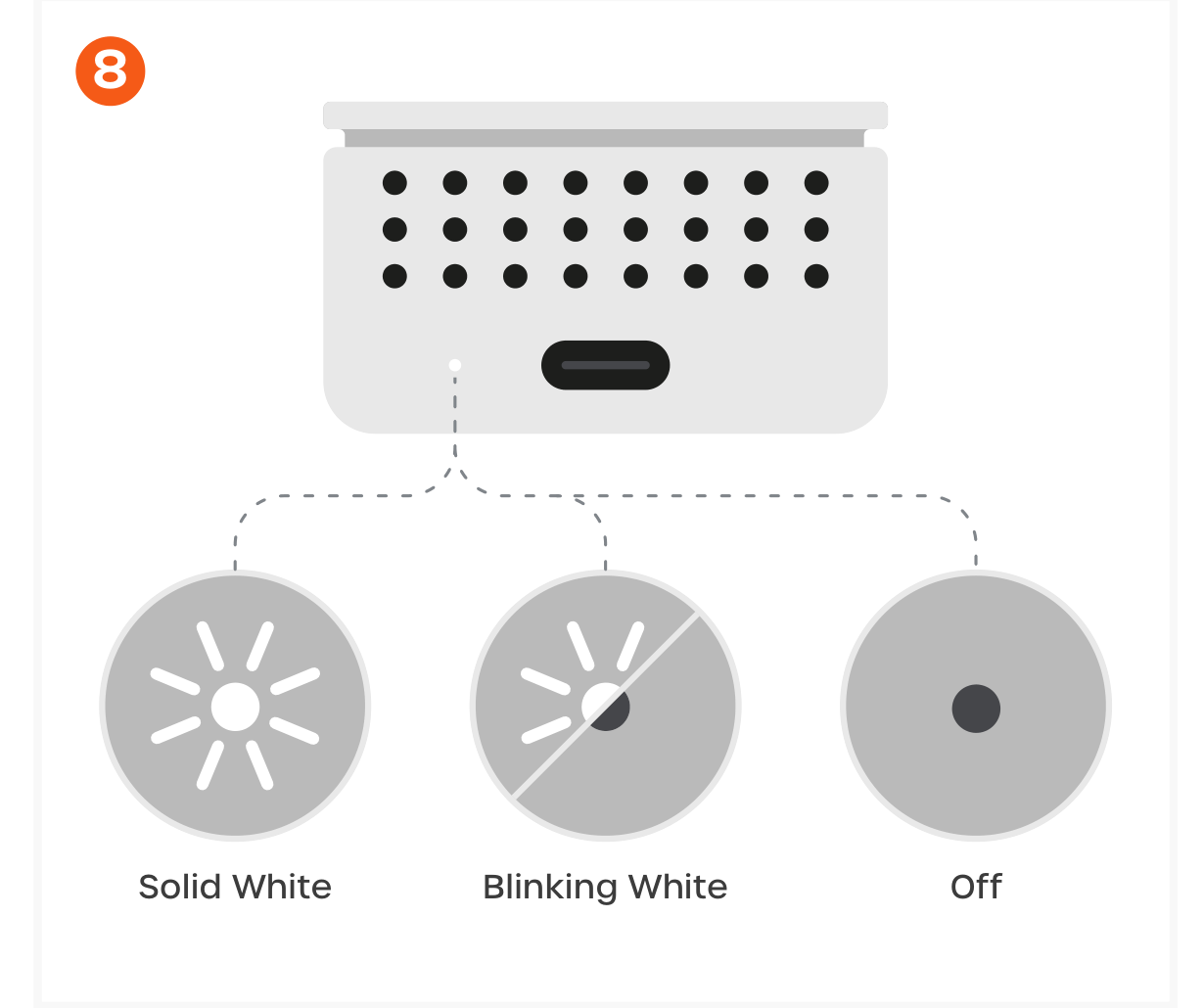

Step 8: Check Status Using LED Indicator • Solid White: The enclosure is connected to the host device and ready. • Blinking White: Data transfer is in progress. • Off: No host device detected, or the enclosure has been safely ejected.

Note: * Compatible only with 2280 M.2 NVMe SSDs up to 8TB. Not compatible with SATA SSDs, 2230/2242/2260 sizes, or SSDs with pre-installed heatsinks.
