This User Manual covers setup, features, compatibility, and specifications for the Satechi DotDisk™ 80Gbps SSD Enclosure (ST-EDD80C / ST-EDD80S).

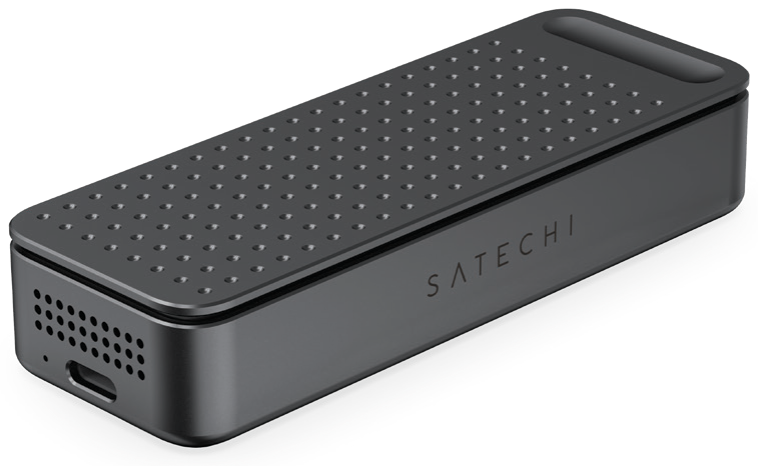

Product Overview

The DotDisk™ 80Gbps SSD Enclosure holds a 2280 M.2 NVMe SSD up to 8TB and connects to your host device through its USB4 V2 Port (80Gbps). It is downwards compatible with Thunderbolt 4, USB4, and USB-C devices. The manual refers to an included Thunderbolt 5 cable, screwdriver, thermal pad, and SSD screw, and the parts diagram shows 2× Replacement Screws. SSD is not included.

Setup

The enclosure is plug and play.

1. Install your SSD: Install a compatible M.2 NVMe SSD into the enclosure (see SSD Installation below).
2. Connect to your host device: Use the included Thunderbolt 5 cable for best performance. If a longer cable is needed, ensure the cable can support 80Gbps speeds.
3. Format your SSD.

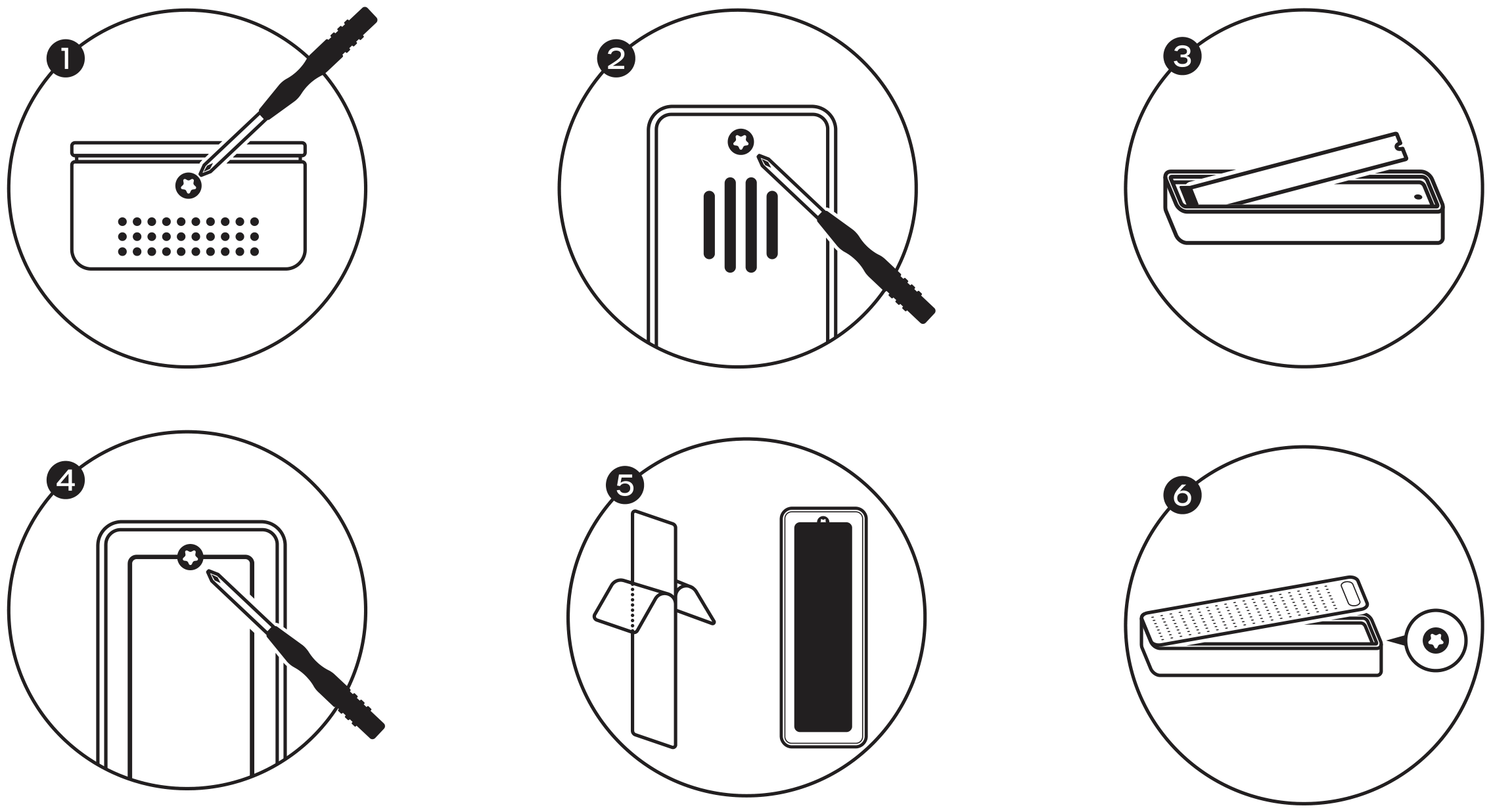

SSD Installation

1. Use the included screwdriver to unscrew and remove the top cover.
2. Remove the SSD screw inside.
3. Insert your M.2 NVMe SSD into the slot at about a 30° angle.
4. Press the SSD down and secure it with the included screw.
5. Peel and apply the included thermal pad directly onto the SSD.
6. Place the top cover back onto the enclosure and secure it by tightening the screw you removed in step 1.

Note: SSD is not included. Compatible only with 2280 M.2 NVMe SSDs up to 8TB. Not compatible with SATA SSDs, sizes 2230/2242/2260, or SSDs with pre-installed heatsinks.

Functions

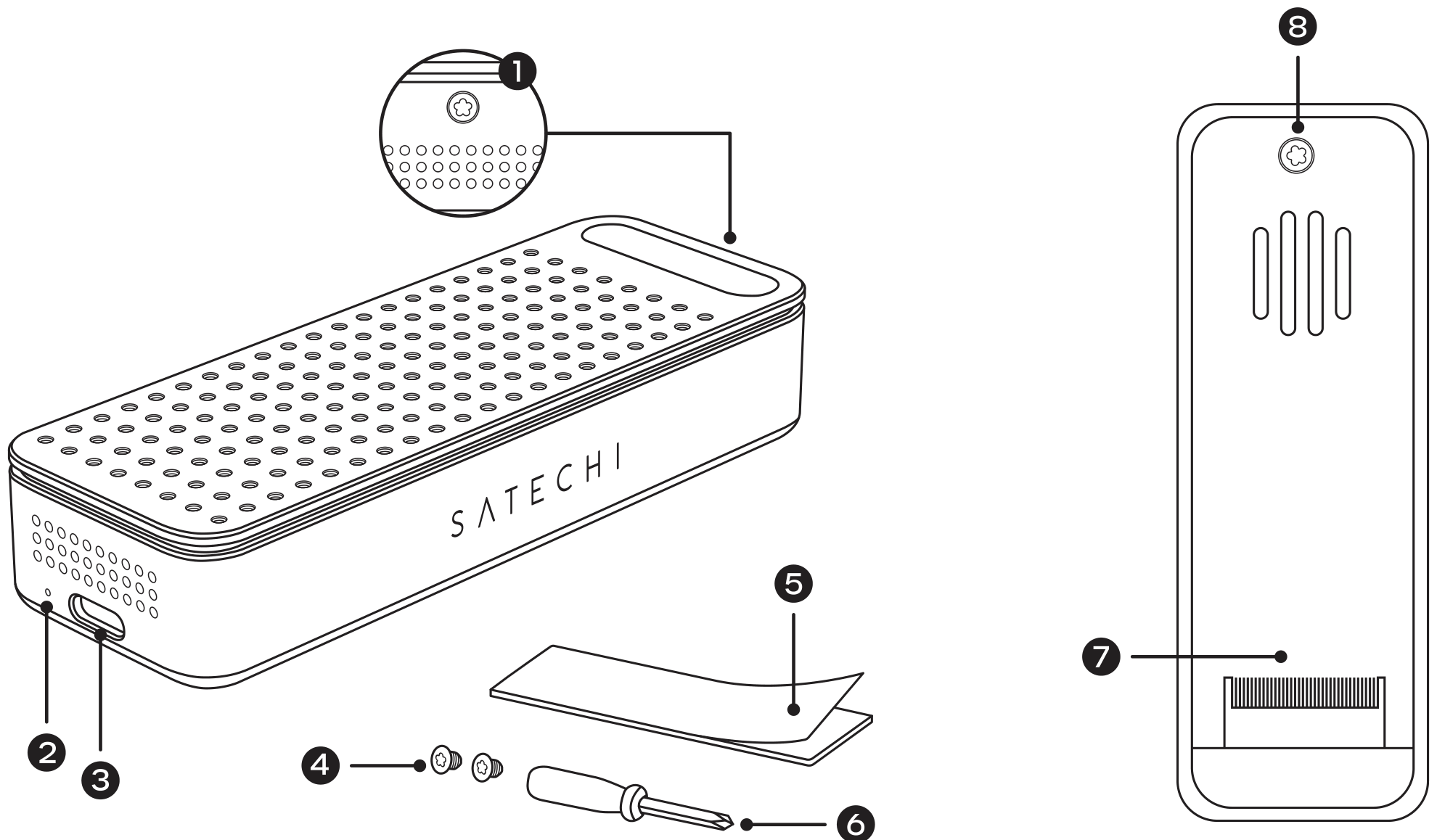

Parts labeled diagram of the DotDisk™ 80Gbps SSD Enclosure with 8 labeled components, including the included accessories.

1. Top Cover Screw: Use the included screwdriver to unscrew it and remove the top cover. Tighten it again to secure the top cover after installing your SSD.
2. LED Indicator: Lights up white when connected to the host device and flashes during activity.
3. USB4 V2 Port (80Gbps): Connects to your host device. Use the included Thunderbolt 5 cable for best performance. Speeds may vary depending on host device capabilities.
4. 2× Replacement Screws
5. Thermal Pad: Remove the plastic film, then peel and apply the thermal pad directly onto the SSD.
6. Screwdriver: Use it to unscrew and remove the top cover.
7. M.2 NVMe SSD Enclosure (2280 sizes) (up to 8TB max): Compatible only with 2280 M.2 NVMe SSDs up to 8TB. Not compatible with SATA SSDs, sizes 2230/2242/2260, or SSDs with pre-installed heatsinks.
8. SSD Screw: Remove the SSD screw before inserting your SSD, then press the SSD down and secure it with the screw.

Features

- USB4 V2 Port (80Gbps).
- Fits 2280 M.2 NVMe SSDs up to 8TB.
- Downwards compatible with Thunderbolt 4, USB4, and USB-C devices.
- Plug and play: install your SSD, connect to your host device, and format your SSD.
- LED indicator lights up white when connected and flashes during activity.
- Thunderbolt 5 cable, screwdriver, and thermal pad included for setup.

Important Limitations

Eject before unplugging: Properly eject the SSD prior to disconnecting it from the host device.

Keep vents clear: Please do not cover the ventilation holes during use.

Thermal pad film: Ensure the plastic film is removed from the thermal pad before applying.

Unplug before swapping drives: Ensure the enclosure is unplugged from the host when changing SSDs.

Host compatibility: Downwards compatible with Thunderbolt 4, USB4, and USB-C devices. Speeds may vary depending on host device capabilities.

Cable matters: Use the included Thunderbolt 5 cable for best performance. If a longer cable is needed, ensure the cable can support 80Gbps speeds.

SSD compatibility: Only 2280 M.2 NVMe SSDs up to 8TB. SATA SSDs, 2230/2242/2260 sizes, and SSDs with pre-installed heatsinks are not supported.

Specifications

Model Number: MN25STK03
Port: USB4 V2 Port (80Gbps)
SSD Support: M.2 NVMe, 2280 sizes, up to 8TB max
Compatibility: Downwards compatible with Thunderbolt 4, USB4, and USB-C devices
Included Cable: Thunderbolt 5

Certifications

FCC, CE, WEEE, CAN ICES(B)/NMB(B)
