This User Manual covers all features, setup, and pairing instructions for the Satechi M1 Wireless Mouse (ST-ABTCMS / ST-ABTCMM / ST-ABTCMG / ST-ABTCMR / ST-ABTCMB), a Bluetooth wireless mouse with USB-C charging.

What's In The Box

M1 Wireless Mouse, USB-C Charging Cable, User Manual.

Functions

1. USB-C Charging Port — Connect the included USB-C cable here to charge the mouse.
2. Left Button — Primary click button.
3. Right Button — Secondary click / right-click button.
4. Scroll Wheel — Scroll up and down to navigate content.
5. LED Indicator — Shows pairing mode, charging status, and low battery.
6. Power Switch — Slide to power the mouse on or off.
7. Optical Sensor — Tracks movement on the surface beneath the mouse.
8. Pairing Button — Press and hold to enter Bluetooth pairing mode.

Setup

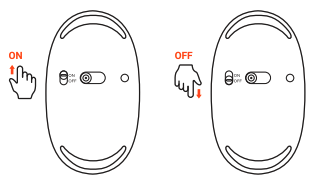

Powering On / Off

Slide the Power Switch up to turn the mouse ON, and down to turn it OFF.

Pairing (Bluetooth)

macOS:
1. Launch System Preferences > Bluetooth. Ensure Bluetooth is turned on.
2. Power ON your M1 Mouse. (Recommended to fully charge the mouse prior to initial pairing.)
3. Hold the pairing button for 3–5 seconds or until you see the blue LED light begin to flash.
4. Select "Satechi M1 Mouse" from the list of connectable devices.
5. The M1 Mouse will show a connected status when successfully paired.

Windows 11 & Windows 10:
1. Launch Control Panel > Hardware and Sound > Add a device. Ensure Bluetooth is enabled on your device.
2. Power ON your M1 Mouse. (Recommended to fully charge the mouse prior to initial pairing.)
3. Hold the pairing button for 3–5 seconds or until you see the blue LED light begin to flash.
4. Select "Satechi M1 Mouse." Click "Next" once the mouse has been selected from the list.
5. A progress bar will appear during the pairing process and will disappear on its own once the pairing is complete.

Note: The M1 Wireless Mouse does not support multi-device sync. It can only be used with 1 host device at a time.

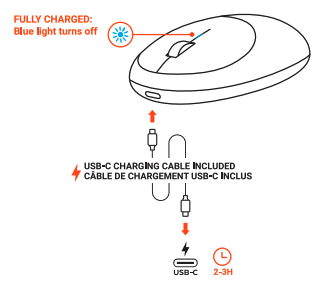

Charging

Connect the included USB-C charging cable to the USB-C Charging Port to charge the mouse. A full charge takes approximately 2–3 hours.

Note: The M1 Mouse cannot be used in wired mode. It will function wirelessly while charging.

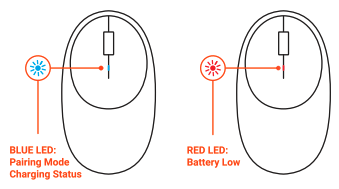

LED Indicators

Blue LED — Pairing Mode / Charging Status.
Blue LED turns off — Fully Charged.
Red LED — Battery Low.
