This User Manual covers setup, features, compatibility, and specifications for the Satechi USB-C Multiport Pro Adapter V1 and V2 (AP-PCMPAM).

What's In The Box

USB-C Multiport Pro Adapter, User Manual.

Product Overview

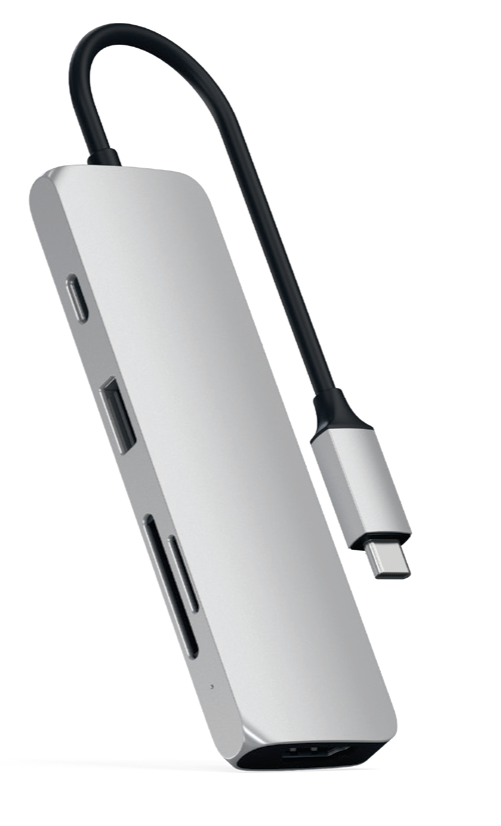

The USB-C Multiport Pro Adapter connects to your laptop or tablet with its built-in USB-C cable and adds HDMI video output, USB-C pass-through charging, a USB-A data port, and SD and Micro SD card readers in a slim, travel-friendly design. The V2 supports 4K@60Hz via HDMI and has a braided cable; the V1 supports 4K@30Hz and has a silicone cable.

Setup

The USB-C Multiport Pro Adapter is plug-and-play, no drivers required.

1. Connect to a laptop or tablet: Plug the built-in USB-C cable into a USB-C port on your laptop or tablet.

2. Connect your devices: Connect your devices to the adapter's ports.

Functions

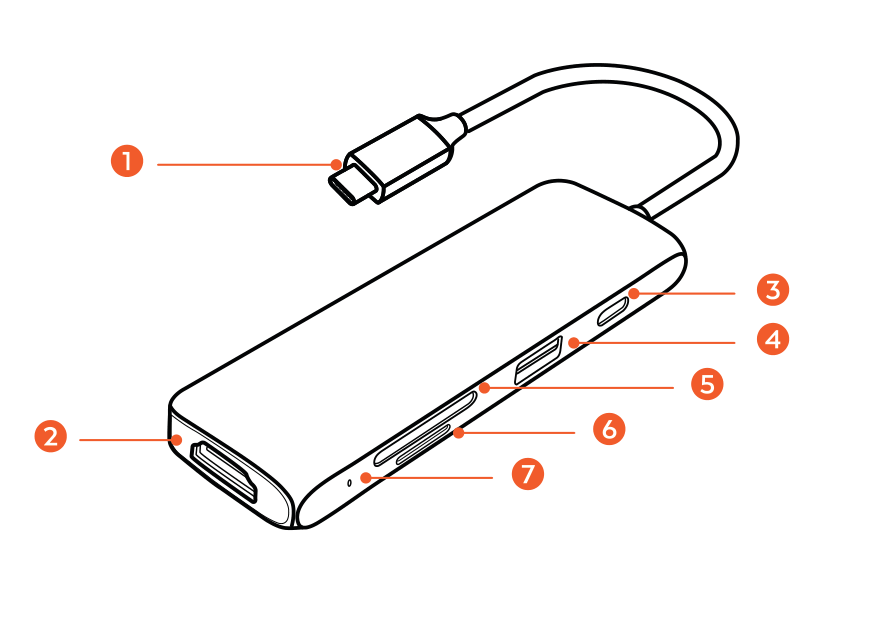

Parts labeled diagram of the USB-C Multiport Pro Adapter V1 and V2 with 7 labeled components.

1. USB Type-C Cable: Built-in USB-C cable that connects the adapter to your laptop or tablet.
2. HDMI Video Port: HDMI output supporting up to 4K at 30Hz on the V1 and up to 4K at 60Hz on the V2. Requires a direct HDMI-to-HDMI cable (not included).
3. USB-C Charge Port: USB-C Power Delivery port for laptop charging up to 100W. Does not support video output or data transfer.
4. USB-A 3.0 Port: High-speed USB-A port for data transfer up to 10 Gbps.
5. SD Card Slot: SD card reader supporting speeds up to 104 MB/s.
6. Micro SD Card Slot: Micro SD card reader supporting speeds up to 104 MB/s.
7. LED Indicator: Lights up when the adapter is connected and powered.

Features

- HDMI video output: 4K@30Hz on V1, 4K@60Hz on V2
- Up to 100W USB-C Power Delivery pass-through charging
- USB-A 3.0 data port
- SD and Micro SD card readers
- Built-in USB-C cable: silicone on V1, braided on V2

Important Limitations

Connected USB devices should not exceed an input current of 900mA.

The SD card slot and Micro SD card slot cannot be used at the same time: Insert only one card at a time.

To transmit video signals via the HDMI port, use an HDMI cable (not included): Use a direct HDMI-to-HDMI cable. Adapters or converters may not work reliably.

Not compatible with Apple USB SuperDrive: The adapter is not compatible with the Apple USB SuperDrive or other CD/DVD drives due to power requirements.

Specifications

Model: AP-PCMPAM
Dimensions: 4.3" x 1.3" x 0.4" (10.9 x 3.3 x 1 cm)
Cable Length: 6" (15.2 cm)
Weight: 2.3 oz / 66g
Connector: USB-C
Cable: Silicone (V1) / Braided (V2)
Ports & Speeds:
1x HDMI: up to 4K 30Hz (V1) / up to 4K 60Hz (V2)
1x USB-C PD: up to 100W (no video or data)
1x USB-A 3.0: up to 10 Gbps
1x SD card reader: up to 104 MB/s
1x Micro SD card reader: up to 104 MB/s

Certifications

FCC, CE, WEEE
