Instruction Manual — Slim W1 Wired Backlit Keyboard

This manual covers setup, operation, and features for the Satechi Slim W1 Wired Backlit Keyboard (Model: ST-UCSW1M).

📄 Download User Manual — Slim W1 Wired Backlit Keyboard · PDF · 1.4 MB

In the Box

Slim W1 Wired Backlit Keyboard, User Manual.

Specifications

Model: ST-UCSW1M
Dimensions: 11.14" x 4.5" x 0.39"
Cable Length: 62"
Weight: 295g
Connection Type: USB-C

System Requirements: macOS X v10.4 or later

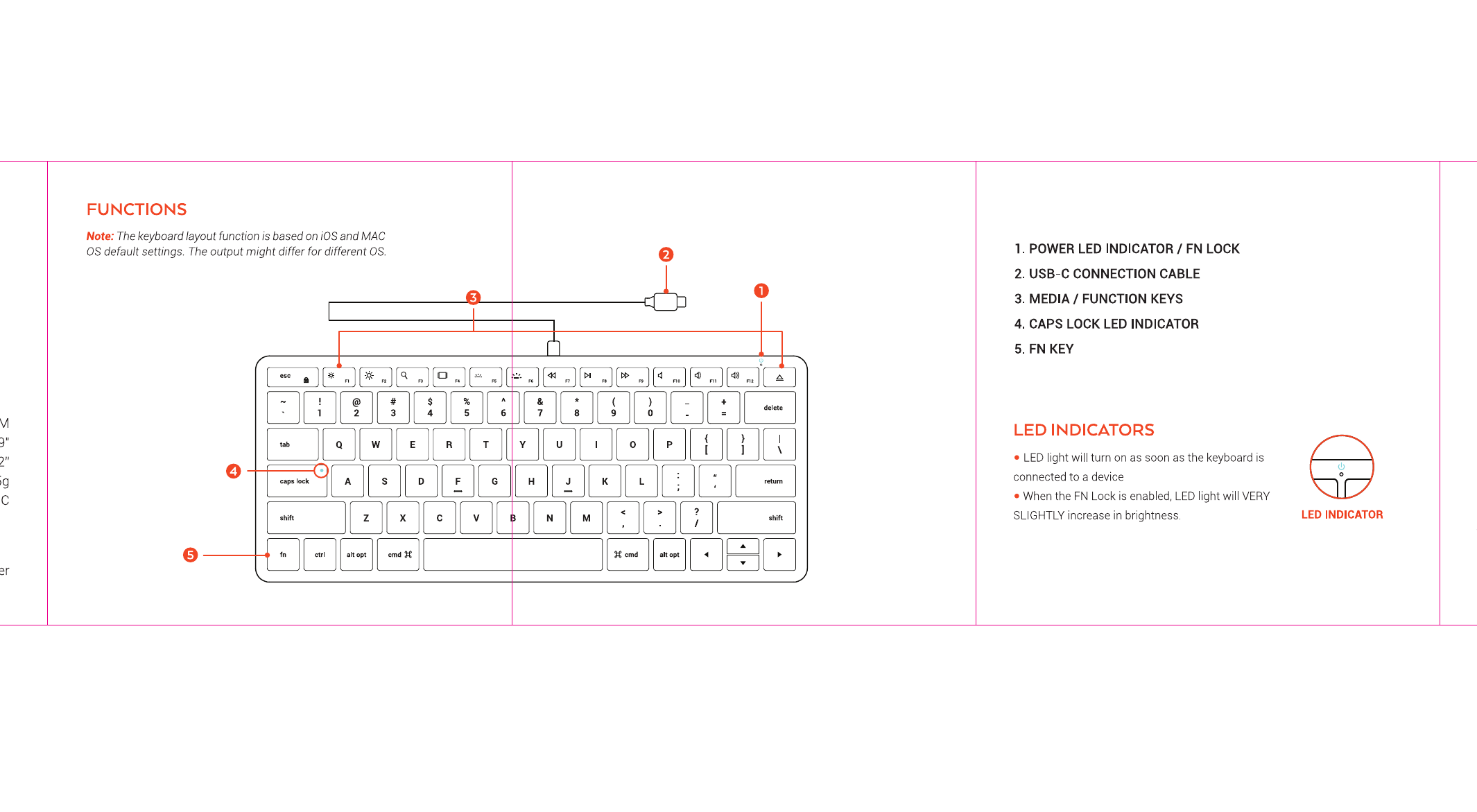

Parts Reference

1. Power LED Indicator / FN Lock — LED indicator that shows power and FN Lock status.
2. USB-C Connection Cable — Built-in USB-C cable for connecting to your device.
3. Media / Function Keys — Top row keys for media controls and system shortcuts.
4. Caps Lock LED Indicator — Lights up when Caps Lock is active.
5. FN Key — Hold with other keys to activate function key shortcuts.

Note: The keyboard layout function is based on iOS and macOS default settings. The output might differ for different OS.

Connecting to Your Device

Plug the built-in USB-C cable into a Type-C port — the keyboard will be detected by your device automatically, with no drivers required.

Note: Compatible with any Mac that has a USB-C port. If your device only has Type-A ports, use a Type-A to Type-C adapter.

LED Indicators

The LED light will turn on as soon as the keyboard is connected to a device. When the FN Lock is enabled, the LED light will very slightly increase in brightness.

Backlight

There are 3 backlight levels. Adjust brightness at any time:
F5 — Decrease keyboard backlight
F6 — Increase keyboard backlight

Note: The keyboard is equipped with a white backlight only.

Hot Key Function Guide

Frequently Asked Questions

What if I don't have a Type-C port, only Type-A?
You can always use a Type-A to Type-C adapter.

Does the keyboard come with different color light options?
Unfortunately, the keyboard is only equipped with a white backlight. However, you are able to cycle through 3 different brightness options.

Will this work on a Windows computer or with my Surface tablet?
The keyboard will be compatible with your Windows device. Please be advised that the HotKey labels were designed for Apple so they may not correspond with your Windows device.

Safety Instructions

Warning: Fire, electric shock, or damage to the keyboard could occur if the following instructions are not obeyed.

1. Keep away from microwave radiation sources.
2. Do not place heavy objects on this product.
3. Avoid dropping or bending the keyboard.
4. Keep away from oil, chemicals, or organic solvents.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
