This User Manual covers setup, functions, specifications, and safety for the Satechi Slim W1 Wired Backlit Keyboard (ST-UCSW1M).

What's In The Box

Slim W1 Wired Backlit Keyboard, User Manual.

Specifications

Model: ST-UCSW1M
Dimensions: 11.14" x 4.5" x 0.39"
Cable Length: 62"
Weight: 295g
Connection Type: USB-C

System Requirements: macOS X v10.4 or later

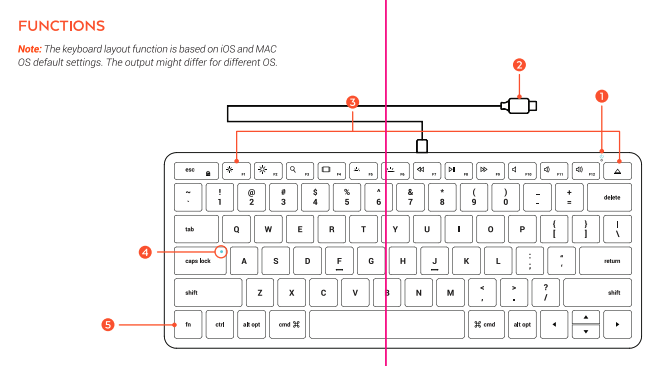

Functions

1. Power LED Indicator / FN Lock: Turns on when the keyboard is connected to a device, and gets very slightly brighter when FN Lock is enabled.
2. USB-C Connection Cable: Plug into a Type-C port to connect.
3. Media / Function Keys: See the Hot Key Function Guide below.
4. Caps Lock LED Indicator
5. FN Key

Note: The keyboard layout function is based on iOS and macOS default settings. The output might differ for different OS.

Setup

Connecting to Your Device

Plug the USB-C cable into a Type-C port and the keyboard will be detected by your device.

Note: Compatible with any Mac that has a USB-C port. If your device only has Type-A ports, use a Type-A to Type-C adapter.

LED Indicators

The LED light will turn on as soon as the keyboard is connected to a device. When the FN Lock is enabled, the LED light will very slightly increase in brightness.

Backlight

There are 3 backlight levels. Adjust brightness at any time:
F5: Decrease keyboard backlight
F6: Increase keyboard backlight

Note: The keyboard is equipped with a white backlight only.

Hot Key Function Guide

Note: The keyboard is compatible with Windows devices. The hot key labels were designed for Apple, so they may not correspond with your Windows device.

Safety Instructions

Warning: Fire, electric shock, or damage to the keyboard could occur if the following instructions are not obeyed.

1. Keep away from microwave radiation sources.
2. Do not place heavy objects on this product.
3. Avoid dropping or bending the keyboard.
4. Keep away from oil, chemicals, or organic solvents.

Certifications

FCC, CE
