This User Manual covers features, setup, and safety information for the Satechi Slim W3 Wired Backlit Keyboard (ST-UCSW3M).

What's In The Box

Slim W3 Wired Backlit Keyboard, User Manual.

Specifications

Model: ST-UCSW3M
Dimensions: 16.65" x 4.5" x 0.39"
Cable Length: 62"
Weight: 440g
Connection Type: USB-C
System Requirements: Mac OS X v10.4 or later

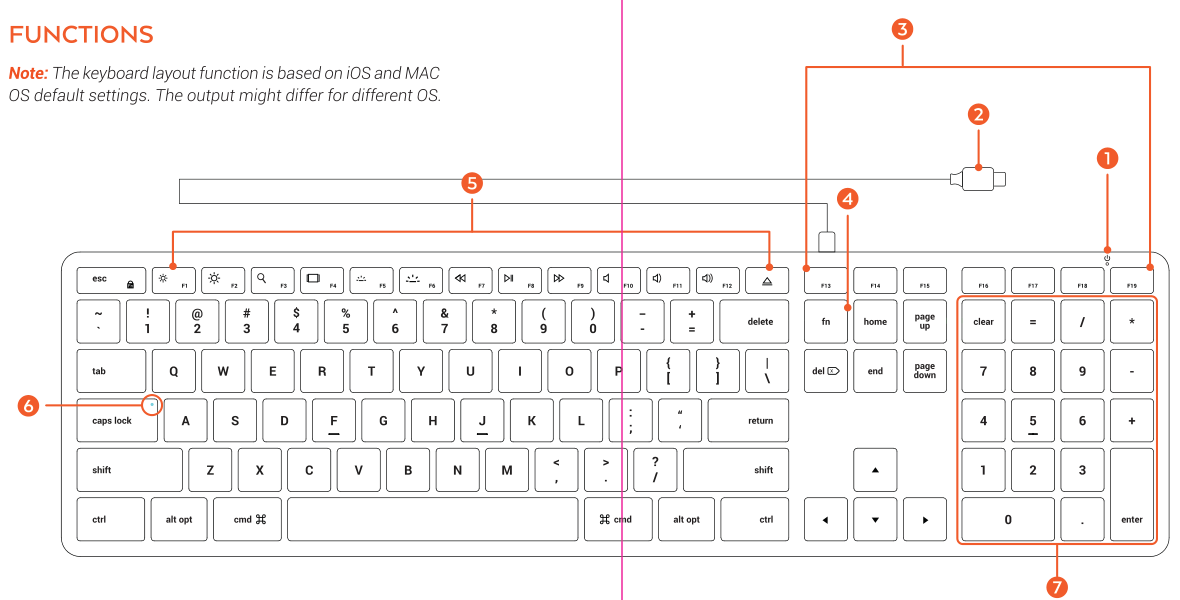

Functions

1. Power LED Indicator / Fn Lock: Turns on as soon as the keyboard is connected to a device. When Fn Lock is enabled, it gets very slightly brighter.
2. USB-C Connection Cable: Plug into a Type-C port and the keyboard will be detected by your device.
3. Additional Fn Keys
4. Fn Key: Fn Lock (see the Hot Key Function Guide below).
5. Media / Function Keys: See the Hot Key Function Guide below.
6. Caps Lock LED Indicator
7. Numberpad

Note: The keyboard layout function is based on iOS and macOS default settings. The output might differ for different OS.

Connecting to Your Device

Plug the USB-C connection cable into a Type-C port. The keyboard will be detected by your device.

Note: Compatible with any Mac that has a USB-C port. If your device only has Type-A ports, you can use a Type-A to Type-C adapter.

LED Indicators

The LED light will turn on as soon as the keyboard is connected to a device. When the Fn Lock is enabled, the LED light will very slightly increase in brightness.

Backlight

There are 3 backlight levels. You can change the backlight level at any time by pressing:
F5: Decrease keyboard backlight
F6: Increase keyboard backlight

Note: The keyboard is only equipped with a white backlight. You can cycle through 3 different brightness options.

Hot Key Function Guide

Note: The keyboard is compatible with Windows devices. The hot key labels were designed for Apple, so they may not correspond with your Windows device.

Safety Instructions

Warning: Fire, electric shock, or damage to the keyboard could occur if the following instructions are not obeyed.

1. Keep away from microwave radiation sources.
2. Do not place heavy objects on this product.
3. Do not drop or bend the keyboard.
4. Keep away from oil, chemicals, or organic solvents.

Certifications

FCC, CE
