Instruction Manual — 2-in-1 Headphone Stand with Wireless Charger

This manual covers setup and features for the Satechi 2-in-1 Headphone Stand with Wireless Charger (Model: ST-UCHSMCM).

📄 Download User Manual — 2-in-1 Headphone Stand with Wireless Charger · PDF · 5.6 MB

In the Box

2-in-1 Headphone Stand with Wireless Charger, USB-C Cable, User Manual. (20W USB-C power adapter sold separately.)

Specifications

Model: ST-UCHSMCM
Dimensions: 85 × 125 mm
Connector: USB-C input (cable included; 20W USB-C power adapter sold separately)

Wireless Charging Speeds:
iPhone 12 / 13 — up to 7.5W
AirPods Max — up to 5W

USB-C Output Port: Max 5W (for additional device charging)

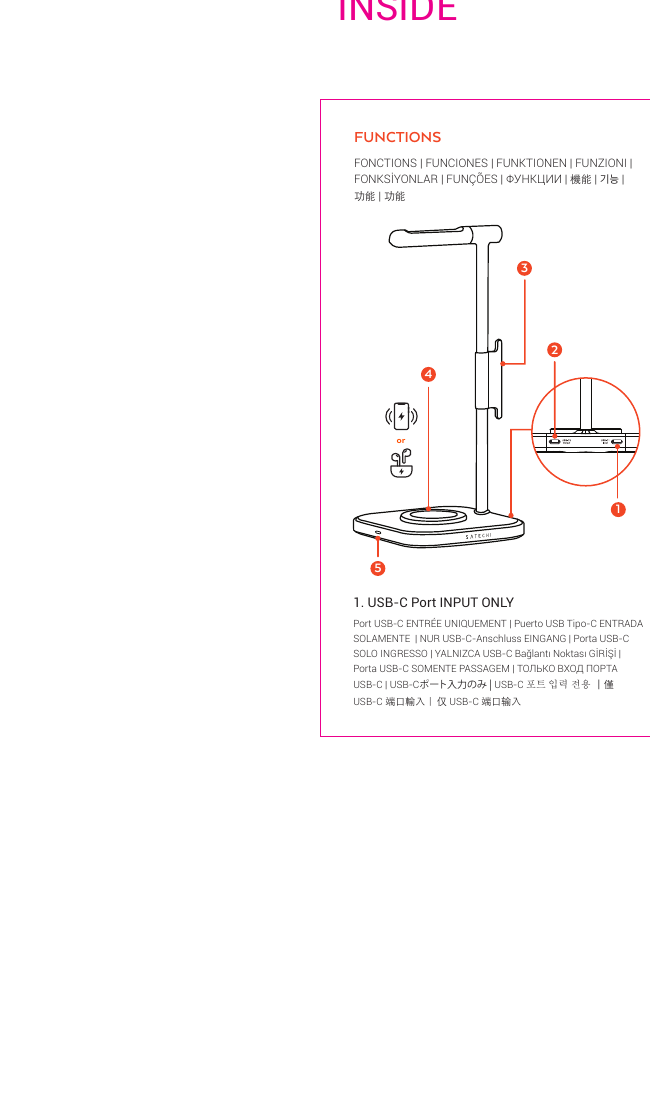

Parts Reference

1. USB-C Port (Input Only) — USB-C input port on the base. Connect the included USB-C cable here to power the stand. This port is for power input only — it does not charge devices.
2. USB-C Port (Output Max. 5W) — USB-C output port on the column. Use to charge a device (such as a phone or AirPods) at up to 5W. Requires the stand to be powered via Port 1.
3. Cable Management — Slot at the top of the headphone arm for routing the USB-C cable neatly along the stand.
4. Magnetic Wireless Charger (Max. 7.5W) — Wireless charging pad on the base. Place a compatible iPhone or AirPods face-up to charge wirelessly. Charges iPhone 12/13 at up to 7.5W and AirPods Max at up to 5W.
5. LED Indicator — Lights up at the base when the stand is connected to power and active.

Assembly

The headphone stand ships in two pieces and requires brief assembly before use.

Step 1: Insert the column into the base until it seats firmly.
Step 2: Slide the headphone arm (T-bar) into the top of the column.
Step 3: Use the included Allen key to tighten the screw at the joint where the arm meets the column. Tighten until the arm is secure and does not rotate freely.

Setup

Step 1: Route the included USB-C cable through the cable management slot at the top of the arm and down the column.
Step 2: Plug the USB-C cable into the input port (Port 1) on the base.
Step 3: Connect the other end of the USB-C cable to a 20W USB-C power adapter (sold separately) and plug into a wall outlet.
Step 4: The LED indicator will light up when the stand is powered.
Step 5: Place your headphones on the T-bar arm.
Step 6: Place a compatible iPhone or AirPods on the wireless charging pad on the base to begin wireless charging.

Important Notes

Use a minimum 20W USB-C power adapter for optimal charging performance: For best wireless charging speeds, use a USB-C power adapter rated at 20W or higher (sold separately). Lower-wattage adapters may result in reduced wireless charging speed.

USB-C input port is for power only: Port 1 (USB-C input) powers the stand. It does not charge connected devices — use Port 2 (USB-C output) for device charging.

Wireless charging speed depends on device compatibility: iPhone 12/13 charges at up to 7.5W wirelessly. AirPods Max charges at up to 5W wirelessly. Other Qi-compatible devices may charge at lower speeds.

Frequently Asked Questions

What wireless charging speeds are supported?
iPhone 12 and iPhone 13 charge at up to 7.5W. AirPods Max charges at up to 5W.

What power adapter do I need?
A USB-C power adapter rated at minimum 20W is recommended for optimal charging performance. The power adapter is sold separately — not included in the box.

Can I charge a device via the USB-C output port while also wireless charging?
Yes. The USB-C output port (Port 2, max 5W) and the wireless charging pad (Port 4, max 7.5W) can be used simultaneously when the stand is connected to a 20W+ USB-C power adapter.

What headphones fit on the stand?
The stand is designed to hold over-ear headphones, including AirPods Max and most standard over-ear headphone models.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Keep away from liquids and moisture.
2. Do not expose to extreme heat or direct sunlight for extended periods.
3. Do not drop or subject to strong impacts.
4. Use only with a compatible 20W+ USB-C power adapter.
