This User Manual covers functions, setup, and specifications for the Satechi 2-in-1 Headphone Stand with Wireless Charger (ST-UCHSMCM).

Functions

1. USB-C Port INPUT ONLY
2. USB-C Port (Output Max. 5W)
3. Cable Management
4. Magnetic Wireless Charger (Max. 7.5W)
5. LED Indicator

Product Overview

The Satechi 2-in-1 Headphone Stand with Wireless Charger is a headphone stand with a Magnetic Wireless Charger (Max. 7.5W) in the base, a USB-C output port (Max. 5W), cable management, and an LED indicator. It is powered through its USB-C input port.

Setup

Assembly

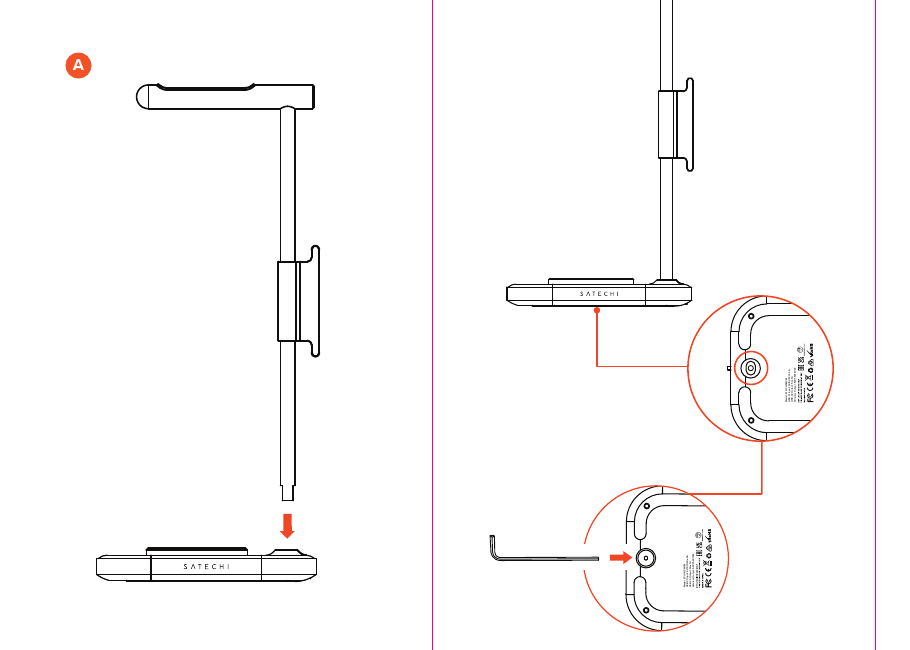

1. A: Insert the stand into the base, as shown.
2. B: Tighten the screw with the Allen key, as shown.

Assembly steps A and B.

Plug & Play

1. Connect a USB-C cable to the USB-C1 Input port.
2. Connect the other end to a USB-C power adapter of at least 20W.
3. Place your phone or earbuds case on the Magnetic Wireless Charger to charge it wirelessly.

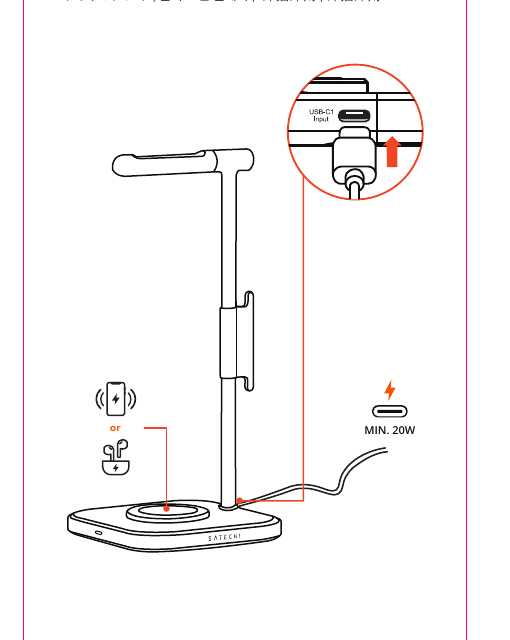

Connecting a USB-C cable to the USB-C1 Input port. Use a minimum 20W USB-C power adapter for optimal charging performance.

Ports and Features

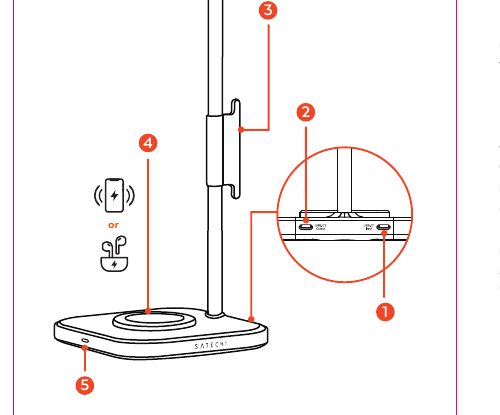

Labeled diagram of the 2-in-1 Headphone Stand with Wireless Charger with 5 labeled components.

1. USB-C Port INPUT ONLY: Labeled USB-C1 Input. Connect a minimum 20W USB-C power adapter here to power the stand.
2. USB-C Port (Output Max. 5W): Labeled USB-C2 Output.
3. Cable Management
4. Magnetic Wireless Charger (Max. 7.5W)
5. LED Indicator

Features

• Magnetic Wireless Charger (Max. 7.5W)
• USB-C output port (Max. 5W)
• Cable management
• Headphone stand

Important Limitations

• For optimal charging performance, use a minimum 20W USB-C power adapter.
• The USB-C1 port is for input only.
• For dry location use only.

Specifications

Model: ST-UCHSMCM
USB-C2 Output: Max. 5W
Wireless Output: Max. 7.5W

Certifications

FCC, CE, WEEE
