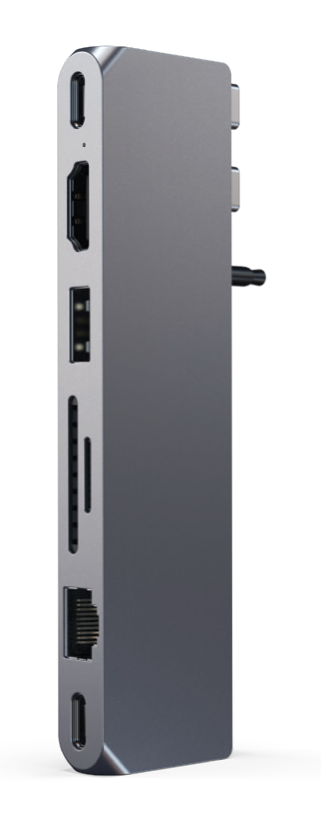

This User Manual covers setup, features, compatibility, and specifications for the Satechi Pro Hub Max (ST-UCPHMXM / ST-UCPHMXS).

What's In The Box

USB-C Pro Hub Max Adapter, User Manual.

Product Overview

The Pro Hub Max expands the dual USB-C ports on your MacBook into ten connections: USB4 with pass-through charging and display output, 4K HDMI, Gigabit Ethernet, USB-A and USB-C data ports, SD and Micro SD card readers, and a 3.5mm audio jack with an adjustable connector arm.

Setup

The Pro Hub Max is plug-and-play, no drivers or software required.

1. Connect to a laptop: Plug the Dual USB-C Connectors into the USB-C ports on your laptop.

2. Connect your devices: Connect your devices to the hub's ports.

Note: The audio jack connector arm is adjustable to accommodate laptops of different thicknesses.

Functions

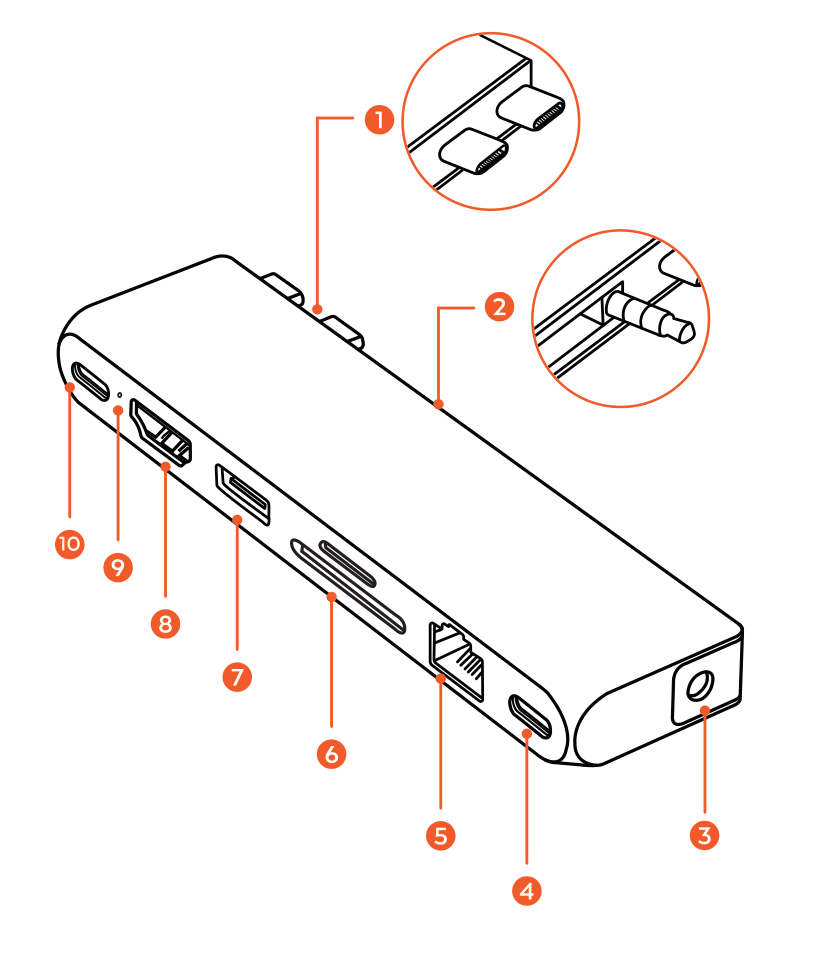

Parts labeled diagram of the Pro Hub Max with 10 labeled components.

1. Dual USB-C Connectors: The two USB-C connectors that attach the hub to your laptop's USB-C ports.
2. Audio Jack Connector: Adjustable connector arm for the 3.5mm audio jack.
3. Audio Jack Port: 3.5mm audio jack for headphones or speakers.
4. USB-C Data Port: USB-C data transfer port, up to 5 Gbps.
5. Ethernet Port: Gigabit Ethernet (LAN 10/100/1000) for wired network connectivity.
6. SD & Micro SD Card Slots: Dual card readers for SD and Micro SD cards.
7. USB-A 3.0 Port: USB-A data port, up to 5 Gbps. Does not support charging or CD drives.
8. 4K@60Hz HDMI Video Port: HDMI port supporting up to 4K 60Hz video output.
9. LED Indicator: Lights up when the hub is connected and powered.
10. USB4 Port: Supports up to 96W charging pass-through, 6K 60Hz display output, and 40 Gbps data transfer.

Features

- Dual display output: USB4 (up to 6K 60Hz) and HDMI (up to 4K 60Hz) can run at the same time
- Up to 96W pass-through charging via the USB4 port
- Gigabit Ethernet for a stable wired connection
- SD and Micro SD card readers
- Adjustable audio jack connector arm

Important Limitations

Connected USB devices should not exceed an input current of 900mA. This is the per-port limit for USB devices plugged into the hub.

The USB-A port does not support charging: The USB-A port is for data transfer only and cannot charge connected devices.

Specifications

Model: ST-UCPHMXM (Space Gray) / ST-UCPHMXS (Silver)
Dimensions: 4.86" x 1.22" x 0.46"
Weight: 1.94 oz
Connector: Dual USB-C (with adjustable headphone jack)
Ports & Speeds:
1x USB4: up to 96W charging, up to 6K 60Hz display output, up to 40 Gbps data transfer
1x HDMI: up to 4K 60Hz video output
1x USB-A 3.0: up to 5 Gbps data (does not support charging or CD drives)
1x SD + Micro SD card slots
1x Gigabit Ethernet (LAN 10/100/1000)
1x USB-C data port: up to 5 Gbps
1x 3.5mm audio jack

Certifications

FCC, CE, WEEE
